[GRADE B] AUDIOPHONICS PSU-HC Linear Regulated Power Supply 12V 5A 100VA

This regulated linear power supply 12V 5A with two jack outputs : 5.5/2.1 and 5.5/2.5, is dedicated for HiFi audio devices requiring a clean and neat power supply. It will reduce background noise, a lowering of the "ripple" harmful to the jitter on digital audio devices such as DAC or high fidelity streamers. The result is an improvement of the readability of the acute medium with a less digital sound, a contribution, a seating of the timbre, and a better dynamic bass.

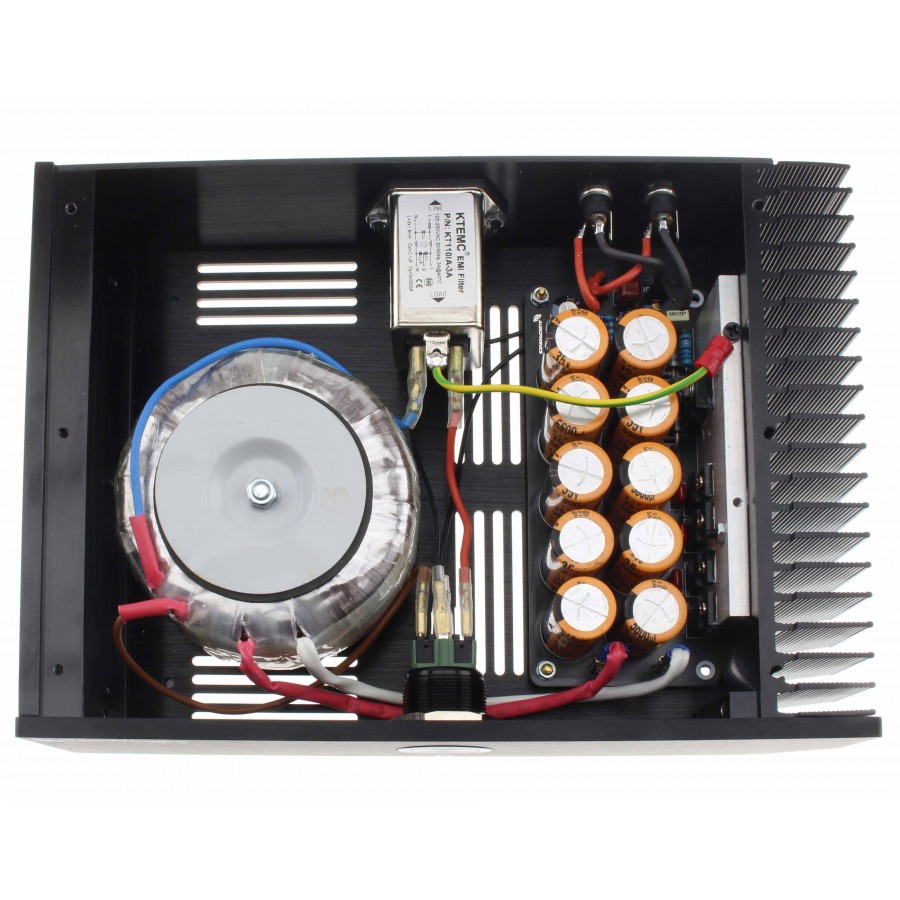

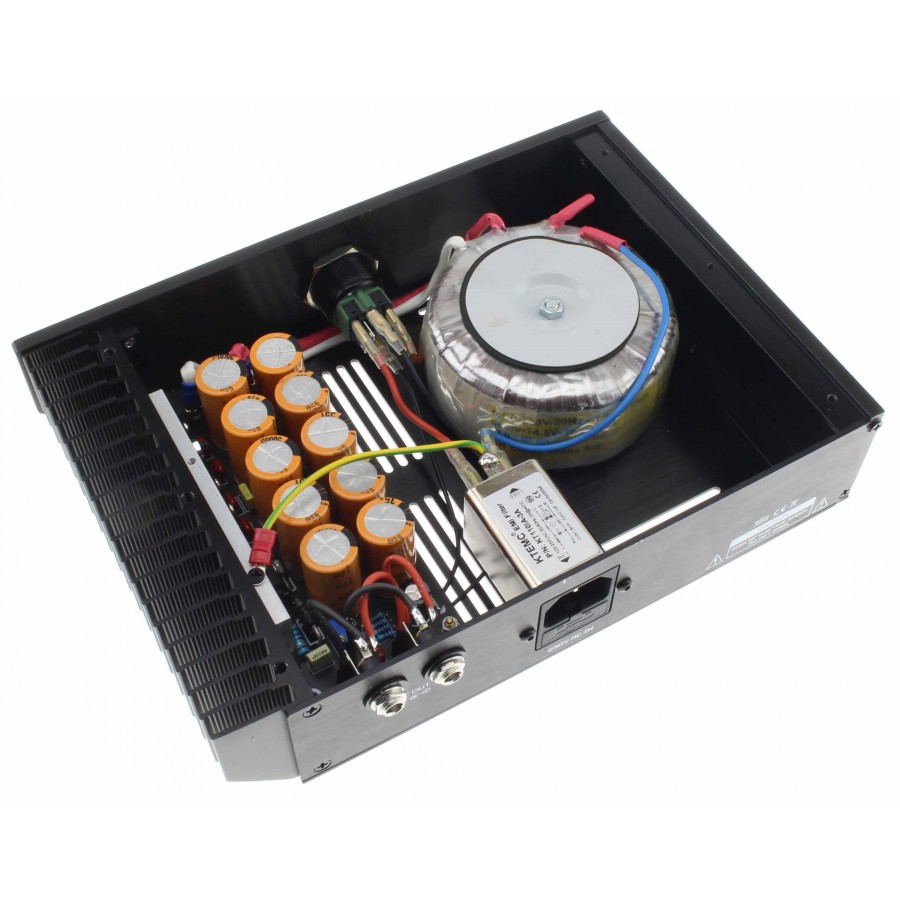

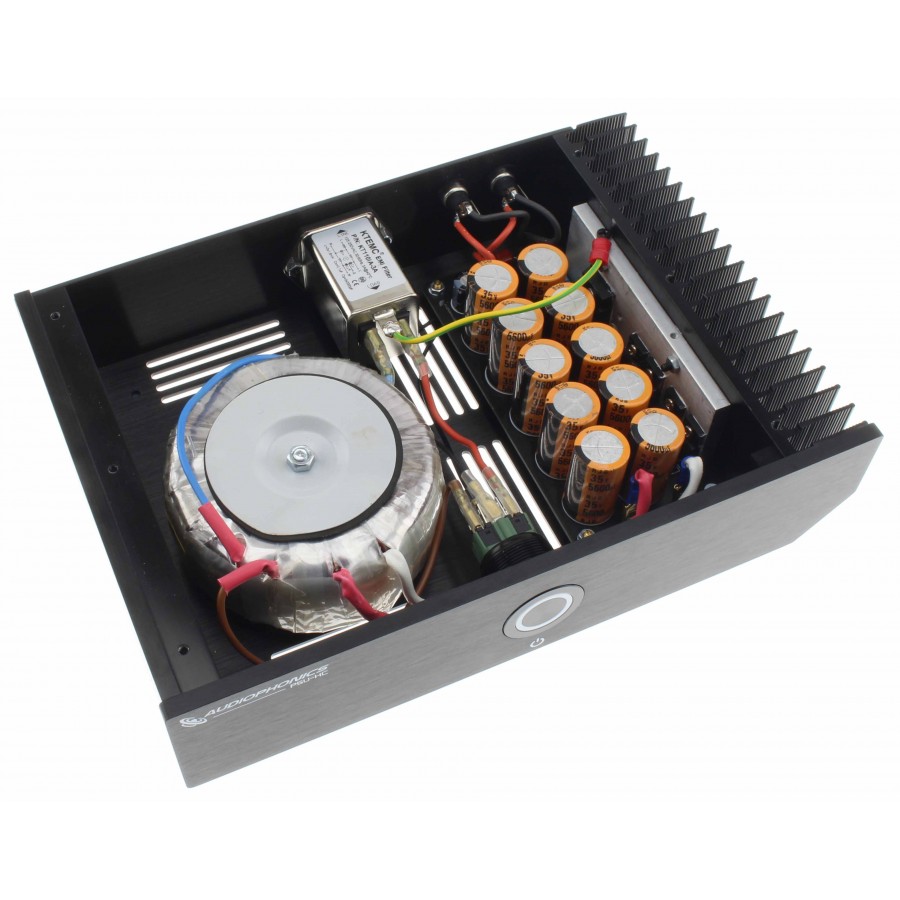

Thes components of this power supply are of first quality:

• Metal Resistors
• 10 capacitors filtering 6000µF/35V
• Voltage Regulator Micrel MIC2975BWT
• EMI RFI Filter

Thus, this regulated linear power supply developed by our team comes to compete with more expensive solutions.

Equipped with a 100% Aluminum case, two Jack DC 5.5 / 2.1 & 5.5 / 2.5, this power supply with an extremely stable 100VA transformer even under heavy load, and will allow you to make the best of the connected audio components requesting from 12V up to 5A (7.5A at peak) .

Features:

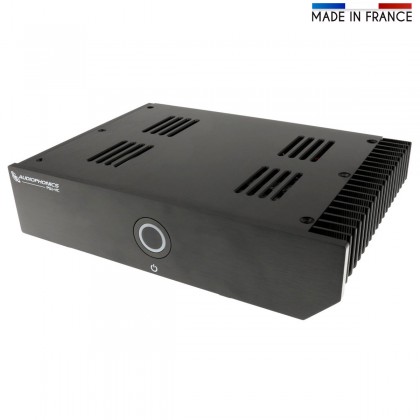

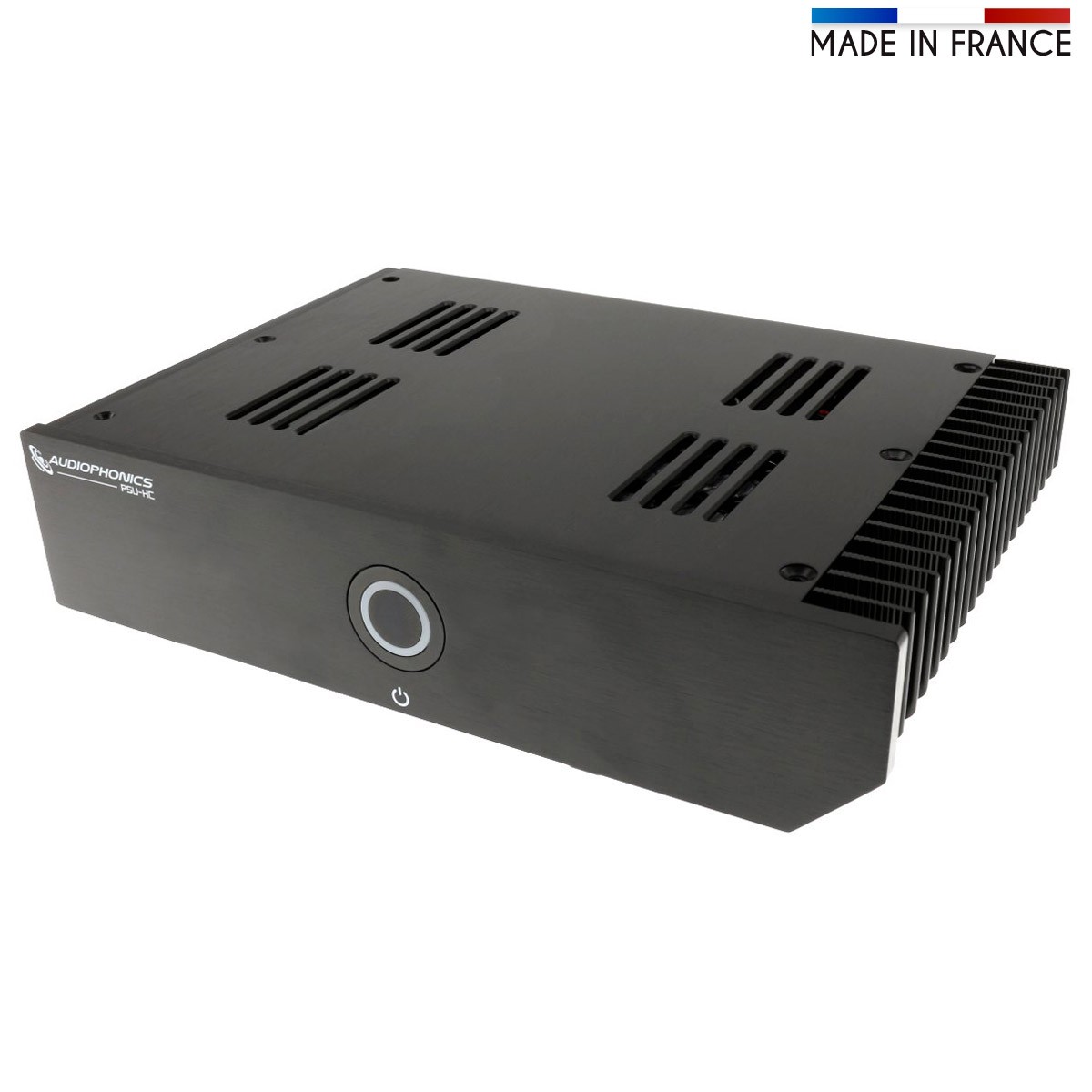

• Case: 100% Brushed and sanded aluminum
• Black Anodized
• Input Voltage: AC 220V
• Output Voltage / Current: 12V 5A DC (7.5A at peak)
• 1 output Jack DC 5.5 / 2.1mm
• 1 DC jack output 5.5 / 2.5mm
• IEC base with fuse holder
• Transformer 100VA
• Voltage Regulator MIC2975BWT

Dimensions and weight:

• 240x170x60mm
• Weight: 2.4kg
• DC Jack cable not included
• Mains cable and mains plug not included
