Refurbished product - Grade A
Slightly damaged cardboard box.
DAC ES9038Q2M Bluetooth aptX HD LDAC 32bit 768kHz DSD512

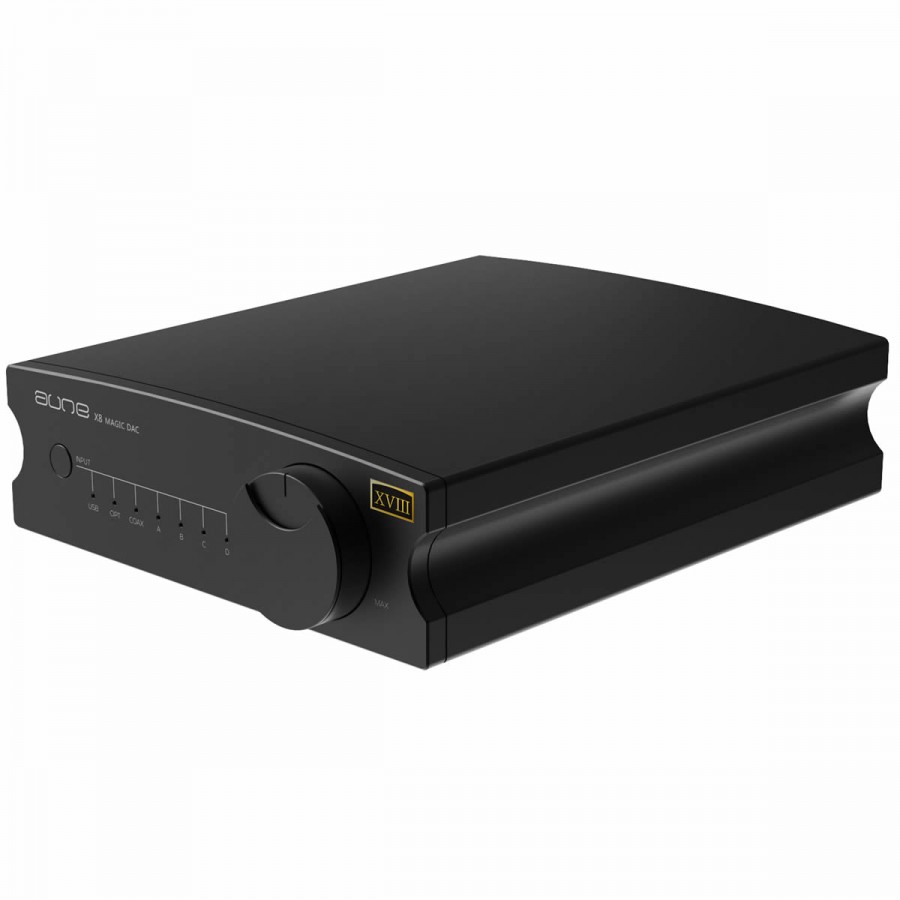

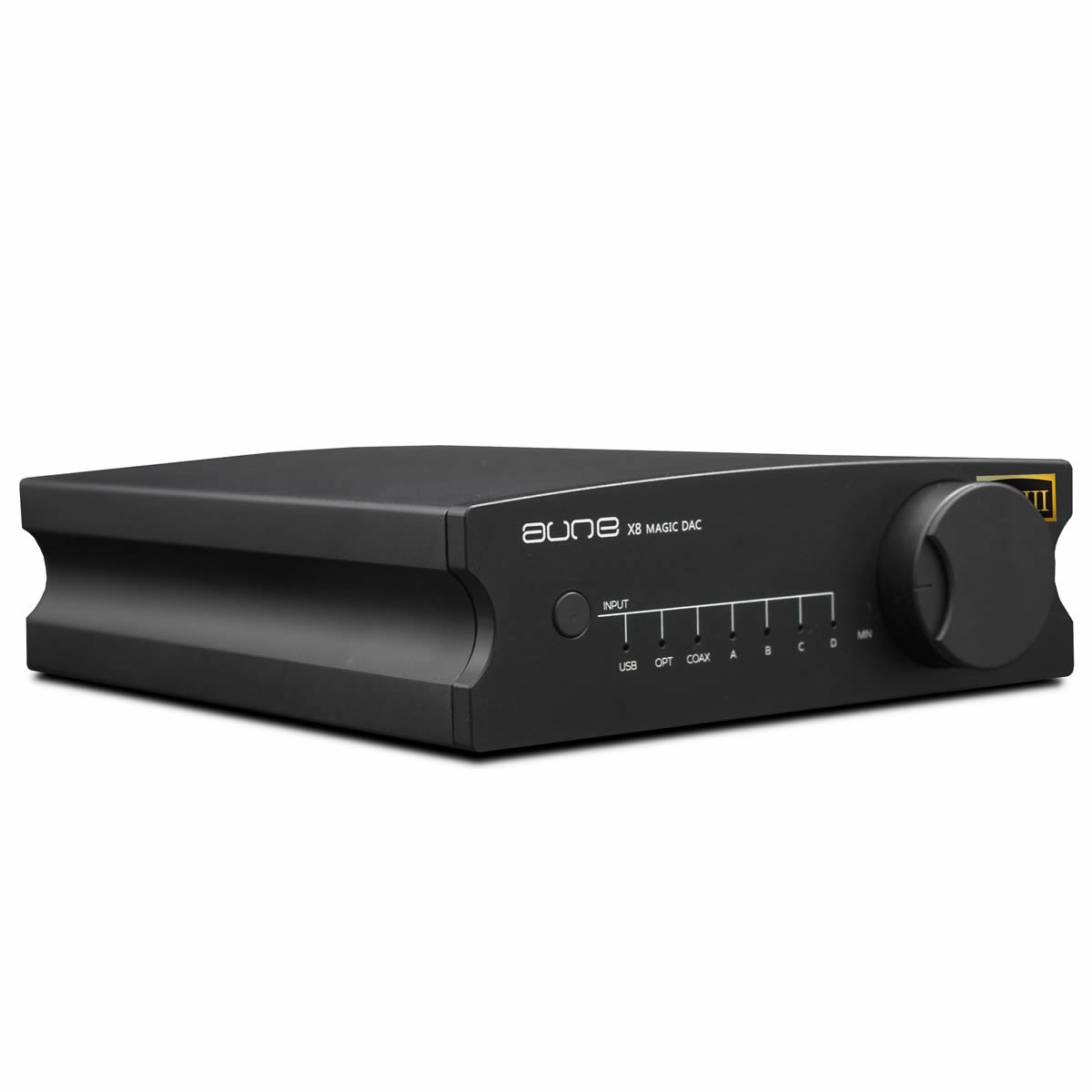

The X8 XVIII BT Magic DAC from Aune is a special edition of the DAC, on the occasion of the 18th anniversary of the brand. This one takes back the idea of the interchangeable AOP as well as the seven available filters, while adding a preamplified TRS balanced output. In addition, this BT version also benefits from Bluetooth connectivity with support for the high-resolution transmission codecs aptX HD and LDAC.
The X8 XVIII allows the decoding of high resolution audio streams up to PCM 32bit 768kHz and DSD512. Using an ESS ES9038Q2M, the X8 XVIII offers a precise, dynamic and detailed sound reproduction.
In addition to its USB, coaxial and optical inputs and its RCA pre-out and line outputs, the X8 XVIII is now equipped with a balanced preamplified output in 6.35mm TRS format.

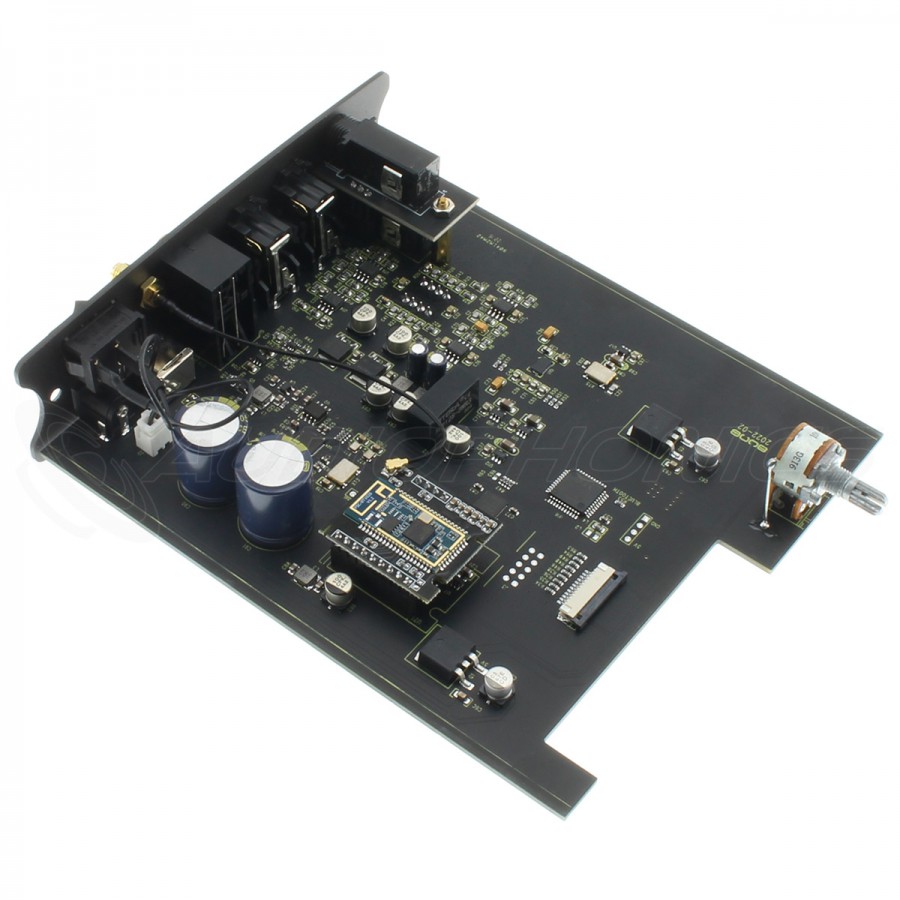

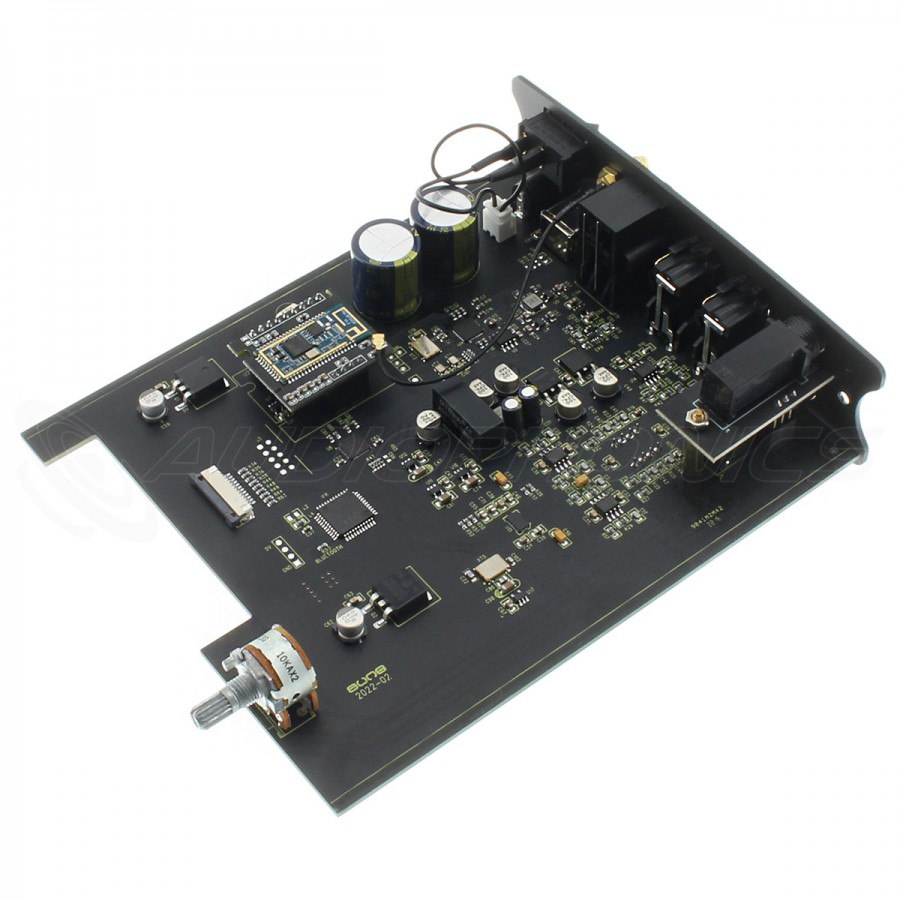

The Aune X8 XVIII takes the concept of the interchangeable AOP. This one is indeed mounted on DIP8 support and accessible under the device. You just have to replace it by another model to adapt the sound reproduction of the DAC according to your audio system and your listening.
The Aune X8 XVIII provides seven filters. Just like the interchangeable AOP, these allow you to adjust the sound signature of the device according to your desires.

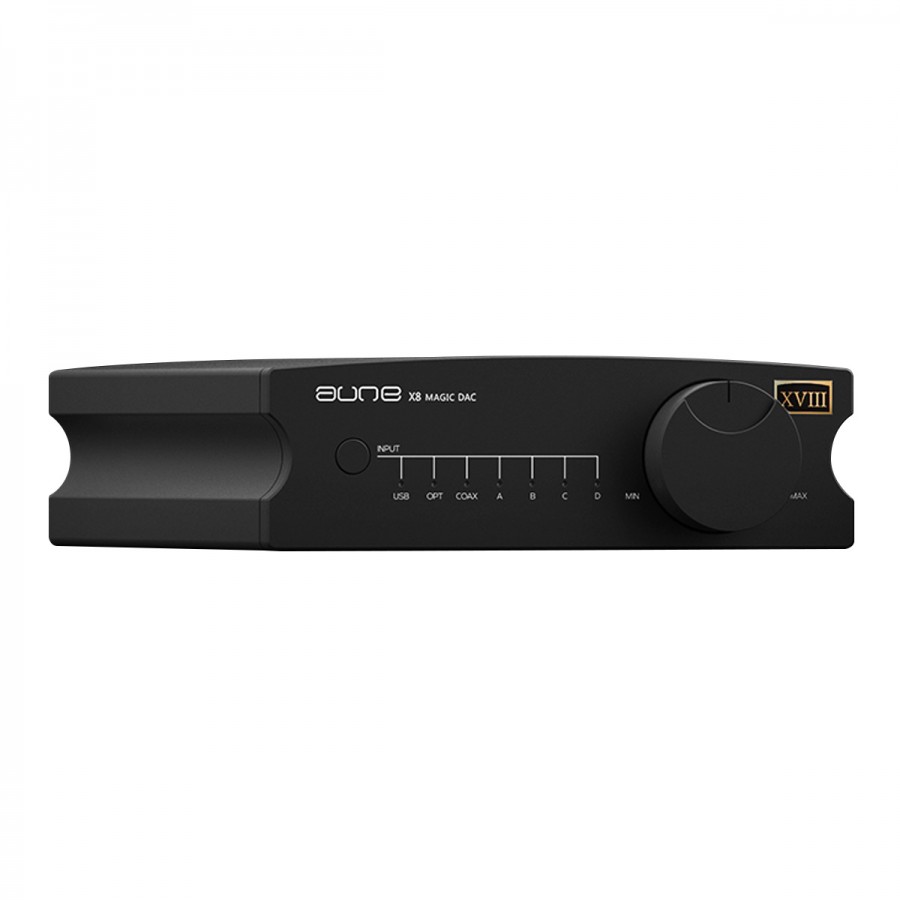

1 | Selection button |
2 | LED indicator |
3 | Volume button |
4 | Coaxial input |
5 | Bluetooth antenna |
6 | Power switch |
7 | Preamp outputs |
8 | Line out |
9 | Optical input |
10 | USB-B Input |
11 | Powre connector |
Specifications | |
---|---|
Product type | DAC |
DAC chip | ES9038Q2M |
Inputs | 1x Coaxial 1x Optical 1x USB-B Bluetooth |
Outputs | 1x Stereo RCA (Pre-Out) 1x Dual Jack 6.35mm TRS (Pre-Out) 1x Stereo RCA (Line out) |
Supported sampling rates | USB : PCM up to 32bit 768kHz, DSD up to DSD512 Coaxial : PCM up to 24bit 384kHz, DSD DoP up to DoP128 Optique : PCM up to 24bit 192kHz, DSD DoP up to DoP64 |
Output level | 2Vrms |
Frequency response | 20Hz ~ 20kHz ±0.5dB |
SNR | 121dB |
THD+N (1kHz) | 0.00027% |
General | |
---|---|
Color | Black |
Package | Aune X8 XVIII 1x Power adapter 1x USB Cable 1x Bluetooth antenna |
Input | USB |
Input | Optical |
Input | SPDIF |
Input | Bluetooth |
Output | Jack 6.35mm |
Output | RCA |
DAC / ADC Chip | ES9038Q2M |
Max sampling rate | 768kHz |
Max sampling rate | DSD512 |
Color | Black |
Networking | No |
Remote Control | N/A |
Refurbished Grade | Grade A |
