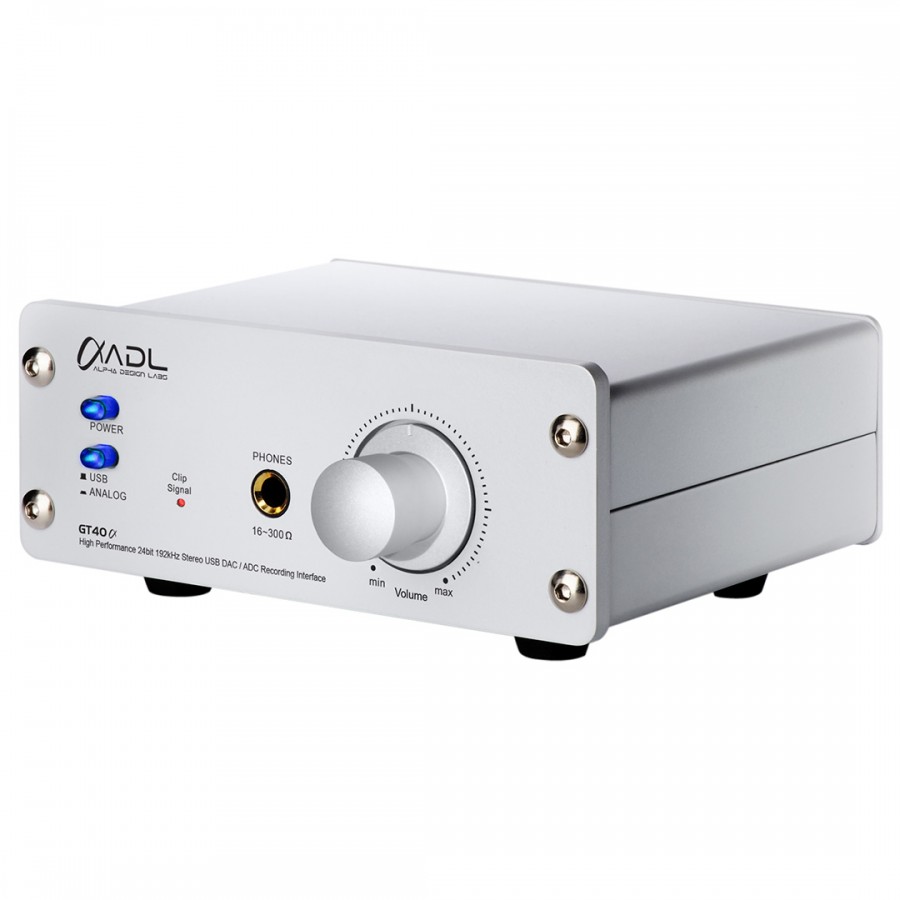

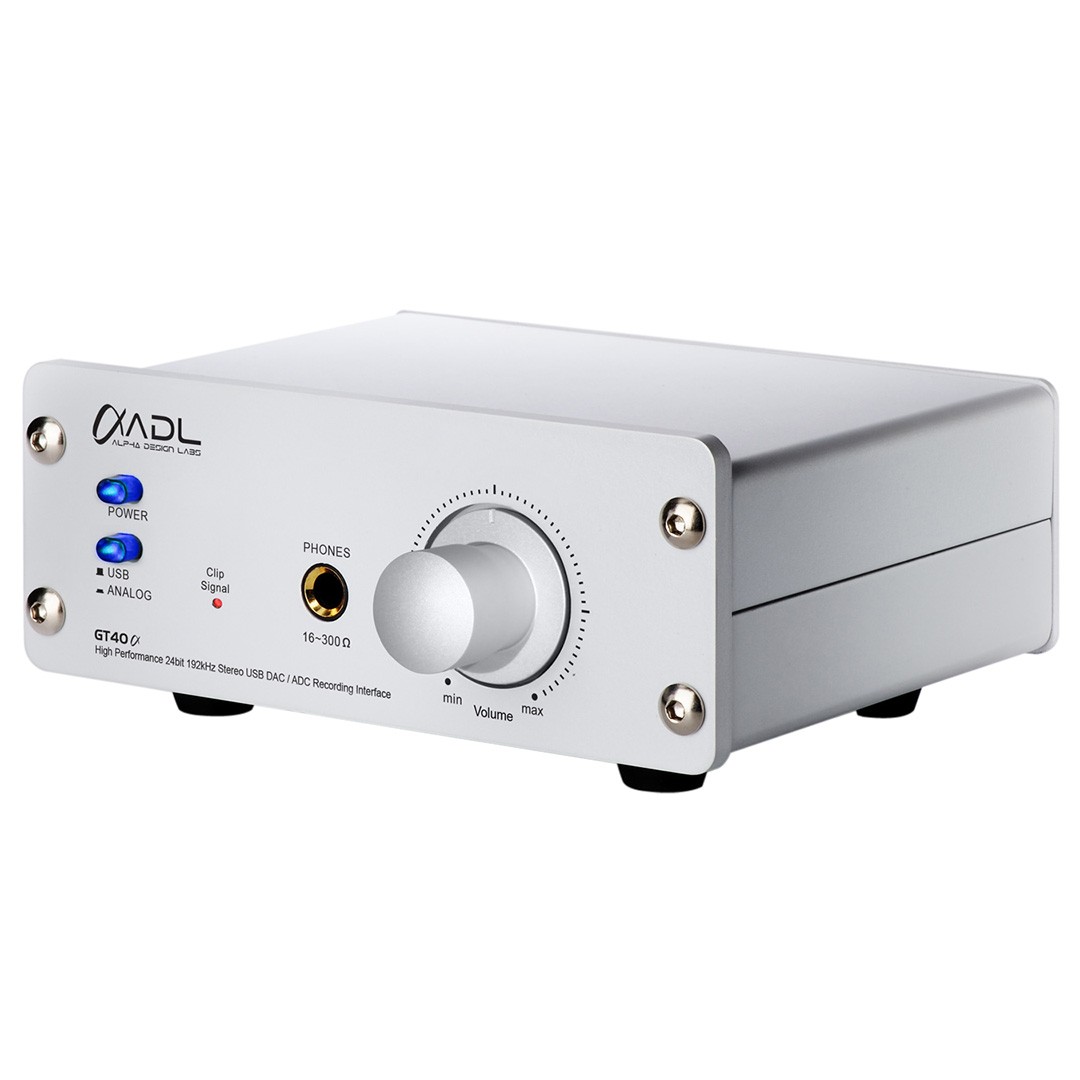

[GRADE B] FURUTECH ADL GT40a Alpha DAC / ADC CS4270 Phono Preamp Headphone Amplifier 24bit/192kHz

FURUTECH ADL GT40a Alpha DAC / ADC 24bit/192kHz Phono Preamp Headphone Amplifier
Refurbished product - Grade B

This excellent DAC / ADC converter is the evolution of the GT40 from the famous FURUTECH brand. This time, the GT40a Alpha is equipped with new converters capable of 24bit 192kHz playback via USB-B Class 2.0, as well as 24bit 192kHz analog recording and digitalization. It's a three-in-one device fulfilling the functions of DAC/ADC, MM/MC phono preamplifier/recorder and headphone amplifier.

No customer reviews yet, login to write a review.

By buying this product you get 48 loyalty points


Reference : 18881
New product

485,00 €tax incl.

404,17 € tax excl.
Including 0,30 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Refurbished product - Grade B

Slight impacts on the case.

FURUTECH ADL GT40a Alpha

 DAC / ADC CS4270 / Phono Preamp / Headphone Amplifier 24bit/192kHz

FURUTECH ADL GT40a Alpha DAC / ADC CS4270 Préampli Phono Amplificateur Casque 24bit/192kHz

This excellent DAC / ADC converter is the evolution of the GT40 from the famous FURUTECH brand.

This time, the GT40a Alpha is equipped with new converters capable of 24bit 192kHz playback via USB-B Class 2.0, as well as 24bit 192kHz analog recording and digitalization. In fact, it features a Cirrus Logic CS4270 DAC/ADC chip. It is thanks to this chip that it also converts analog signals to digital. The GT40a Alpha lets you record analog signals in high resolution or play digital files via a lot of streaming platform such as Deezer, Spotify, Youtube or Qobuz.

As a true audio multi-function device, it features an RIAA Phono preamplifier for turntables, as well as a Maxim MAX9722A headphone amplifier. The advantage here is that it can amplify signals from MM and MC vinyl turntables and digitize them via a computer.

For the GT40a's headphone amplifier stage, it has been upgraded compared to its ancestor the GT40 (higher current capacity): it can drive headphones from 16 to 300 ohms, and the line output level is now raised to 5Vrms to easily drive active loudspeakers or power supplies.

In terms of appearance and connectors, this is a top-of-the-range device, with gold-plated Teflon-insulated RCA connectors and a high-quality aluminum chassis.

All in all, the GT40a Alpha from the renowned Furutech brand is a three-in-one device, fulfilling the functions of DAC/ADC, phono preamplifier/recorder and headphone amplifier.

FURUTECH ADL GT40a Alpha DAC / ADC CS4270 Préampli Phono Amplificateur Casque 24bit/192kHz

Technical characteristics

Specifications
Product typeDAC/ADC
Phono preamplifier/recorder
Headphone amplifier
DAC/ADC chipCS4270
USB interfaceVT1736
USB transmission typeAsynchronous
Headphone amplification chipMaxim MAX9722A
OPA (DAC, ADC, Line In & Out)NJM5532
OPA (Phono)NJM2068
Phono compatibility MM and MC
Inputs1x Stereo RCA analog input (grounded)
1x USB-B digital input
Outputs1x Stereo RCA analog output
1x 6.35mm headphone output
Supported sample ratesUSB: 24bit, 32kHz / 44.1kHz / 48kHz / 88.2kHz / 96kHz / 186.4kHz / 192kHz
USB compatibilityWindows (avec driver)
Linux
Mac OS
Fréquency response20Hz ~ 20kHz ( +/- 0.5dB)
SNR>90dB (Sortie ligne)
Output level (Line)5Vrms
Input level (Line)Phono MC: 0.4mV
Phono MM: 4mV
Line: 2Vrms
Phono input impedancePhono MC : 10kΩ
Phono MC : 47kΩ
Phono gainPhono MC : 62.5dB
Phono MC : 48.5dB
Recommended headphone impedance16Ω-300Ω
Headphone output power94mW (16Ω)
110mW (32Ω)
98.6mW (56Ω
23mW (300Ω)
General
Power supply15V DC 0.8A (included)
Dimensions150 x 111 x 57mm
Weight650g
ColorSilver
Package1x FURUTECH ADL GT40a Alpha DAC / ADC / Phono Preamp / Headphone Amplifier
1x Mains cable

Data sheet
InputRCA
InputUSB
InputPhono
OutputUSB
OutputJack 6.35mm
OutputRCA
DAC / ADC ChipCS4270
Max sampling rate192kHz
ColorSilver
ClassClass D / T
NetworkingNo
Remote ControlNo
Refurbished GradeGrade B
