[GRADE B] GUSTARD A26 DAC 2x AK4499EX XMOS XU216 LAN UPnP Roon 32bit 768kHz DSD512 MQA Silver

GUSTARD A26 DAC 2x AK4499EX XMOS XU216 LAN UPnP Roon 32bit 768kHz DSD512 MQA Silver
Refurbished product - Grade B

Gustard unveils with the A26 a high-end DAC, as powerful as versatile. It is based on a high quality architecture, using in particular a dual AK4499EX DAC associated with a AK4191 modulator and a USB XMOS XU216 interface allowing a faithful and rich sound reproduction. It also supports high-resolution audio streams up to PCM 32bit 768kHz, DSD512 and MQA from its USB, I2S and LAN inputs.

No customer reviews yet, login to write a review.

By buying this product you get 149 loyalty points


Reference : 18820
Refurbished

1 499,00 €tax incl.

1 249,17 € tax excl.
Including 0,05 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Refurbished product - Grade B

Scratch on upper right front edge.

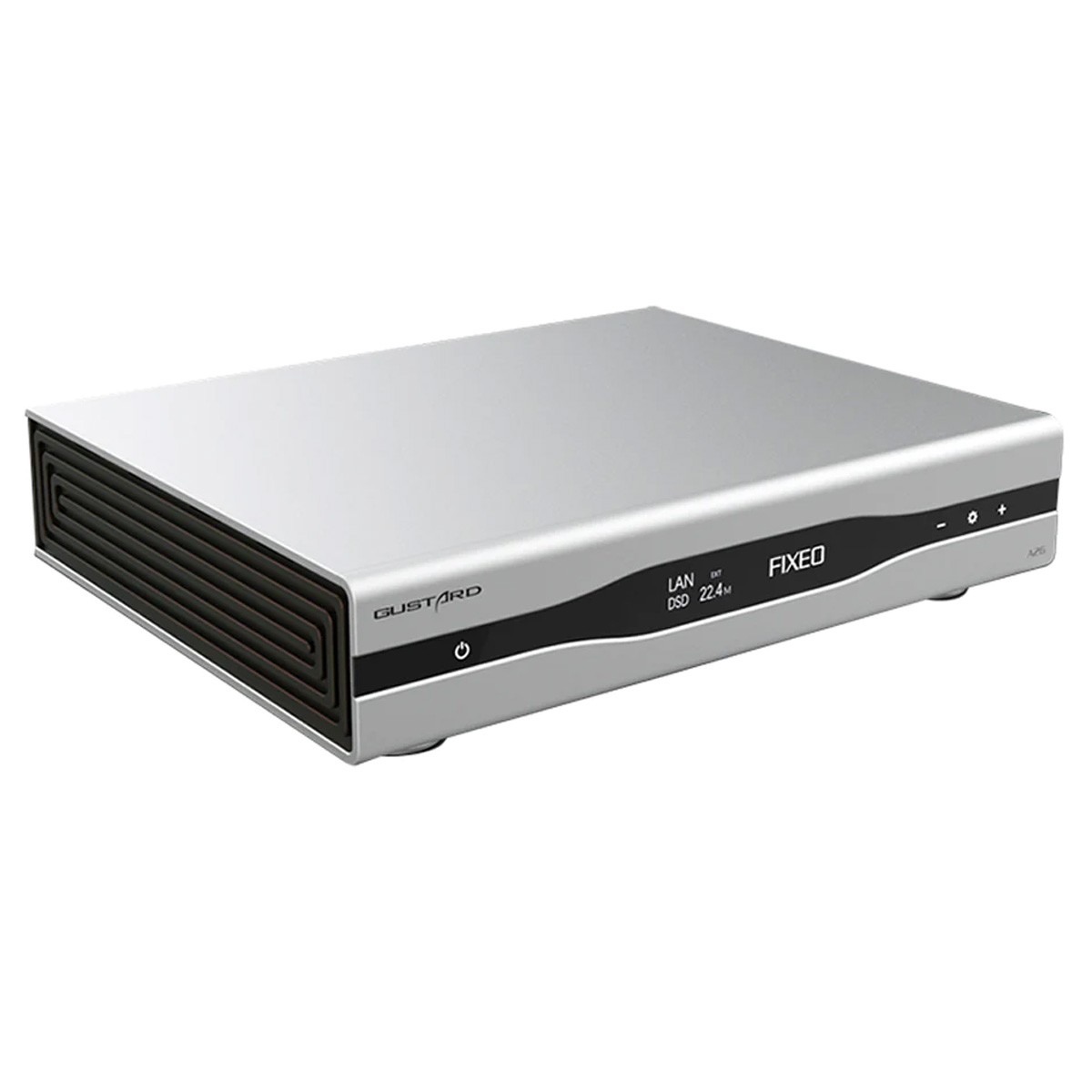

Gustard A26

DAC 2x AK4499EX XMOS XU216 LAN UPnP Roon 32bit 768kHz DSD512 MQA Silver

Gustard A26 DAC 2x AK4499EX XMOS XU216 LAN UPnP Roon 32bit 768kHz DSD512 MQA Argent

Gustard unveils with the A26 a high-end DAC, as powerful as versatile. It is based on a high quality architecture, using in particular a dual AK4499EX DAC associated with a AK4191 modulator and a USB XMOS XU216 interface allowing a faithful and rich sound reproduction. It also supports high-resolution audio streams up to PCM 32bit 768kHz, DSD512 and MQA from its USB, I2S and LAN inputs.

Gustard A26 DAC 2x AK4499EX XMOS XU216 LAN UPnP Roon 32bit 768kHz DSD512 MQA
Gustard A26 DAC 2x AK4499EX XMOS XU216 LAN UPnP Roon 32bit 768kHz DSD512 MQA

AK4499EX dual DAC

With its two AKM AK4499EX DAC chips and AK4191 digital modulator, the Gustard A26 provides high performance decoding for rich, detailed and accurate sound reproduction. In addition, each channel has its own power supply, which considerably reduces interference that could alter the audio signal.

Streamer / Renderer

The Gustard A26 integrates a network layer with its RJ45 Ethernet input and support for UPnP, Roon Bridge and HQPlayer NAA protocols. It can therefore be used as a streamer and allows you to access your files stored on your network, on a computer or a NAS for example.

K2 Clock

In order to provide an accurate clock signal, the A26 features the ultra-low noise K2 module. This ensures that the DAC is able to achieve a very low jitter level for the most transparent sound possible.

The A26 also provides a 10M BNC input allowing it to be used in conjunction with an external clock generator.

Gustard A26 DAC 2x AK4499EX XMOS XU216 LAN UPnP Roon 32bit 768kHz DSD512 MQA

XMOS XU216

The USB input of the Gustard A26 is associated with an XMOS XU216 interface. This allows it to support high resolution audio streams, up to PCM 32bit 768kHz and DSD512. It also supports MQA files.

Gustard A26 DAC 2x AK4499EX XMOS XU216 LAN UPnP Roon 32bit 768kHz DSD512 MQA

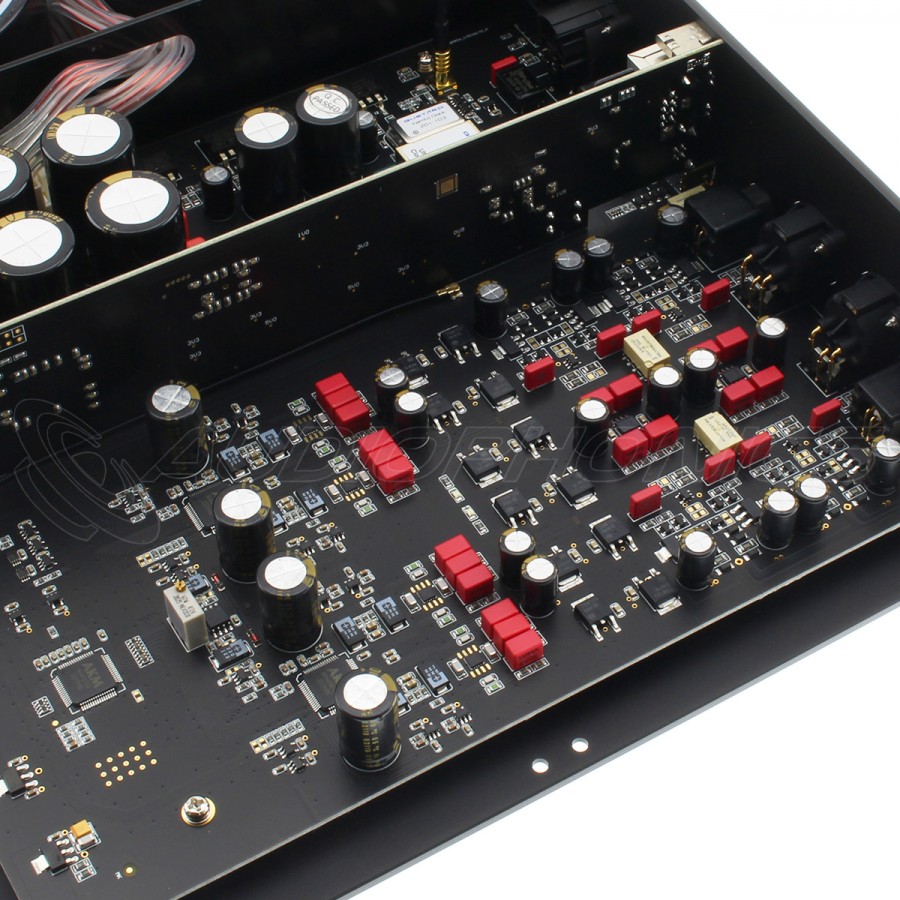

I/V conversion

The Gustard A26 features an I/V conversion stage using multiple OPAs and transistors. This provides a precise and powerful output.

LPF

An LPF using discrete components was specifically designed to accompany the AK4499EX DACs. This was then carefully optimized to provide the best possible sonic performance.

Gustard A26 DAC 2x AK4499EX XMOS XU216 LAN UPnP Roon 32bit 768kHz DSD512 MQA
Gustard A26 DAC 2x AK4499EX XMOS XU216 LAN UPnP Roon 32bit 768kHz DSD512 MQA

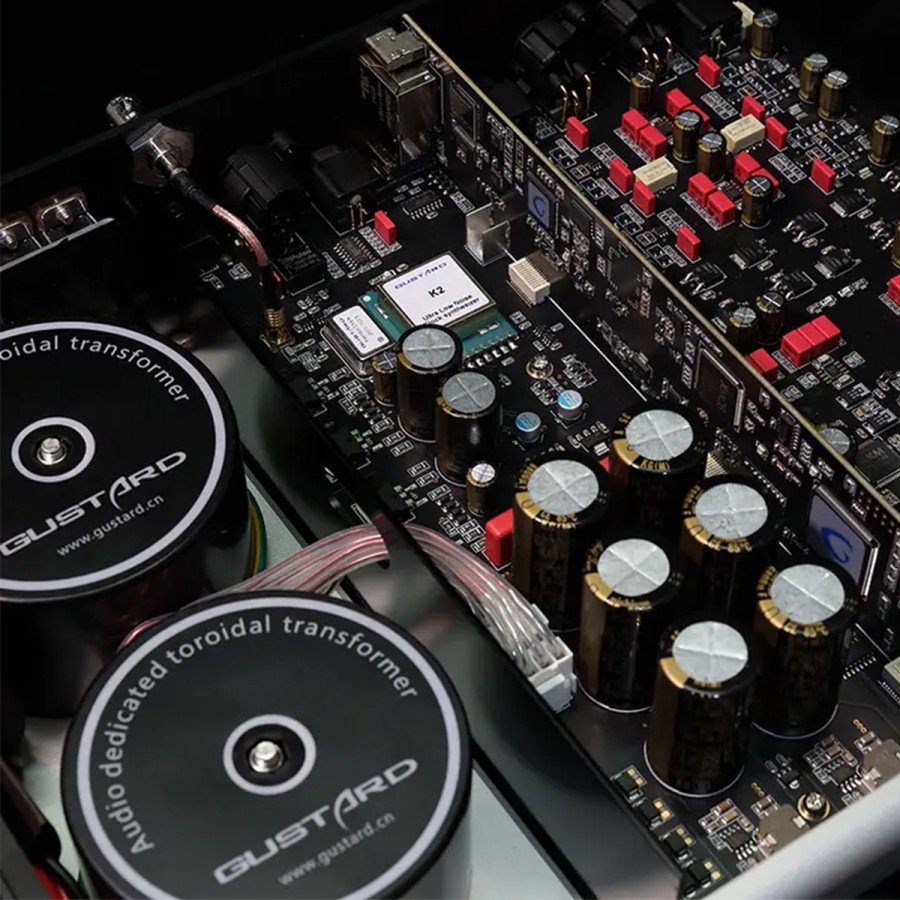

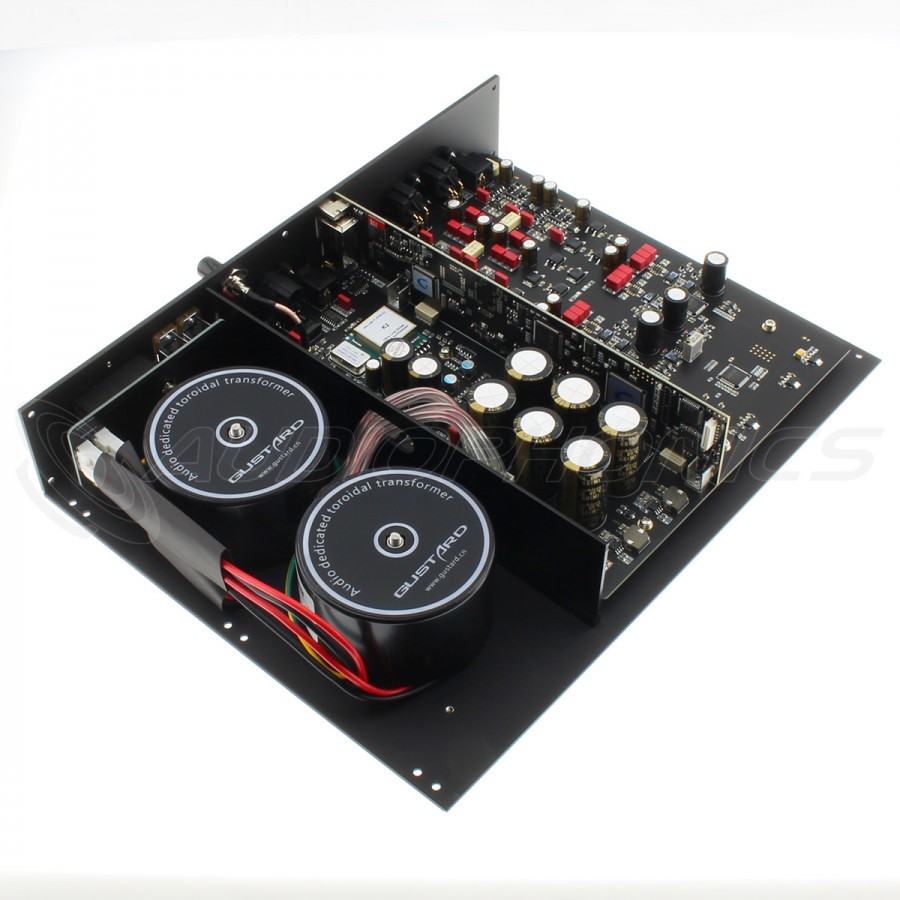

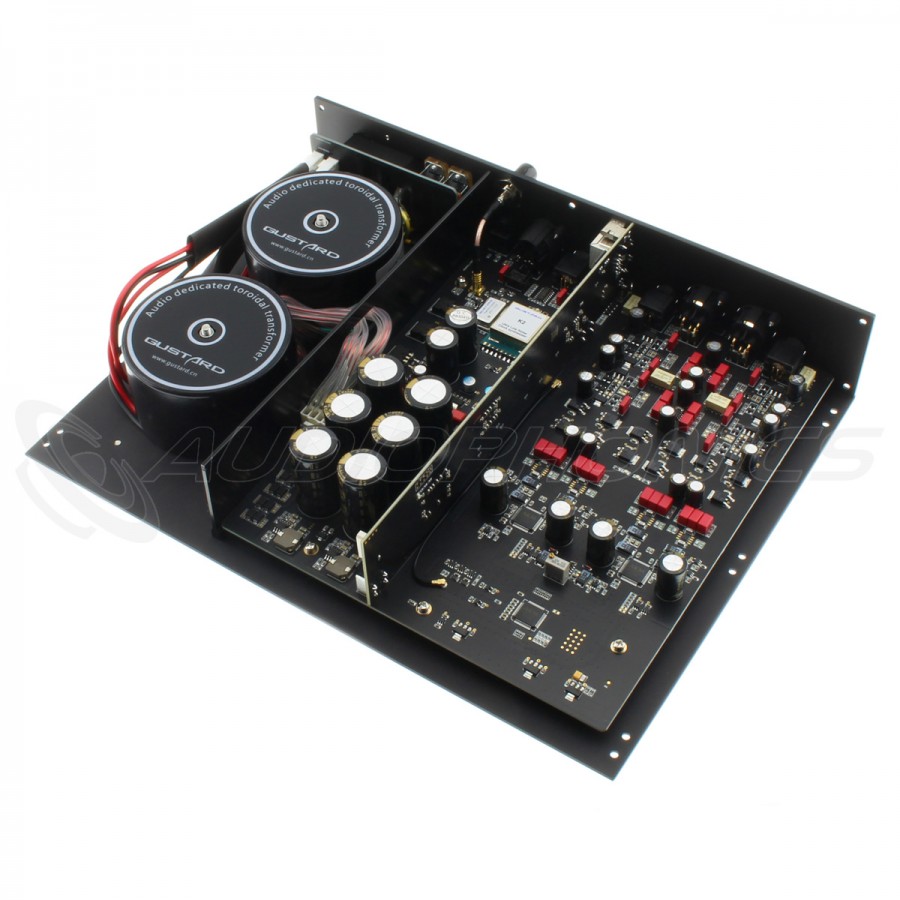

A customized power supply stage

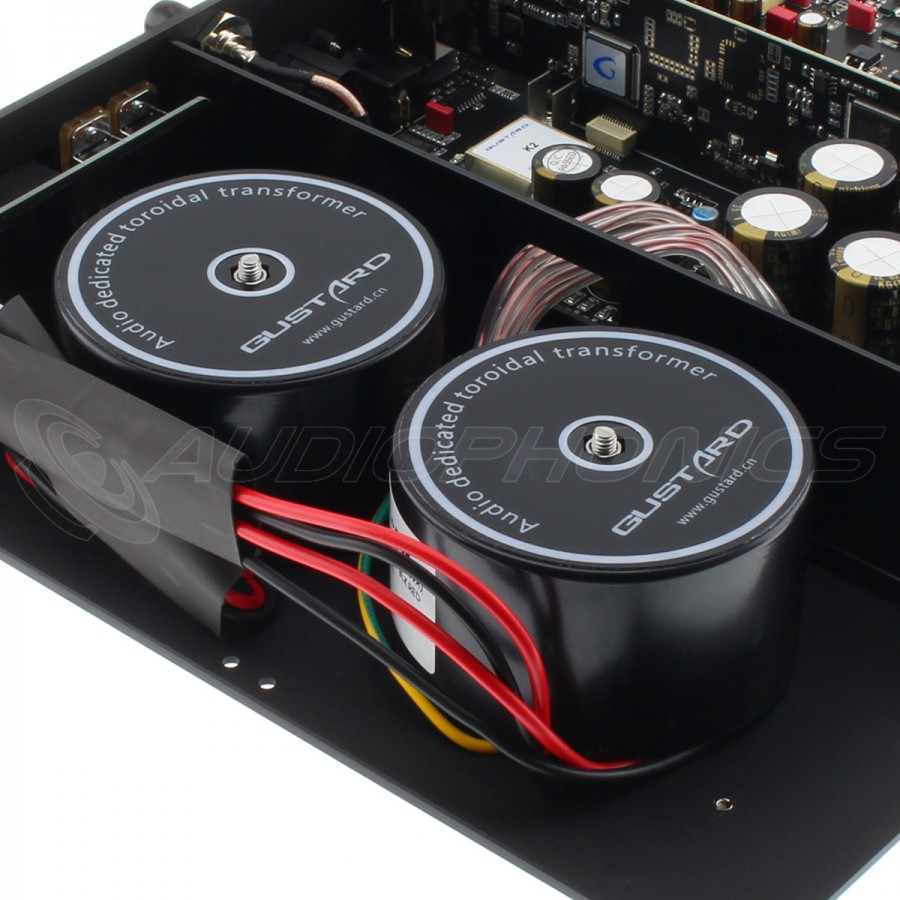

The A26's power supply stage includes two toroidal transformers to provide independent power supply to the analog and digital circuits. It also uses voltage regulators and filter capacitors, ensuring a clean and stable signal.

MQA

The Gustard A26 can decode and play MQA (Master Quality Authenticated) files. These ensure a sound quality as close as possible to the original studio recording.

Gustard A26 DAC 2x AK4499EX XMOS XU216 LAN UPnP Roon 32bit 768kHz DSD512 MQA

Technical characteristics

Specifications
Product typeDAC

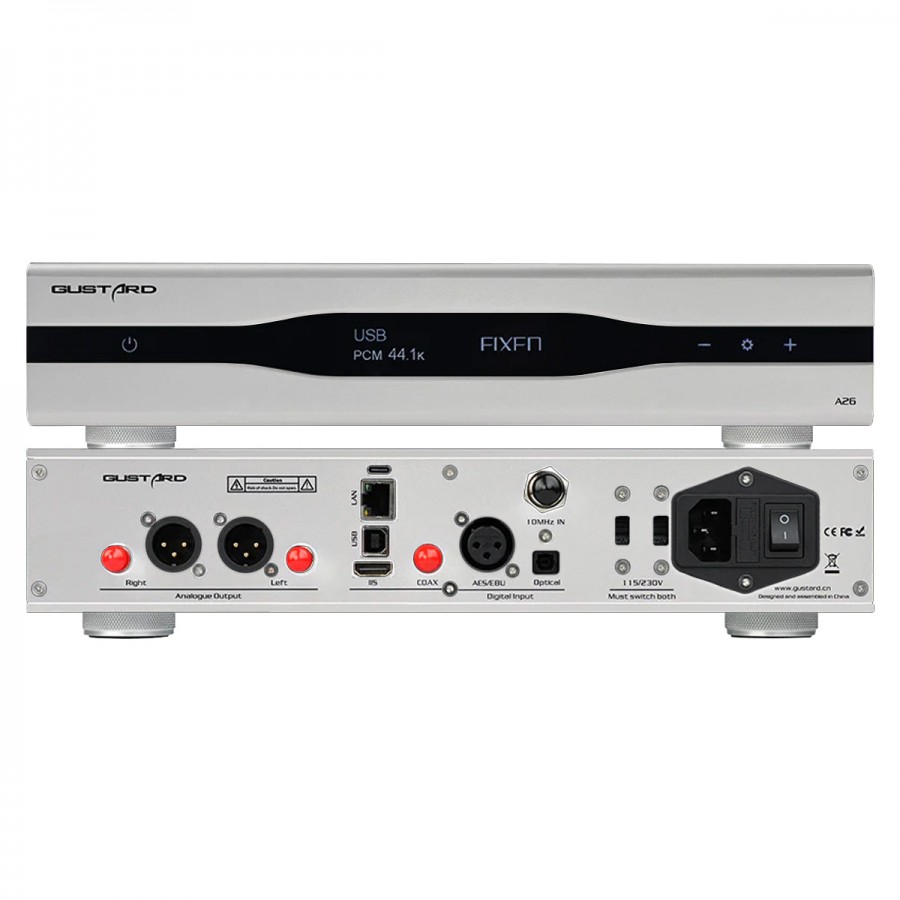

Inputs1* Optical Toslink
1* AES/EBU
1* Coaxial
1* I2S (HDMI)
1* USB-B
1* RJ45 Ethernet
1* BNC clock input (50Ω)
Outputs1* Single-ended stereo RCA
1* Balanced stereo XLR
DAC chips2* AKM AK4499EX
Digital modulatorAK4191
USB interfaceXMOS XU216
Supported sampling ratesUSB / I2S / LAN: PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256, MQA
AES / Optique / Coaxial: PCM up to 24bit 192kHz, DSD DoP up to DSD64
Network protocolsUPnP
Roon Bridge
HQPlayer NAA
Frequency response20Hz - 20kHz ±0.2dB
Dynamic range> 127dB
SNR> 126dB
Crosstalk-139dB @ 1kHz
THD+N≤ 0.0001% @ 1kHz
IMD≈ 0.001% @ -1dBFS
Output levelRCA : 2.5Vrms (fixed volume) 100Ω
XLR : 5Vrms (fixed volume) 100Ω
General
Supply voltage (switchable)115V/230V AC 50Hz/60Hz
Consumption< 30W
Dimensions (L*P*H)330*260*65mm
Housing materialAluminum
ColorSilver

Pinout I2S

Gustard A26 DAC 2x AK4499EX XMOS XU216 LAN UPnP Roon 32bit 768kHz DSD512 MQA

Data sheet
InputSPDIF
InputRJ45
InputAES/EBU
InputUSB
InputOptical
InputI2S via HDMI
InputClock (BNC)
OutputXLR
OutputRCA
DAC / ADC ChipAK4499EX
Max sampling rate768kHz
Max sampling rateDSD512
Max sampling rateMQA
ColorSilver
NetworkingYes

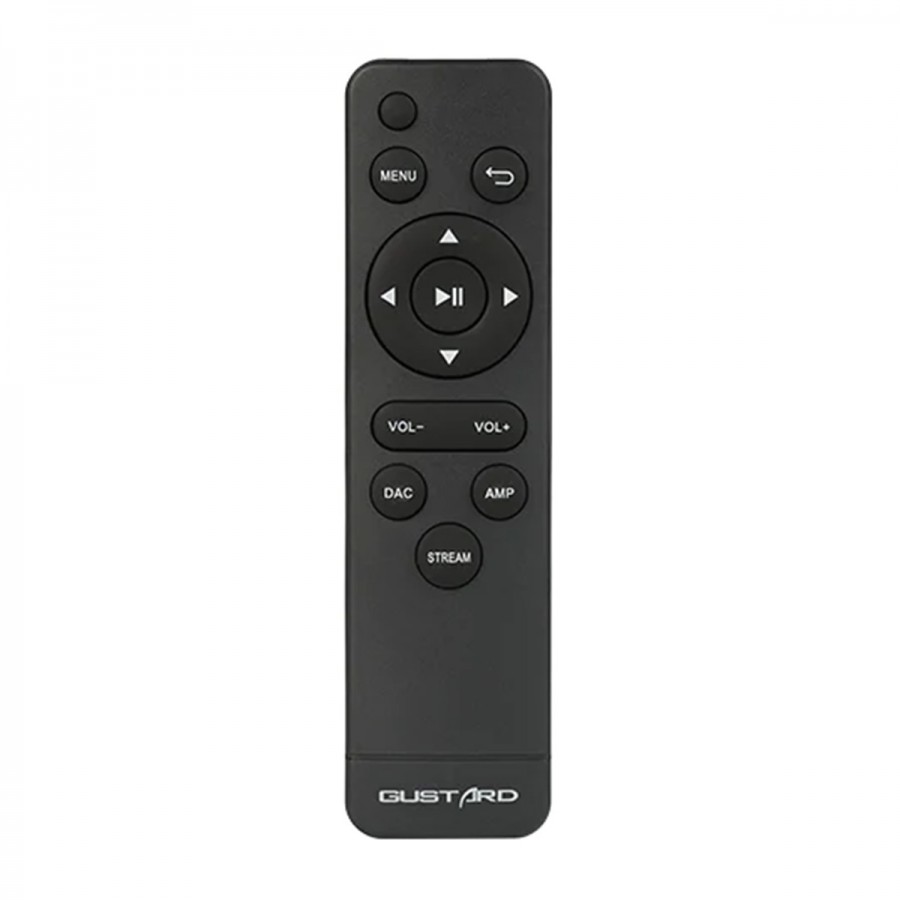

Remote ControlYes
Refurbished GradeGrade B
