[GRADE A] IBASSO DX180 Digital Audio Player

IBASSO DX180 Digital Audio Player DAP 4x CS43131 Bluetooth 5.0 Android 13 Green
-9%
Refurbished product - Grade A

The DX180 from iBasso is an audiophile DAP of excellent quality. It benefits from a meticulous design incorporating four CS43131 DAC chips, delivering faithful, accurate and dynamic sound reproduction with a sampling rate of up to DSD512 and PCM 32 bit 768kHz. It's also packed with practical features and uses an Android-based operating system that's intuitive, fast and flexible.

No customer reviews yet, login to write a review.


Reduced price!
Reference : 19760
Refurbished
Limited special offer

529,00 €tax incl.

-9%

479,00 €tax incl.

399,17 € tax excl.
Including 0,05 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Refurbished product - Grade A

Very slight traces of use (bubbles on the original protective screen)

IBASSO DX180 Digital Audio Player DAP 4x CS43131 Bluetooth 5.0 Android 13 Green

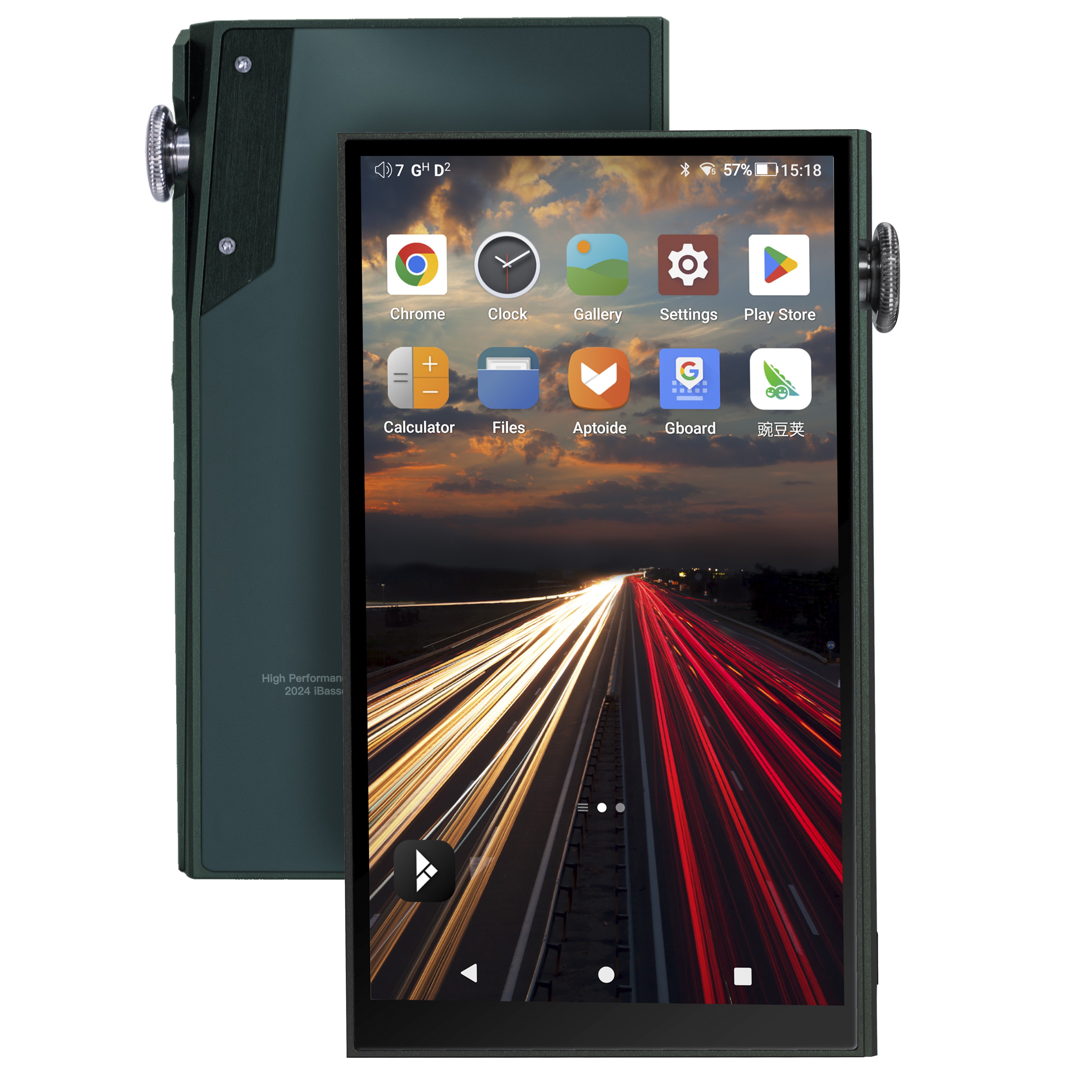

IBASSO DX180 : Front view

The DX180 from iBasso is an audiophile DAP of excellent quality. It benefits from a meticulous design incorporating four CS43131 DAC chips, delivering faithful, accurate and dynamic sound reproduction with a sampling rate of up to DSD512 and PCM 32 bit 768kHz. It's also packed with practical features and uses an Android-based operating system that's intuitive, fast and flexible.

IBASSO DX180 : summary of key features
IBASSO DX180 : CS43131 DAC chip

iBasso DX180 : CS43131 DAC chip and FPGA-MASTER 2.0 controller

The DX180 uses a Cirrus Logic CS43131 DAC chip, offering an impressive dynamic range of 130dB and an incredibly low harmonic distortion of -115dB. This chip is mounted in a matrix of 4, working in unison to exceed their individual theoretical technical limits. As a result, the rate of harmonic distortion measured in this configuration is -121 dB, offering crystal-clear, flawless reproduction. This is made possible by the FPGA-MASTER 2.0 controller developed by the brand, which synchronises all the data from the DAC chips using two internal femtosecond clocks and produces the FIR filter from this data.

iBasso DX180 : Incredibly low noise levels

The DX180 boasts an impressive noise figure of just 0.79µV. Even at the highest volume and with significant gain, the noise floor of the balanced port is just 1.1V. With a noise floor of -120dB on the line output and -116dB on the 4.4mm jack output, you're guaranteed the purest possible sound reproduction of your tracks.

IBASSO DX180 : in use
IBASSO DX180 : Qualcomm Snapdragon 665 SoC

iBasso DX180 : SoC Qualcomm Snapdragon 665

The DX180 uses the Qualcomm Snapdragon 665 SoC, with its 8-core architecture and 11nm etch fineness to reduce heat generation and improve stability, to ensure smooth, enjoyable browsing, and furthermore supports Wi-Fi and Bluetooth 5.0. Thanks to Micro SD card expansion, the DX180 can offer up to 2TB of additional storage space.

iBasso DX180 : Android 13

The DX180 is equipped with Android 13, allowing you to freely install streaming applications and enjoy the convenience that Android offers. The DX180 bypasses SRC at the system level, so whether it's the Mango player or third-party streaming apps, you can enjoy ‘Non-SRC’ at the system level and enjoy your music files in high resolution.

IBASSO DX180 : examples of multiple screens

Technical characteristics

Specifications
Product typeDigital audio player (DAP)
OSAndroid 13
DAC Chip4x CS43131
Outputs1x Balanced 4.4 mm jack headphone / line output
1x Single-ended 3.5 mm jack headphone / line / coaxial output
1x USB-C OTG output
TouchscreenSharp 5"
1080*1920px
Supported sampling ratesNative DSD up to DSD512
PCM up to 32 bit 768kHz
SoCQualcomm Snapdragon 665
RAM4Go
ROM (storage)128Go
Micro SD slotSDHC & SDXC support up to 2To
WiFi802.11ac (2.4GHz/5GHz)
Bluetooth version5.0
Quick chargePD3.0
QC3.0
Supported file formatsAPE, FLAC, WAV, WMA, AAC, ALAC, AIFF, OGG, MP3, DFF, DSF, DXD, DST
Play timeLow gain : 15.5h
Hight gain : 13h
Line out : 30h
BALANCED 4.4MM HEADPHONE OUTPUT MEASURES
Maximum output levelLow gain : 4Vrms
Hight gain : 6Vrms
Power output690mW + 690mW @ 32Ω THD+N <0.1%
Frequency response10Hz - 75kHz ±1dB
Signal-to-noise ratio (SNR)133dB
Dynamic range133dB
Total harmonic distortion more noise (THD+N)-121dB
Crosstalk-144dB
Noise floor<1.1µV
Output impedance1.1Ω
SINGLE-ENDED 3.5 MM HEADPHONE OUTPUT MEASURES
Maximum output levelLow gain : 2Vrms
Hight gain : 3Vrms
Power output281mW + 281mW @ 32Ω THD+N<0.1%
525mW + 525mW @ 16Ω THD+N<0.1%
Frequency response10Hz - 75kHz ±1dB
Signal-to-noise ratio (SNR)127dB
Dynamic range127dB
Total harmonic distortion more noise (THD+N)-116dB
Crosstalk-118dB
Output impedance<1.1µV
Output impedance0.6Ω
BALANCED 4.4MM JACK LINE OUT MEASURES
Maximum output level4Vrms
Frequency response10Hz - 75kHz ±1dB
Signal-to-noise ratio (SNR)133dB
Dynamic range133dB
Total harmonic distortion more noise (THD+N)-121dB
Crosstalk-130dB
SINGLE-ENDED 3.5 MM JACK LINE-OUT MEASURES
Maximum output level2Vrms
Frequency response10Hz - 75kHz ±1dB
Signal-to-noise ratio (SNR)125dB
Dynamic range125dB
Total harmonic distortion more noise (THD+N)-112dB
Crosstalk-115dB
General
Dimensions123 x 75 x 16 mm
Weight206g
ColorGreen

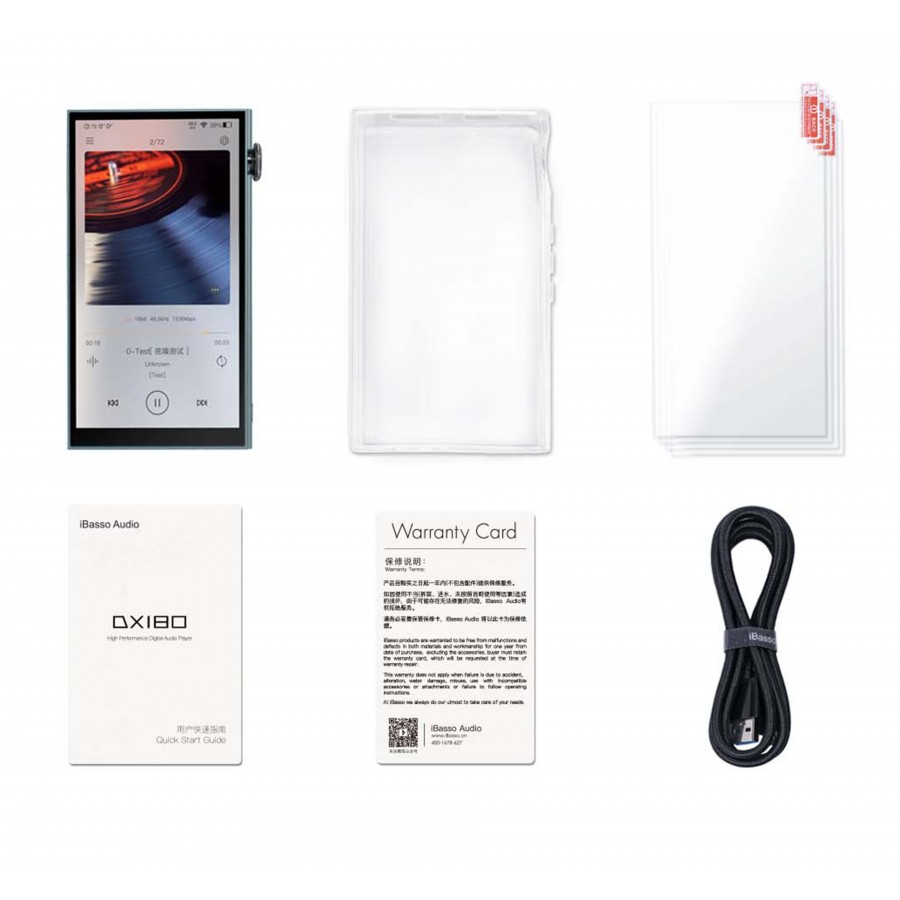

Package1x iBasso DX180
1x USB-C cable
1x TPU case
Protective screens

Data sheet
InputBluetooth
InputWiFi
InputMicro SD
OutputJack 4.4mm
OutputJack 3.5mm
OutputUSB
DAC / ADC ChipCS43131
Max sampling rate768kHz
Max sampling rateDSD512
ColorGreen
Refurbished GradeGrade A
