[GRADE A] MATRIX MINI-I 4 DAC ES9039Q2M Streamer DLNA Airplay 24bit/768kHz DSD512 MQA

MATRIX MINI-I 4 DAC ES9039Q2M Streamer DLNA Airplay Roon Ready 768 kHz DSD512 MQA
-6%
Refurbished product - Grade A

The successor to the Mini-I 3, the Mini-I 4 is a versatile, compact device offering the functions of DAC, and, the latest addition to the Mini-I series, network player. Matrix has upgraded the DAC chip in the Mini-I 4 to an ES9039Q2M. On the network player side, this device supports numerous broadcast protocols and incorporates Matrix Audio's own MA player interface. It features a 3.46" touchscreen with high-resolution display, and an HDMI ARC port for a Hi-Fi TV experience.

No customer reviews yet, login to write a review.


Reduced price!
Reference : 19203
Refurbished
Limited special offer

699,00 €tax incl.

-6%

659,00 €tax incl.

549,17 € tax excl.
Including 0,05 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Refurbished product - Grade A

Product in perfect condition. Original packaging carton missing.

MATRIX MINI-I 4

DAC ES9039Q2M Streamer DLNA Airplay 24bit/768kHz DSD512 MQA

MATRIX MINI-I 4 DAC ES9039Q2M Streamer DLNA Airplay Roon Ready 768 kHz DSD512 MQA

Successor to the Mini-I 3, the Mini-I 4 is a versatile, compact device offering the functions of DAC, and the latest addition to the Mini-I series, network player.

Matrix has updated the DAC chip in the Mini-I 4, choosing to integrate one of ESS Technologie's latest DAC chips, the ES9039Q2M. On the network player side, this device supports numerous broadcast protocols and incorporates Matrix Audio's own MA player interface. It can also be controlled via the MA Remote App.

In terms of ergonomics and design, the Mini-I 4 features a 3.46" touch screen with high-resolution display, facilitating control operations. But the great novelty of the 4 version is the addition of an HDMI ARC port for a Hi-Fi TV experience.

ES9039Q2M DAC

Thanks to its ES9039Q2M DAC chip using Hyperstream IV technology and taking advantage of the advanced Sabre HiFi architecture, the Mini-I 4 is able to support PCM 24bit 768kHz, DSD up to DSD512 and MQA streams via its USB-B digital input. It also benefits from a Quad cortex-A55 2.0 GHz CPU

MATRIX MINI-I 4 DAC ES9039Q2M Streamer DLNA Airplay Roon Ready 768 kHz DSD512 MQA

Fonction lecteur réseau

As a true network player, the Mini-I 4 allows you to enjoy a wide range of streaming services, as well as audio streams via a LAN connection (Gigabit Ethernet 1000Mbps). With the brand's own MA player, DLNA/UPnP, Airplay, spotify connect or Tidal connect protocols make high-resolution streaming accessible.
Local music playback is also possible via a USB storage device thanks to the USB-C port (5V/1.5A, working with devices compliant with the USB mass storage standard and the FAT, FAT32, exFAT and NTFS formats) or local NAS network.

MATRIX MINI-I 4 DAC ES9039Q2M Streamer DLNA Airplay Roon Ready 768 kHz DSD512 MQA

MA Remote App

With your smatphone or tablet, the MA remote app lets you connect to Tidal, Qobuz and HighRes Audio accounts for a high-quality streaming experience. The Mini-I 4 also supports vTuner internet radio and Radio paradise via this app and an internet connection.

MATRIX MINI-I 4 DAC ES9039Q2M Streamer DLNA Airplay Roon Ready 768 kHz DSD512 MQA

Extended connectivity

The Mini-I 4 features numerous digital inputs, as well as an analog stereo RCA input for additional audio sources such as a turntable. As for outputs, it features a stereo RCA output and a balanced stereo XLR output. The big news on the Pro 4 version is the HDMI ARC input, enabling users to enjoy HiFi TV sound.

MATRIX MINI-I 4 DAC ES9039Q2M Streamer DLNA Airplay Roon Ready 768 kHz DSD512 MQA

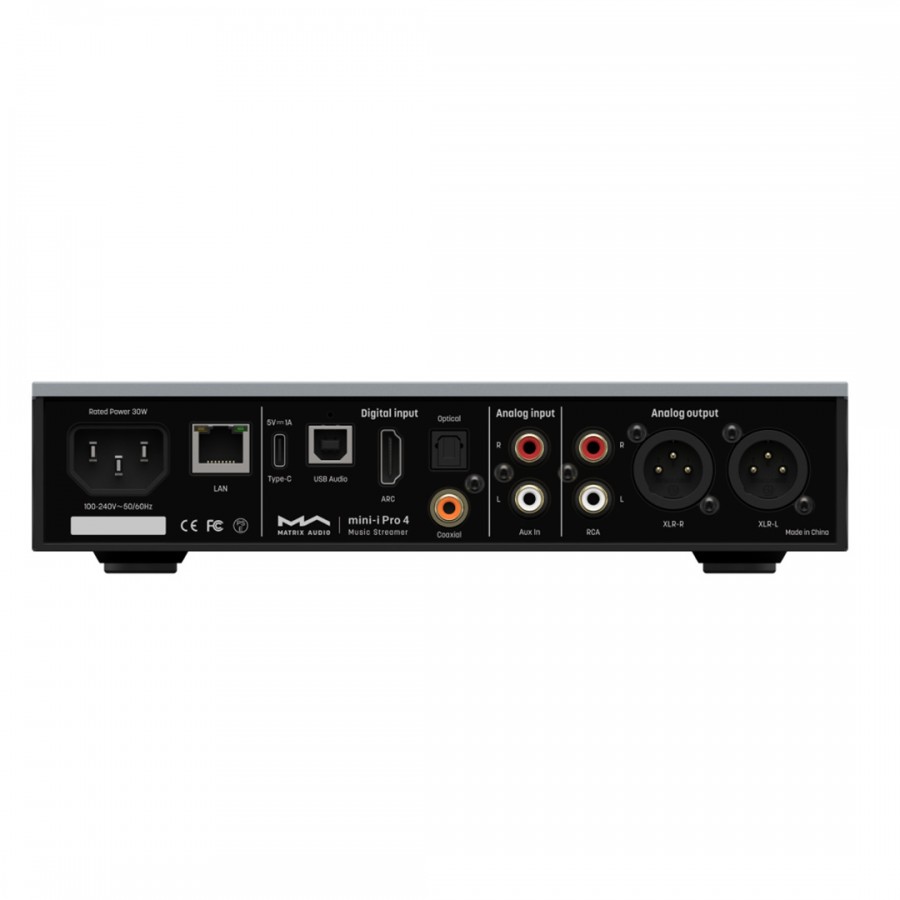

13.46" high-resolution touch screen
2IEC Power supply
3LAN connector RJ45
4USB-C input (5V 1A)
5USB-B input
6HDMI ARC input
7Toslink optical input
8Coaxial input
9RCA analog input
10Stereo RCA output
11Balanced stereo XLR ouput

Technical characteristics

Specifications
Product typeStreamer
DAC
CPUQuad Cortex-A55 2.0GHz
DAC ChipES9039Q2M
Digital inputsUSB-B
Coaxial
Optical Toslink
USB-C (5V/1.5A)
HDMI ARC
RJ45
Analog inputStereo RCA
Analog output1x RCA stereo
1x XLR stereo balanced
Supported sample ratesCoaxial and optical: PCM 24bit 192kHz and DSD64 (2.8MHz DoP)
HDMI ARC: PCM 24bit 192kHz
Audio USB: PCM 24bit 768kHz / MQA 24bit 192kHz, MQA stream or MQA Studio 384kHz / DSD256 (11.2MHz DoP) & DSD512 (22.4 MHz native)
NetworkLAN 1000 Mbits/s
RCA and XLR analog outputs
SNRRCA : 121dB (A-weighted)
XLR : 127dB (A-weighted)
THD+NRCA : < 0.00015% @ 1k, < 0.00030 % @ 20Hz-20kHz
XLR : : < 0.00015% @ 1k, < 0.00018 % @ 20Hz-20kHz
Frequency responseRCA : 20Hz-20kHz ±0.1/-3dB @ 90kHz
XLR : 20Hz-20kHz ±0.1/-3dB @ 90kHz
Channel crosstalkRCA : > -133 dB
XLR :  > -146 dB
Output levelRCA : 2.2Vrms @ 0dB
XLR : 4.4Vrms @ 0dB
Analog RCA input (AUX)
SNR100db A-Weighted
THD+N< 0.0035% @ 1k, < 0.0035% @ 20Hz-20kHz
Frequency response20Hz-20kHz ±0.1/-3dB @ 46kHz
Channel crosstalk> -105dB
Input level2.2 Vrms max.
MA Player
Locally supported file formatMP3 , WMA , WAV , AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF, CUE
Locally supported sample ratesPCM 24bits 768kHz / DSD512 (native) / MQA 24bits 192kHz, Flux MQA ou MQA Studio 384kHz
Roon readyPCM 24bits 768kHz / DSD512 (native) / MQA 24bits 192kHz, Flux MQA ou MQA Studio 384kHz
Supported protocols and servicesAirplay 2, DLNA/UPnP, Tidal connect, Spotify connect, vTuner, Paradise Radio, HighRes Audio
General
Power supply voltage100-240V AC 50/60Hz
Standby Power Consumption< 5W
Maximum Power Consumption< 20W
Dimensions224 x 186 x 53mm
Weight1.3kg
Package1x Matrix Audio Mini-I 4
1x Power cable

Data sheet
InputOptical
InputHDMI
InputUSB
InputSPDIF
InputRJ45
InputRCA
OutputXLR
OutputRCA
DAC / ADC ChipES9039Q2M
Max sampling rateDSD512
Max sampling rateMQA
Max sampling rate768kHz
ColorBlack
ColorSilver
ClassN/A
NetworkingYes
Remote ControlNo
Streaming services & Network protocolsDLNA
Streaming services & Network protocolsSpotify Connect
Streaming services & Network protocolsRoon / Roon Bridge / Roon Ready
Streaming services & Network protocolsWeb radios
Streaming services & Network protocolsAirPlay
Streaming services & Network protocolsTidal Connect
Streaming services & Network protocolsQobuz
Refurbished GradeGrade A
