Refurbished product - Grade B
Slight scratch on screen protector and back of unit.

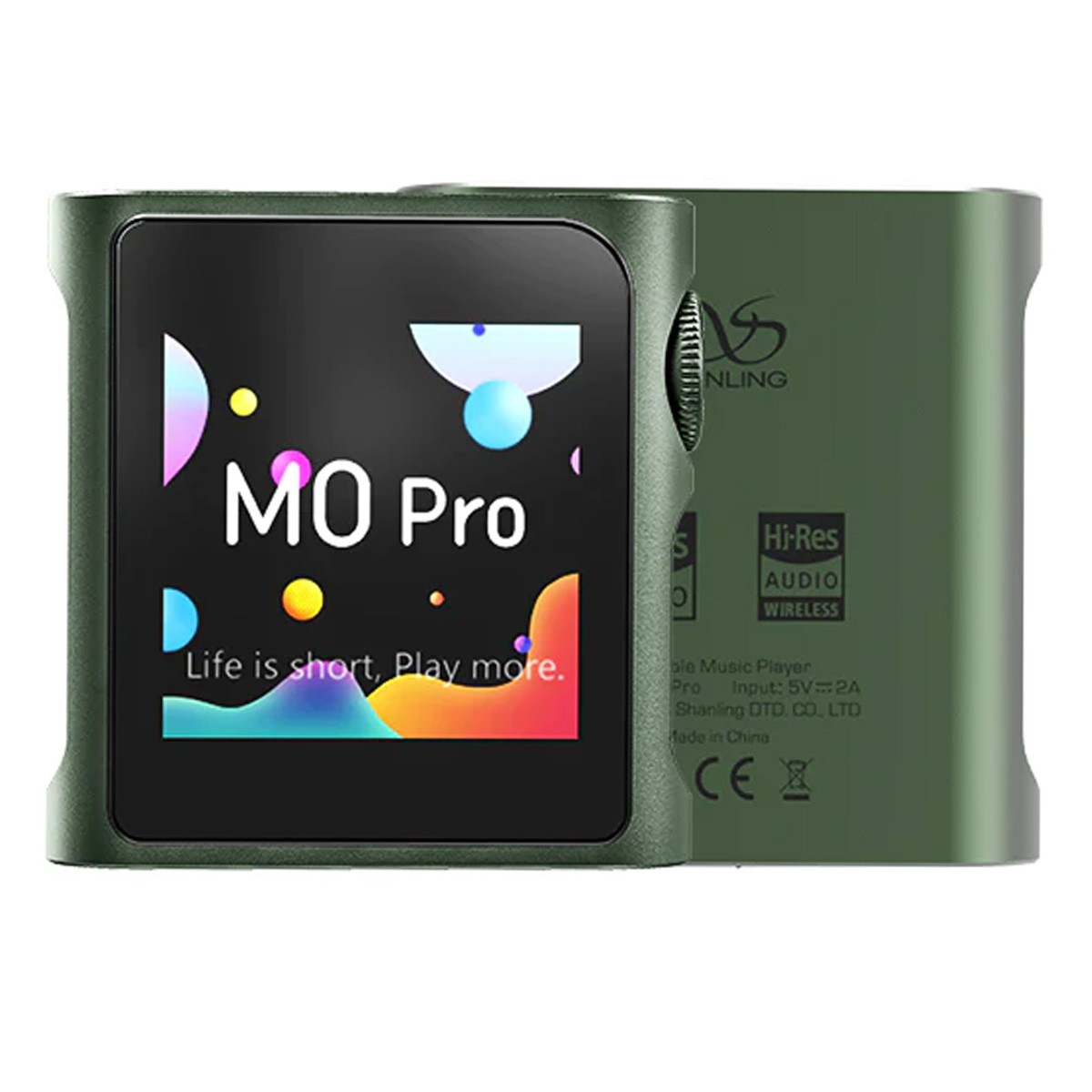

Compact HiFi Digital Audio Player DAP DAC 2xES9219C Bluetooth 5.0 aptX LDAC 32bit 384kHz DSD Green
Shanling offers with the M0 Pro a technical and aesthetic evolution of the M0 high fidelity digital player. This Pro version benefits from an improved digital/analog conversion stage now based on a pair of ESS ES9219C chips as well as an updated Bluetooth receiver in version 5.0. Its appearance has also been modernized while keeping its incredible compactness, a real distinctive element of the M0. Thus, the M0 Pro is the ideal companion to accompany you both on the move and at home to offer you listening sessions of incredible quality.
The first thing that stands out with this Shanling M0 Pro is of course its particularly small size. Thought to follow you in all your moves, without cluttering you, the DAP measures only 43.8x45x13.8mm. As for weight, the M0 Pro weighs only 36.8g. It will be easily forgotten so you can fully enjoy your music.
However, Shanling does not make any concession on the ergonomics and integrates a beautiful high definition touch screen of 1.54" 240*240px. This one will allow you to easily access your music and act on all available parameters. A screen placed behind a curved tempered glass and components protected by a superb CNC machined case 100% Aluminium.
If Shanling takes great care with the aesthetics of its product, this desire to offer a product that is both beautiful and easy to use is reflected in the software with the MTouch OS operating system. Thus, the interface of the player allows a fast and easy navigation, and an easy access to the numerous features.
On the sound side, the M0 Pro integrates a pair of ESS ES9219C DACs. These allow a quality digital / analog conversion in all transparency. A converter associated with a powerful amplification section and an analog volume control. A combination that allows this small DAP to offer an SNR of 119dB, a distortion of 0.0004% and to support sample rates up to PCM 32bit 384kHz, for a faithful and detailed reproduction.
Moreover, this player embeds a multi-layer PCB, allowing it on the one hand to benefit from a smaller size, and on the other hand to have a cleaner electrical circuit and thus limit the interference on the signal.
While the Shanling M0 Pro has a Jack 3.5mm connector to connect it to your headphones, it also offers Bluetooth 5.0 connectivity for a more comfortable use. A Bluetooth connectivity equipped with Sony LDAC and Qualcomm aptX technologies. This first technology, the LDAC allows to enjoy in Bluetooth Hi-Res Audio files, up to 24bit 96kHz 4.5Mbps, where the classic Bluetooth would allow only 16bit 44.1Hz compressed. The second technology, the aptX allows it to obtain a transmission with less latency and more stable, to restore a clean signal.
But more than that, the M0 Pro benefits from a bi-directional Bluetooth 5.0. So, if it can transmit to a speaker or a headphone, it can also be used as a receiver, in order to take advantage of its amplification and its DAC, from a third source.
In the same way, this player also offers a bi-directional USB-C port. This one will be able, just like Bluetooth, to receive or send audio data. Ideal therefore to take advantage of the audio performance of the device.
The DAP integrates a 650mAh battery for a 14.5h autonomy in playback, and days in standby. Perfect to enjoy your music without interruption during all your travels.
Specifications | |
---|---|
Product type | Digital audio player (DAP) |
DAC chips | 2* ES9219C |
Inputs | Bluetooth 5.0 1* Slot Micro SD |
Outputs | Bluetooth 5.0 1* Jack 3.5mm |
Touchscreen | 1.54" 240*240px |
Battery | 650mAh |
Autonomy | 14.5h |
Supported Bluetooth codecs | Transmitter: SBC, AAC, aptX, LDAC Receiver: SBC, AAC, LDAC |
Supported file formats | DSD (.iso, .dsfl, .dff) DXD APE ALAC WAV AIFF AIF DTS MP3 WMA AAC OFF MP2 M4A AC3 CUE M3U |
Switchable gain | Low Medium High |
Output power | Single-ended output: 1.7V @ 32 Ohm (90mW @ 32Ω) Balanced output: 2.75V @ 32 Ohm (236mW @ 32Ω) |
Frequency response | Single-ended output: 20Hz - 40kHz (-0.5dB) Balanced output: 20Hz - 40kHz (-0.5dB) |
THD+N | Single-ended output: 0.0006% @ 32Ω (A-Weighted @ 720mV) Balanced output: 0.0004% @ 32Ω (A-Weighted @ 1V) |
Dynamic range | Single-ended output: 119dB @ 32Ω (A-Weighted) Balanced output: 121dB @ 32Ω (A-Weighted) |
Channel separation | Single-ended output: 72dB @ 32Ω Balanced output: 109dB @ 32Ω |
SNR | Single-ended output: 118dB @ 32Ω (A-Weighted) Balanced output: 119dB @ 32Ω (A-Weighted) |
Output impedance | Single-ended output: < 0.4Ω Balanced output: < 0.8Ω |
General | |
---|---|
Dimensions | 43.8*45*13.8mm |
Weight | 36.8g |
Color | Green |
Package | 1* Shanling M0 Pro 1* USB cable |
Input | Micro SD |
Input | Bluetooth |
Output | Bluetooth |
Output | Jack 3.5mm |
DAC / ADC Chip | ES9219C |
Max sampling rate | 384kHz |
Max sampling rate | DSD128 |
Color | Green |
Refurbished Grade | Grade B |
