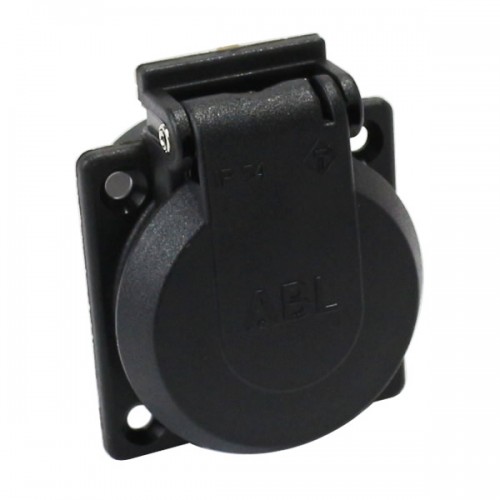

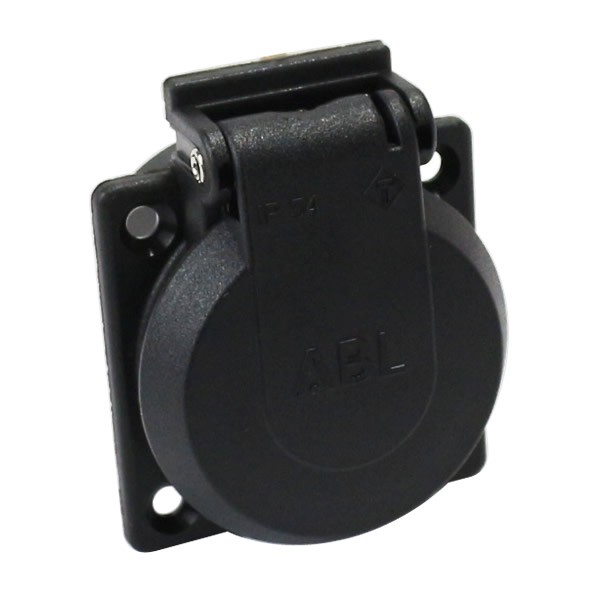

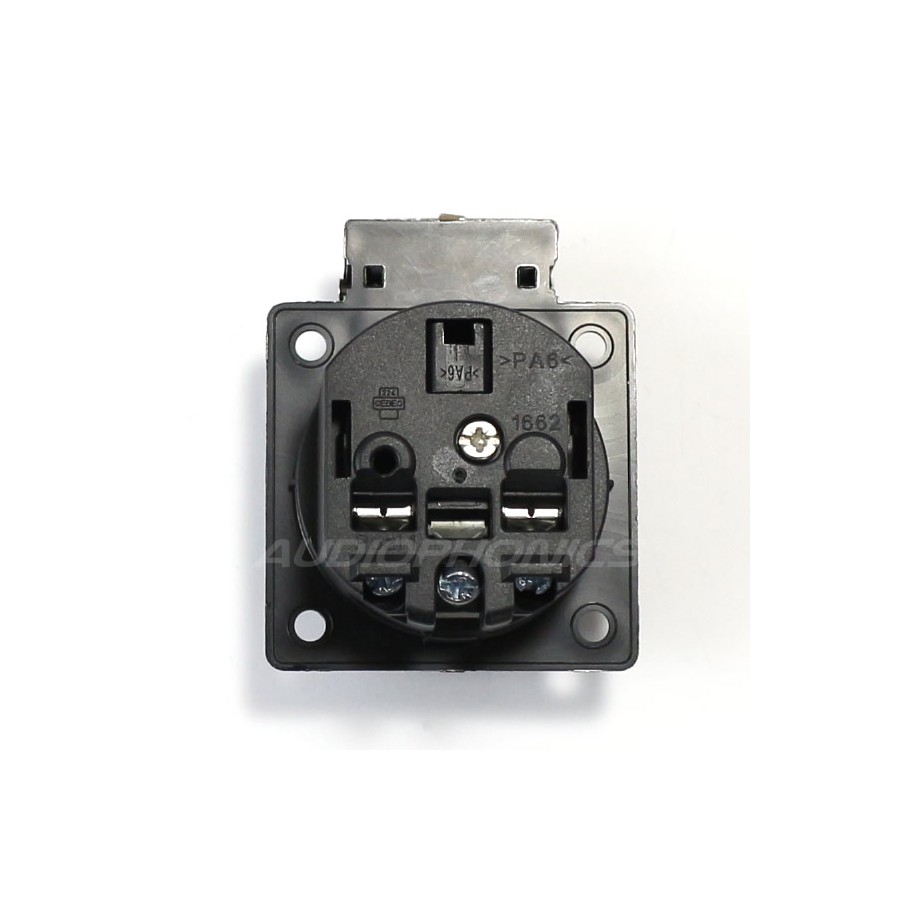

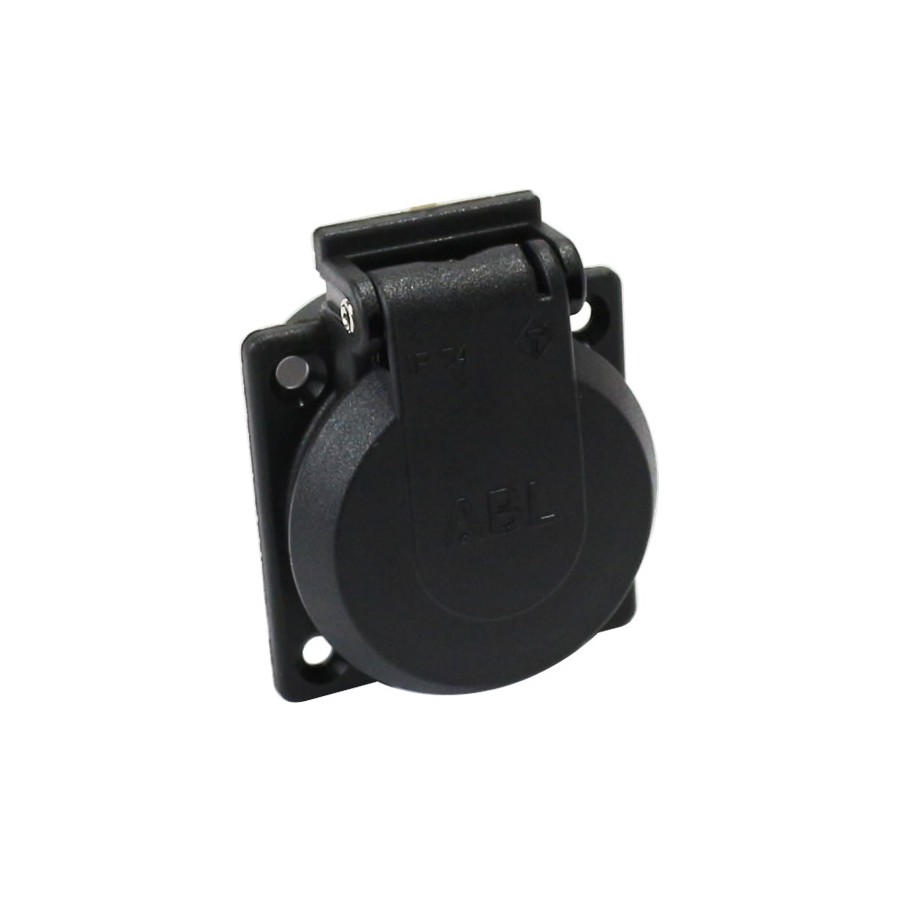

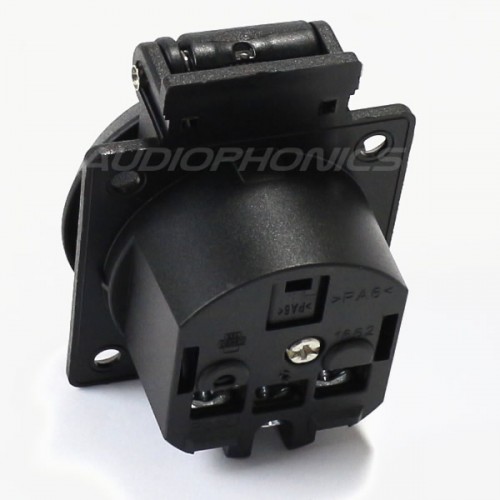

ABL SURSUM Power inlet with sutter 250V 16A IP54 Black

ABL SURSUM Power inlet with sutter 250V 16A IP54 Black
This ABL SURSUM female PVC power supply unit is suitable for installation on mains, panel or even wall-mounted spool valves.

Average votes for this product
5.0 / 5

No loyalty points for this product.


Reference : 12602
New product

7,90 €tax incl.

6,58 € tax excl.
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

This ABL SURSUM female PVC power supply unit is suitable for installation on mains, panel or even wall-mounted spool valves.
It is compatible with 2-pin grounded male plugs.
Thanks to its shutter with integrated seal, it is completely waterproof when the lid is closed.

General characteristics:

  • Subbase type: CEE 7/V
  • Material: PVC
  • Grounding: yes
  • Protection class: IP54 (when the cover is closed)
  • 250V 16A
  • Color: black
  • Dimensions: 61.4 x 50 x 43.5mm
  • Distance between centres: 38mm
  • Drilling diameter of the 4 holes: 4mm
  • Wall drilling diameter: 43mm
  • Weight: 45g
  • RoHS


Data sheet
Max cable diameter (mm)N/A
Mounting typeTo screw
ConnecticFemale
ConnectorType F (CEE 7/3 - CEE 7/4)
Contacts Material (Connector)Copper Alloy
Contacts Plating (Connector)None
Rated current (A)16.0
