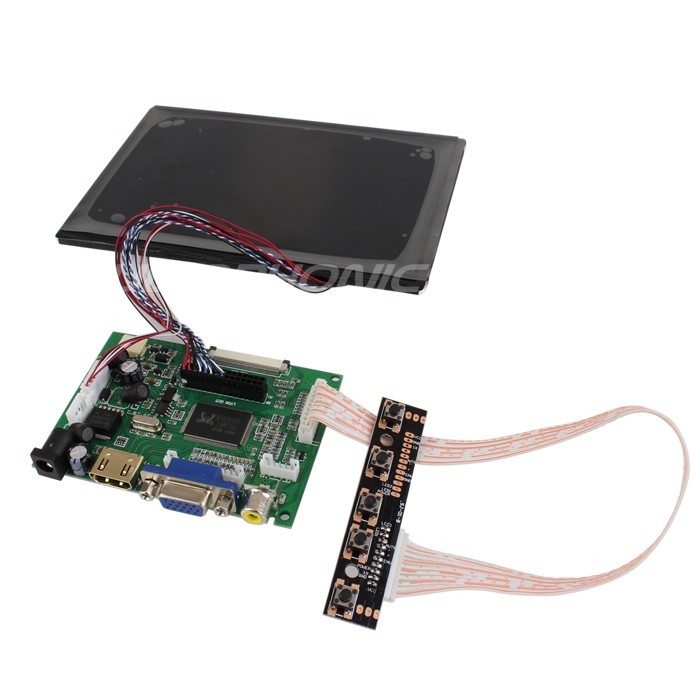

AUDIOPHONICS 7 "720p VGA / DVI / HDMI LCD Display Kit

This complete kit allows you to add a high quality display to all your DIY projects.

Comprising everything necessary to be directly operational, it only needs one source and a 12V 1A DC power supply to operate.

This product will amaze you by the quality of its display, its luminosity and its angles of vision.

Features:/ Strong>

• Dimensions of the IPS panel: 7 "
• Native Resolution: 1280 x 800
• Resolution Max. supported: 1600 x 1200
• Aspect Ratio: 4: 3, 16: 9
• Contrast: 800: 1
• Brightness: 400cd / m²
• LED Backlight
• Response time: 20ms
• Operating Temperature Range: -20 to 80 ° C
• Dimensions of the hull of the slab: 161 x 107 x 4.4 mm
• Standard display: HD 720p
• Inputs: 1 VGA + 1 Composite + 1 HDMI
• Video Settings and Input Selection via Control Module (OSD)
• Dimensions of the main module (Inputs: VGA, HDMI,): 90 x 65 x 20 mm
• Dimensions of the control module: 76 x 16 x 7 mm
• Power supply: 12 VDC (+ central pin) not included

[Img-10245-left-thickbox_default]

Dimensions of the slab shell
