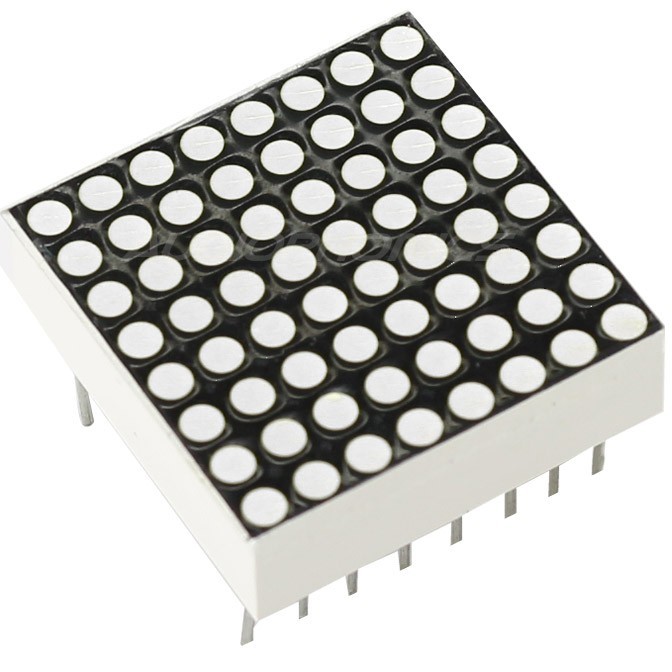

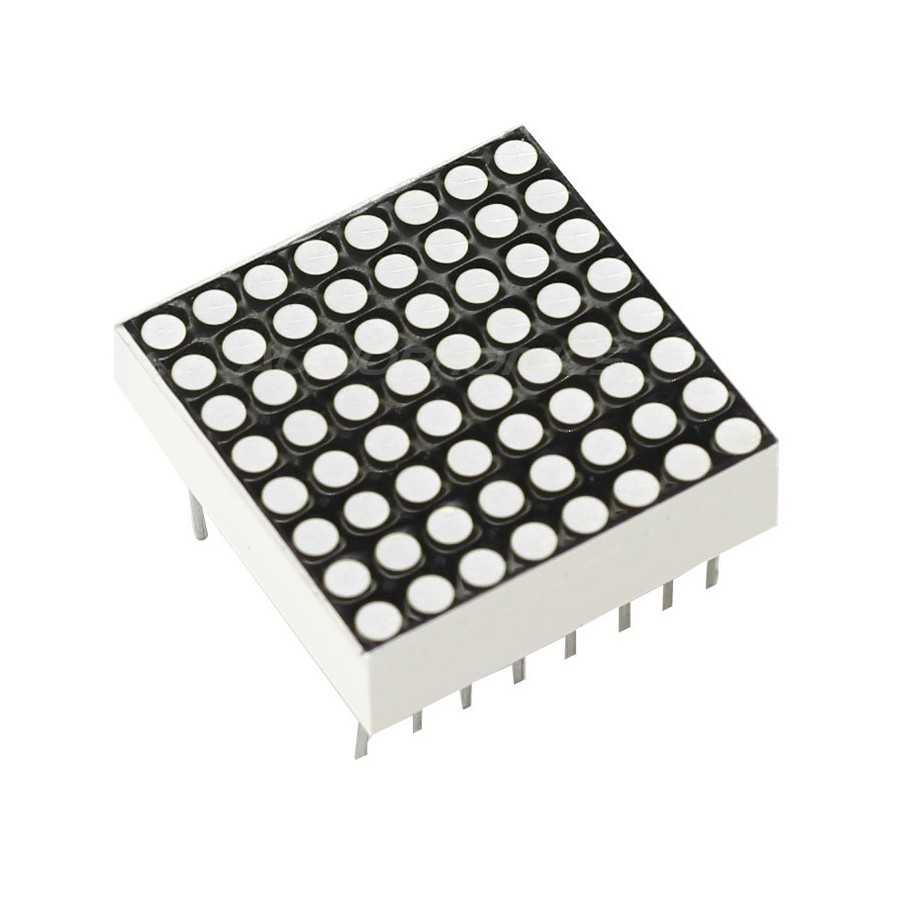

This interface with matrix grids or dot matrix 8x8 (64 points) allows you to easily add a quality display to your DIY achievements.
This screen brings high quality, reliability and high visibility. It is perfectly suited to provide professional visual finishing for Hifi, video, measuring instruments and displays.
Each 8x8 cell can thus be juxtaposed as in the example indicated to obtain the desired display (5 cells):
- Display Color: White
- Pixels: 1.9mm

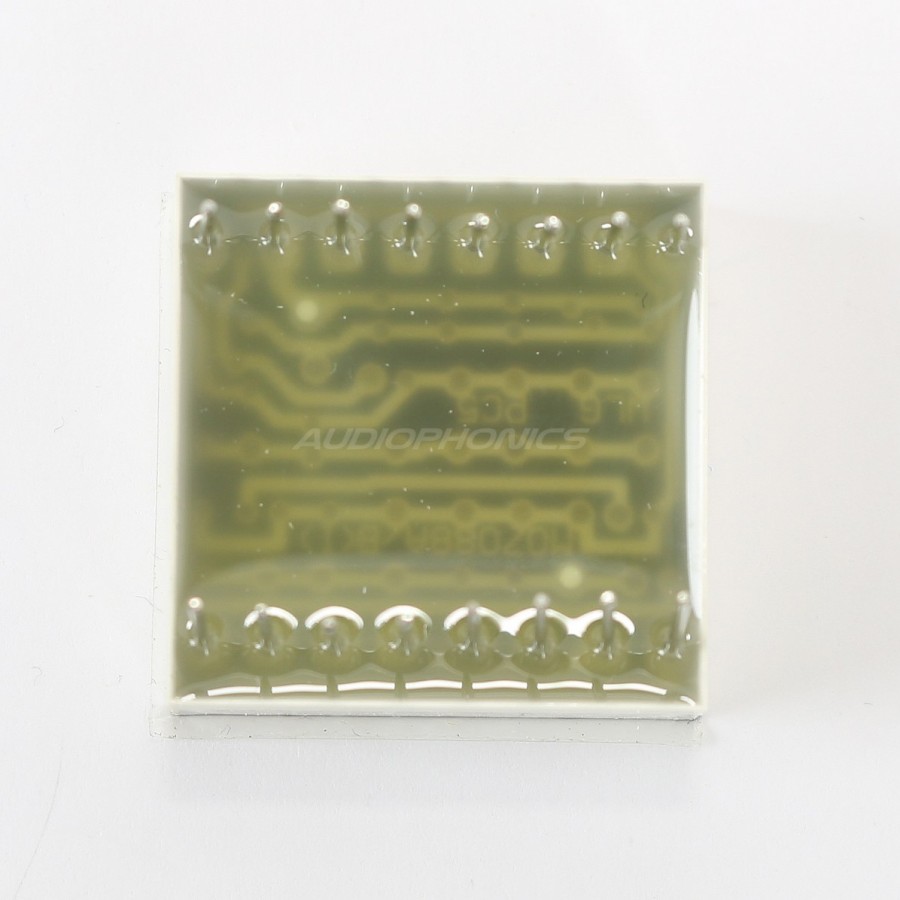

- Connection: 2 x 8 pin
- Polarity: Common cathode anode
- Voltage per segment: 5V
- Thermal dissipation per segment: 70W
- Certification: ROHS and SGS
- Internal use
- Dimensions: 19.9 x 19.9 x 6 mm
Maximum solder temperature tolerance on pins: 260 ° for 3 seconds.

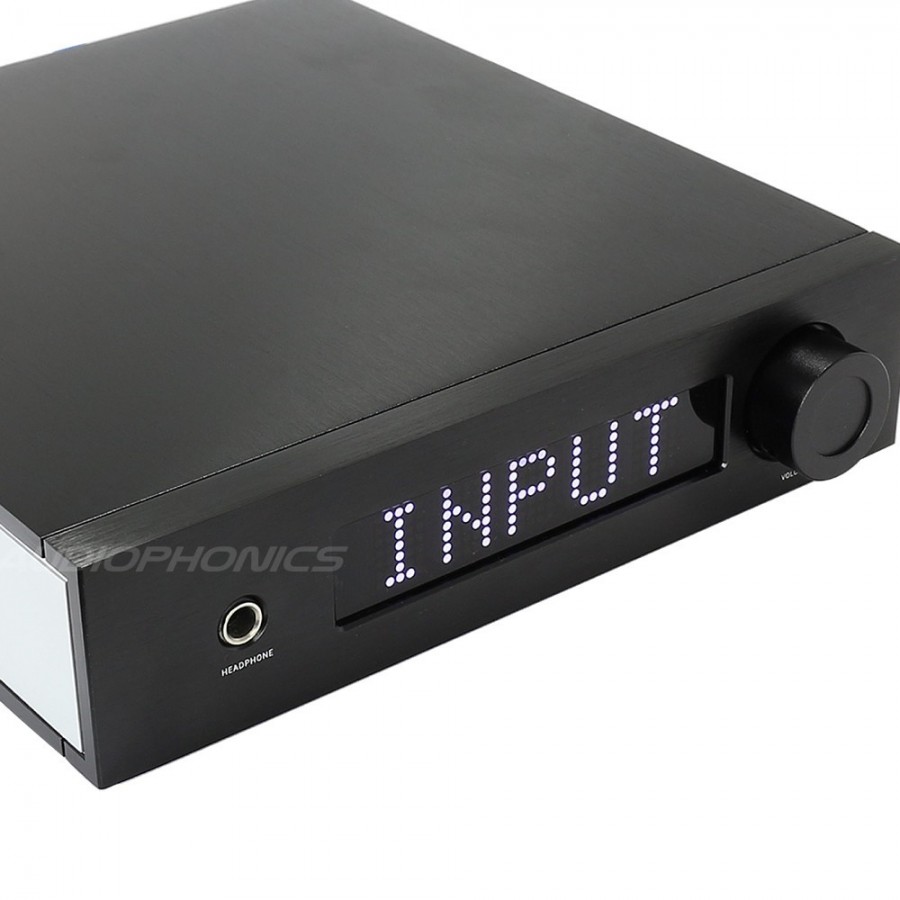

Display example 8x8 64 points
