AMC - 6 Channel Stereo Source Selector Module Kit

AMC - kit Module sélecteur de source 6 canaux stéréo
No customer reviews yet, login to write a review.

By buying this product you get 2 loyalty points


Reference : 6683
New product

26,90 €tax incl.

22,42 € tax excl.
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Attention here is a kit to be assembled.

This kit, when assembled, allows you to switch between 6 stereo sources and one output.

Characteristics :

  • Selection by mechanical selector provided.
  • Viewing the input used by blue LEDs
  • Simply requires a transformer of 8 to 15VDC
  • No components on the signal path except the relays.
  • Dimensions: 134 X 57 x 2.4 (H) mm
  • Weight: 120g

Product shipped without manual

Components are subject to change without notice

https://www.audiophonics.fr/images2/6683/6683_AMC6CHSELECTOR_4.jpg

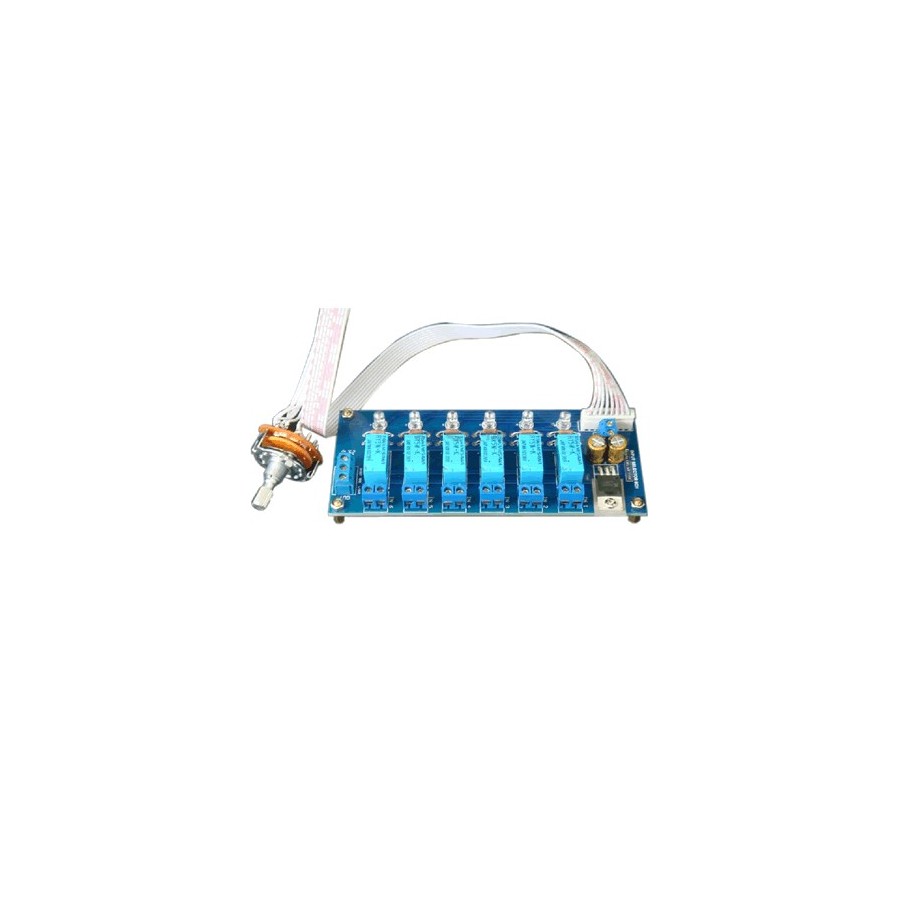

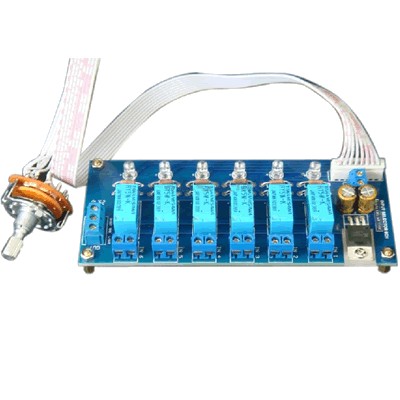

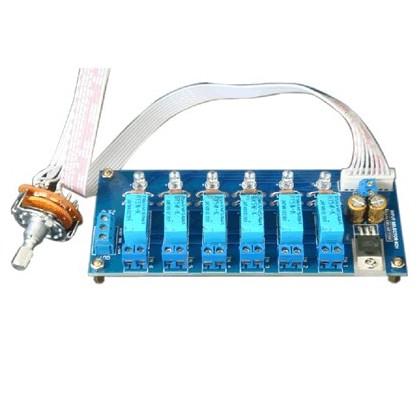

Assembled module

https://www.audiophonics.fr/images2/6683/6683_AMC6CHSELECTOR_2.jpg

Diagram:

https://www.audiophonics.fr/images2/6683/6683_AMC6CHSELECTOR_1.jpg

wiring

https://www.audiophonics.fr/images2/6683/6683_AMC6CHSELECTOR_3.jpg
