CS8416 Source Selector Module 2 SPDIF Inputs to 1 I2S Output

Input Selector Module with Switch CS8416 Coaxial Optique to I2S
This module is an input module with a coaxial input and an optical input. It is based on a Cirrus Logic CS8416 digital audio receiver supporting sample rates up to 192kHz. The module is equipped with a 24bit I2S output which can therefore be associated with the I2S input of your DAC and offer it a source selection.

Average votes for this product
5.0 / 5

By buying this product you get 1 loyalty point


Reference : 12940
New product

19,90 €tax incl.

16,58 € tax excl.
Including 0,01 € for green tax

- +

Shipping date: 28-03-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

Input module

Input module SPDIF to I2S

Module Sélecteur de source CS8416

This module is an input module with a coaxial input and an optical input. It is based on a Cirrus Logic CS8416 digital audio receiver supporting sample rates up to 192kHz. The module is equipped with a 24bit I2S output which can therefore be associated with the I2S input of your DAC and offer it a source selection.

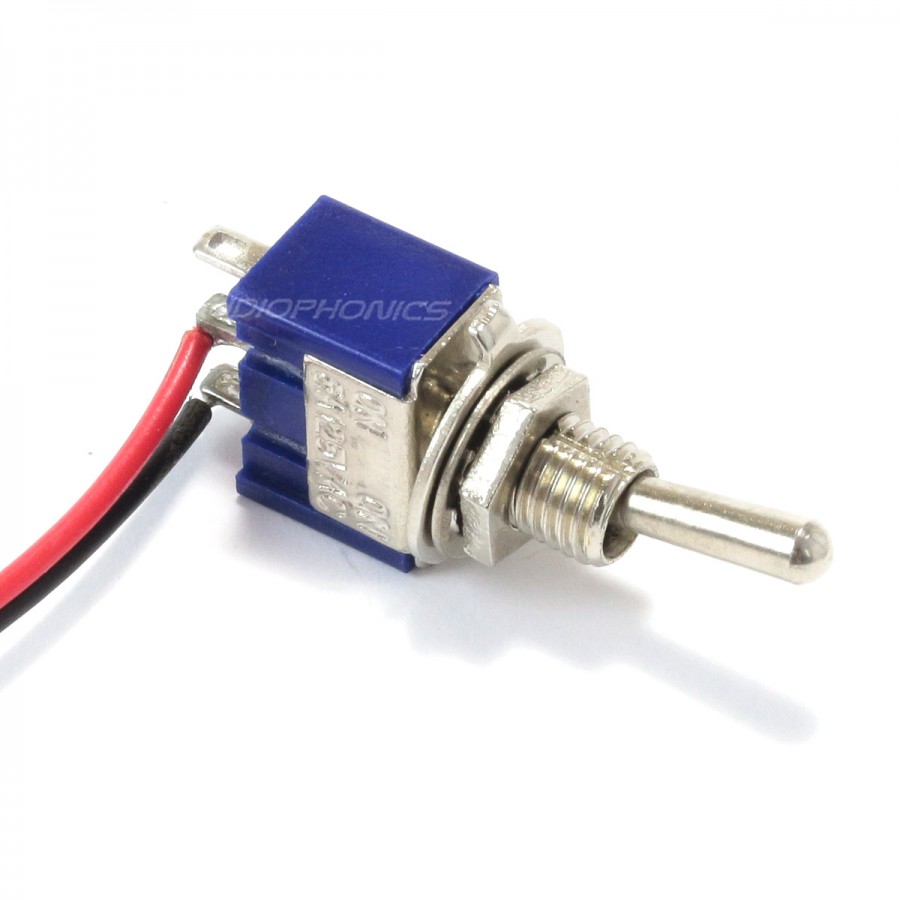

The module comes with a switch that will allow you to choose your source between Coaxial and Optical.

Power supply wiring

SPDIF interface card power supply

Technical characteristics

Specifications
SPDIF ReceiverCirrus Logic CS8416
InputsCoaxial
Optical
OutputI2S
Supported sampling rate / bitrateSPDIF inputs : 32bit 192kHz
I2S output : 24bit
MCLK output256FS
Power SupplyDC 5-12V
Output signal voltage3.3V
ControlInput selection with included switch
Input selector module dimensions50 x 50 x 23mm

Data sheet
InputSPDIF
InputOptical
OutputI2S

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Not for Raspberry Pi
The quality of the product is good, that`s why I give it 5 stars, but unfortunatelly it doesn`t work with Raspberry Pi/Audiophonics ES9038Q2M. If you want to have an optical or coaxial S/PDIF input in your DIY streamer, then just buy an optical/coaxial spdif socket and connect it to spdif + ground pins (+5V for optical socket) on Audiophonics DAC. You must also take into account the necessity of adding two capacitors to avoid "reloading" effect (lags in audio via optical spdif input).
