CONNEX SMPS2000RxE Switched Mode Power Supply Module 2000W +/-55V

CONNEX SMPS2000RxE Switched Mode Power Supply Module 2000W +/-55V
The SMPS2000RxE switching power supply is a very high efficiency model capable of developing a rated power of 2000W for a reduced space requirement. It will therefore be able to deliver 2000W of continuous power and up to 2600W of peak power. The delivered model delivers +-55V output.

Average votes for this product
5.0 / 5

By buying this product you get 29 loyalty points


Yes, notify me when available !
Reference : 12849
New product

299,00 €tax incl.

249,17 € tax excl.
Including 0,05 € for green tax

- +

Available on order
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

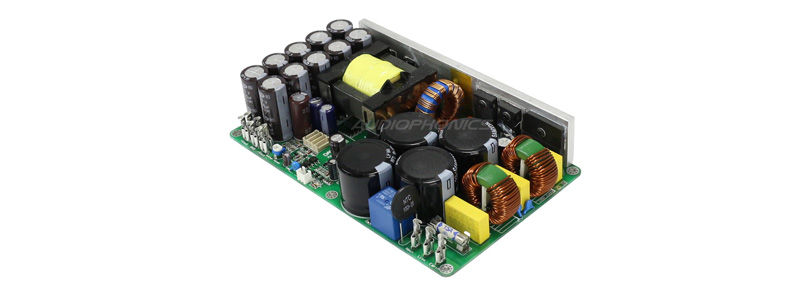

Connex SMPS2000RxE

Switched-Mode Power Supply Module 2000W +-55V

Connex SMPS2000RxE Module d'Alimentation à Découpage 2000W +-55V

The SMPS2000RxE switching power supply is a very high efficiency model capable of developing a rated power of 2000W for a reduced space requirement. It will therefore be able to deliver 2000W of continuous power and up to 2600W of peak power. The delivered model delivers +-55V output.

The main feature of this power supply is the absence of radiators for both power switches and rectifier diodes. The amount of EMI is lower than on any conventional power supply and this could be compared to a regulated linear power supply. The SMPS2000RxE can be installed in many enclosures due to its small size and considerably reduced weight.

In addition, the module incorporates overcurrent protection that limits the output current to approximately 130% of the maximum peak power, or approximately 2600W. This power supply is suitable for both Class AB and Class D/T amplifiers.

Meanings of the abbreviations on the SMPS power supplies

QR, R : SINGLE or DUAL power supplies with classical LLC resonance filter for Class AB or D amplifiers. SMPS R are characterized by their very good price/quality ratio.

RE : SMPS power supplies with differential outputs and multiple resonance filter voltages, including an LLC filter with low noise EMI filter (with CLC filter at low ripple output). Suitable for high-end amplifiers in Class AB, D or T. Replaces conventional linear power supplies advantageously. (Generally suitable for TA2022, TDA8920, TDA8950, IRS2092 amplifiers).

RS : SMPS power supplies close to RE but with Single Rail Output resonant filter including LLC filter with low noise EMI filter (with CLC filter at low ripple output). Suitable for high-end amplifiers in Class AB, D or T. Replaces conventional linear power supplies advantageously.

RXE : The high-end SMPS 600W, 800W and 2000W featuring the latest generation LLC resonant filters (with CLC filter at low ripple output) with high-end FET transistors. Specially recommended for high-end Class D amplifiers (IRS2092, Hypex, CXD). Can also be used with Class AB amplifiers.

Technical characteristics

Specifications
Power supply typêSwitched-Mode Power Supply
Output voltage+-55V
Input voltage230V
Auxiliary output+-15V
High efficiency power supply-
Low electromagnetic radiation EMI-
Advanced protection system-
Maximum power2600W
Rated power2000W
General
Dimensions120 x 200 x 40mm
WeightApprox. 900g

Data sheet
InputPCB Connector
OutputPCB Connector
Output voltage (V)15.0
Output voltage (V)55.0
Output current (A)NC
Input voltage (V)230.0
Power SupplySMPS

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Ordered one to evaluate
Ordered one to evaluate. Perfect power supply with nice utilities and clear signalization. Lots of power reserve and good quality. Can use more of these.
 (0)
 (0)
This review has been posted for CONNEX SMPS2000RxE Switched Mode Power Supply Module 2000W +/-55V
Note :
 5/5
Date :
Promising but very variable in quality
This is a beautiful and very promising power supply. First ordered one to evaluate this power supply. As it fulfilled all requirements I ordered another one. The quality of the first one and the second vary too much. Status signalization did not work on the second power supply and overall quality looked as if the second one was a cheap Chinese replica.
 (2)
 (0)
This review has been posted for CONNEX SMPS2000RxE Switched Mode Power Supply Module 2000W +/-55V
