Micro Audio SMPS1K-PFC

Switching Mode Power Supply Board 2x64V 12V 3.3V +/-18V +/-25V 1500W

Micro Audio SMPS1K-PFC Module d'Alimentation à Découpage 2x64V 12V 3.3V +/-15V +/-25V 1500W

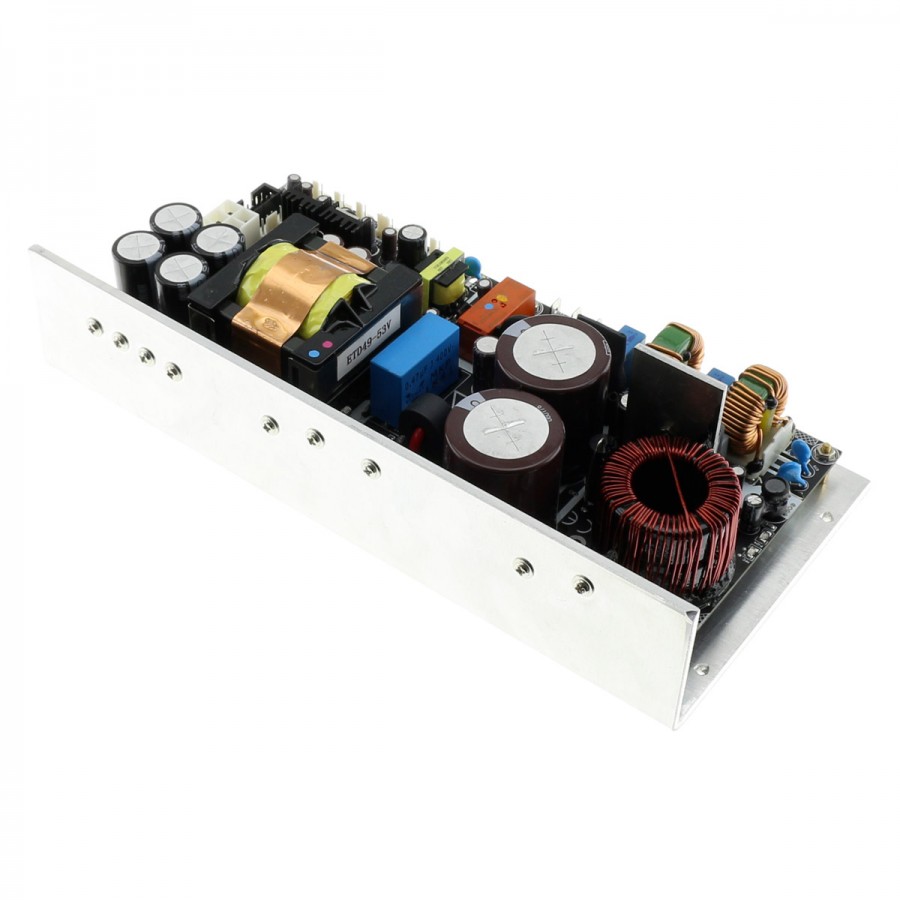

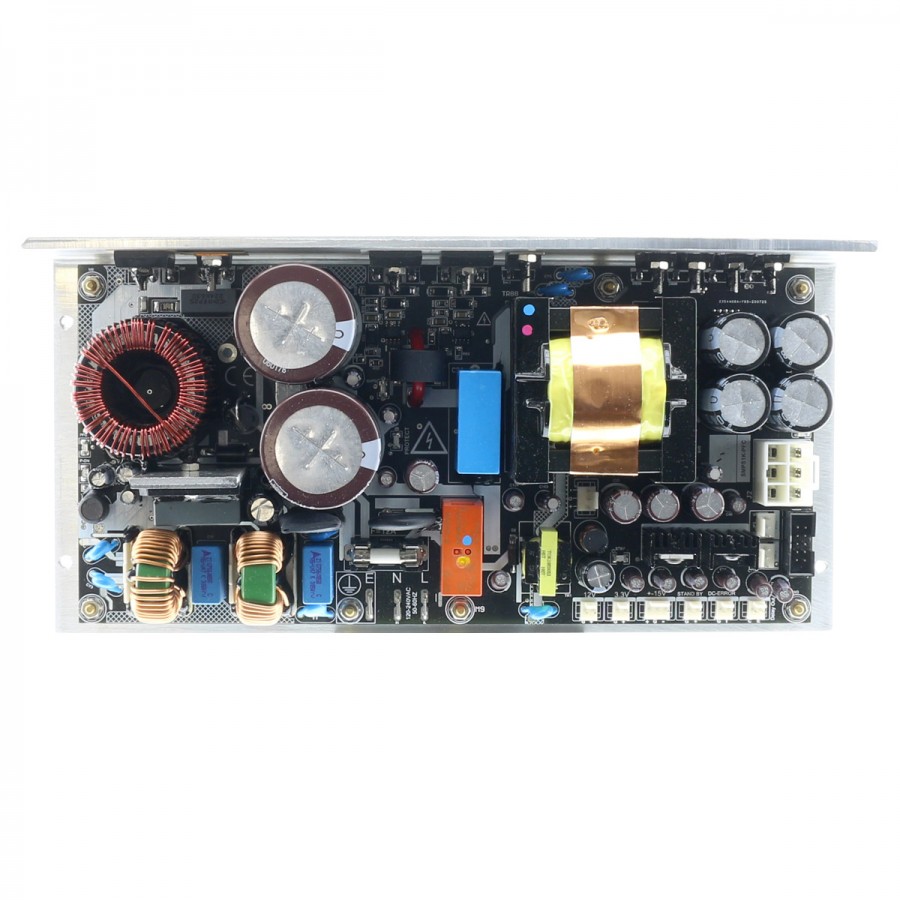

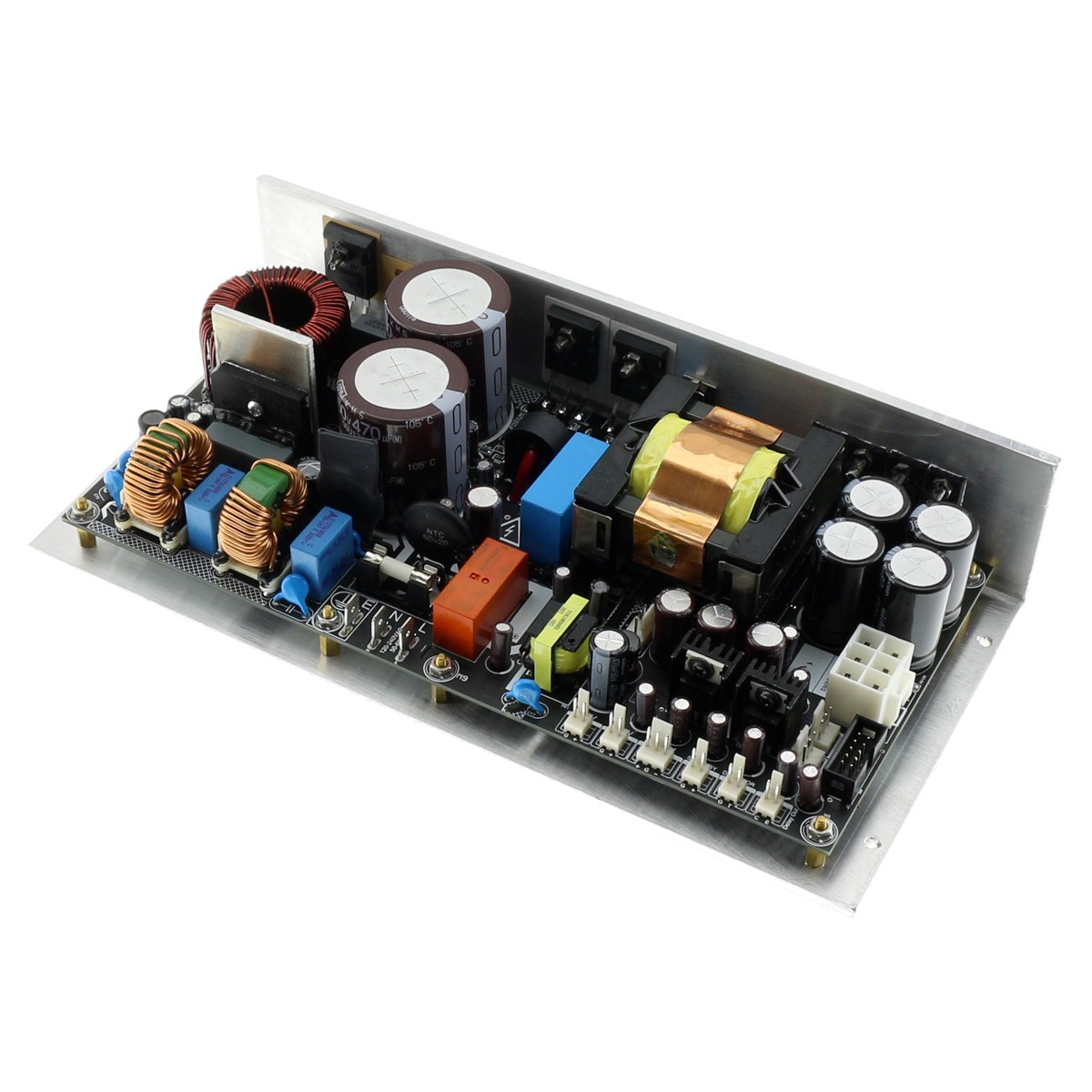

Micro Audio's SMPS1K-PFC is a high-performance regulated switched-mode power supply module specifically designed for audio applications requiring high reliability. It's compatible with Hypex SMPS1200 pinout, and can be used to supply 2 Purifi modules.

The module integrates power correction and PFC regulation, ensuring a low voltage drop at the output over the entire load curve. The power supply also benefits from advanced thermal and overcurrent protection as well as AC line loss detection to immediately shut down the power supply in the event of a disconnection.

The module has a 2x64VDC main output and auxiliary outputs. There is a 12VDC, 3.3VDC and +/-25VDC unregulated output, as well as a +/-18VDC regulated output.

The SMPS1K-PFC also provides an input for an ON/OFF switch, a DC Error input and a Delay Out output.

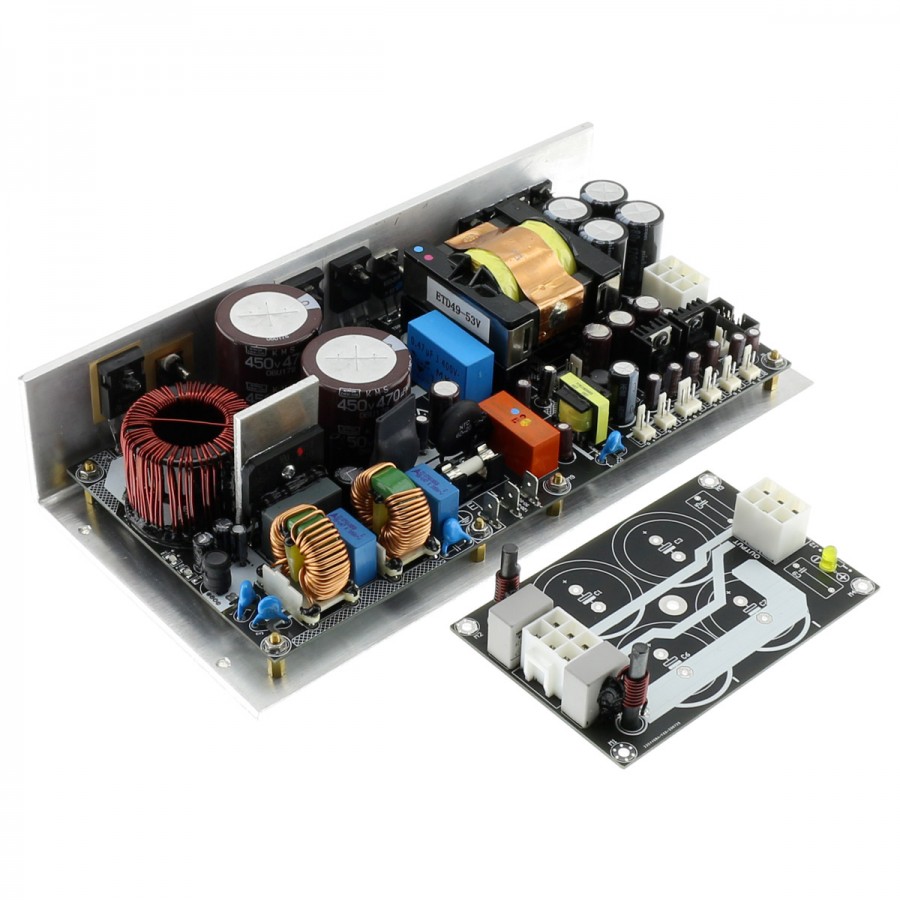

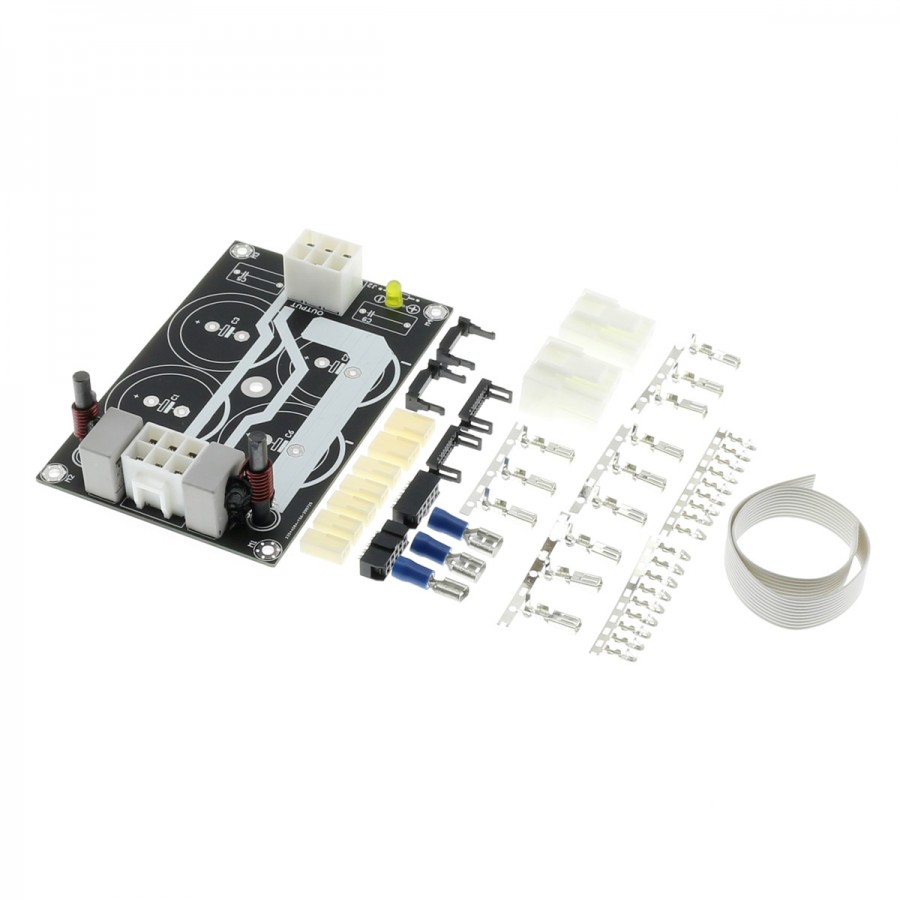

The power supply is delivered with all the necessary connectors and cables, as well as an optional module for filter capacitors (sold separately).

Technical characteristics

Specifications
Product typeSwitching mode power supply
Input110-250VAC
Outputs2x 64VDC
12VDC
3.3VDC
±18VDC regulated
±25VDC
Other connectorsStandby input
DC Error input
Delay Output
General
Dimensions250 x 123 x 66mm
Mounting holes spacing241 x 72mm
Weight1370g

Data sheet
InputPCN Connector
OutputPCB Connector
Output voltage (V)12.0
Output voltage (V)2x64
Output voltage (V)3.3
Output current (A)NC
Input voltage (V)110.0
Input voltage (V)230.0
Input voltage (V)150.0
Input voltage (V)200.0
Input voltage (V)220.0
Input voltage (V)250.0
Input voltage (V)120.0
Input voltage (V)130.0
Input voltage (V)190.0
Input voltage (V)210.0
Input voltage (V)240.0
Power SupplySMPS
