CONNEX POWER SOFT START V4 Power On and Delay Soft Start Board for Amplifier

Power on and delay soft start board for Amplifier
This module offers you the possibility to control the ignition of an amplifier, it operates stand-by, soft-start, delay and thermal protection functions. This module limits the current draw through the supply capacitors and transformer when power on.

Average votes for this product
4.5 / 5

By buying this product you get 3 loyalty points


Reference : 10298
New product

36,90 €tax incl.

30,75 € tax excl.
Available

- +

Shipping date: 25-06-2018.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

More info

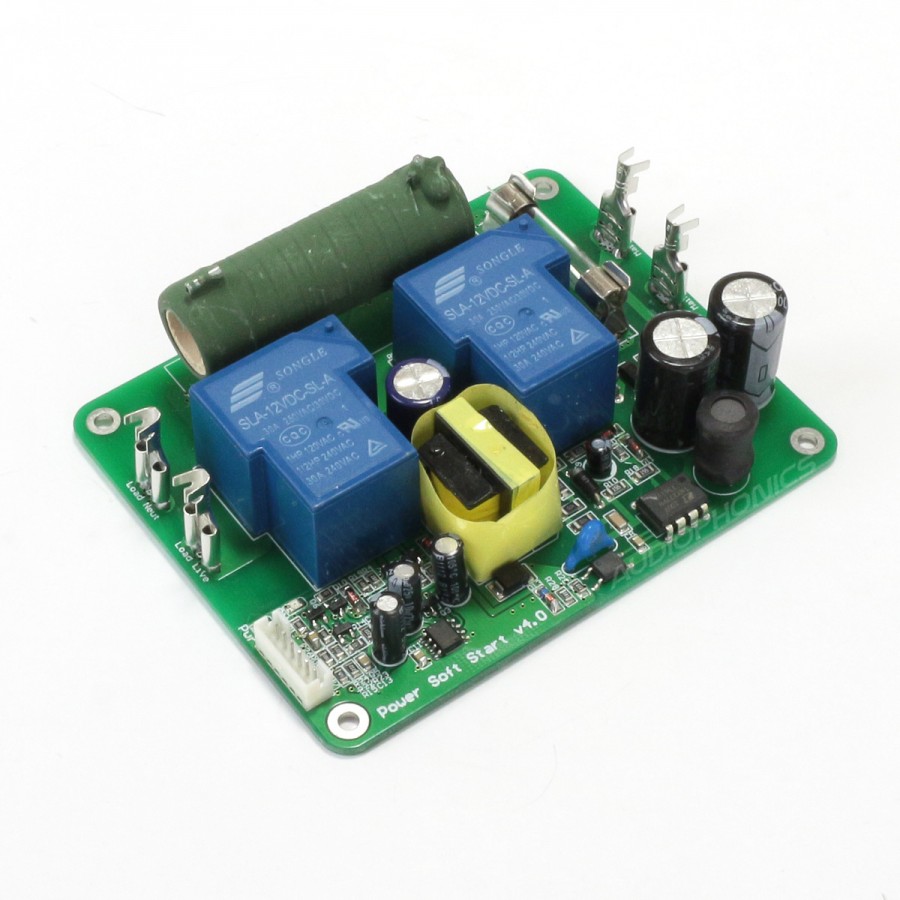

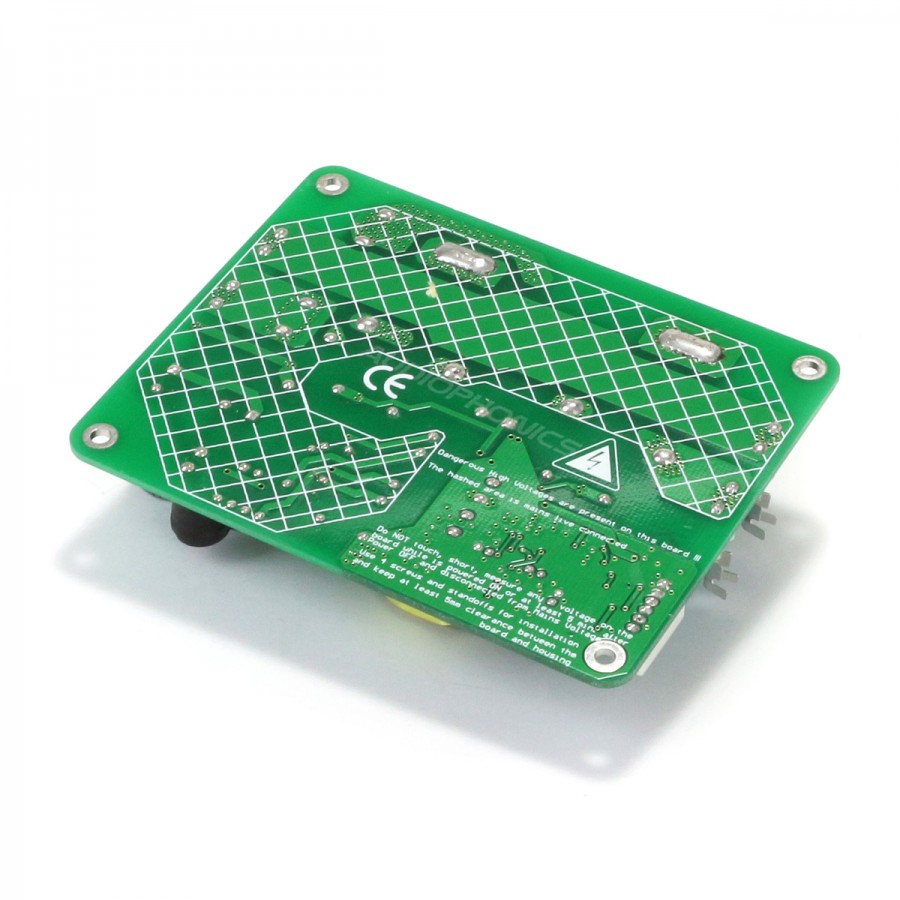

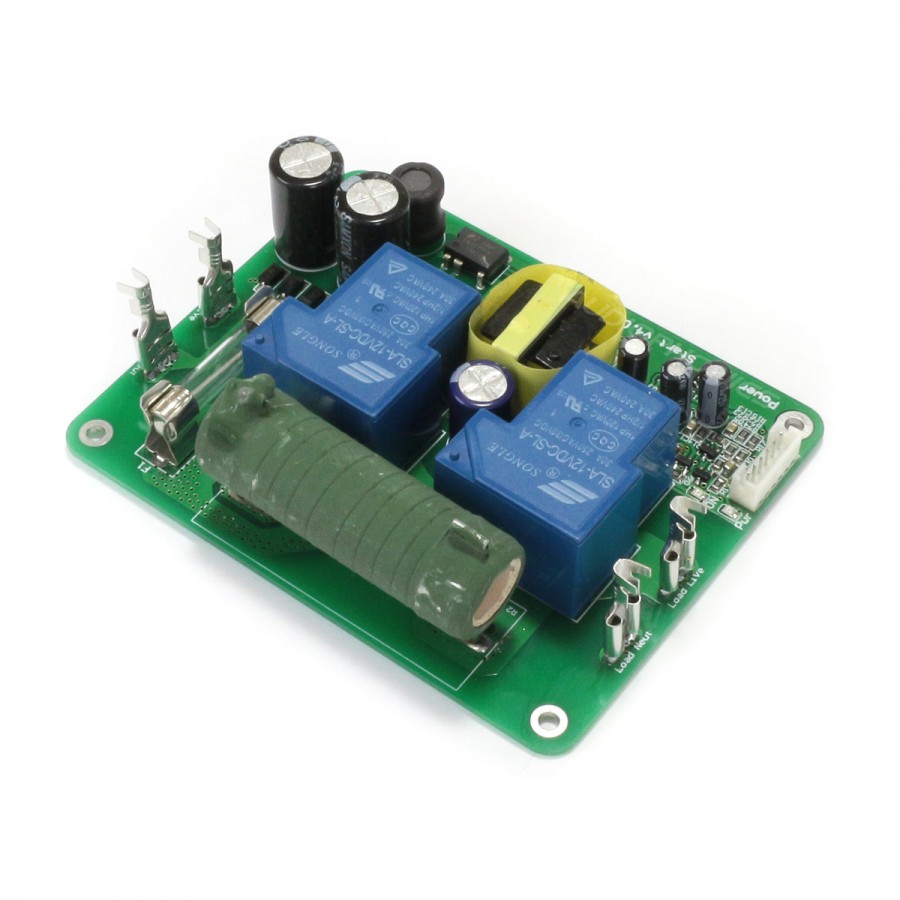

Connex Soft Start V4.0

Power On and Delay Soft Start Board for Amplifier

Connex moudle softstart

This module offers you the possibility to control the ignition of an amplifier, it operates stand-by, soft-start, delay and thermal protection functions. This module limits the current draw through the supply capacitors and transformer when power on.

It does not remove the ignition blocks, in this case you need an HP timer card. This module is connected directly to the 220V input. If no load is connected, you can find 220V at the output (capacitor in series).

When you activate the softstart this powers your amplifier through the thermistors. After one second the 2nd relay switches on and connects the output directly to 220V.

Technical characteristics

Specifications
Maximum relay current16A
Supplies maximum 12V for 1A-
Push button connector6 pins (cable included)
Time delay1 to 2s approx.
SwitchingBy fugitive push button low amperage (not supplied)
Current limiting thermistors (soft-start)-
Fixation holes spacing90mm / 70mm
Dimensions99 x 79 x 25mm
Weight130g

Wiring diagram fugitive push button


Delivery
We deliver all of France, and internationally.
To discover the amount of the shipping costs, you just have to go in your shopping cart once the desired products added.
To discover our different services and delivery options, click on the following logos:
Colissimo - TNT - SoColissimo
Only registered users can post a review. Log in or create an account .
Average votes
4.5 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 4/5
Date :
pas mal
je confirme que dès lors qu'il y a le secteur, la présence du 12v est attestée, sans meme avoir démarré le module. Je trouve dommage, ca aurait pu être détourné en trigger out. Sinon je trouve le démarrage un peu trop rapide (inférieur a la seconde), j'aurai préféré une tempo de 2s à minima
 (0)
 (0)
This review has been posted for CONNEX POWER SOFT START V4 Power On and Delay Soft Start Board for Amplifier
Note :
 5/5
Date :
Fonctionne très bien
Ce petit module sofstart fonctionne très bien (j'ai un transfo 450 VA).
A noter que les 12V en sortie sont présent dès que le module est alimenté et ne dépendent pas du BP ON/OFF.
 (0)
 (0)
This review has been posted for CONNEX POWER SOFT START V4 Power On and Delay Soft Start Board for Amplifier
