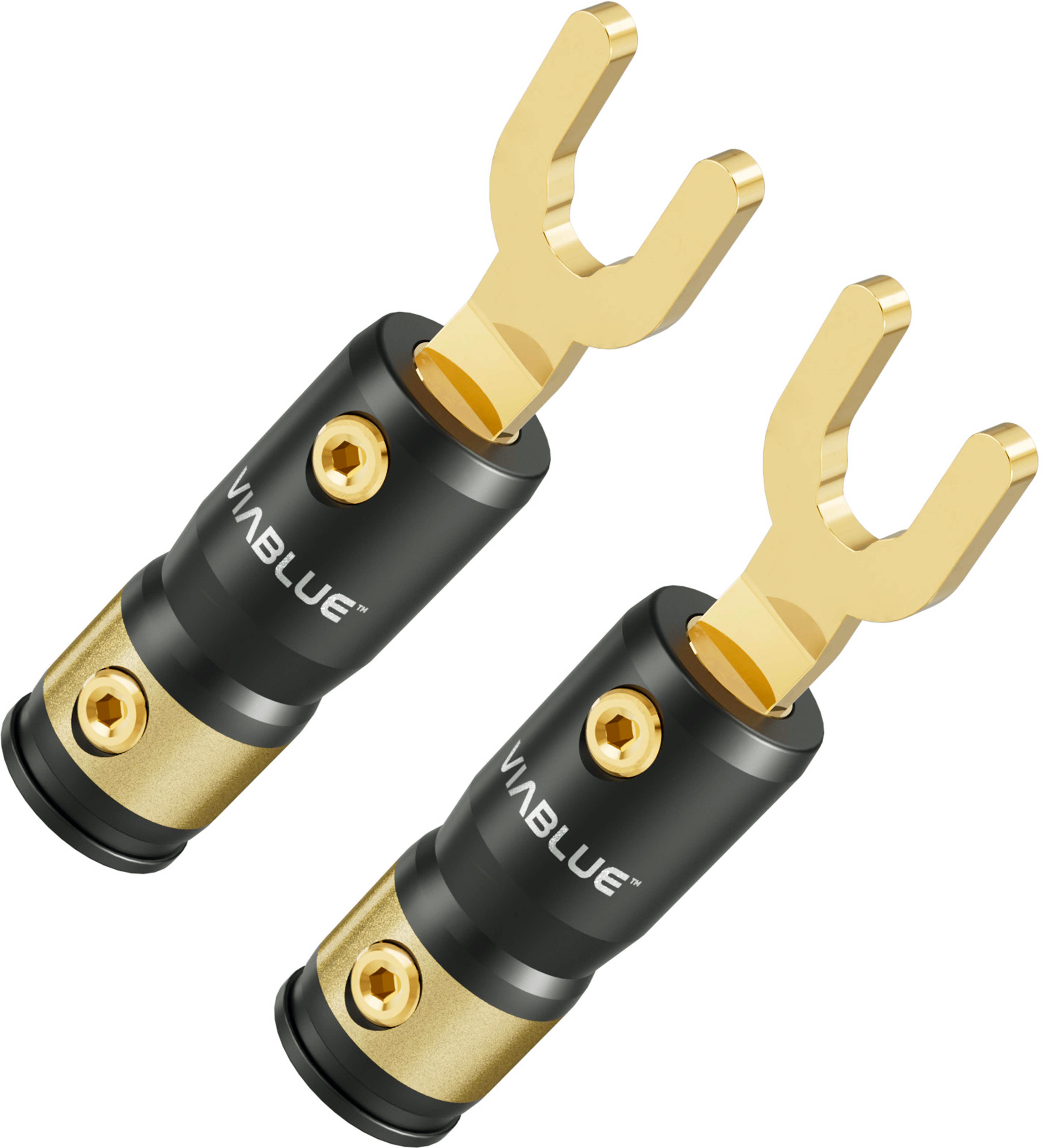

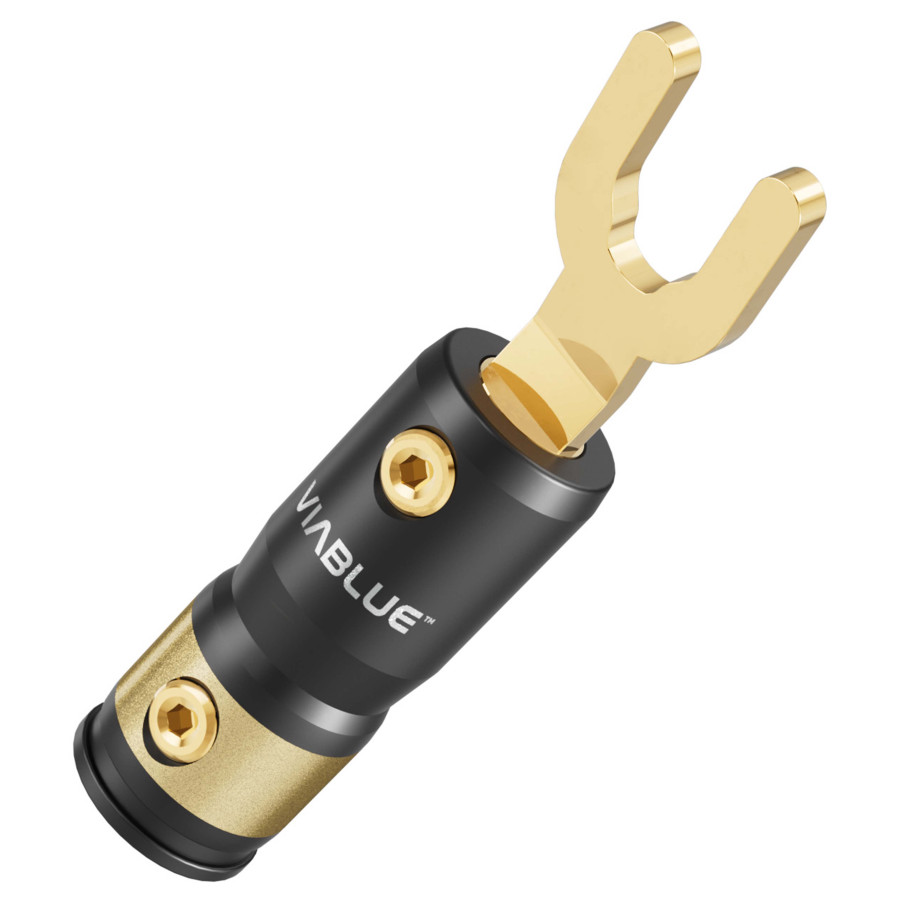

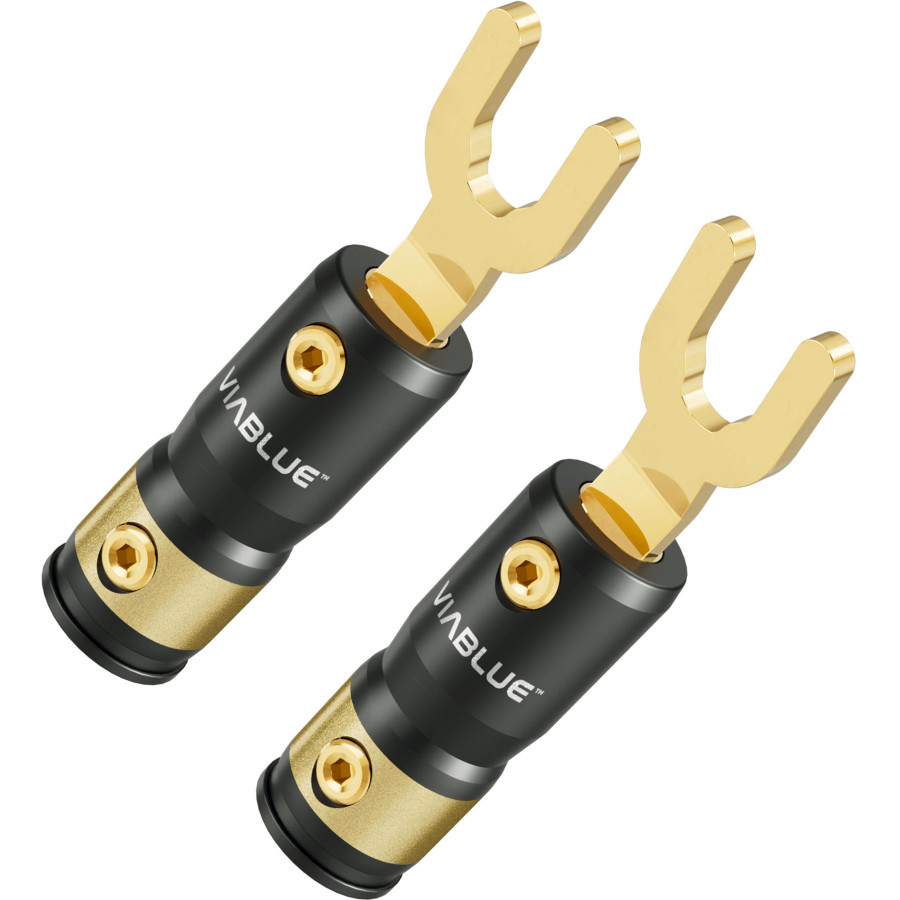

The VIABLUE T8 MINI SPADE is a pair of high-end spade connectors designed to provide a reliable and durable connection between audio cables and compatible speaker binding posts or HiFi equipment. Made from copper with 24K gold plating, these spade connectors ensure excellent conductivity as well as effective protection against oxidation. Their dual-opening design (2mm and 4.2mm) provides great flexibility of use and broad compatibility with different types of binding posts. Each connector features a satin black aluminum housing combined with an M3 hex screw fastening system (1.5mm Allen key) compatible with cables from 2.5 to 5.5mm in diameter. Two diameter reducers are supplied to ensure perfect centering of small-diameter cables from 3mm and provide a professional finish. The stripped conductors are directly soldered into a solder cup with an internal diameter of 3.25mm, and the contact can be completely separated from its housing to facilitate installation. With an external diameter of 8mm, a housing length of 21mm, a spade length of 14mm, and a width of 13.5mm, the VIABLUE T8 MINI SPADE provides an elegant and high-performance audiophile solution for optimizing the connections of your high-fidelity audio systems.
Technical Specifications
| Specifications | |
|---|---|
| Product type | Spade Connector |
| Conductor material | Copper |
| Conductor plating | 24K Gold |
| Dual contact area | 2 and 4.2mm |
| Accepted cable diameter | 2.5 to 5.5mm |
| Inner diameter of solder sleeve | 3.25mm |
| Dimensions | Diameter: Ø8mm Body length: 21mm Spade contact length: 14 mm Spade contact width: 13.5mm |
| General | |
|---|---|
| Package content | Sold in pair |
| Max cable diameter (mm) | 5.5 |
| Mounting type | To weld |
| Connectic | Male |
| Connector | Spade |
| Contacts Material (Connector) | Copper |
| Contacts Plating (Connector) | Gold |
