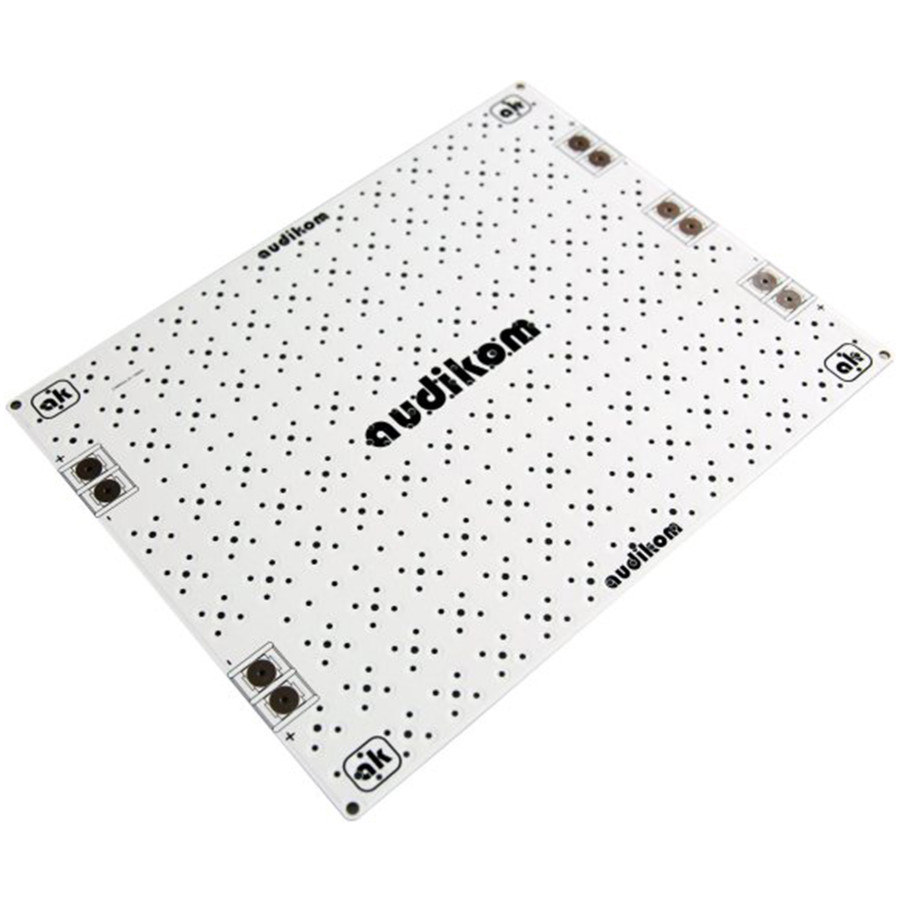

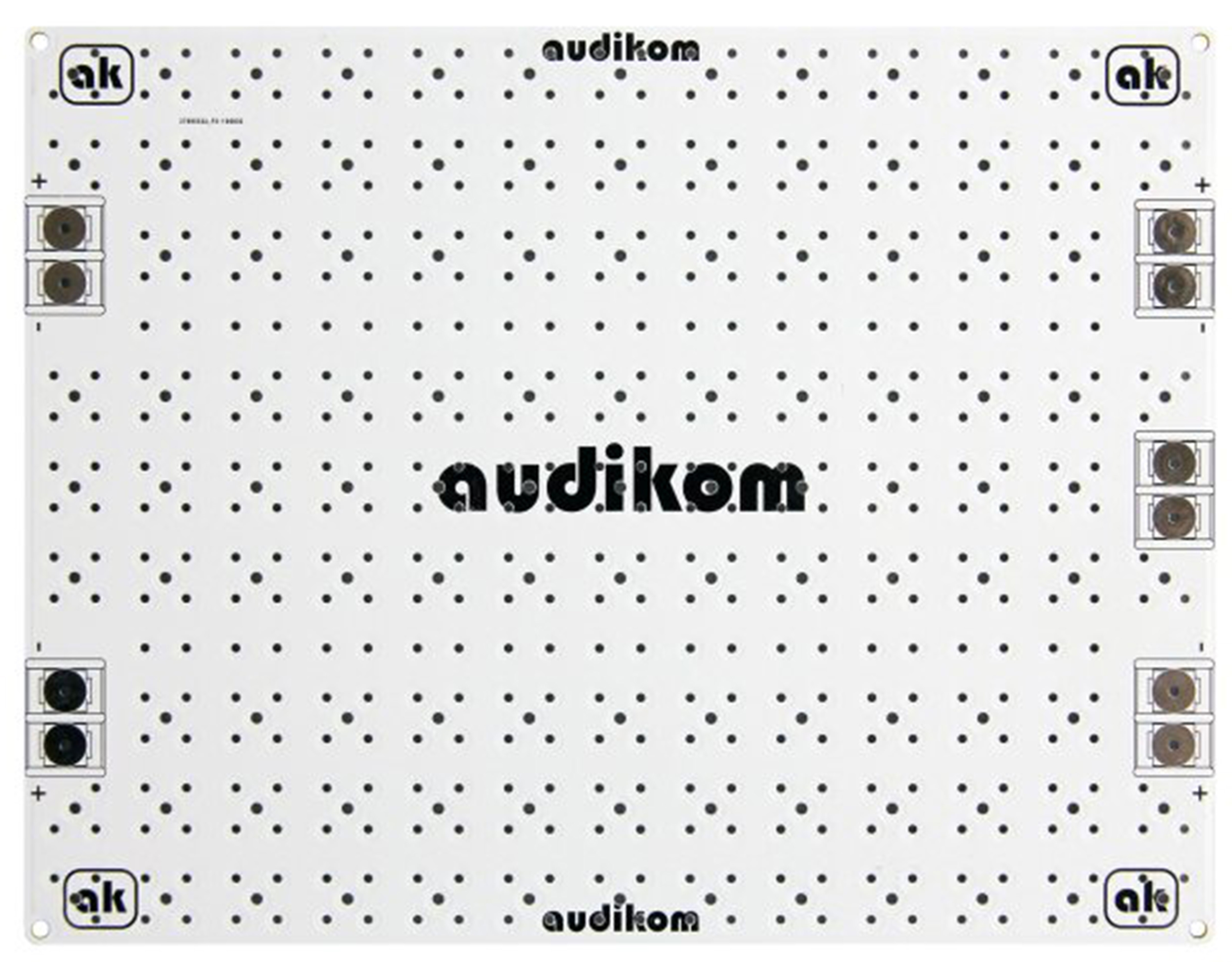

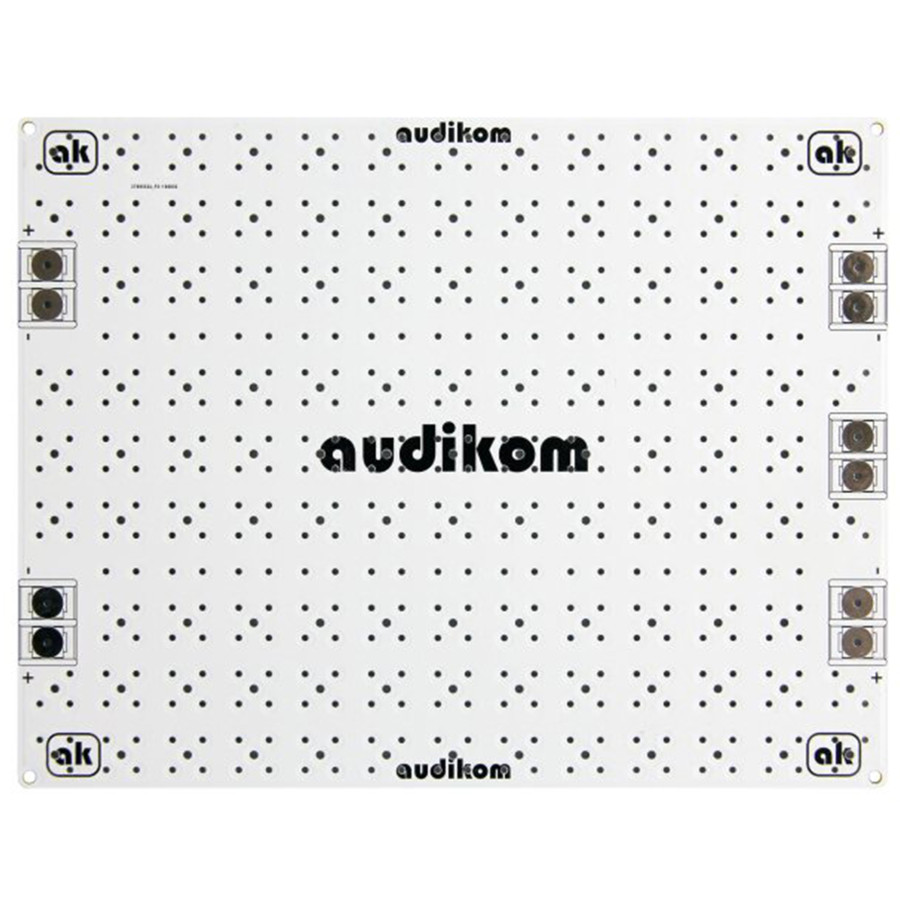

AUDIKOM PCB02 PCB for Crossover Filters 17x22cm

The Audikom PCB02 is a prototyping printed circuit board intended for assembling passive filters for loudspeakers. In a 17 × 22 cm format, it makes it easy to build small crossovers by grouping the connection points on a single board, while its holes accept the large-diameter pins used by inductors and capacitors.

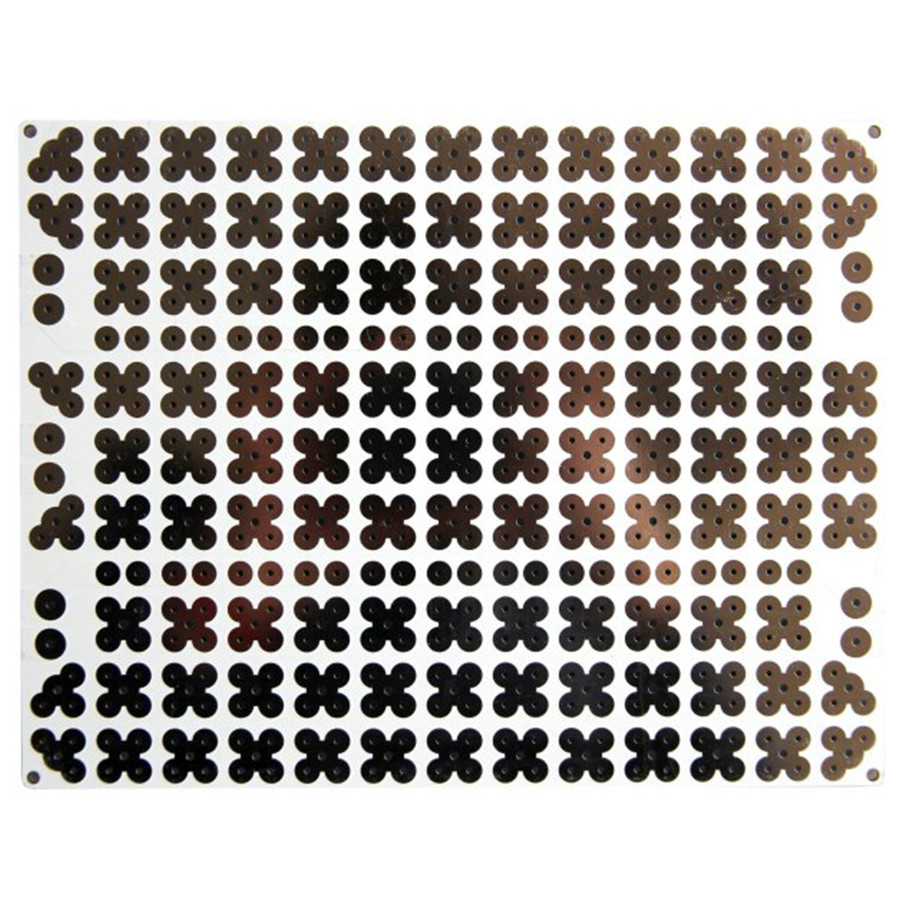

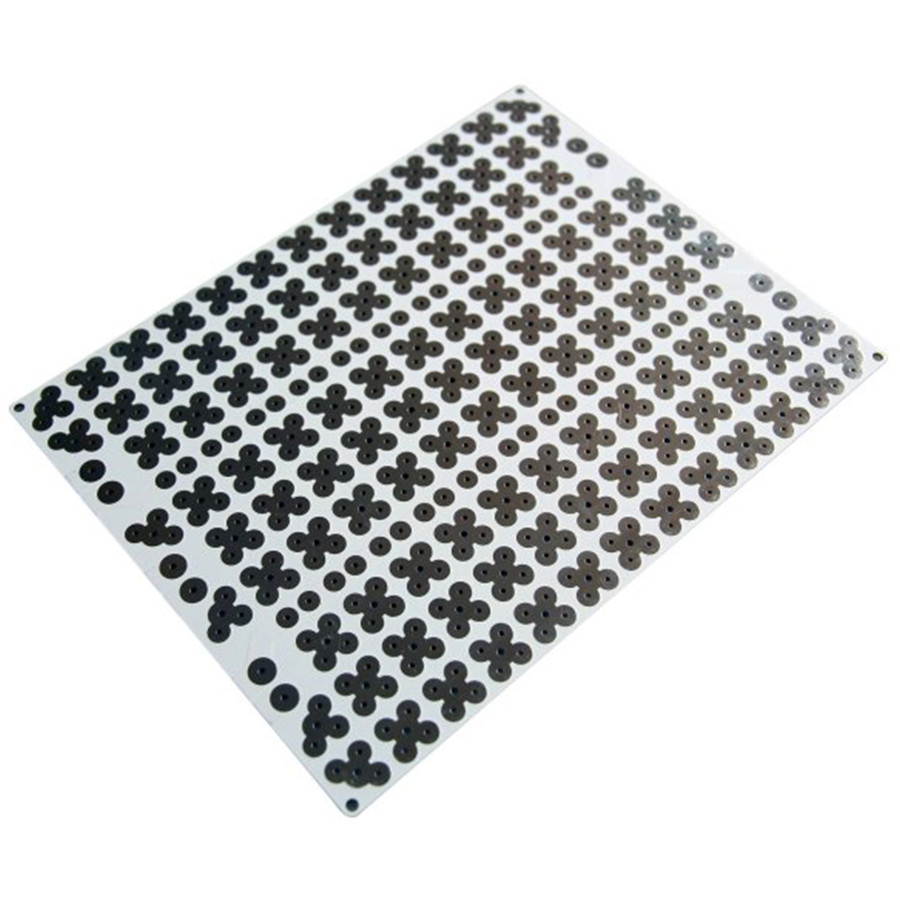

Each pad groups four holes drilled at 1.4 mm along with a central hole drilled at 1.9 mm, allowing several components to be connected at the same electrical point without adding jumpers. When the components are placed on separate pads, their own pins can also be used to establish the link between the different points, which simplifies wiring and limits the length of the connections.

The pads are pre-tinned with silver solder to facilitate the soldering operation and ensure a stable conductive connection. The input and output points allow the installation of quality terminal blocks or direct soldering of a cable, making it possible to adapt the board to the type of mounting and to the integration constraints of the filter.
