SHANLING EM5 Network audio player DAC AK4493 32bit / 768kHz DSD256 MQA Silver

SHANLING EM5 DAC / Amplificateur casque / Préamplificateur AK4493 384kHz DSD256 MQA Silver
The EM5 is a complete high-end DAC/headphone amplifier station, with a wide range of different connectors, including balanced XLR and 4.4 mm. It can also be used as a DAC and preamplifier when combined with a separate power amplifier or active speakers.

No customer reviews yet, login to write a review.

By buying this product you get 70 loyalty points


Reference : 15582
New product

707,50 €tax excl.

Including 0,04 € for green tax

- +

Shipping date: 09-02-2023.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

SHANLING EM5 DAC

Network audio player / Station DAC / Headphone Amplifier / Preamp AK4493 32bit / 768kHz DSD256 MQAx8


The EM5 is a complete high-end DAC / headphone amplifier station, with a wide range of different connectors, including balanced XLR and 4.4mm. It can also be used as a DAC and preamplifier when paired with a separate power amplifier or active speakers.

DAC AK4493 + OPA2211


The EM5 conversion stage is based on an excellent AK4493 chip. This generation of AKM 32bit DACs features Velvet Sound ™ technology as well as OSR Doubler filtering. It also ensures an extremely low level of distortion with a generous dynamic range.

Integrated into an Android system, the DAC supports sampling rates up to 32bit 768kHz and native DSD256 (+ DSD512 software support), while ensuring minimal noise as well as pure sound reproduction.

The digital to analog circuit is accompanied by Panasonic Polymet Tantalum capacitors, allowing filtering of the power supply and therefore contribute to upgrading the in-depth signal-to-noise ratio.

Finally, the analog signal at the output of the DAC circuit embeds an OPA2211 operational amplifier: a remarkable component regularly used in the filtering / buffering of very high-end DACs.

Huge possibilities for integration


The possibilities of integration and the ways of sending digital audio signal to the EM5 are numerous. Its digital circuit is accessible via a USB input, a coaxial input, an optical input. It also has wired network connectivity (RJ45) even has its own ability to read files from USB storage devices.

Wireless connectivity is not left out since the EM5 can receive audio streams via a WiFi (2.4 & 5G) & two-way Bluetooth 4.2 on-board circuit. Shanling's EM5 is therefore compatible with DLNA & Airplay standards and supports high definition bluetooth audio streams (LDAC).

Headphone Amplifier & Preamplifier


The EM5 has a very interesting connection for a centralized audio installation. It has no less than three different headphone outputs (6.35mm single-ended/ 4.4mm & balanced 4-pin XLR) as well as two pre-amplified analog outputs on RCA & XLR connectors.

The headphone output stage is capable of delivering a comfortable power of 540mW @ 32Ohm (SE) against 1620mW @ 32Ohm (balanced). It takes advantage of an extremely clean and dynamic signal thanks to two TPA6120A2.

Its preamplified output uses two reference Muse8920 operational amplifiers.

Touchscreen interface & Android


Dressed in a beautiful 4.7 inch HD touchscreen, the Shanling EM5 displays beautiful colors. Offering an optimal visual experience, this screen provides an intuitive and easy user experience.

The touch interface makes it easy to control the Android distribution (customized & closed) and to take advantage of its many streaming applications already present to use your favorite streaming services.

DSD 256 & MQA x8


The EM5 supports very high resolution files. It is able to read and get the most out of DSD files up to DSD256 (512 with software), but also supports 8x MQA decoding. The latter format allows sound reproduction as close as possible to the quality of the original recordings, with a limited file size.

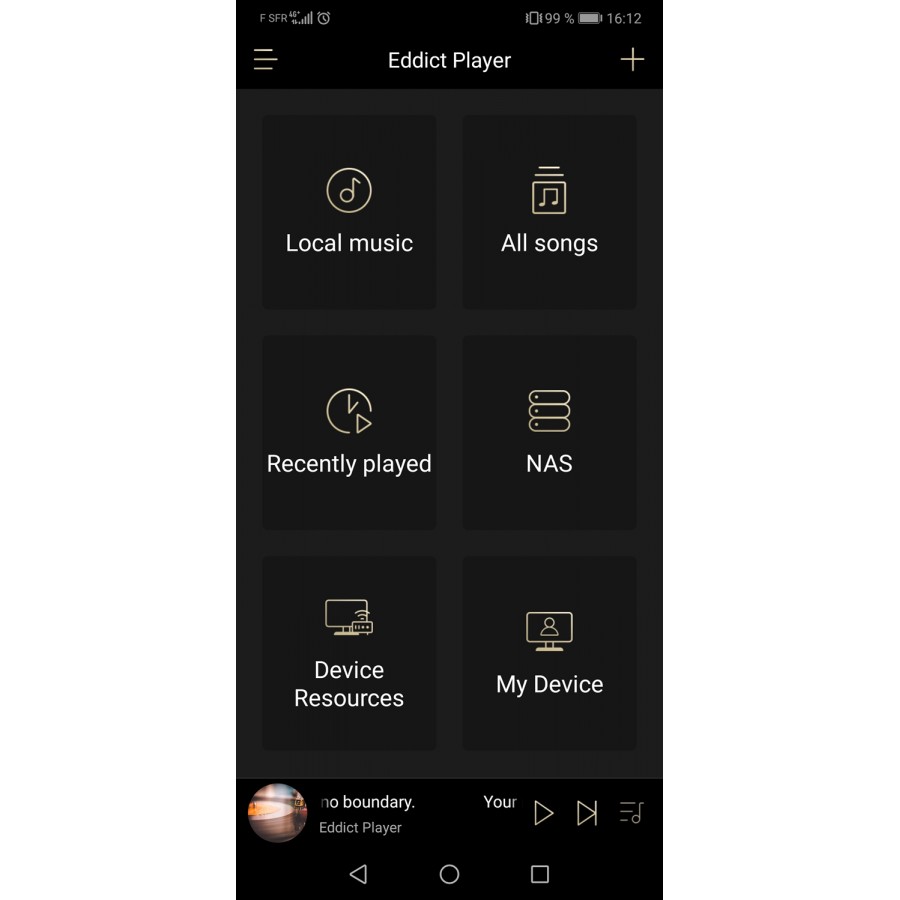

Control app

Shanling provides its own mobile application, available on Android and iOS, for free. Ergonomic and easy to use, it allows you to control remote playback on your connected Shanling device, browse through your local or networked files or even play your music from Spotify.

Shanling EM5 Lecteur réseau audio DAC AK4493 32bit 768kHz DSD256 MQA
SPECIFICATIONS
TypeDAC, Headphone amplifier, preamplifier
DAC chipAKM AK4493
Amplifier headphone2x TPA6120A2
Preamplifier2X Muse8920
ClocksKDS Crystal oscillator
FilteringPanasonic Tantalum capacitors
OPA2211
InputsUSB, Coaxial, Optical, RJ45, WiFi, Bluetooth
OutputsDigital: Coaxial, Optique
Analog : Jack 6.35mm, Jack 4.4mm, XLR 4 pins, RCA, XLR
Headphone amp powerSingle-ended – 540mW @ 32Ohm
Balanced – 1620mW @ 32Ohm
Sampling ratePCM 32bit / 768kHz
DSD256 native, DSD512 software
8x MQA
Bluetooth CodecLDAC / LHDC / AptX HD / AptX / SBC
WiFiDual-band : 2.4G / 5G
OSAndroid (custom)
DisplayTouchscreen 4.7 inches HD
Dimensions238x188x55mm
Power supply 230VSMPS (intergrated)
ColorSilver

Data sheet
InputSPDIF
InputRJ45
InputUSB
InputOptical
OutputOptical Toslink
OutputCoaxial SPDIF
OutputJack 4.4mm
OutputXLR
OutputJack 6.35mm
DAC / ADC ChipAK4493EQ
Max sampling rate768kHz
Max sampling rateDSD256
ColorSilver
ClassClass D / T
NetworkingYes
Remote ControlNo
Streaming services & Network protocolsAmazon Music
Streaming services & Network protocolsAirPlay
Streaming services & Network protocolsDeezer
Streaming services & Network protocolsTidal
Streaming services & Network protocolsDLNA
Streaming services & Network protocolsSpotify
Streaming services & Network protocolsQobuz
