NAD C658 Streamer DAC Preamplifier ESS Sabre WiFi Bluetooth BluOS Dirac Live 32bit 192kHz DSD MQA

NAD C658 Streamer DAC Preamplifier ESS Sabre WiFi Bluetooth BluOS Dirac Live 32bit 192kHz DSD MQA
Extremely versatile and generous in its features, the NAD C658 is an integrated solution, which is at the same time an audio network player, a high-resolution audiophile DAC and a stereo and phono preamplifier. It is compatible with the BluOS application developed by BlueSound, allowing remote control of the player as well as multi-room integration.

No customer reviews yet, login to write a review.

By buying this product you get 140 loyalty points


Yes, notify me when available !
Reference : 15617
New product

1 407,50 €tax excl.

Including 0,04 € for green tax

- +

Available on order
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

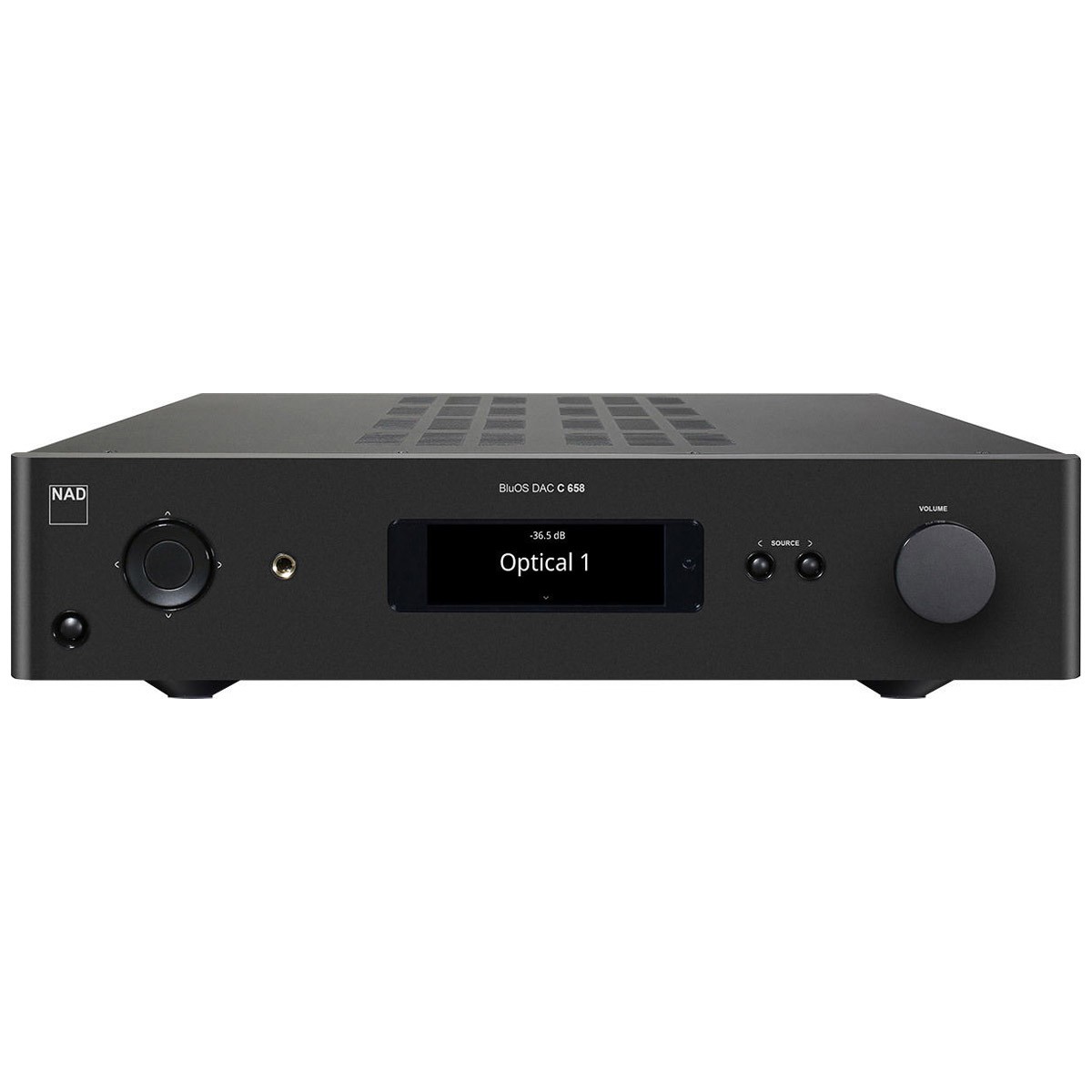

NAD C658

Streamer DAC Preamplifier ESS Sabre WiFi Bluetooth BluOS Dirac Live 32bit 192kHz DSD MQA

NAD C658 Lecteur Réseau DAC Préamplificateur ESS Sabre WiFi Bluetooth BluOS Dirac Live 32bit 192kHz DSD MQA

Extremely versatile and generous in its features, the NAD C658 is an integrated solution, which is at the same time an audio network player, a high-resolution audiophile DAC and a stereo and phono preamplifier. It is compatible with the BluOS application developed by BlueSound, allowing remote control of the player as well as multi-room integration. Complete, it offers an extensive connectivity, balanced and single-ended, allowing it to be associated with the vast majority of audio systems, but also a wireless and network connectivity with Ethernet RJ45 Gigabit, WiFi and Bluetooth 5.0 bidirectional. It even has a phono (MM) input and two subwoofer outputs for adding subwoofers. Scalable, the C658 also has two slots for additional MDC modules (not included).

Performance is the key

The NAD C658's chassis conceals an optimized architecture based on high-end audio components selected to deliver the richest and most accurate sound reproduction possible. It features a 32bit ESS Sabre digital-to-analog conversion chip that offers excellent performance, with a wide dynamic range and low jitter. All the functions of the preamplifier are performed digitally, including the volume control, identical to the one present in the Masters range of the brand. This makes it possible to maintain a short analog circuit, identical for all volume controls. The power supply stage is also optimized to provide a clean electrical signal to all the circuits and thus keep noise and distortion at a very low level.

Digital & analog inputs

The versatility of the NAD C658 starts of course with its wide range of digital and analog inputs. Thus, the rear panel of the device offers an Ethernet RJ45 socket, two Toslink Optical inputs, two Coaxial inputs, two RCA line inputs but also a phono (MM) input allowing to connect a vinyl turntable with an MM cartridge.

Balanced, single-ended and subwoofer outputs

Equally well suited for operation in a single-ended or balanced integration, the C658 features both an unbalanced RCA and a balanced XLR output with pre-amplification. It also offers a stereo subwoofer output, allowing the connection of one or two subwoofers, for deeper bass. Finally, the front panel of the C658 provides a 6.35mm headphone output.

NAD C658 Lecteur Réseau DAC Préamplificateur ESS Sabre WiFi Bluetooth BluOS Dirac Live 32bit 192kHz DSD MQA

WiFi & Bluetooth

Of course, the NAD C658 is not to be outdone in terms of network connectivity. It features a dual-band WiFi controller and a two-way Bluetooth chip that supports the high-resolution aptX HD wireless codec. This makes controlling your music playback remotely a breeze.

BluOS & Total compatibility

The BluOS system, on which the NAD C658 is based, is a real boon for music lovers looking for a versatile device and streaming lovers. With its extensive compatibility, it will allow you to enjoy more than 15 online streaming services, such as Spotify, Tidal, Deezer as well as thousands of web radios, but also files stored on your network. It's also an easy way to take control of your system remotely and integrate it into a multi-room ecosystem, with the choice of independent or zone-based management.

NAD C658 Lecteur Réseau DAC Préamplificateur ESS Sabre WiFi Bluetooth BluOS Dirac Live 32bit 192kHz DSD MQA
NAD C658 Lecteur Réseau DAC Préamplificateur ESS Sabre WiFi Bluetooth BluOS Dirac Live 32bit 192kHz DSD MQA

MQA

The MQA (Master Quality Authenticated) technology, integrated in every BluOS player and device, allows to enjoy an extremely pure sound reproduction, as close as possible to the original recording. The C658 is equipped with a powerful decoder and audio rendering system to take advantage of this file format.

DIRAC Acoustic Correction

The NAD C658 is the first device of the brand to integrate the Dirac Live Room Correction technology, which is particularly efficient and intuitive. Not only does it correct the frequency response according to the acoustics of your listening room, it also corrects the impulse response of your speakers. A process that allows you to achieve incredible sound transparency, so you can enjoy your music to the fullest.

The C658 includes a Dirac Live license, with the option for advanced users to upgrade to the Dirac Live Full Frequency version.

NAD C658 Lecteur Réseau DAC Préamplificateur ESS Sabre WiFi Bluetooth BluOS Dirac Live 32bit 192kHz DSD MQA

Technical characteristics

Specifications
Product typeStreamer
DAC
Preamplifier
DAC ChipESS Sabre 32bit
Inputs2x Optical Toslink
2x Coaxial
2x Stereo RCA line input
1x Phono RCA input (MM)
1x USB-A (USB Host)
1x Ethernet RJ45
Outputs1x Single-ended stereo RCA
1x Balanced stereo XLR
1x Stereo subwoofer output
1x Jack 6.35mm headphone output
ConnectivityBluetooth 5.0 (bidirectional)
Ethernet RJ45 Gigabit
WiFi 5 (802.11ac/n)
Other connectorsIR Input / Output
Trigger 12V Input / Output
Application de contrôleBluOS, disponible gratuitement sur Android et iOS
Supported sampling ratesPCM up to 32bit 192kHz
DSD
MQA
Supported file formatsMQA, FLAC, WAV, AIFF, DSD converti via le logiciel BluOS, MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
Compatible OSWindows XP, 2000, Vista, 7, 8, 10
Mac OS X
Streaming services compatible with BluOSSpotify, Amazon Music, TIDAL, Deezer, Qobuz, HDTracks, HighResAudio, Murfie, JUKE, Napster, Slacker Radio, KKBox, Bugs
Free webradios with BluOSTuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise
Supported Bluetooth codecsaptX, aptX HD
Line in - Pre-out Measurements
THD (20Hz-20kHz)< 0.005% @ 2V Out
SNR> 106dB @ IHF, A-Weighted, 500mV out, unity gain
Channel separation> 80dB @ 1kHz
> 70dB @ 10kHz
Input impedance (R and C)22kΩ + 100pF
Max input signal> 4.5Vrms @ THD 0.1%
Output impedanceSource Z + 240Ω
Input sensitivity93mV @ 500mV out, volume max
Frequency response20Hz-20kHz ±0.3dB
Max output voltage - IHF Load> 4.5V @ 0.1% THD
Tone controlTreble : > ±7dB @ 20kHz
Bass : ±7dB @ 60Hz
Balance : -10dB
phono Input - Pre-out Measurements
THD (20Hz-20kHz)< 0.01% @ 2V Out
SNR> 84dB @ 200Ω source, A-Weighted, 500mV out
> 76dB @ MM Cartridge source, IHF, A-Weighted, 500mV out
Input snesitivity1.44mV @ 500mV out, max volume
Frequency response20Hz-20kHz ±0.3dB
Max input signal @ 1kHz> 80mVrms à 0.1% THD
ligne input - Headphone output measurements
THD (20Hz-20kHz)< 0.005% @ 1V Out
SNR> 110dB @ 32Ω, A-Weighted, 2V out, unity gain
Frequency response20Hz-20kHz ±0.3dB
Channel separation> 60dB @ 1kHz
Output impedance6Ω
General
Power cableIncluded
Dimensions435 x 405 x 100mm
Weight10.1kg
ColorBlack

Data sheet
InputRJ45
InputRCA
InputOptical
InputPhono
InputUSB
InputSPDIF
OutputRCA
OutputJack 6.35mm
OutputXLR
OutputSubwoofer
DAC / ADC ChipNC
Max sampling rateMQA
Max sampling rate192kHz
ColorBlack
NetworkingYes
Remote ControlN/A
Streaming services & Network protocolsAmazon Music
Streaming services & Network protocolsDeezer
Streaming services & Network protocolsTidal
Streaming services & Network protocolsWeb radios
Streaming services & Network protocolsSpotify
Streaming services & Network protocolsQobuz
