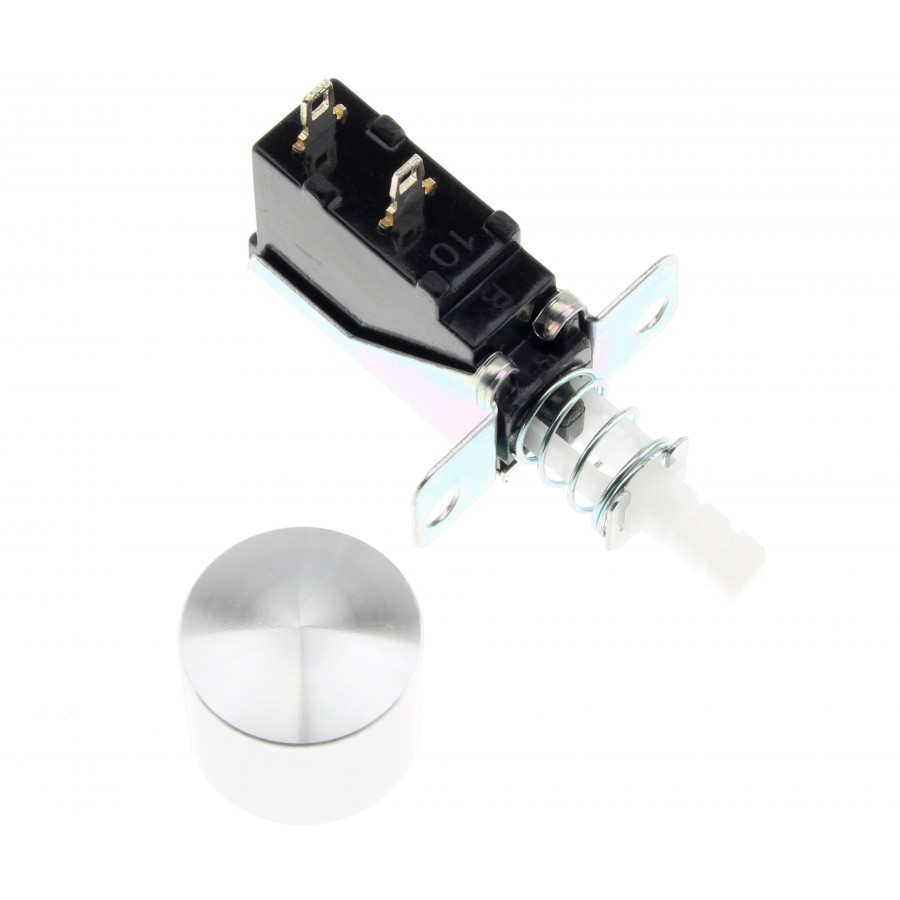

Push Button 2 Poles 2 Positions 250V 5A
This two-pin push button is supplied with a 15mm diameter aluminium button. It has two possible positions and supports a voltage of 250 V and a continuous current of 5 A. This push button is ideal for your DIY projects and assemblies, for example to control the switch-on of your device.
No customer reviews yet, login to write a review.
No loyalty points for this product.
Reference : 21111
New product
![[GRADE S] MINIDSP FLEX HT Audio DSP Processor 2x8 Channels SHARC ADSP21489 XMOS HDMI ARC eARC](https://www.audiophonics.fr/68133-thumb_default/minidsp-flex-ht-stockb.jpg)
![[GRADE A] AUNE S9C PRO DAC 2x ES9068AS Discreet Headphone Amplifier 5W Bluetooth 32bit 768kHz DSD512 MQA Back](https://www.audiophonics.fr/64487-thumb_default/aune-s9c-pro-dac-2x-es9068as-discreet-headphone-amplifier-5w-bluetooth-32bit-768khz-dsd512-mqa-back.jpg)
Push Button2 poles 2 position 250V 5A Ø15.5mm Silver
This two-pin push button is supplied with a 15mm diameter aluminium button. It has two possible positions and supports a voltage of 250 V and a continuous current of 5 A. This push button is ideal for your DIY projects and assemblies, for example to control the switch-on of your device.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Push button |
| Maximum continuous voltage | 250V |
| Max continuous current | 5A |
| Maximum peak current | 40A |
| General | |
|---|---|
| Color | Silver |
| Dimensions | Overall: 48.5 x 9.5 x 16.5 mm Aluminum cap: Ø15.5 x 13.5 mm |

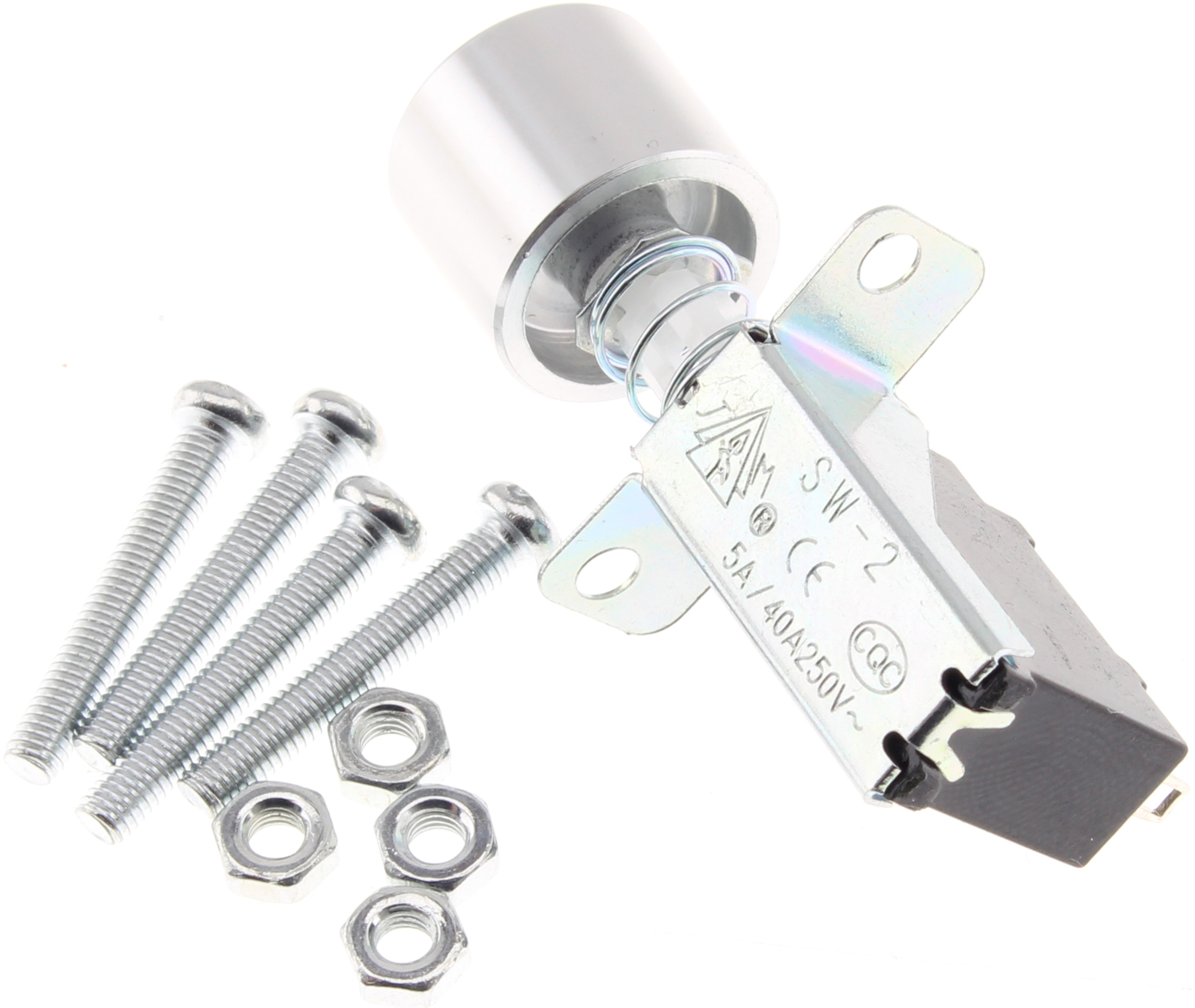

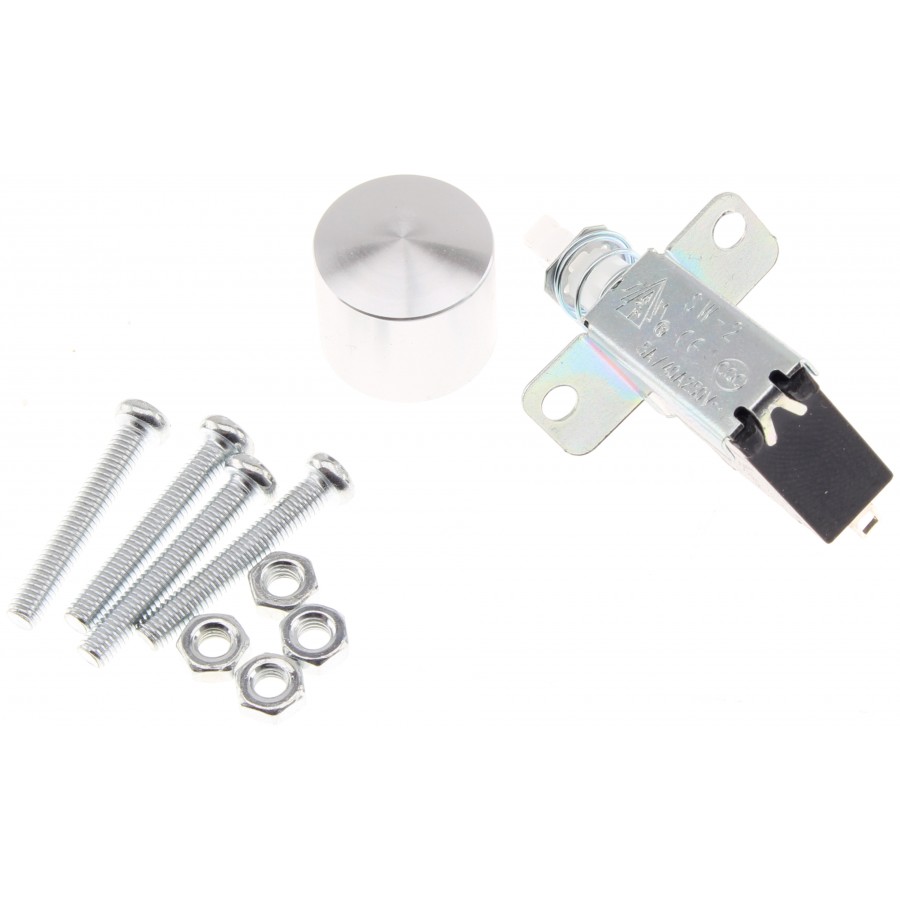

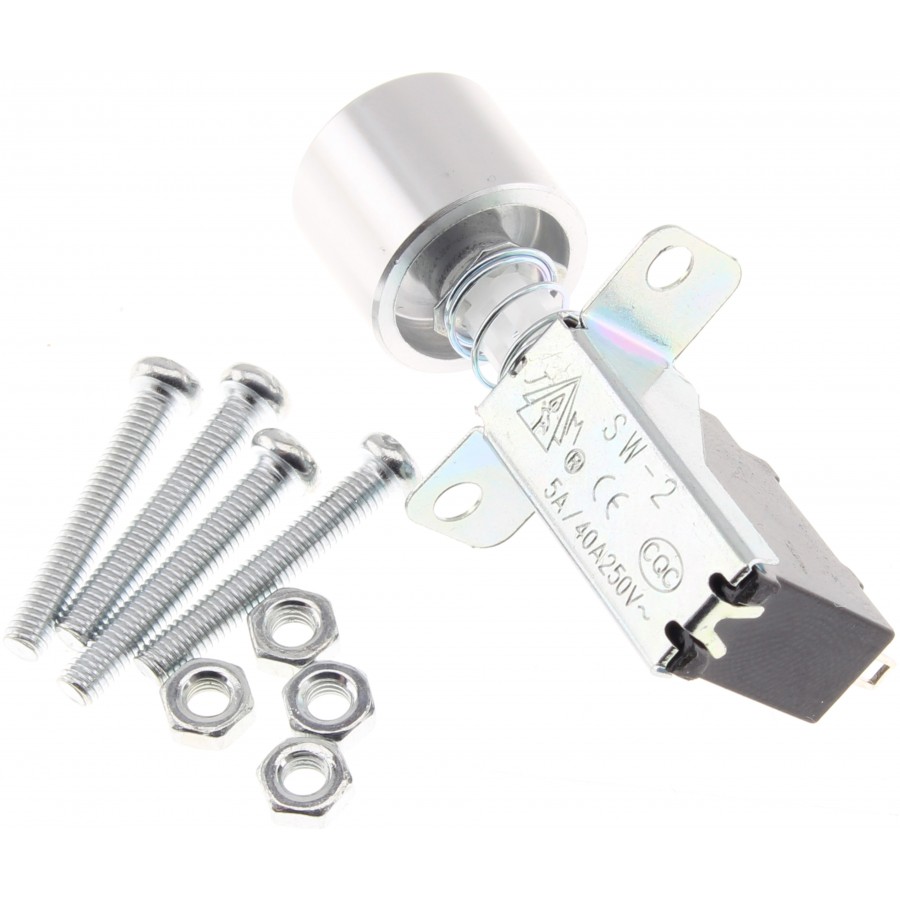

| Package | 1x Push button switch 1x Aluminium button Screws |
| Color | Silver |
| Material | Aluminium |
| Material | Plastic |
| LED Color | N/A |
| Internal width | 8 |
| Internal depth | 25 |
| Internal height | 16.5 |
| Number of positions | 2 |
| Button type | N/A |
