Switch with Red Light 1NO 36V Ø8mm Silver
No loyalty points for this product.
Viewed products
![[GRADE S] FURUTECH FP-S55N LIMITED EDITION Power Cable OFC Copper Silver Gold Nano Liquid Alpha Treatment 5.26mm² Ø18mm 2.65m](https://www.audiophonics.fr/60802-thumb_default/furutech-fp-s55n-limited-edition-power-cable-ofc-copper-silver-gold-nano-liquid-alpha-treatment-526mm-o18mm.jpg)
![[GRADE B] IFI AUDIO ZEN STREAM Hi-Res Audio Streamer WiFi DLNA 32bit 384kHz DSD256 MQA](https://www.audiophonics.fr/60791-thumb_default/ifi-audio-zen-stream-hi-res-audio-streamer-wifi-dlna-32bit-384khz-dsd256-mqa.jpg)

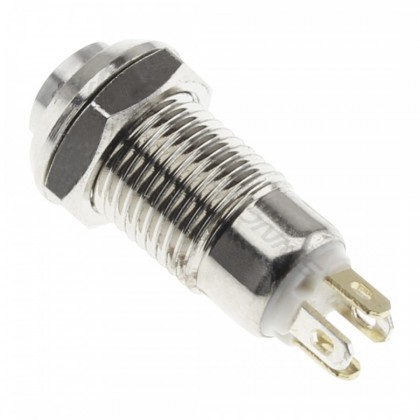

Switchwith Red Light 1NO 36V Ø8mm Silver
This 1NO type switch in PA66 operates with a bi-stable mechanism (two positions) and features a red indicator light (LED). The connectors dedicated to the signal/power supply can handle a maximum voltage of 36V and a current of 1A. The LED power supply connectors can accept voltages from 9V to 24V. This part is ideal for DIY assembly projects, repairing or upgrading an existing device, or building a control panel from scratch.
Not suitable for mains switching. In addition, the LED voltage values must be taken into account with the supplied 5kΩ resistor.
Technical characteristics
| Specifications | |
|---|---|
| Product type | 1NO bistable switch |
| Thread diameter | 8mm |
| Max. panel thickness | 8mm |
| LED | Color: red Voltage: 9-24V Resistance: 5kΩ or 4.7kΩ supplied |
| Number of contacts | 4 |
| Max. voltage | 36V |
| Body material | PA66 |
| General | |
|---|---|
| Total length | Ø10 x 22mm |
| Color | Silver |
| Package | 1* Switch 1* 5kΩ resistor |
| Color | Silver |
| Material | Nylon |
| LED Color | Red |
| Internal width | N/A |
| Internal depth | N/A |
| Internal height | N/A |
| Number of positions | 1 |
| Button type | 1NO |
