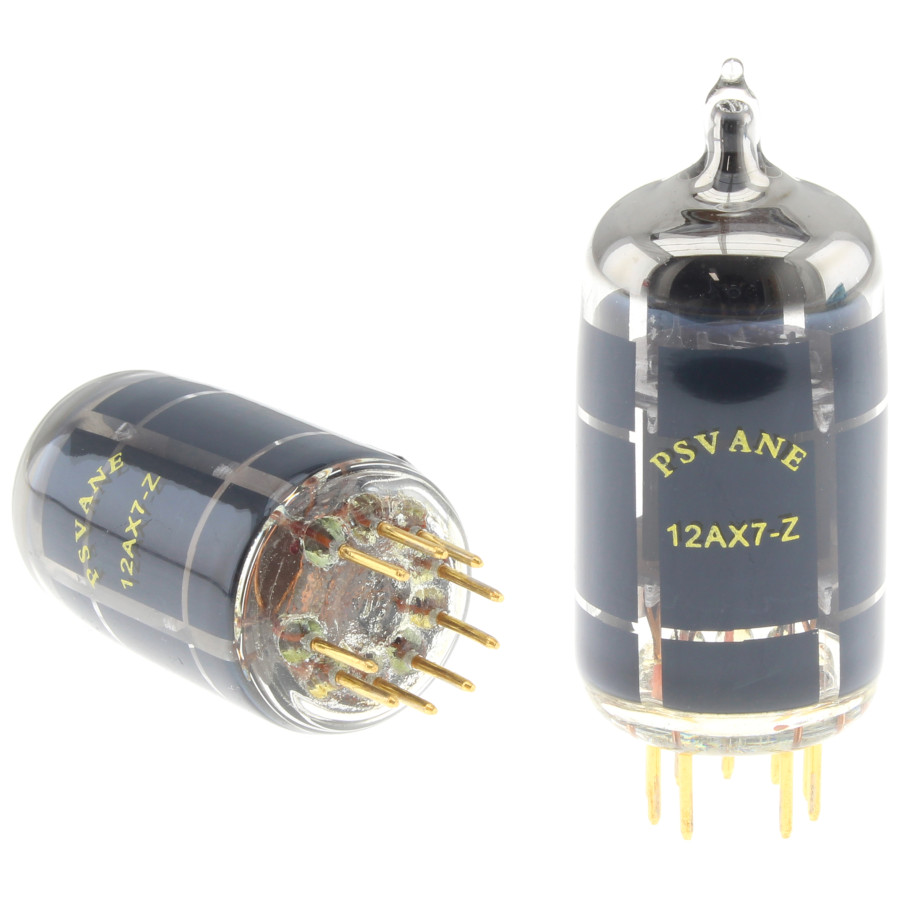

PSVANE 12AX7-Z Double Triode Tubes (Pair)
The PSVANE 12AX7-Z power tube delivers a warm and smooth sound, ample and natural, with a nice balance and no background noise. PSVANE offers here a tube with a more pronounced analog texture than classic tubes, with vocals more forward than usual and an overall sound reminiscent of the texture typical of vinyl.
No customer reviews yet, login to write a review.
By buying this product you get 9 loyalty points
Reference : 22330
New product
Viewed products
![[GRADE B] DAYTON AUDIO MKSX4 Low Profil Subwoofer Speaker 160W Ø20cm](https://www.audiophonics.fr/72897-thumb_default/dayton-audio-mksx4-low-profil-subwoofer-speaker-160w-o20cm.jpg)

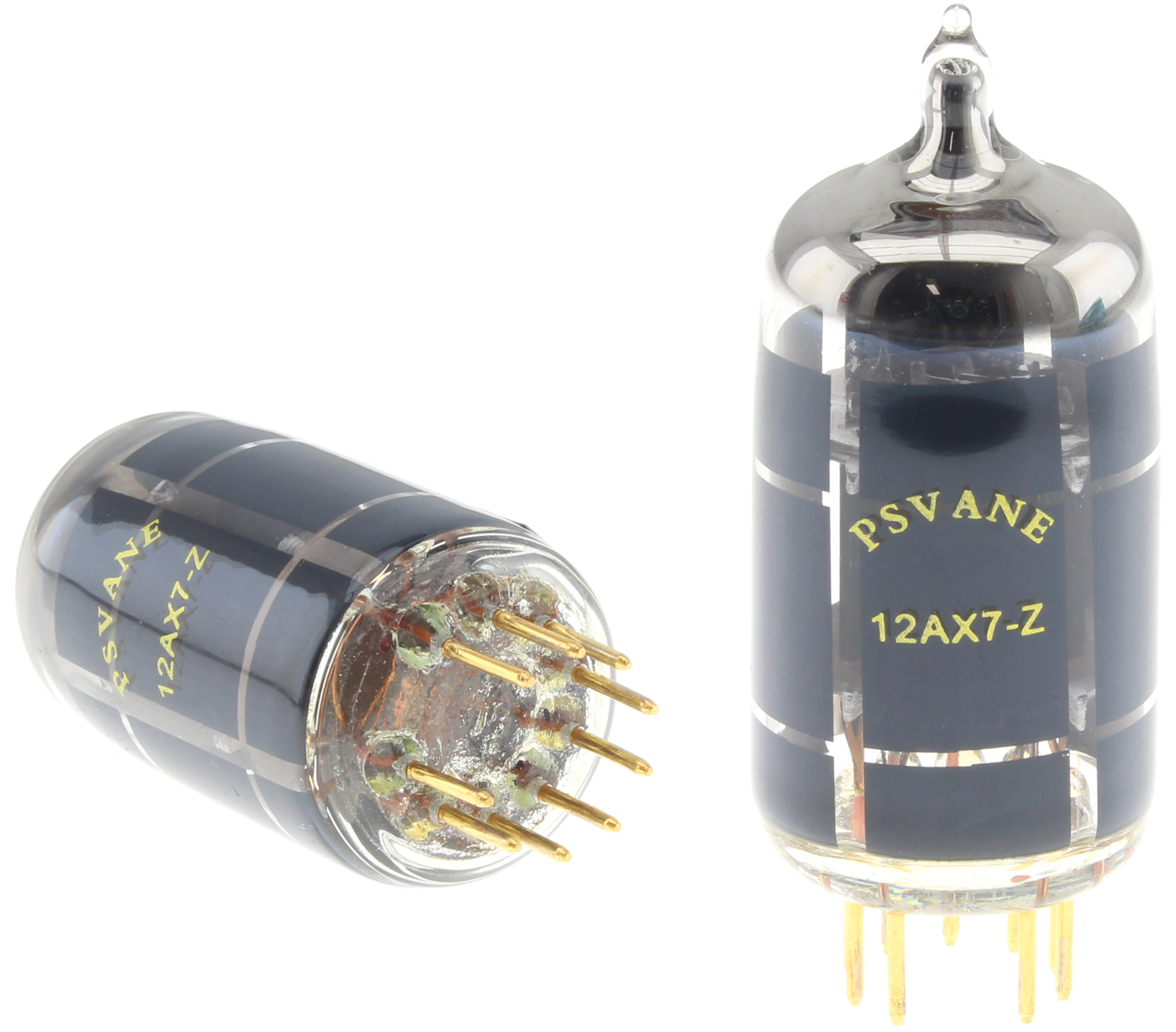

PSVANE 12AX7-Z Double Triode Tubes (Pair)
The PSVANE 12AX7-Z power tube delivers a warm and smooth sound, ample and natural, with a nice balance and no background noise. PSVANE offers here a tube with a more pronounced analog texture than classic tubes, with vocals more forward than usual and an overall sound reminiscent of the texture typical of vinyl.
Technical specifications
| Specifications | |
|---|---|
| Product type | Power tube |
| Tube type | Double Triode |
| Number of pins | 9 |
| Filament heating | |
|---|---|
| Filament heating voltage (Uh) | 6.3 (parallel) / 12.6 (series) V |
| Filament heating current (Ih) | 0.30 / 0.15 A |
| Limit values | |
|---|---|
| Anode voltage | 330V |
| Negative anode voltage | -50V |
| Grid voltage | 0V |
| Anode dissipation power | 1.2W |
| Filament-cathode voltage (pk) | ±180V |
| Inter-electrode capacitances | |
|---|---|
| Input capacitance | No.1: 1.6PF No.2: 1.6PF |
| Output capacitance | No.1: 0.46PF No.2: 0.34PF |
| Transfer capacitance | No.1: 1.7PF No.2: 1.7PF |
| Static parameters | |
|---|---|
| Anode voltage (Ua) | 100 / 250V |
| Grid voltage (Ug) | -1 /-2V |
| Anode current (Ia) | 0.5 / 1.2mA |
| Transconductance (Gm) | 1.25 / 1.6mA/V |
| Amplification factor (μ) | 100 / 100 |
| Internal resistance (Ri) | 80 / 62.5 KΩ |
| General | |
|---|---|
| Dimensions | 57 x 23mm |
| Package | Sold in pairs |
