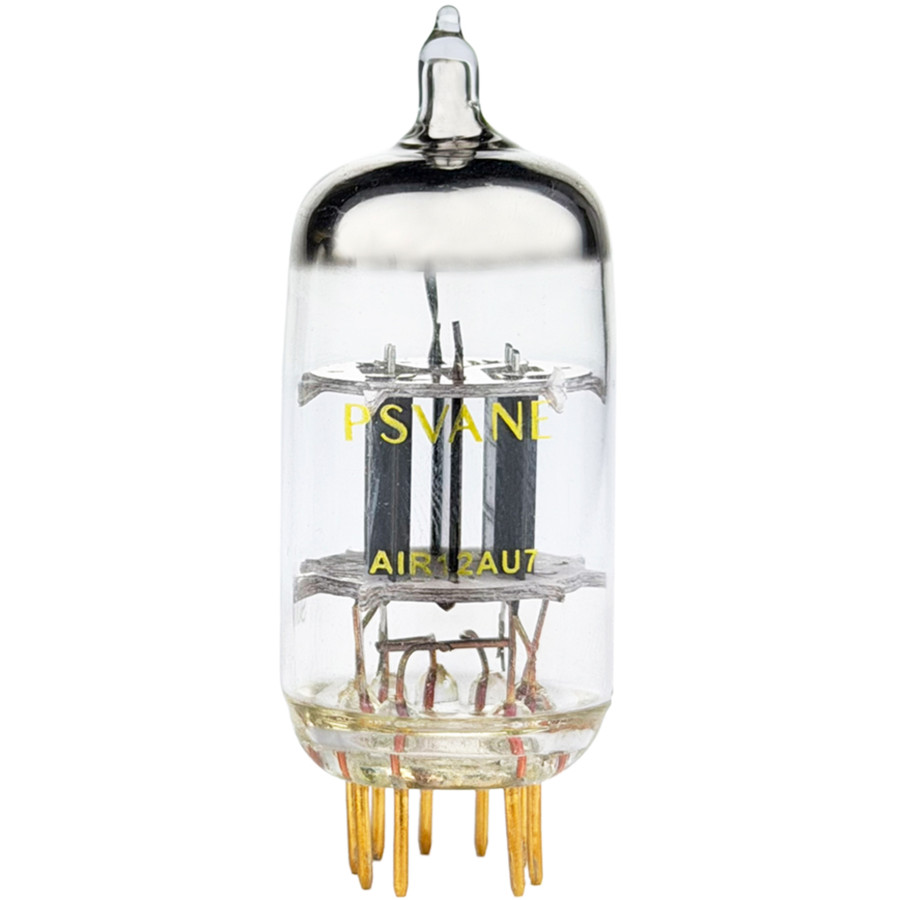

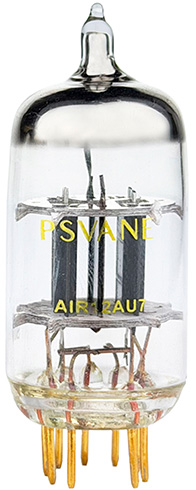

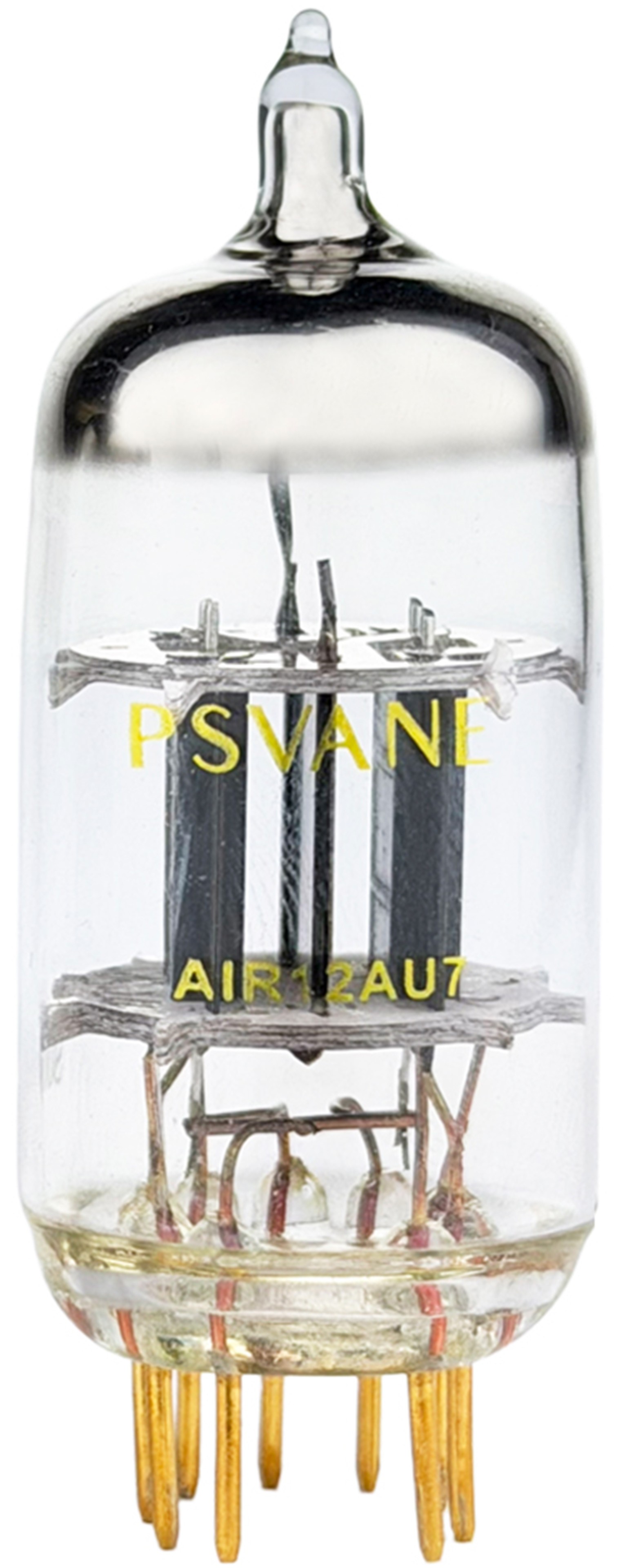

PSVANE AIR 12AU7 Double Triode Tube (Unit)
The PSVANE AIR 12AU7 power tube delivers a warm and smooth sound with ample, natural character and excellent balance alongside negligible background noise. PSVANE presents here a tube with a more pronounced analogue texture than conventional tubes, featuring vocals more forward than typical and an overall sonic character recalling the texture inherent to vinyl playback.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Power tube |
| Tube type | Double triode |

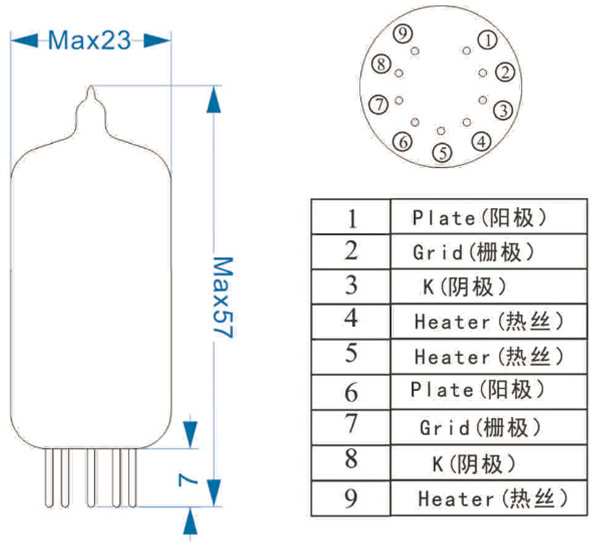

| Dimensions | 57 x 23mm |
| Filament heater | |
|---|---|
| Filament heater voltage (Uh) | 6.3 (parallel) / 12.6 (series) V |
| Filament heater current (Ih) | 0.30 / 0.15 A |
| Absolute maximum ratings in class A1 amplification (per section) | |
|---|---|
| Anode voltage | 300 V |
| Negative anode voltage | -50 V |
| Maximum cathode current | 20 mA |
| Anode dissipation | 2.75 W |
| Filament-cathode voltage (pk) | ±200 V |
| Grid resistance | Automatic bias: 1 MΩ Fixed bias: 0.25 MΩ |
| Inter-electrode capacitances | |
|---|---|
| Input capacitance | No.1 : 1.6 PF No.2 : 1.6 PF |
| Output capacitance | No.1 : 0.4 PF No.2 : 0.32 PF |
| Transfer capacitance | No.1 : 1.5 PF No.2 : 1.5 PF |
| Static parameters | |
|---|---|
| Ua | 100 / 250 V |
| Ug | 0 / -8.5 V |
| Ia | 11.8 / 10.5 mA |
| Gm | 3.1 / 2.2 mA/V |
| μ | 20 / 17 |
| ri | 80 / 62.5 KΩ |
| General | |
|---|---|
| Package | Sold individually |
