ATOHM SD28CR08F Speaker Driver Dome Tweeter Silk 100W 8 Ohm 90dB Ø2.8cm

ATOHM SD28CR08F Tweeter High performance HiFi

Average votes for this product
5.0 / 5

By buying this product you get 12 loyalty points

Reference : 2256
New product

125,00 €tax incl.

104,17 € tax excl.
Including 0,30 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty
More info

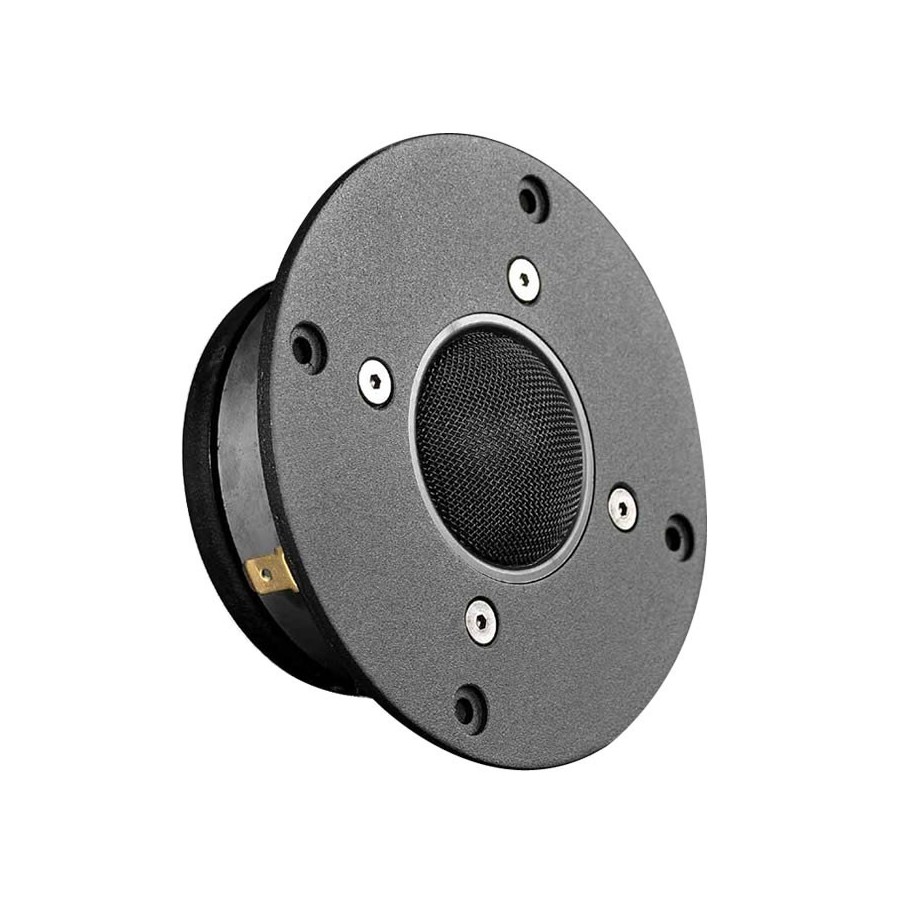

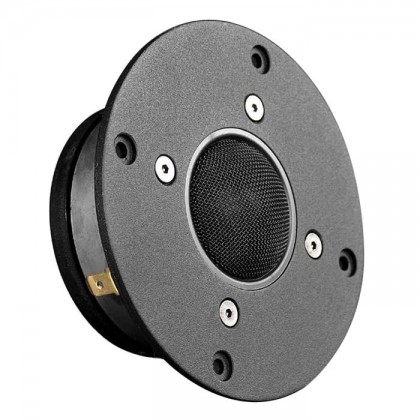

The SD28CR08F is a high-performance tweeter designed to cover a wide frequency band.

Its 28mm silk treated dome is fixed to an aluminum support reel.
The air gap is ferrofluid in order to increase the permissible power. The core is provided with a copper ring, the advantage of which is to substantially reduce the distortion by harmonic of rank 3.

The rear face of the dome is loaded by a damped cavity to achieve excellent behavior at the lowest frequencies.

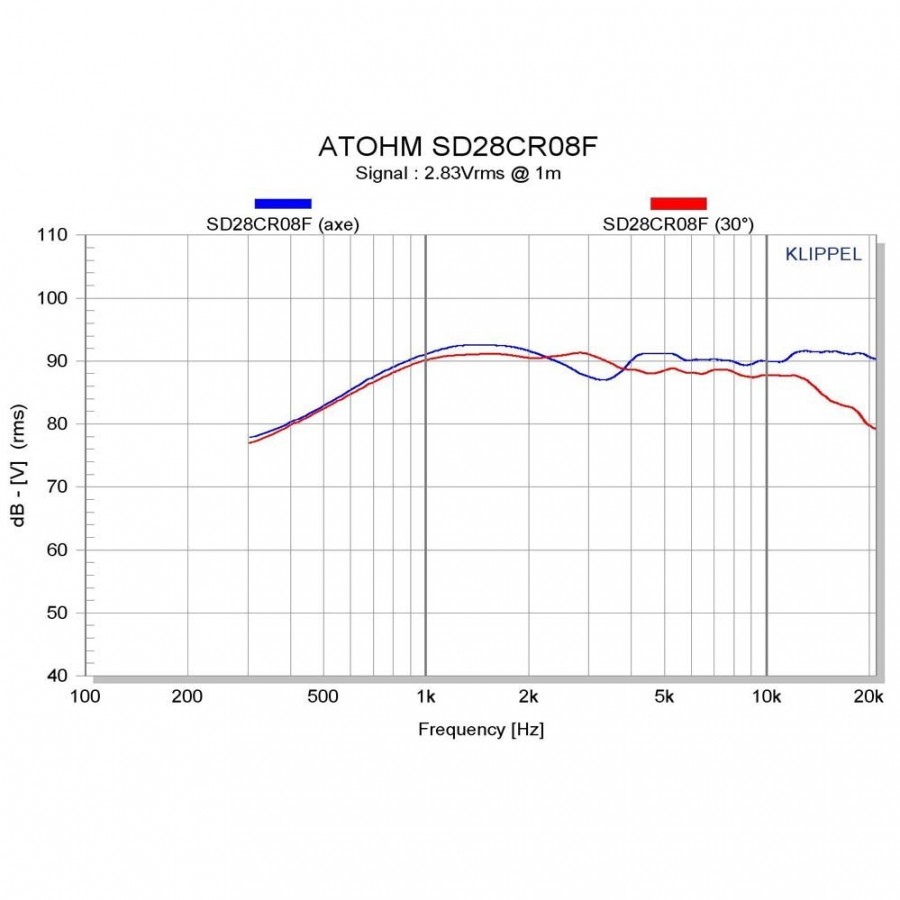

The frequency response is characterized by excellent linearity combined with low directivity and an extension of more than 30 kHz.

Thisthe unit will advantageously be combined with the LD 130CR04 or LD 165 CR04 boomer to produce high-end 2-way systems.

Find the complete datasheet in the documents below.

Data sheet
Speaker Power (W RMS)100.0
Speaker TypeDome tweeter
Impedance (Ω)8
Loudspeaker diameter (mm)28.0
Diaphragm typeFabric
Efficiency / Sensitivity (dB)90.0
Max Linear Excursion (Xmax) (mm)N/A
Lowest frequency (Hz)N/A
Highest frequency (Hz)N/A

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
Date :
Superb tweeter
I installed these yesterday. From the first moment I could tell they were going to be perfect in my system.

My system is bi-amped - a Pioneer SA9500II for woofers, Cambridge Azur 840A (mk 1) for tweeters. Added to this is a Temblor T10 subwoofer, dbx 234xs active crossover, Tannoy System 800 monitors. Not audiophile kit, but it all serves my musical muscle memory very well.

The tweeters on the System 800 have never done it for me. The System 800 was designed to reveal flaws in mixes, which it does very well. However as most of the music I listen to has flaws, it can ruin enjoyment. I have retained the woofers from the System 800 (Tannoy 2046) as I really like the mids and low end these speakers provide.

The reason I chose the Atohm tweeters was because they have an extended top end well beyond 20 Khz, and that they are fairly flat up to 20Khz. I wanted to cross them over fairly high as I want to use the Tannoy 2046 drivers over their full useable frequency range - 70 hz to about 3.5K. I've got the cross over set at about 4 k and it sounds great.

The frequency response of these tweeters is superb - no harshness, smooth, sweet and airy. Build quality is excellent. Off axis response is so good that you can walk around and not miss anything.

I think they'd sound great crossed over any where between 2k and 5k - very flexible. They may even cut it as super tweeters.

Mine are mounted on open baffles sitting on top of the System 800's, each protected by a 30uF capacitor. No phase problems at all, which surprised me. Highly recommend.

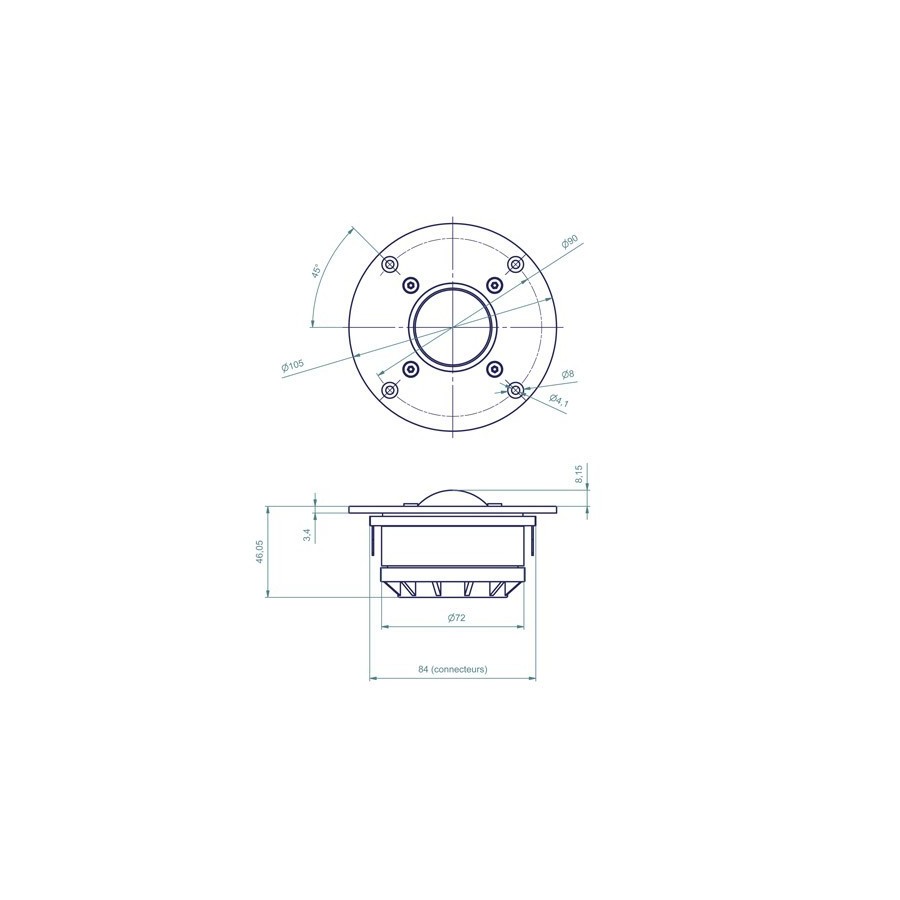

Note : don't build your baffles until you see the reverse of the tweeter (like I did) ! The digaram is slightly confusing regarding the hole you'll need. It's actually 72mm with notches cut out for the connection tags, not 84mm in the round.
This review has been posted for ATOHM SD28CR08F Speaker Driver Dome Tweeter Silk 100W 8 Ohm 90dB Ø2.8cm
Note :
Date :
bjr.j'ai utilisé ce tweeter,car il m'inspirait et bien m'en a pris car il est ecxellent;dans la lignée du D28 dynaudio,avec un filtrage 12 db,linkwitz,a 1,8 khz,il travaille tres n'aime pas les domes titanes ,ils exagerent en general,lui,il fait bien ce qu'on lui demande;le message est fin ,delicat ,charpenté,propre,avec un bon enregistrement,c'est un regal sur du jazz,les cymbales sont naturelles,comme en vrai,en directe,elles ne font pas ,,,prriiisscchhhhhhhh,voila c'est un bon achat ,n'hesiter pas. PI R
This review has been posted for ATOHM SD28CR08F Speaker Driver Dome Tweeter Silk 100W 8 Ohm 90dB Ø2.8cm
