DAYTON AUDIO AN2TI-4 Speaker Driver Tweeter (Pair)

New
The Dayton Audio AN25Ti-4 is a 2.54cm (1") titanium dome tweeter, designed to deliver precise high-frequency reproduction with a particularly smooth response above 3 kHz. Its neodymium motor limits distortion while maintaining a compact format, and its high 95 dB sensitivity allows a high sound level to be achieved with moderate amplification power.

No customer reviews yet, login to write a review.

By buying this product you get 5 loyalty points


Yes, notify me when available !
Reference : 22409
New product

59,90 €tax incl.

49,92 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

Grantie 5 ans

More info

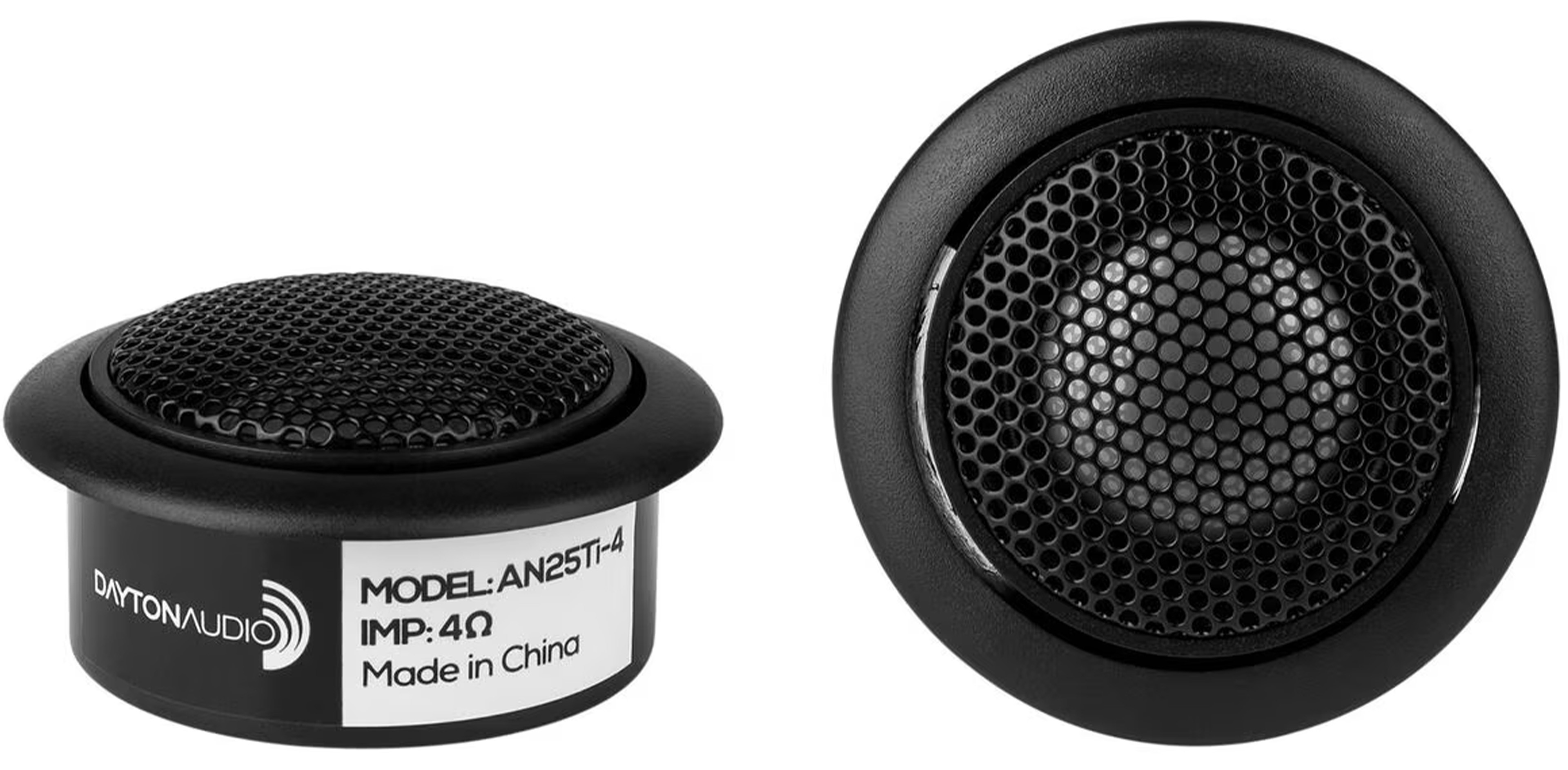

DAYTON AUDIO AN2TI-4 Speaker Driver Tweeter 40W 4 Ohm 95.5dB 3000Hz-20kHz (Pair)

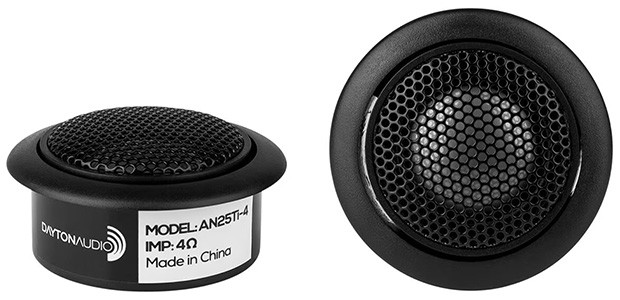

DAYTON AUDIO AN2TI-4: Front view


The Dayton Audio AN25Ti-4 is a 2.54cm (1") titanium dome tweeter, designed to deliver precise high-frequency reproduction with a particularly smooth response above 3kHz. Its neodymium motor limits distortion while maintaining a compact format, and its high 95dB sensitivity allows a high sound level to be achieved with moderate amplification power. The titanium diaphragm also promotes good off-axis dispersion, which facilitates its integration in MTM and TMM configurations where the spacing between the tweeter and the woofer must remain small. Developed for car audio, the AN25Ti-4 is also suitable for home speakers or custom builds.

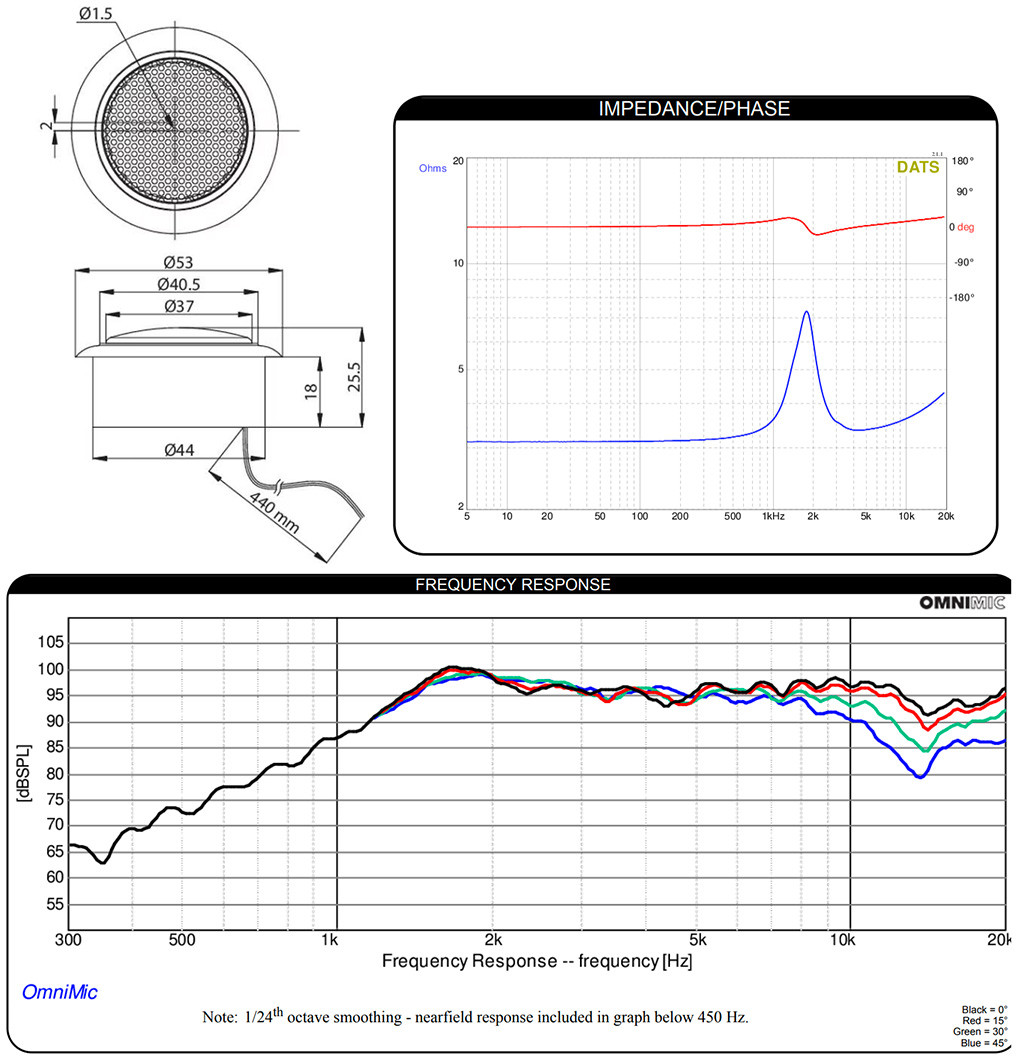

DAYTON AUDIO AN2TI-4: Dimensions and measurements

Technical specifications

Specifications
Product typeDome tweeter
Impedance
Frequency response3kHz-20kHz
Sensitivity95.5 dB 2.83V/1m
Voice coil diameterØ25.4mm (1")
PowerRMS: 40W
Thiele-Small parameters
Resonance frequency (Fs)1744Hz
Voice coil inductance (Le)0.03mH
DC resistance (Re)3.11Ω
Mechanical quality coefficient (Qms)3.04
Electromagnetic quality coefficient (Qes)2.28
Total quality coefficient (Qts)1.30
Materials
DiaphragmTitanium
MagnetNeodymium
General
Weight300g
PackageSold in pairs

Data sheet
Speaker Power (W RMS)40.0
Speaker TypeDome tweeter
Impedance (Ω)4
Loudspeaker diameter (mm)25.4
Diaphragm typeTitanium
Efficiency / Sensitivity (dB)95.5
Max Linear Excursion (Xmax) (mm)N/A
Lowest frequency (Hz)3000
Highest frequency (Hz)20000
