DAYTON AUDIO CE35-4 Speaker Driver Tweeter
No loyalty points for this product.
![[GRADE S] TOPPING ARPEGEAR HANE In-Ear Monitors IEM Dynamic 80 Ohm 115dB 5Hz-35kHz](https://www.audiophonics.fr/66633-thumb_default/topping-arpegear-hane.jpg)

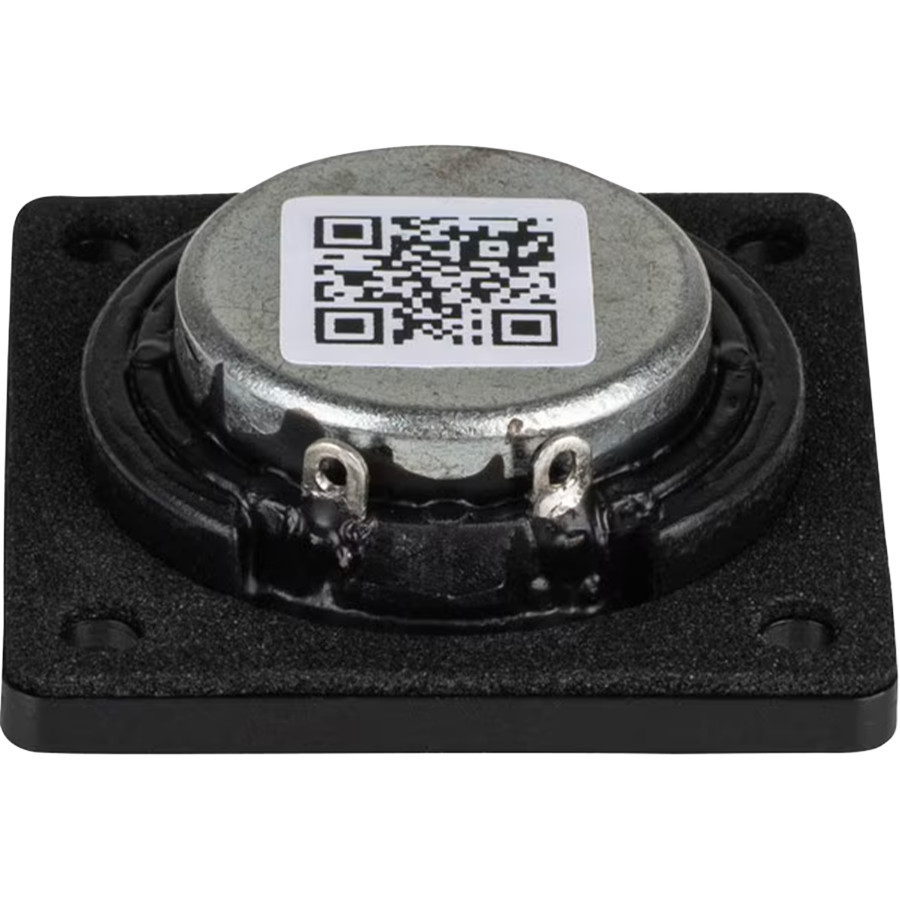

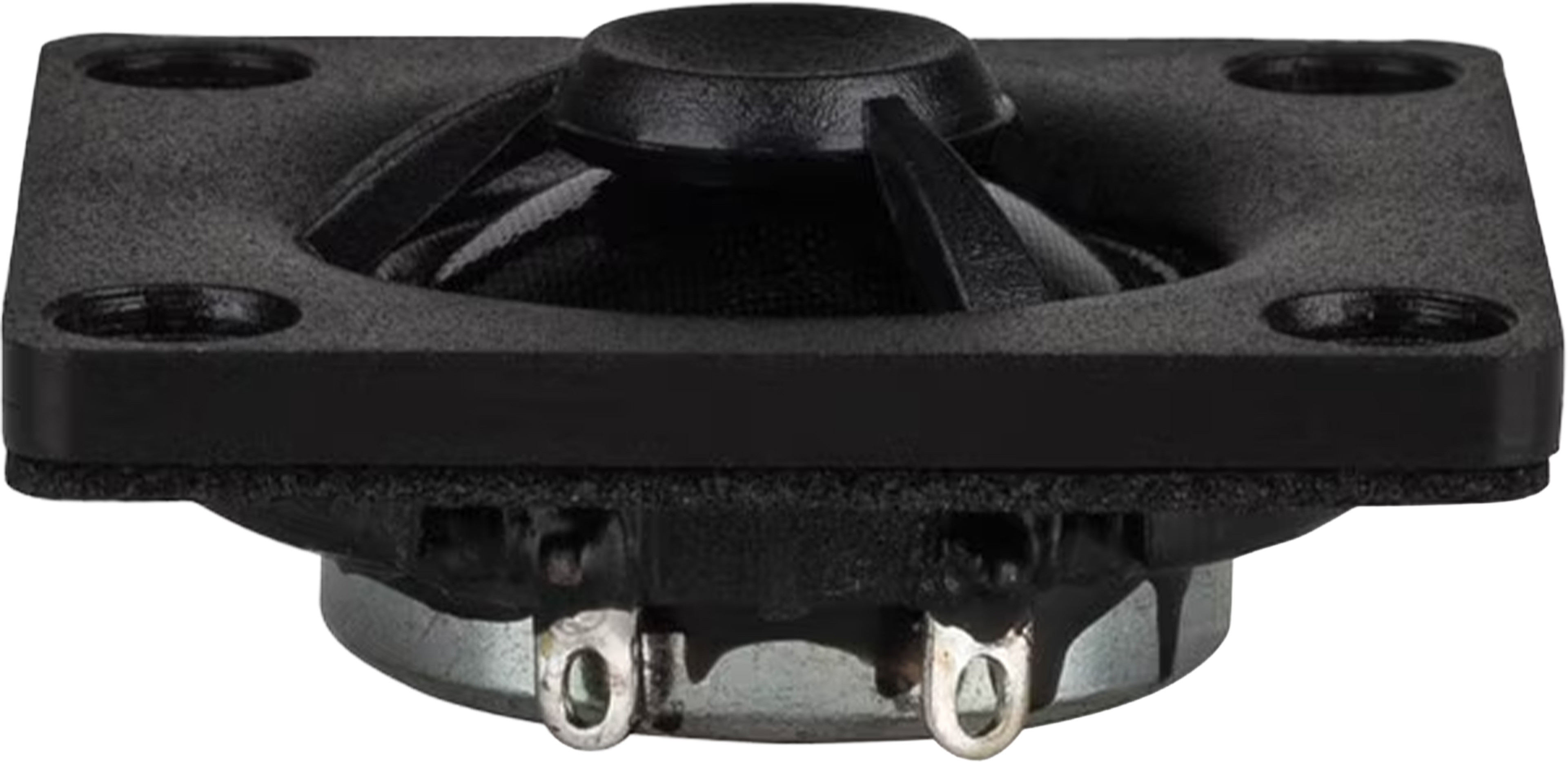

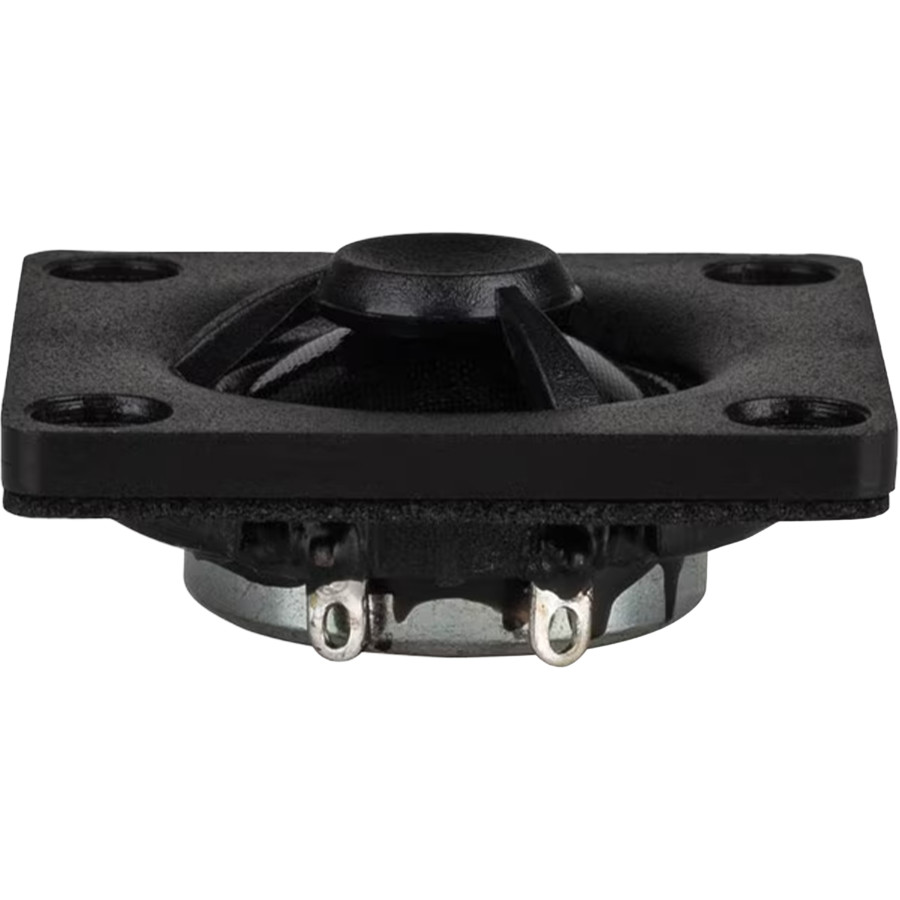

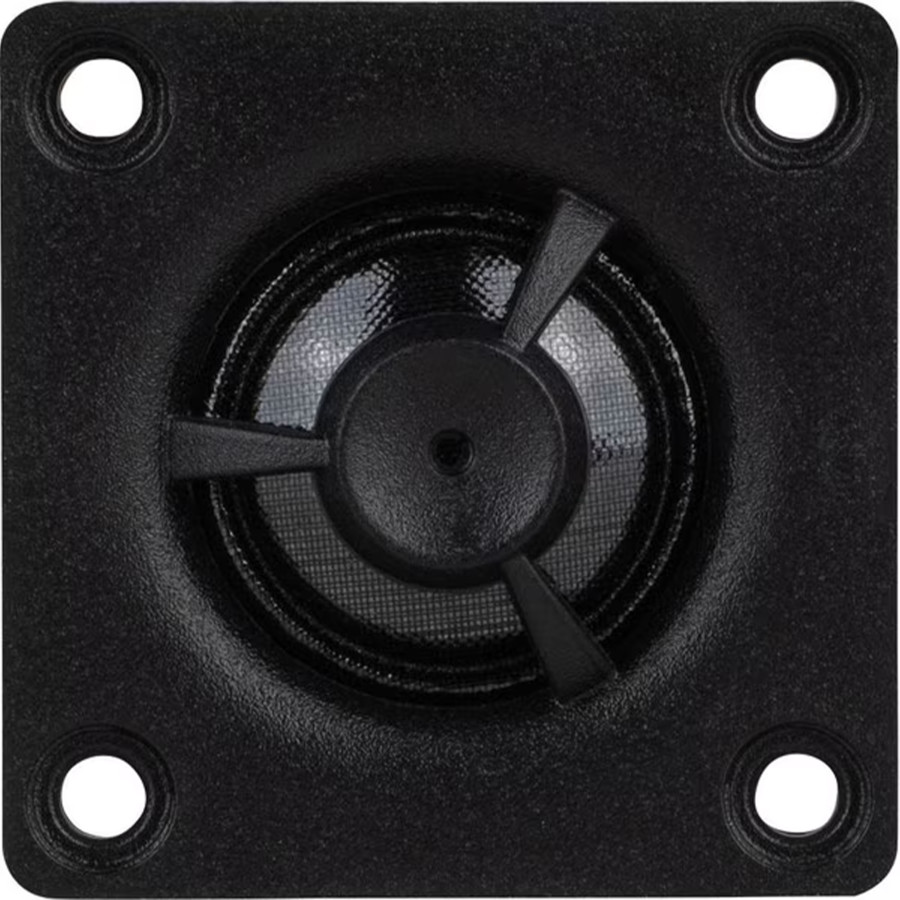

Dayton Audio CE35-4 Speaker Driver Silk Dome Tweeter 10W 4Ω 90dB 3500Hz-17kHz Ø25.4mm
The Dayton Audio CE35-4 is a 25.4mm silk soft dome tweeter, designed to reproduce high frequencies over a range from 3500Hz to 17kHz. Its membrane ensures a clear and detailed treble reproduction, while its 90dB sensitivity and 4Ω impedance make it easy to pair with various speakers in a 2-way enclosure.
Its compact format allows integration into custom cabinets, low-footprint home speakers or commercial installations. With a power handling of 10W, the CE35-4 is also suitable for DIY projects and decorative applications requiring accurate high-frequency reproduction.

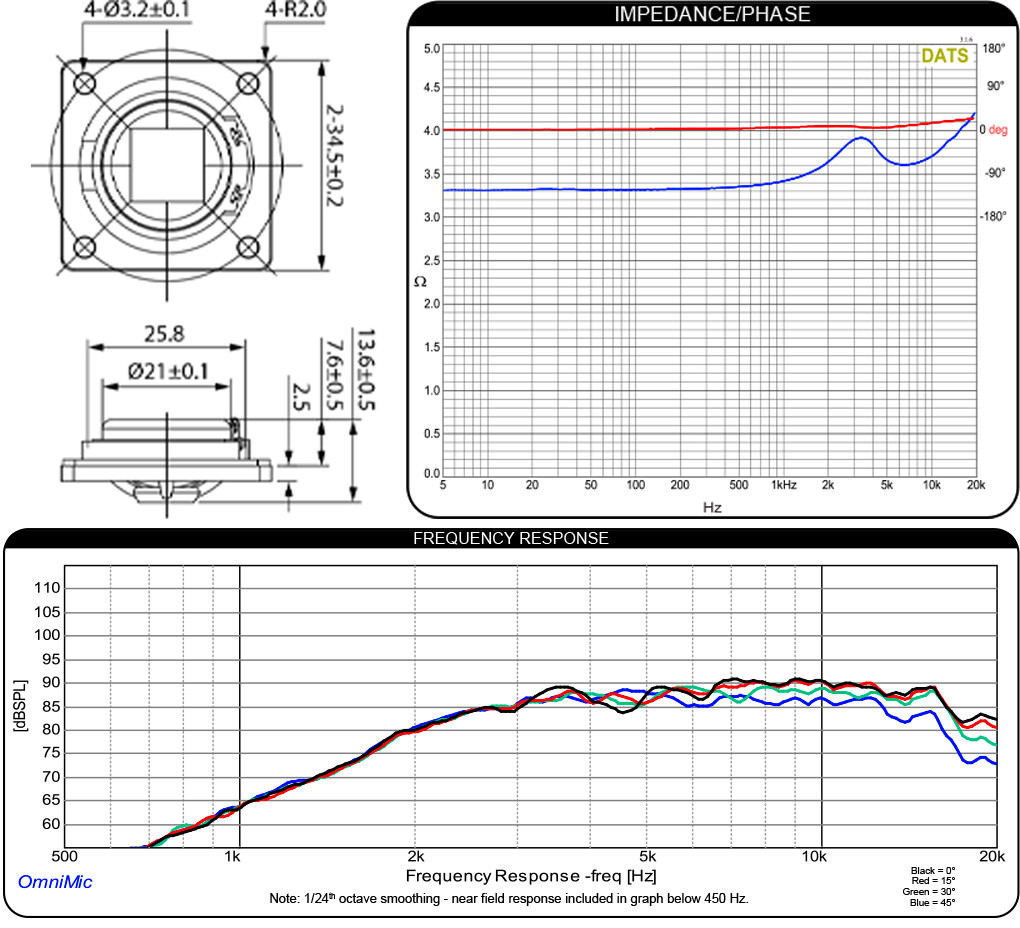

Technical Specifications
| Specifications | |
|---|---|
| Product type | Tweeter |
| Nominal diameter | Ø25.4mm |
| Power | 10W |
| Impedance | 4Ω |
| Frequency response | 3500Hz-17kHz |
| Sensitivity | 90dB 2.83V/1 m |
| Voice coil diameter | Ø16mm |
| Thiele-Small Parameters | |
|---|---|
| DC Resistance (Re) | 3.3Ω |
| Voice coil inductance (Le) | 0.01mH @ 10kHz |
| Resonance frequency (Fs) | 3.300Hz |
| General | |
|---|---|
| Weight | 0.02kg |
| Package | 1x Dayton Audio CE35-4 |
| Speaker Power (W RMS) | 10.0 |
| Speaker Type | Dome tweeter |
| Impedance (Ω) | 4 |
| Loudspeaker diameter (mm) | 25.4 |
| Diaphragm type | Silk |
| Efficiency / Sensitivity (dB) | 90.0 |
| Max Linear Excursion (Xmax) (mm) | N/A |
| Lowest frequency (Hz) | 3500 |
| Highest frequency (Hz) | 17000 |
