OEAUDIO OEOTG Lightning to USB-C OTG Cable 12cm

OEAUDIO OEOTG Lightning to USB-C OTG Cable New
The OEOTG from OEAudio is a USB OTG cable of excellent quality, benefiting from a careful design, using components to ensure very good performance.

No customer reviews yet, login to write a review.

By buying this product you get 2 loyalty points


Reference : 14937
New product

29,08 €tax excl.

Including 0,04 € for green tax

- +

Shipping date: 22-01-2021.

Orders placed before 11AM (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

More info

OEAudio OEOTG

Lightning to USB-C OTG Cable

OEAudio OEOTG Câble USB OTG Lightning vers USB-C

The OEOTG from OEAudio is a USB OTG cable of excellent quality, benefiting from a careful design, using components to ensure very good performance.

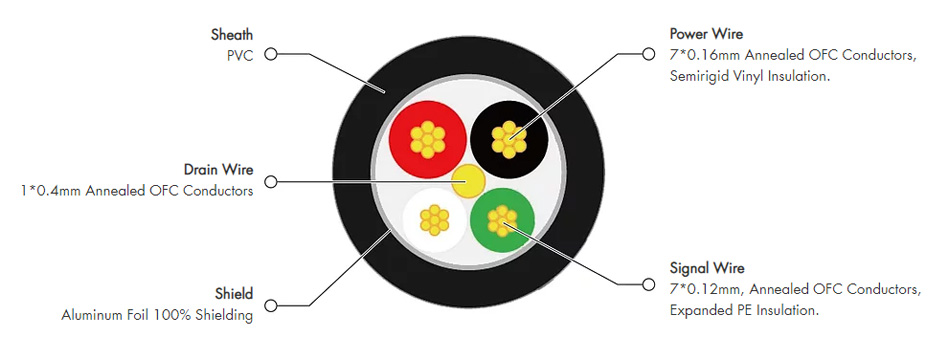

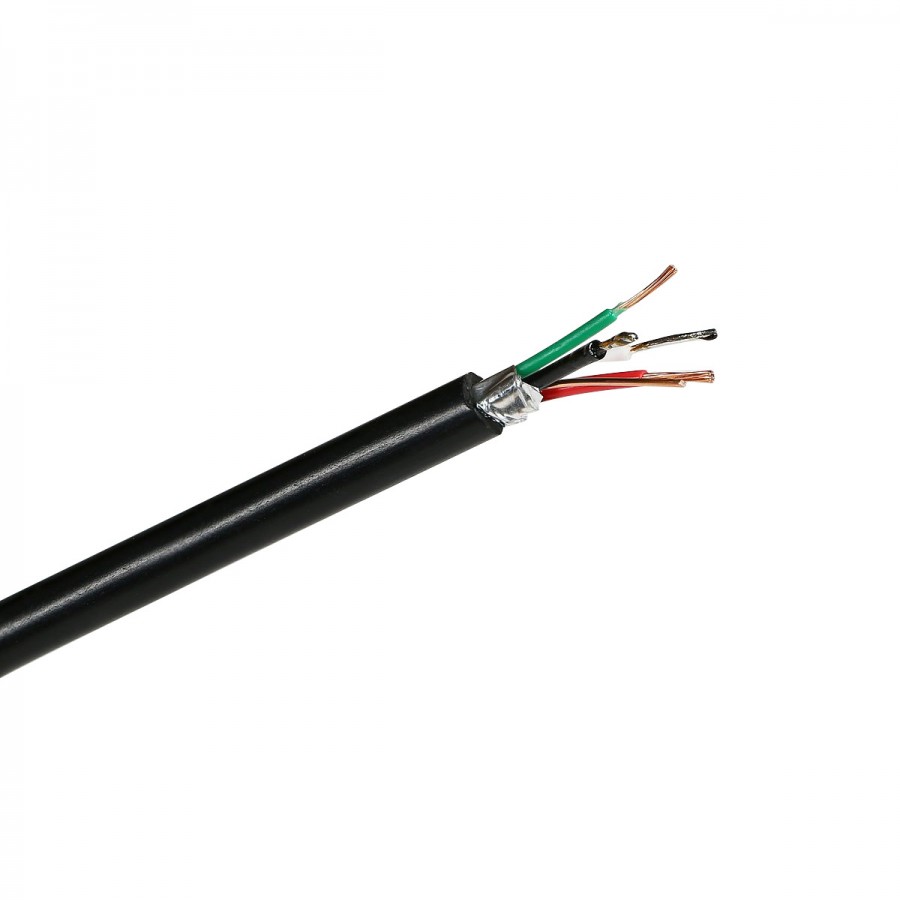

It integrates insulated OFC copper conductors with a cross section of 0.081mm² (28AWG) for data transmission and a conductor, also made of OFC copper but with a cross section of 0.129mm² (26AWG) for power supply. Each conductor is independently insulated with a PVC sheath. In the center is a 0.4mm diameter OFC copper drain wire. The assembly is shielded with aluminum foil to eliminate interference. A PVC sheath covers the end of this cable. Solderings are made with silver tin to maintain an excellent conductivity.

This cable is fully compliant with USB 2.0 Hi-Speed specifications and therefore has an impedance of 90 Ohm. It also supports a voltage of 5V and a current of 200mA.

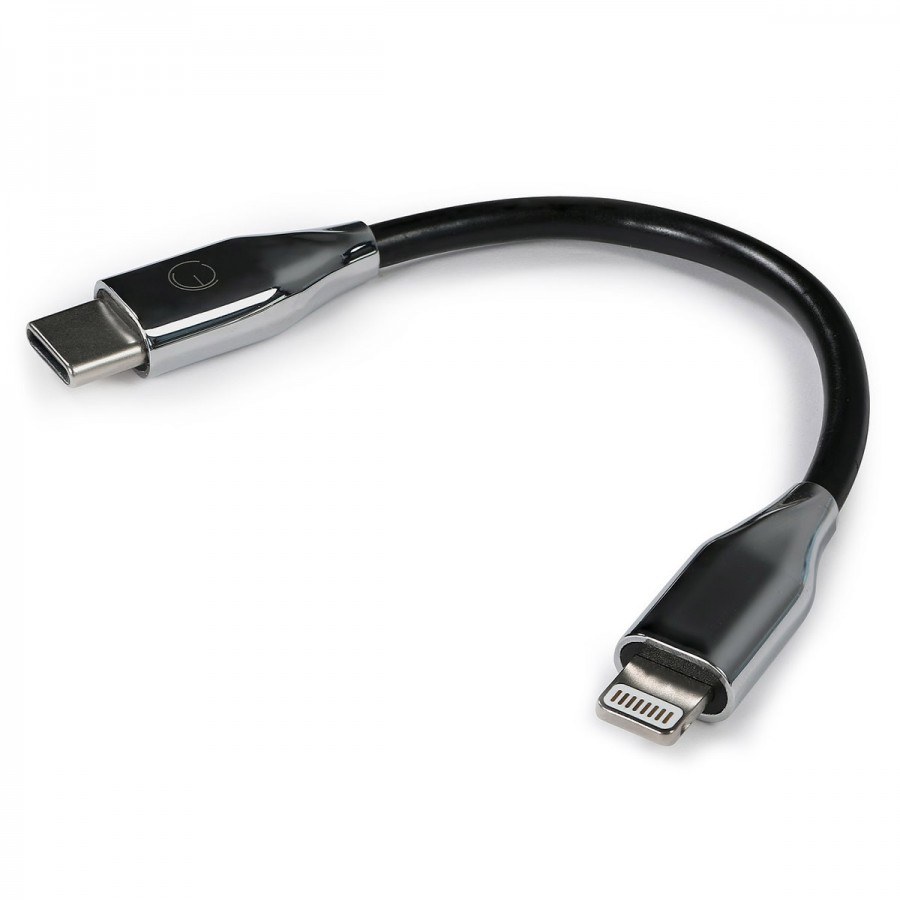

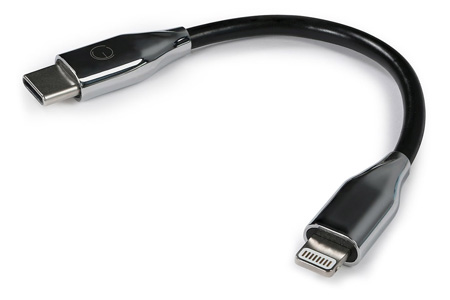

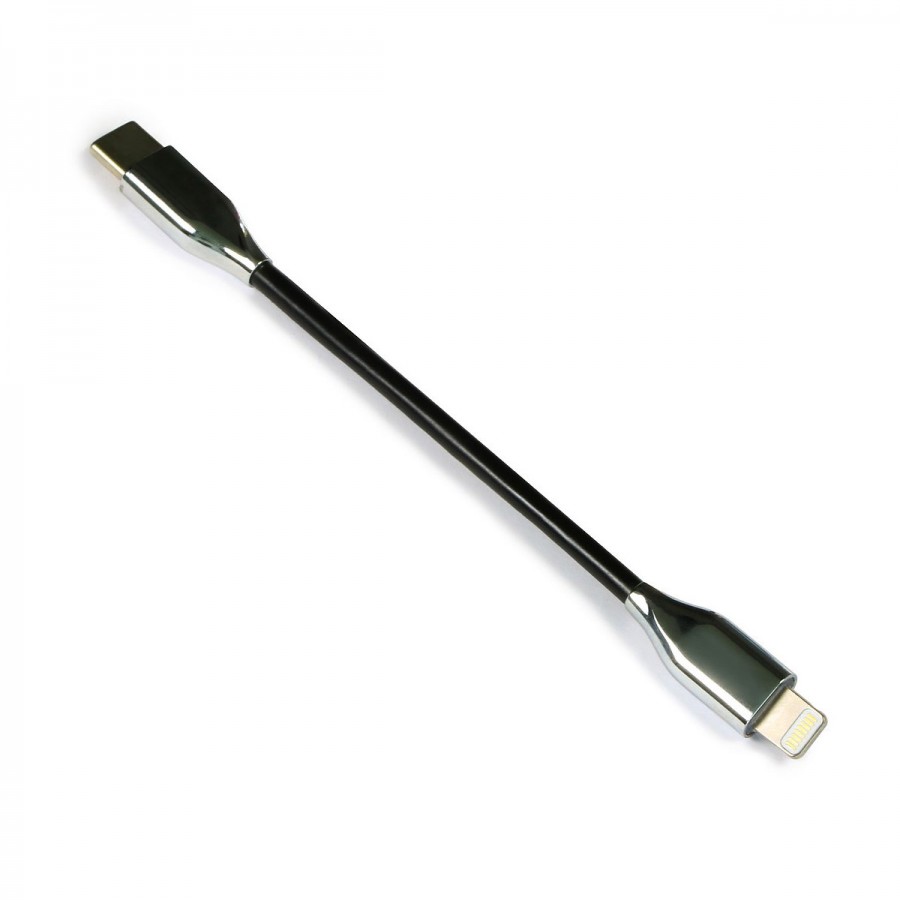

This model is equipped on the one hand with a USB-C connector and on the other hand with a Lightning connector.

OEAUDIO OEOTG Câble USB OTG Lightning vers USB-C

Technical characteristics

Specifications
Product typeOTG USB Cable
Connectors1x Male USB-C
1x Male Lightning
Length12cm
ConductorsOFC Copper
Conductors sectionDATA : 0.081mm² (28AWG)
POWER : 0.129mm² (26AWG)
ShieldingAluminum foil
External sheathPVC
Impedance90Ω
Voltage / Current5V 200mA

Data sheet
ColorBlack
Length (m)0.12
Separated conductorsYes
Number of conductors4
ShieldingYes
ConnecticMale
Section (mm²)0.0810
ConnectorUSB-C
ConnectorLightning
Contacts Material (Connector)Copper Alloy
Contacts Plating (Connector)None
