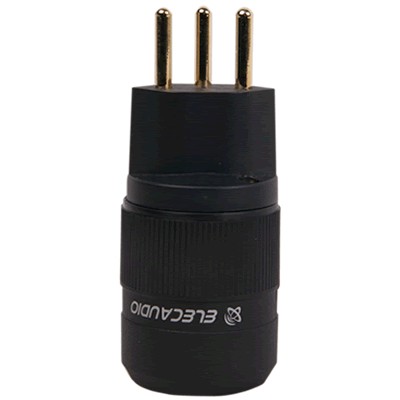

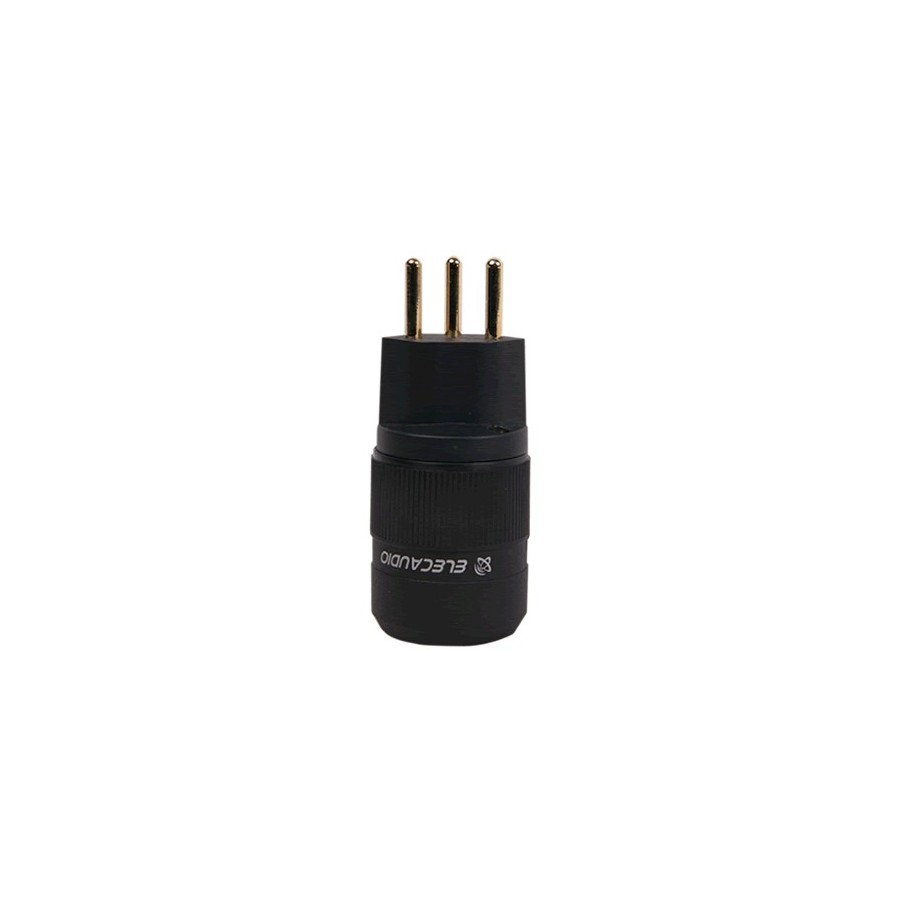

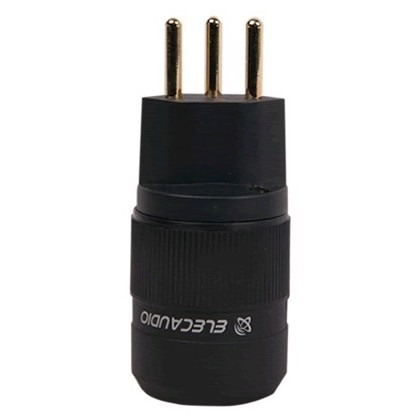

ELECAUDIO CH-22G Switches Sector Switzerland SEV 1011
The reference Schuko plug CH-22G distinguishes itself at first glance by its black anthracite nylon body with impeccable finishing and ideal proportions.
Featuring a silk-screened silvery screen with the color of the brand, this chassis allows to receive the most sophisticated cables whose diameter often proves incompatible with the conventional outlets.
With herInsertion ring to limit diameter to 17mm , with a greenhouse flexible rubber cableintegration, the CH-22G receives without difficulty cables of large diameter of CS-331B, the triple shielded mains cable of the same manufacturer.
Summum of refinement, all metal parts, including contact poles and earthing, were plating Gold 24K.
This technique ensures that the connectors perfectly smooth and uniform coating , completely free of the imperfections inherent in a single layer plating.
Visually, the difference is blatant, and this extra zeal in the use of precious metals also benefits the longevity of the CH-22G immunized against any form of oxidation.
The internal connection terminals also deserve attention: They are equipped with large fastening screws and therefore do not require any welding, they are capable of receiving very large conductors ( up to 12mm² section! )
Since the screw is in direct contact with the cable, it is advisable to use copper tips to protect from shear.
Finally, we will appreciate the small diagram directly engraved within the catch, and provides information on the optimum length of cable to be stripped. Since you are told that nothing has been left to chance ...
- TakenSEV 10113 Screw Connectors
- Plating: Gold 24K
- Contact Plating: Brass Alloy 58% copper
- Maximum Driver Section: 12mm² (4mm of Diameter)
- Maximum Cable Diameter: 17mm
- Voltage / Voltage Rating: 16A / 250V
- Overall Length: 90mm
- Diameter: 38mm
- Weight: 120g
