JST B04P-VL 4-Pole PCB Socket
This JST VL socket allows easy PCB mounting and is ideal for high-voltage, high-current applications. Featuring 4 poles and a 6.2mm pitch, this model has a PA 66 UL94V-0 housing. Each slot incorporates a locking system to prevent accidental disconnection.
No customer reviews yet, login to write a review.
No loyalty points for this product.
Reference : 18659
New product
![[GRADE S] MOGAMI W3103 Speaker Cable OFC Copper 2x4.mm² Ø12mm 2.9m](https://www.audiophonics.fr/60807-thumb_default/mogami-w3103-speaker-cable-ofc-copper-2x4mm-o12mm.jpg)
![[GRADE S] FURUTECH FP-S55N LIMITED EDITION Power Cable OFC Copper Silver Gold Nano Liquid Alpha Treatment 5.26mm² Ø18mm 2.65m](https://www.audiophonics.fr/60802-thumb_default/furutech-fp-s55n-limited-edition-power-cable-ofc-copper-silver-gold-nano-liquid-alpha-treatment-526mm-o18mm.jpg)
![[GRADE B] IFI AUDIO ZEN STREAM Hi-Res Audio Streamer WiFi DLNA 32bit 384kHz DSD256 MQA](https://www.audiophonics.fr/60791-thumb_default/ifi-audio-zen-stream-hi-res-audio-streamer-wifi-dlna-32bit-384khz-dsd256-mqa.jpg)
![[GRADE B] IFI AUDIO ZEN STREAM Hi-Res Audio Streamer WiFi DLNA 32bit 384kHz DSD256 MQA](https://www.audiophonics.fr/60786-thumb_default/ifi-audio-zen-stream-hi-res-audio-streamer-wifi-dlna-32bit-384khz-dsd256-mqa.jpg)
![[GRADE B] IFI AUDIO ZEN CAN Class A Balanced Headphone Amplifier 15.2V](https://www.audiophonics.fr/60782-thumb_default/ifi-audio-zen-can-class-a-balanced-headphone-amplifier-152v.jpg)

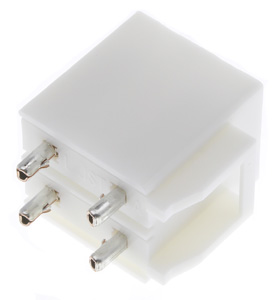

JST-B04P-VL PCB Socket 4 Poles 6.2mm 2 Rows Straight 20A
This JST VL socket allows easy PCB mounting and is ideal for high-voltage, high-current applications. Featuring 4 poles and a 6.2mm pitch, this model has a PA 66 UL94V-0 housing. Each slot incorporates a locking system to prevent accidental disconnection.
Technical characteristics
| Specifications | |
|---|---|
| Product type | JST VL connector |
| Number of contacts | 4 |
| Number of rows | 2 |
| Pitch | 6.2mm |
| Rated voltage | 600V AC/DC |
| Nominal current | 20A |
| Initial contact resistance | 7mΩ max. |
| Standards and certifications | UL E60389 CSA LR20812 TUV R9351103 |
| Max cable diameter (mm) | N/A |
| Mounting type | To connect |
| Mounting type | To weld |
| Connectic | Male & Female |
| Contacts number | 4 |
| Connector | VL |
| Contacts Material (Connector) | Copper Alloy |
| Contacts Plating (Connector) | None |
