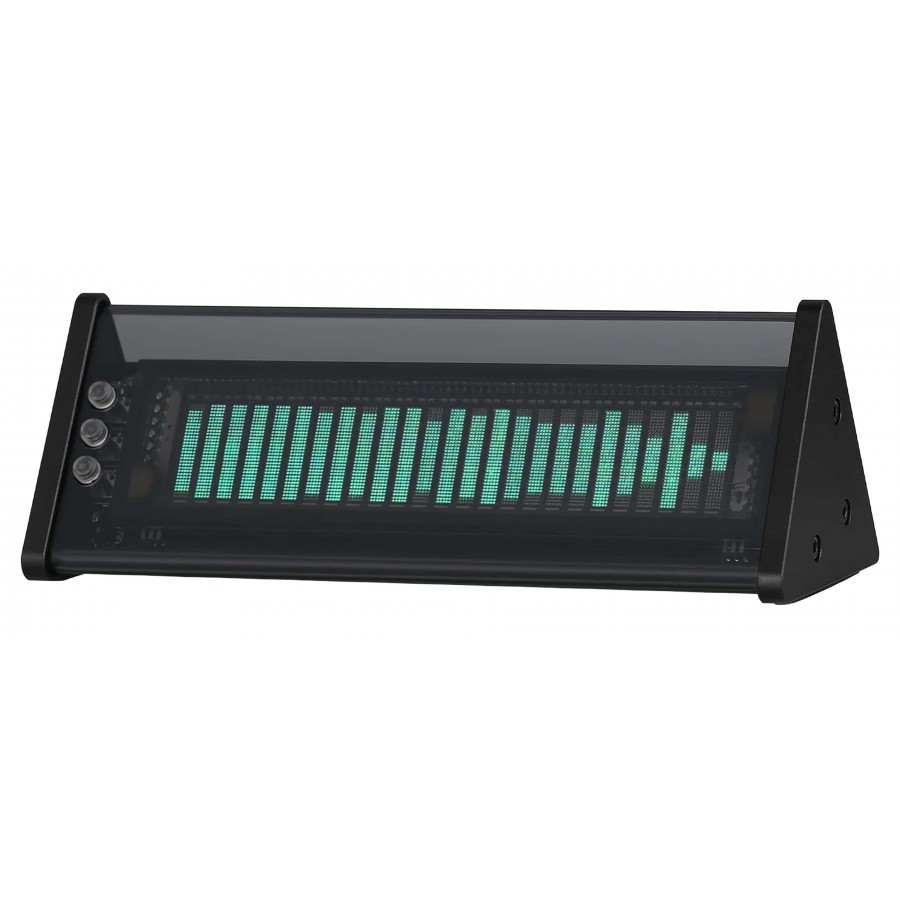

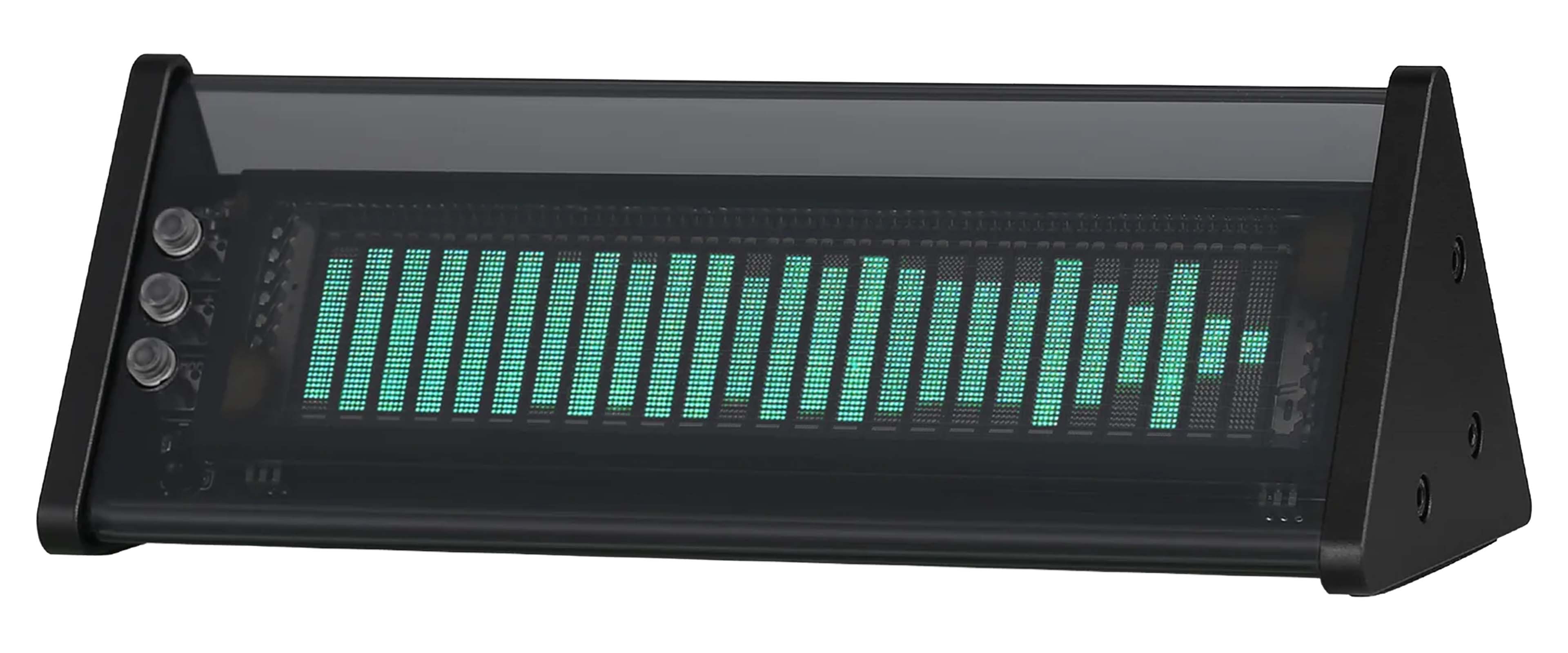

DOUK AUDIO VFD253 VU Meter Switch 3.5mm Jack Bluetooth 80Hz–16kHz Black
By buying this product you get 7 loyalty points
DOUK AUDIO VFD253 VU Meter Switch 3.5mm Jack Bluetooth 80Hz-16KHz Black

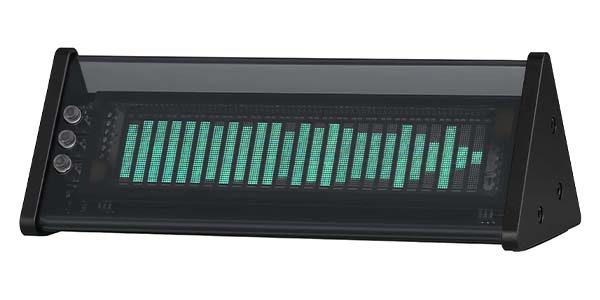

The Douk Audio VFD253 is a multifunction VU meter combining an audio spectrum analyzer, Bluetooth 5.0 receiver, and audio switch compact and elegant device. It features a high-resolution VFD (Vacuum Fluorescent Display) screen with a 25 × 15 point matrix using a green fluorescent display dedicated to real-time music analysis. Compatible with a frequency range from 80Hz to 16kHz, it allows precise audio spectrum visualization with several dynamic display modes and a custom AGC algorithm ensuring smooth and readable rendering at both low and high signal levels.
The VFD253 can operate from multiple audio sources thanks to its built-in microphone, Bluetooth 5.0 receiver, and dual 3.5mm AUX inputs, compatible with smartphones, computers, gaming consoles, amplifiers, or active speakers. It also features a 3.5mm AUX output, allowing it to function as an audio switch within a HiFi or desktop setup.
The device also integrates a high-precision clock function based on an RX8025T quartz oscillator offering ±3ppm accuracy, with an annual drift of less than one minute. It offers 2 clock display modes as well as 5 music spectrum display modes, with many adjustable parameters such as gain, brightness, bar fall speed, peak hold time, and peak decay speed. All settings benefit from power-off memory, avoiding the need to reconfigure the device after shutdown.
Controllable via the included remote control, the VFD253 features a CNC-machined aluminum chassis combined with transparent acrylic panels, combining robustness, retro-futuristic aesthetics, and compactness. Powered by DC 5V, it measures 184 x 75 x 66mm and weighs 322g, making it an ideal accessory to complement a HiFi, gaming, or desktop audio setup.
DOUK AUDIO VFD253: Precise Audio Spectrum Analyzer with Intelligent AGC
Compatible with a frequency range from 80Hz to 16kHz, the VFD253 enables detailed audio signal analysis with excellent precision across every frequency band.
Its AGC (Automatic Gain Control) algorithm combined with a custom output curve automatically adapts the display to the signal level in order to avoid displays that are too weak or saturated, ensuring a balanced and pleasant visual rendering in all situations.

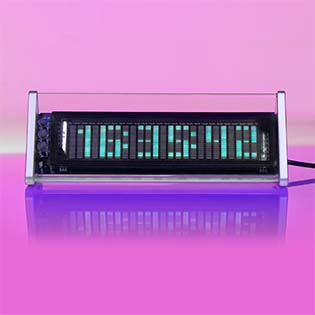

DOUK AUDIO VFD253: Bluetooth 5.0, Microphone and Dual AUX Input
The VFD253 can operate from several types of audio sources. It integrates a Bluetooth 5.0 receiver for quick and easy wireless connection, a built-in microphone to capture ambient sound, as well as two 3.5mm AUX inputs to directly connect various audio sources.
This versatility allows it to integrate easily into a HiFi, gaming, or multimedia setup.

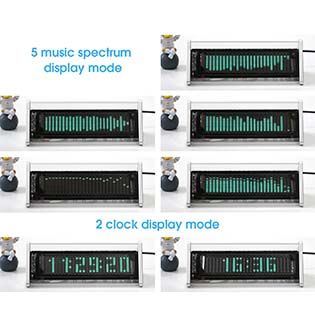

DOUK AUDIO VFD253: RX8025T High-Precision Clock Function
In addition to its role as a VU meter, the VFD253 also functions as a high-precision digital clock thanks to its integrated RX8025T quartz oscillator.
With a specified accuracy of ±3ppm and an annual drift of less than one minute, it ensures reliable and stable time display with two available display styles.
DOUK AUDIO VFD253: Advanced Display Customization
The VFD253 offers numerous settings allowing users to adapt the display behavior according to their preferences.
It is possible to adjust:
- input gain across 5 levels
- brightness with 5 levels + automatic mode
- main bar fall speed
- peak hold time
- peak decay speed
All settings are saved thanks to the power-off memory function.

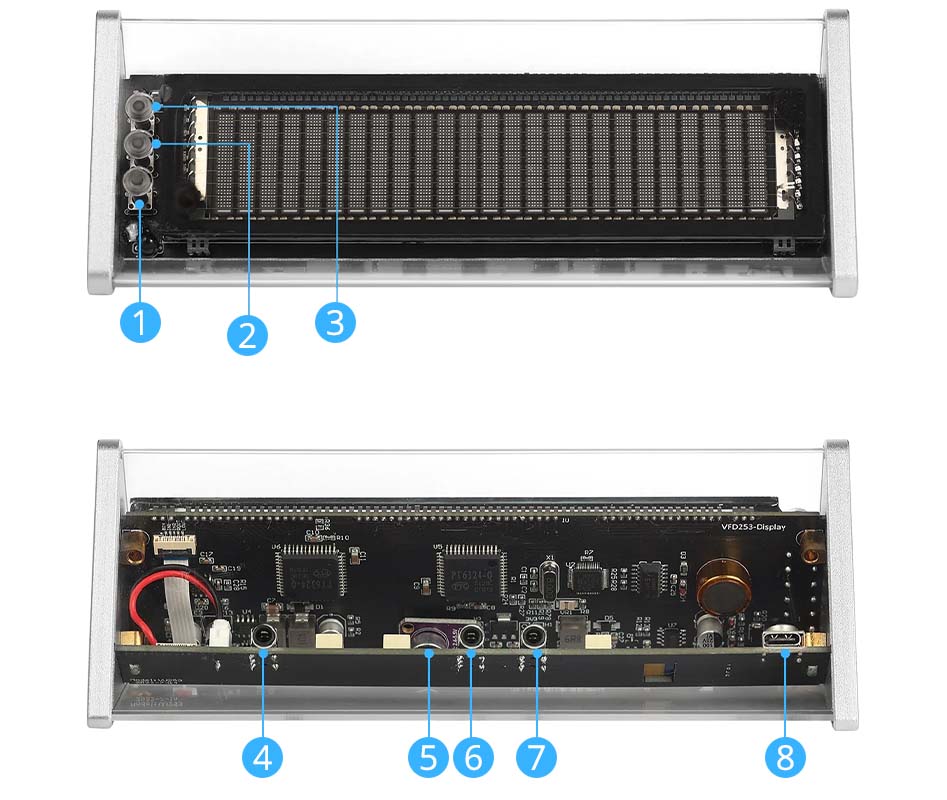

Overview of the DOUK AUDIO VFD253
| 1 | Mode - |
| 2 | Power On / Source Selection |
| 3 | Mode + |
| 4 | 3.5mm Jack Output |
| 5 | Microphone |
| 6 | 3.5mm AUX Input #2 |
| 7 | 3.5mm AUX Input #1 |
| 8 | USB-C Power Port |
Technical Characteristics
| Specifications | |
|---|---|
| Product Type | VU Meter |
| Inputs | Microphone 2x 3.5mm Jack Bluetooth 5.0 |
| Output | 1x 3.5mm Jack |
| Display | VFD |
| Supported Frequency Response | 80Hz-16KHz |
| Display Modes | Spectrum x5 Clock x2 |
| Brightness Adjustment | 5 modes + auto |
| Gain Adjustment | 5 levels |
| General | |
|---|---|
| Dimensions | 184x75x66mm |
| Weight | 322g |
| Color | Black |

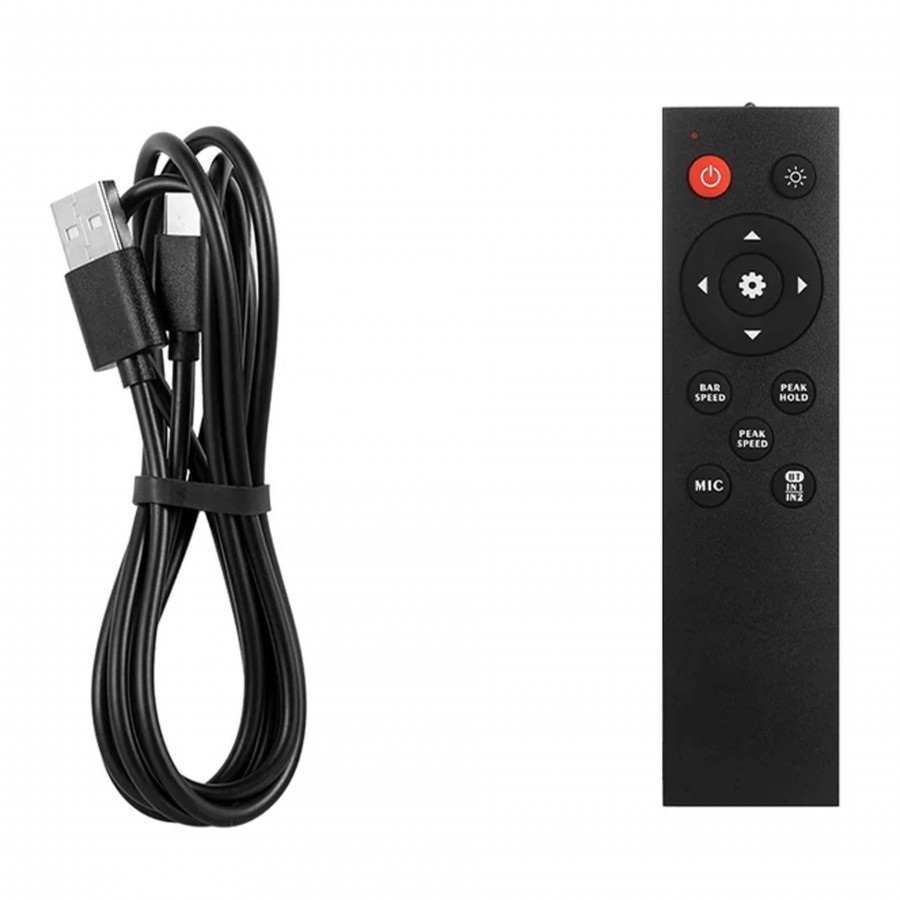

| Package Contents | 1x DOUK AUDIO VFD253 1x Remote Control 1x USB-A to USB-C Cable 2x Pads |
