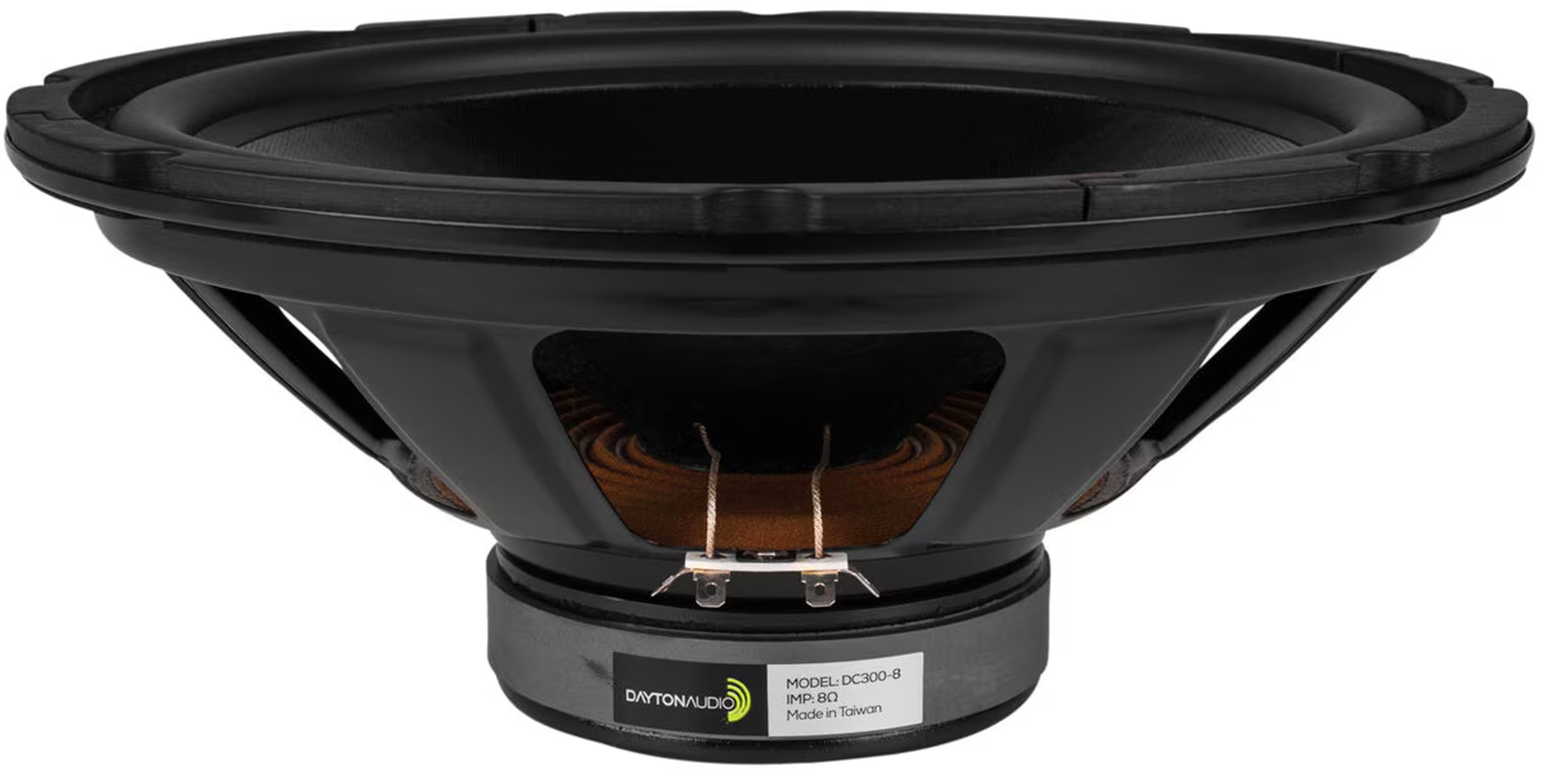

DAYTON AUDIO DC300-8 Speaker Driver Woofer
By buying this product you get 7 loyalty points
![[GRADE B] DAYTON AUDIO MKSX4 Low Profil Subwoofer Speaker 160W Ø20cm](https://www.audiophonics.fr/72897-thumb_default/dayton-audio-mksx4-low-profil-subwoofer-speaker-160w-o20cm.jpg)
DAYTON AUDIO DC300-8 Woofer 80W 8 Ohm 90dB 25Hz-2500Hz
The Dayton Audio DC300-8 is a 30.48 cm (12") woofer designed to replace a faulty driver in a large-format speaker. Compatible with two- or three-way configurations, in sealed or bass-reflex enclosures, it restores the operation of an existing system without altering its overall architecture.
Its rubber surround withstands repeated stress and extends the driver's service life. This design is suitable both for routine repairs and for bringing older speakers back into service, particularly when restoring vintage models.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Speaker driver |
| Driver type | Woofer |
| Impedance | 8Ω |
| Sensitivity | 90.3dB 2.83V/1m |
| Frequency response | 25Hz-2500Hz |
| Voice coil diameter | 5.08cm (2") |
| Nominal diameter | 30.48 cm (12") |
| Power | RMS: 80W MAX: 160W |
| Thiele-Small parameters | |
|---|---|
| Resonance frequency (Fs) | 22.9Hz |
| Cone area (Sd) | 498.8cm² |
| Voice coil inductance (LE) | 2.93mH |
| DC resistance (Re) | 6.8Ω |
| Mechanical quality coefficient (Qms) | 3.21 |
| Electromagnetic quality coefficient (Qes) | 0.37 |
| Total quality coefficient (Qts) | 0.33 |
| Force factor (BL) | 16.3T·m |
| Total moving mass + air load on the cone (Mms) | 100.7g |
| Mechanical compliance of suspension (Cms) | 0.48mm/N |
| Compliance equivalent volume (Vas) | 6.41ft³ |
| Max linear excursion (Xmax) | 4.3mm |
| Mounting informations | |
|---|---|
| Cutout diameter | 27.94cm (11") |
| Depth | 13.15cm (5.18") |
| Number of mounting holes | 8 |
| Total external diameter | 30,65cm (12.07") |
| Materials | |
|---|---|
| Membrane | Coated paper |
| Magnet | Ferrite |
| Frame | Steel |
| Surround | Rubber |
| Voice coil wire | Copper |
| General | |
|---|---|
| Weight | 3.5kg |
| Package | Sold individually |
| Speaker Power (W RMS) | 80.0 |
| Speaker Type | Woofer |
| Impedance (Ω) | 8 |
| Loudspeaker diameter (mm) | 304.0 |
| Diaphragm type | Paper |
| Efficiency / Sensitivity (dB) | 90.3 |
| Max Linear Excursion (Xmax) (mm) | 4.3 |
| Lowest frequency (Hz) | 25 |
| Highest frequency (Hz) | 2500 |
