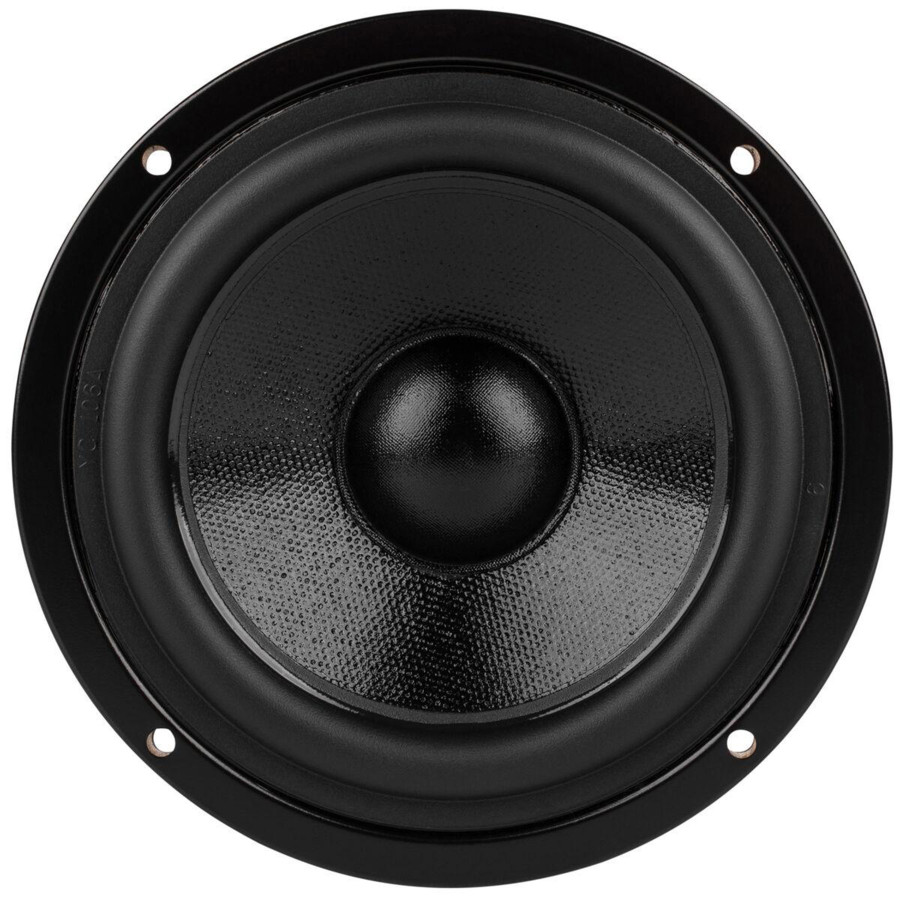

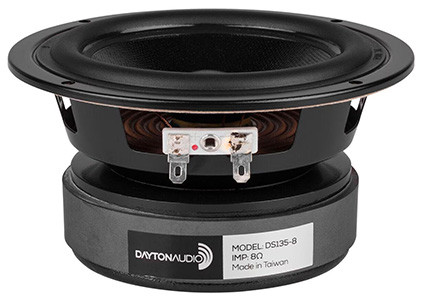

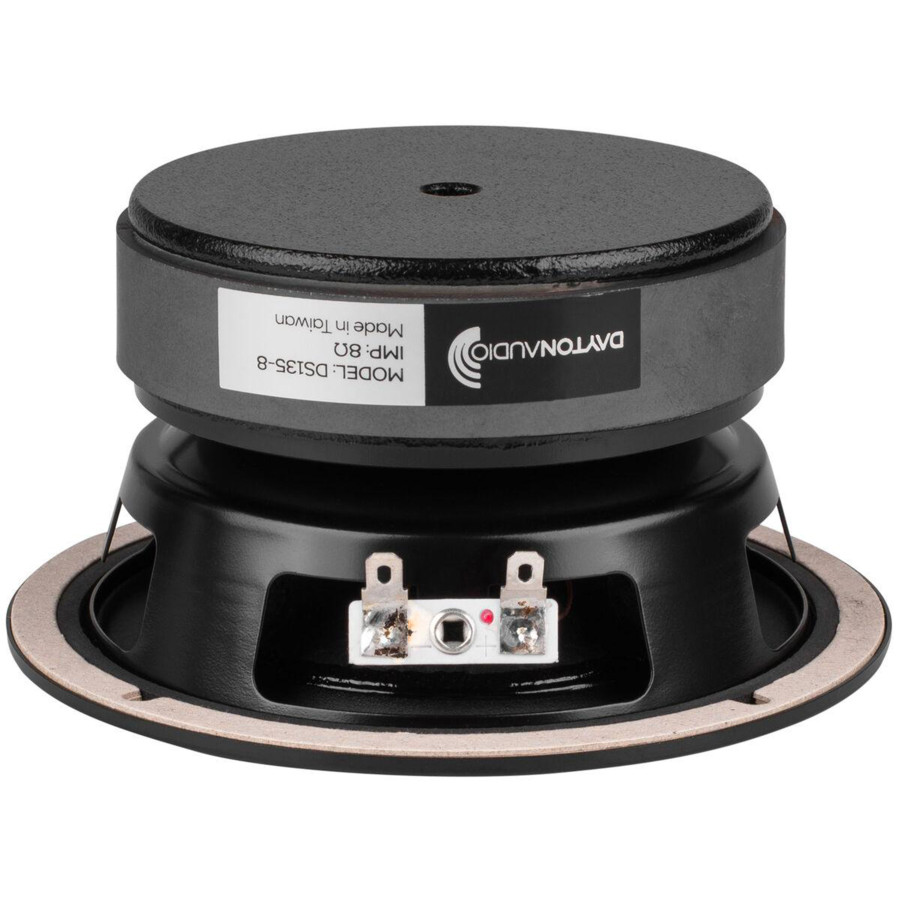

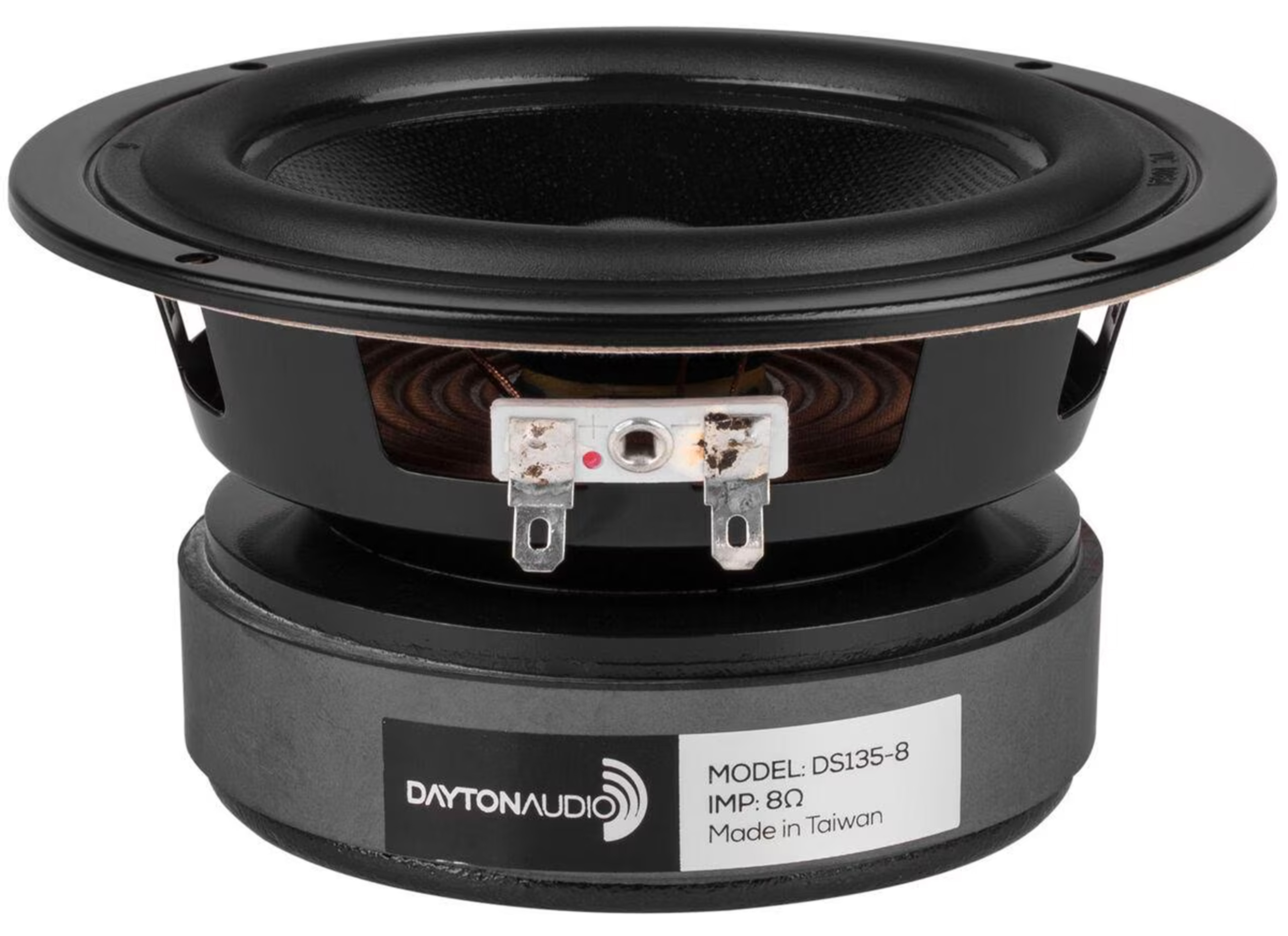

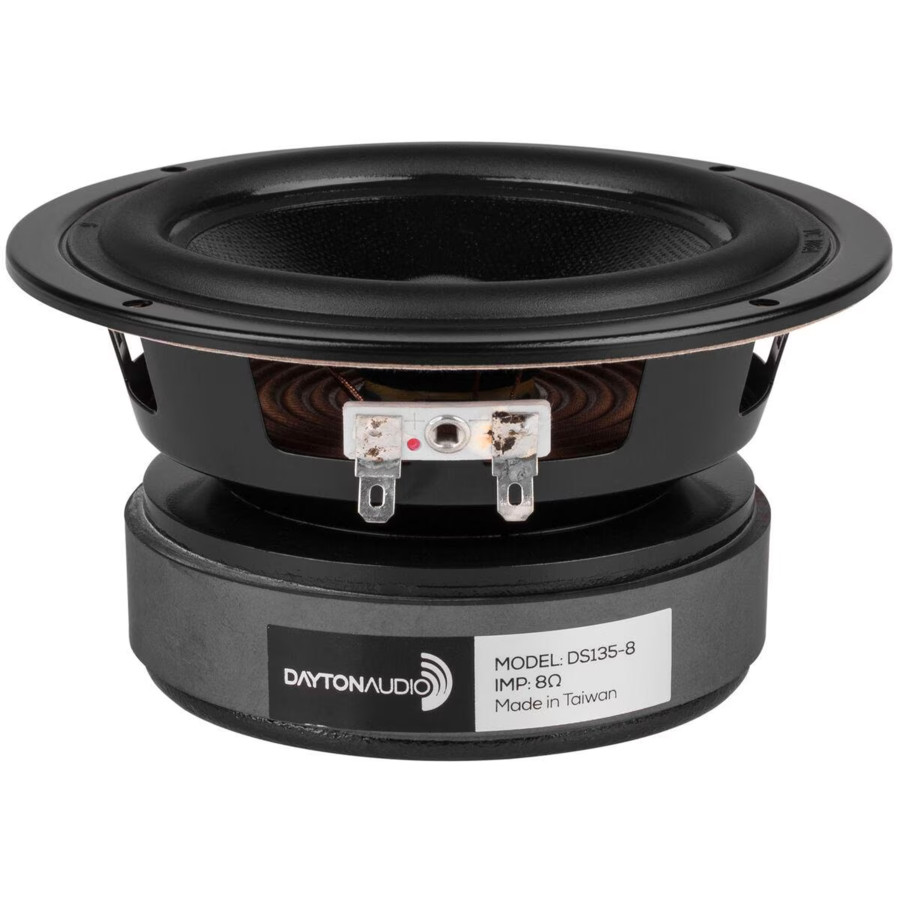

DAYTON AUDIO DS135-8 Woofer 100W 8 Ohm 87dB 50Hz-7000Hz
The Dayton Audio DS135-8 is a 12.7 cm (5") woofer designed for compact speakers seeking accurate reproduction and refined aesthetic integration. Its treated paper cone, combined with a rubber surround, ensures durable and consistent excursion, while the progressive response curve facilitates the use of standard passive crossovers.
Its low-profile basket allows front mounting without rebating, thus simplifying the enclosure construction. The vent in the rear pole piece limits thermal compression and improves reliability during sustained use; its linear excursion also allows a moderate bass correction to be applied in order to adapt the response to a given enclosure volume.
Technical specifications
| Specifications | |
|---|---|
| Product type | Driver |
| Driver type | Woofer |
| Impedance | 8Ω |
| Sensitivity | 86.6dB 2.83V/1m |
| Frequency response | 50Hz-7kHz |
| Voice coil diameter | 2.54cm (1") |
| Nominal diameter | 12.7 cm (5") |
| Power | RMS: 50W MAX: 100W |
| Thiele-Small parameters | |
|---|---|
| Resonance frequency (Fs) | 52.5Hz |
| Cone surface area (Sd) | 75.4cm² |
| Voice coil inductance (Le) | 0.84mH |
| DC resistance (Re) | 5.9Ω |
| Mechanical quality coefficient (Qms) | 2.02 |
| Electromagnetic quality coefficient (Qes) | 0.48 |
| Total quality coefficient (Qts) | 0.39 |
| Force factor (BL) | 6.23T·m |
| Total moving mass + air load on cone (Mms) | 9.7g |
| Mechanical compliance of suspension (Cms) | 0.95mm/N |
| Compliance equivalent volume (Vas) | 0.257ft³ |
| Max linear excursion (Xmax) | 4.85mm |

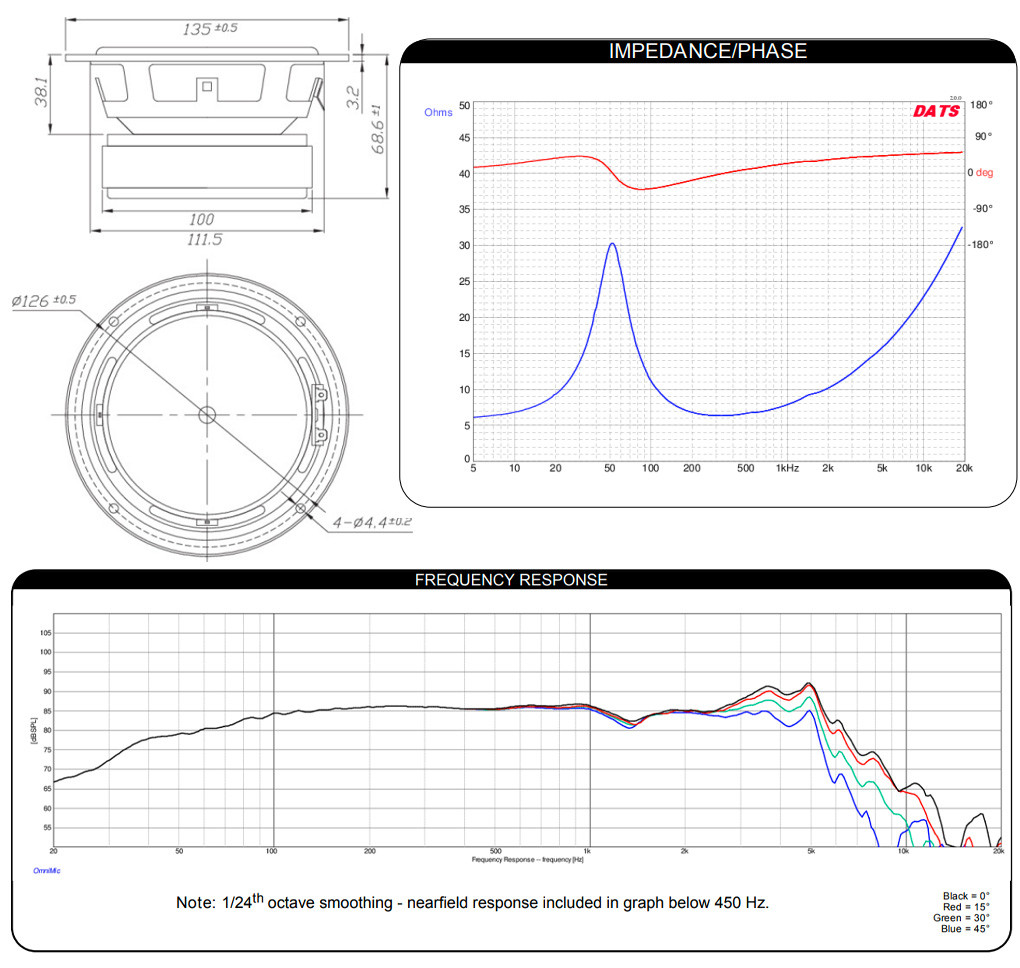

| Mounting informations | |
|---|---|
| Cutout diameter | 9.9cm (4.39") |
| Depth | 6.85cm (2.7") |
| Number of mounting holes | 4 |
| Total external diameter | 13.49cm (5.31") |
| Materials | |
|---|---|
| Membrane | Coated paper |
| Magnet | Ferrite |
| Frame | Steel |
| Surround | Rubber |
| Voice coil wire | Copper |
| General | |
|---|---|
| Weight | 1.36kg |
| Package | Sold individually |
| Speaker Power (W RMS) | 50.0 |
| Speaker Type | Woofer |
| Impedance (Ω) | 8 |
| Loudspeaker diameter (mm) | 127.0 |
| Diaphragm type | Paper |
| Efficiency / Sensitivity (dB) | 86.6 |
| Max Linear Excursion (Xmax) (mm) | 4.8 |
| Lowest frequency (Hz) | 50 |
| Highest frequency (Hz) | 7000 |
