AUDIOPHONICS STEALTH Interconnect Cable AES/EBU 110 Ohm 1.5m
By buying this product you get 6 loyalty points

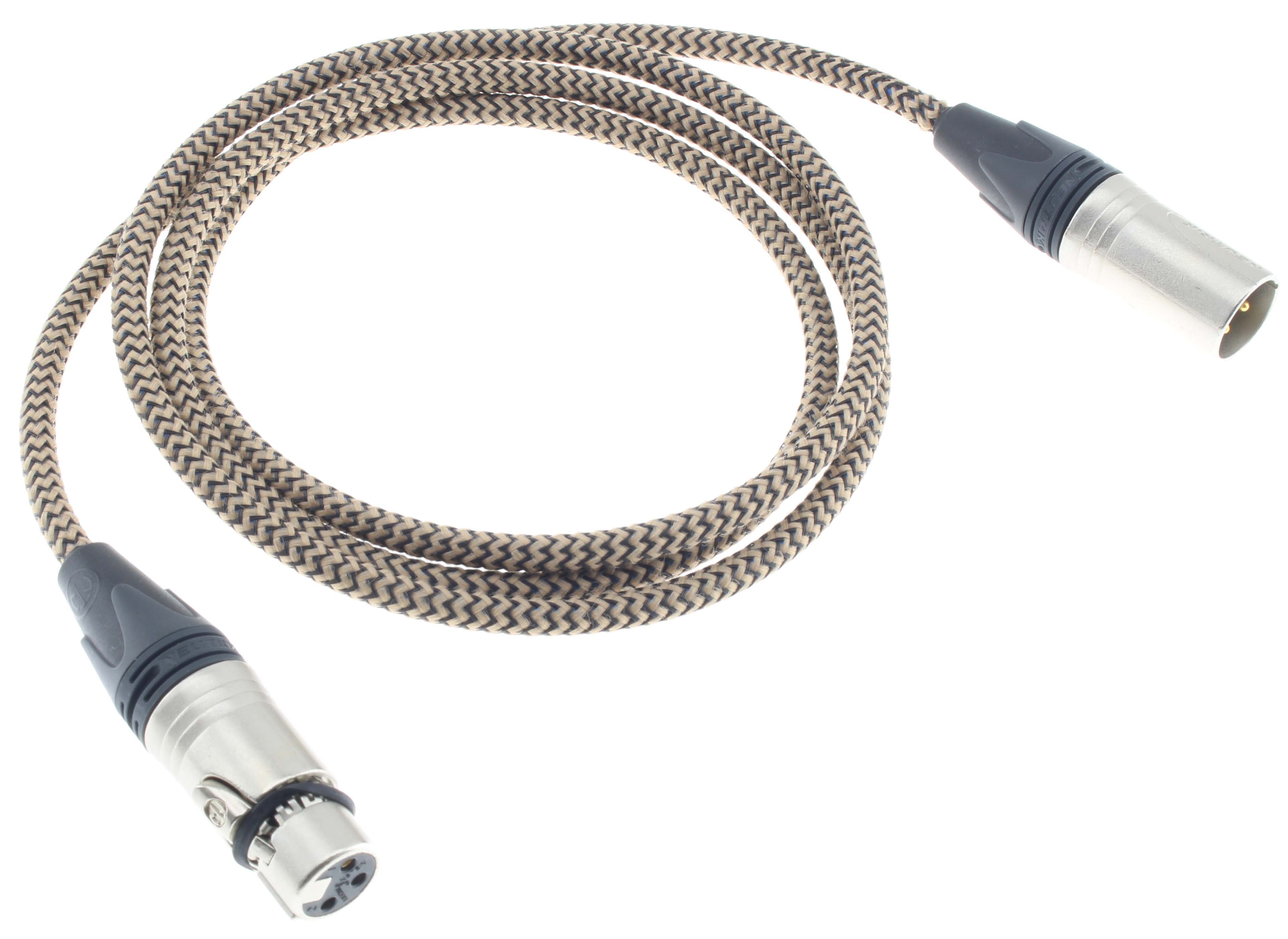

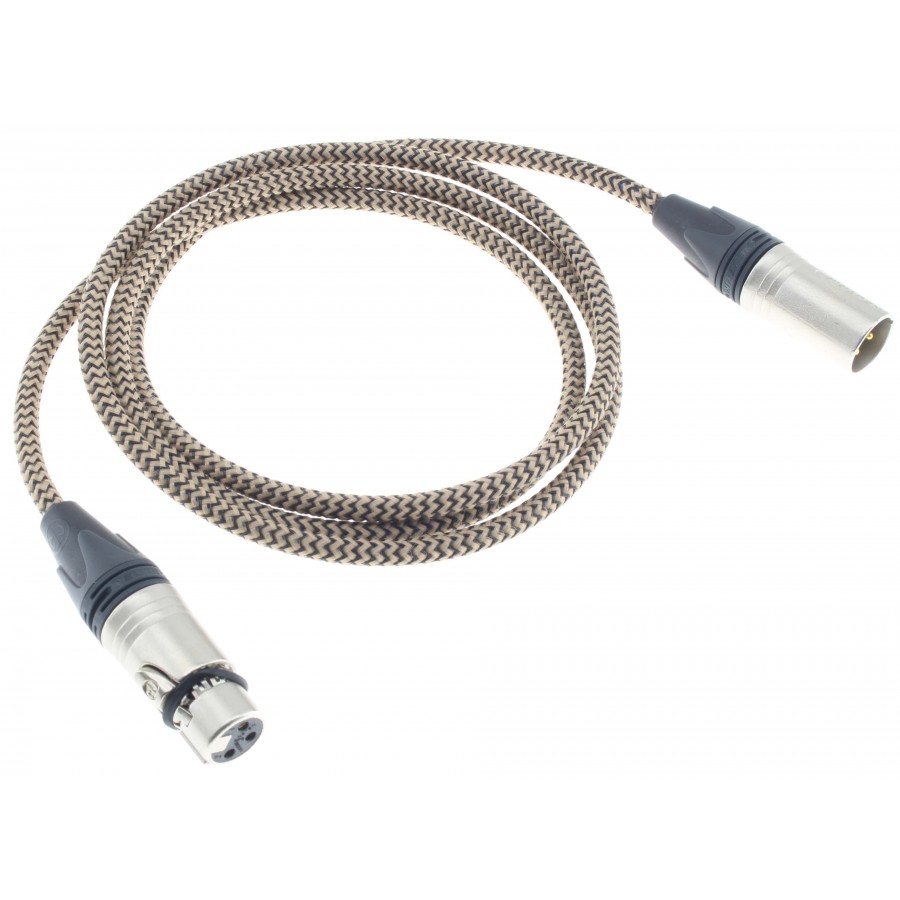

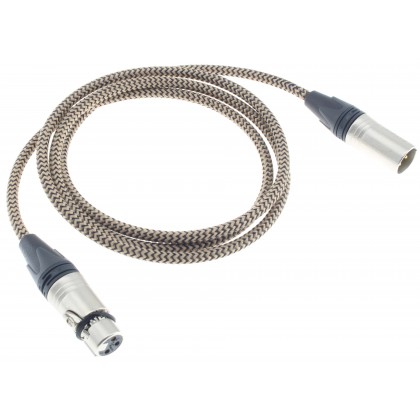

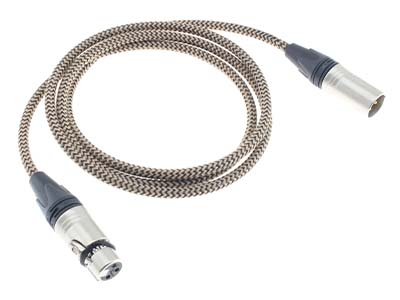

Audiophonics Stealth Interconnect Cable AES/EBU 110 Ohm Shielded Gold-Plated 1.5m
This AES/EBU cable, assembled directly in our workshops in France, offers high-quality design at an affordable price. It features a Canare DA202 110 Ohm cable composed of two gold-plated copper conductors, each measuring 0.18mm², and covered with high-performance shielding. The cable is terminated with a Neutrik NC3FXX-EMC and a Neutrik NC3MXX-EMC connector. These 3-pin XLR connectors with gold/nickel-plated contacts also feature 360° shielding to protect the signal from interference that could degrade it.

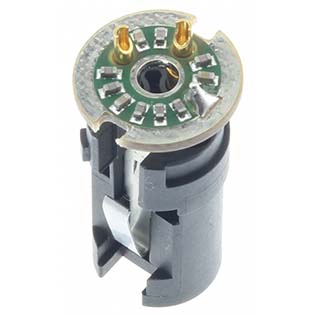

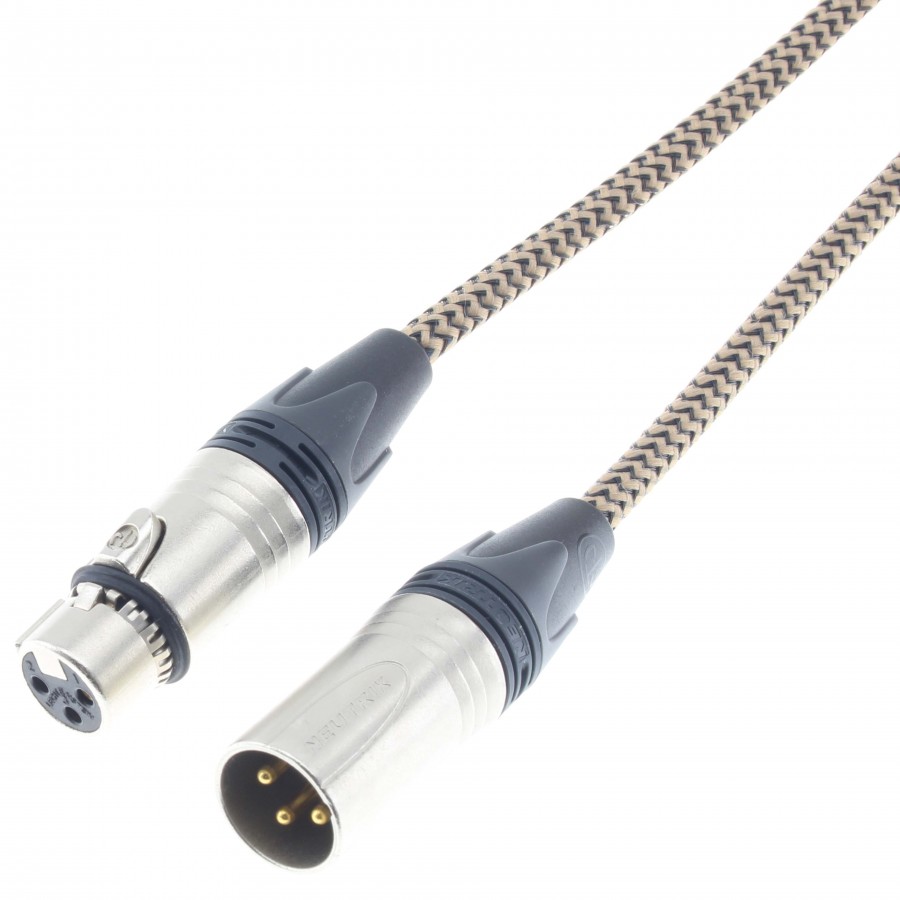

Audiophonics Stealth AES/EBU: Neutrik NC3FXX-EMC and NC3MXX-EMC connectors
These Neutrik connectors feature a professional design with enhanced RF shielding for critical applications in live performance and recording. Their design ensures a continuous RF shield connection between the cable and the connector housing. This is achieved thanks to circular capacitors that act as a high-pass filter with a cutoff frequency of approximately 10MHz, while a 24-ohm EMI suppression ferrite bead at 1MHz between pin 1 and the cable shield provides a low-pass filter for better RF rejection.
Technical characteristics
| Specifications | |
|---|---|
| Product type | AES/EBU modulation cable |
| Connectors | 1x Neutrik NC3FXX-EMC 1x Neutrik NC3MXX-EMC |
| Length | 1.5m |
| CANARE DA202 Cable Specifications | |
|---|---|
| Standard | Coaxial 110ohm |
| Number of conductors | 2 |
| Conductor diameter | 0.45mm |
| Conductor section | 0.18mm² / 25 AWG |
| Shielding | Braided |
| Cond. DCR | < 10.6ohm/100m |
| Attenuation | 5dB/100m |
| Neutrik NC3MXX-EMC / NC3FXX-EMC XLR connector specifications | |
|---|---|
| Contact material | Bronze |
| Contact plating | Hard gold-copper (Au) alloy of 0.2µm on 2µm of nickel (Ni) |
| Mounting type | Solder contacts |
| Locking system | Latch lock |
| Nominal current per contact | 5A |
| Nominal voltage | < 50V |
| General | |
|---|---|
| Package | 1x Audiophonics Stealth AES/EBU interconnect cable 1.5m |
| Length (m) | 1.5 |
| Shielding | Yes |
| Section (mm²) | 0.18 |
| Connector | XLR |
| Conductors material (Cable) | Copper |
| Conductors Plating (Cable) | Gold |
