NEUTRIK NC3FRX-B XLR Connector Female
By buying this product you get 1 loyalty point

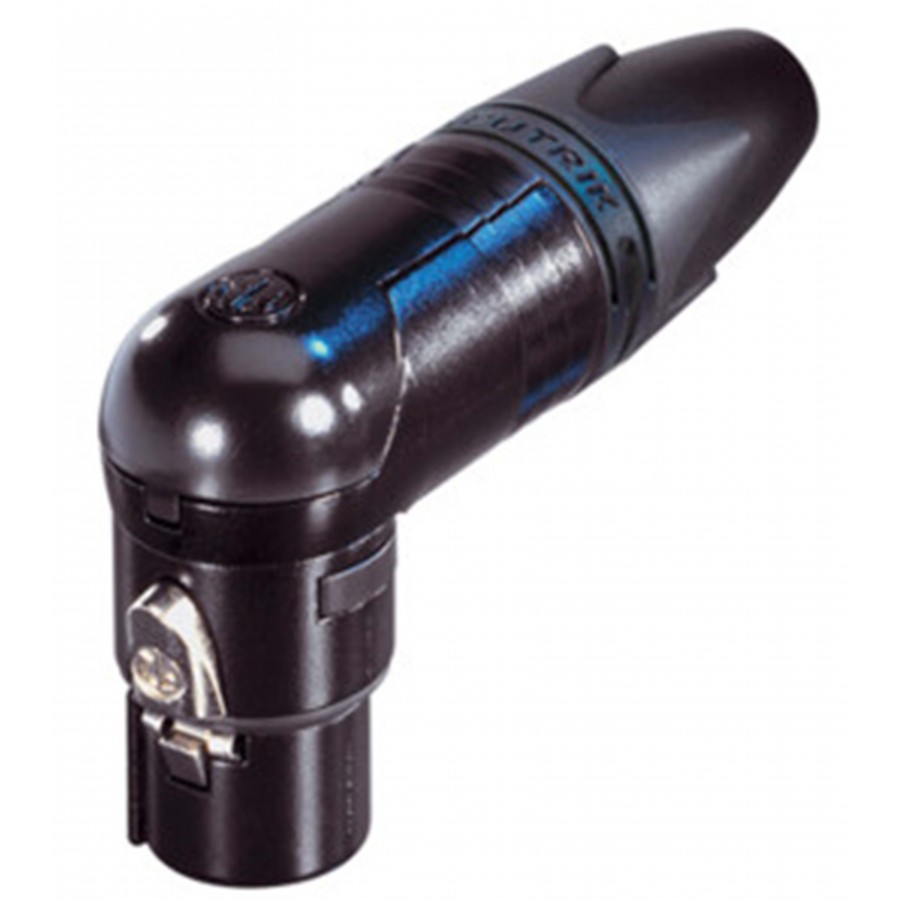

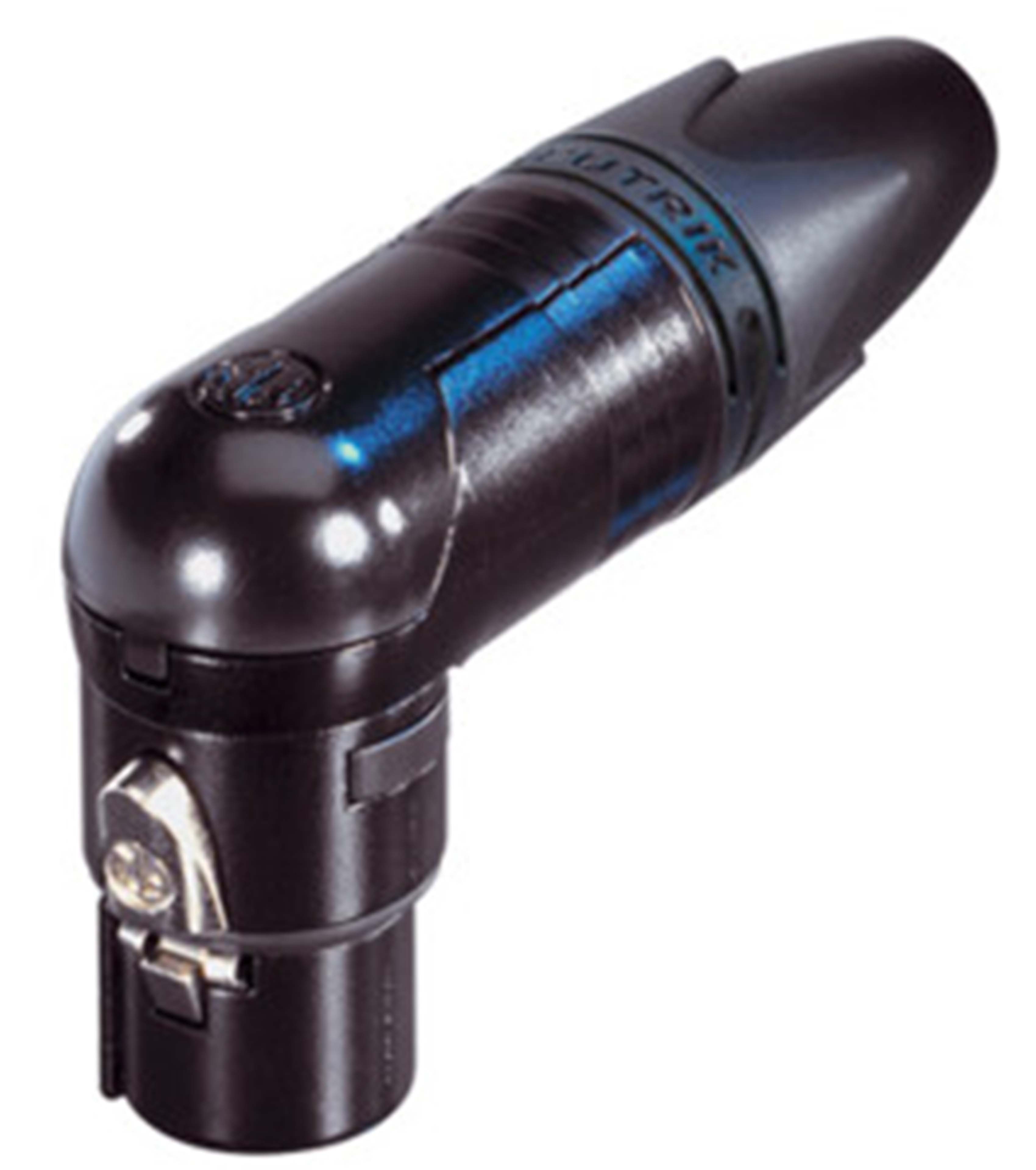

Neutrik NC3FRX-B 3-Pin Female XLR Connector 90° Angled Gold-Plated Ø8mm
The Neutrik NC3FRX-B is a 3-pin female XLR connector angled at 90°. The contacts of this connector are made of gold-plated copper alloy to ensure a high level of conductivity as well as resistance to oxidation and corrosion. It accepts cables with a minimum outer diameter of Ø3.5mm and a maximum of Ø8mm. Cable assembly is carried out by soldering with conductors up to a maximum cross-section of 2.5mm² (14AWG), while the overall connector assembly requires no screws for greater convenience. In addition to its practical assembly, 5 cable outlet positions are selectable.
Key features of the NEUTRIK NC3FRX-B:
- Extra-slim right-angle connector

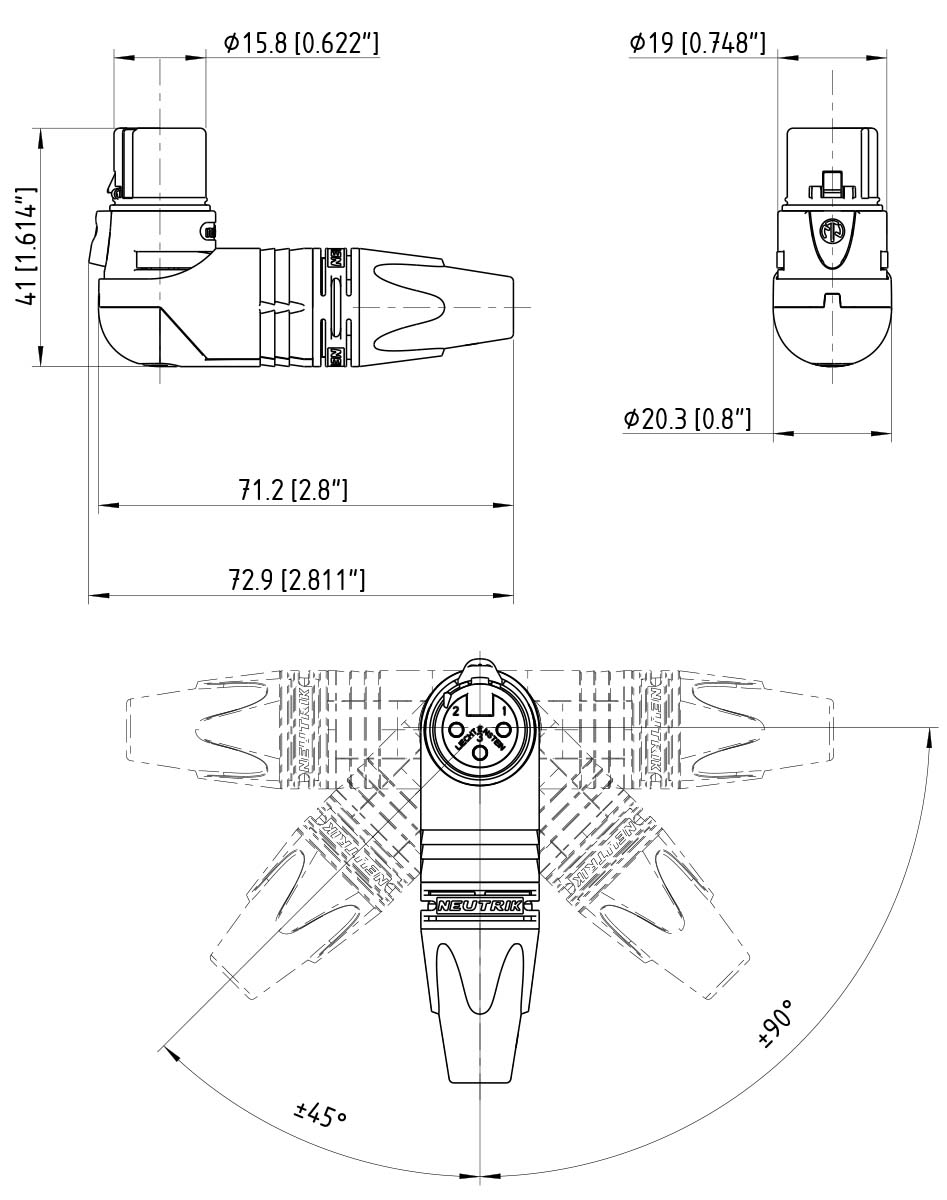

- 5 selectable cable outlet positions
- Male connector with improved locking recess without “window”, stronger housing for increased durability
- Improved chuck-type strain relief providing higher pull-out force and enabling faster and easier assembly
- Boot with polyurethane gland offering high protection against cable bending stress
- Colored rings and boots available for coding or identification
Technical Specifications
| Specifications | |
|---|---|
| Product type | 90° angled female XLR connector |
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 3mΩ |
| Dielectric strength | 1.5kVdc |
| Insulation resistance | > 2GΩ (initial) |
| Rated current per contact | 16A |
| Rated voltage | < 50V |
| Min/max cable outer diameter | Ø3.5 to Ø8mm |
| Max cable cross-section | 2.5mm² (14AWG) |
| Mounting type | Solder |
| Body material | Die-cast zinc |
| Body plating | Black chrome |
| Contact material | Copper alloy |
| Contact plating | Gold |
| Operating temperature | -30 °C to +80 °C |
| General | |
|---|---|
| Package contents | 1x Neutrik NC3FRX-B |
| Insulation material | Polyurethane (PUR) |
| Max cable diameter (mm) | 8.0 |
| Mounting type | To weld |
| Connectic | Female |
| Contacts number | 3 |
| Connector | XLR |
| Contacts Material (Connector) | Copper Alloy |
| Contacts Plating (Connector) | Gold |
