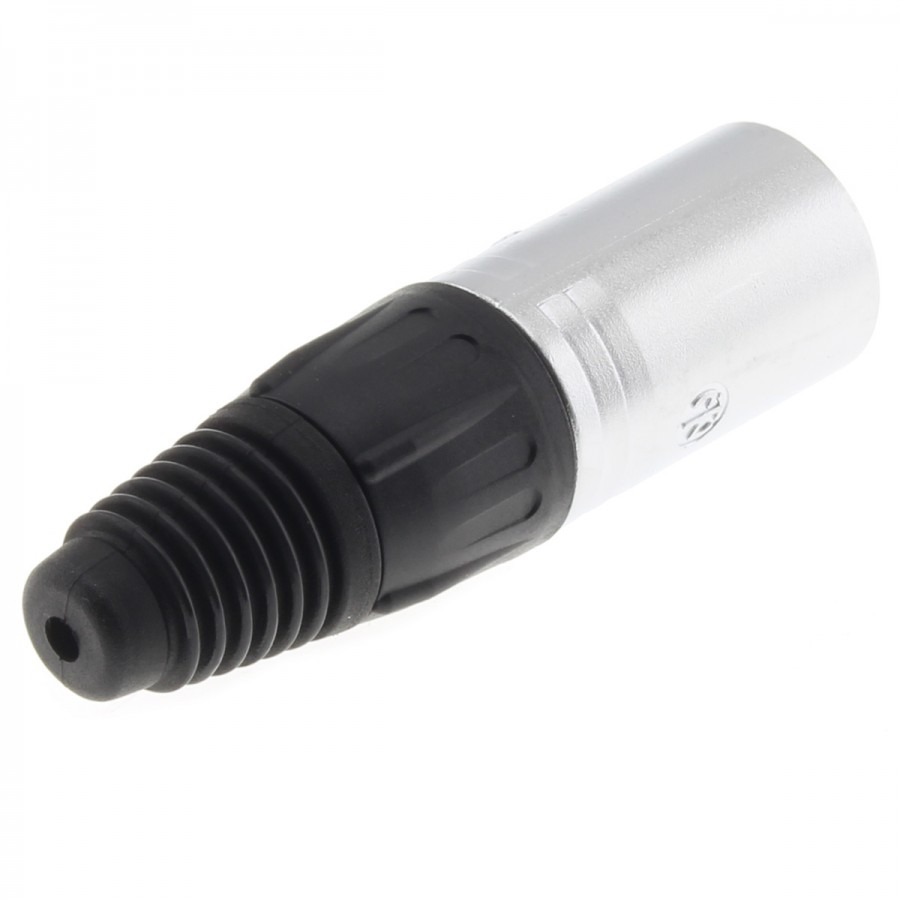

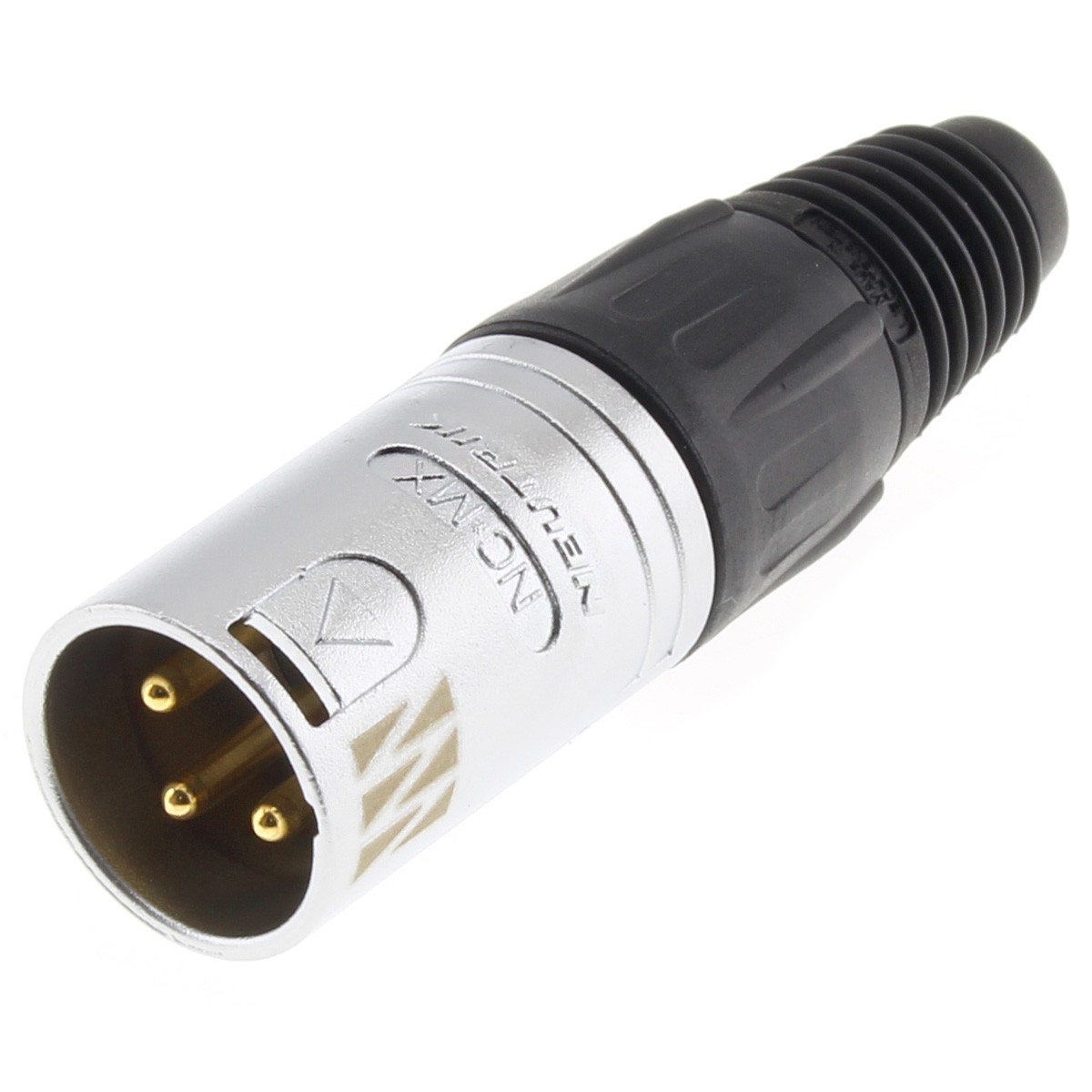

NEUTRIK NC3MX-SOM 3 Pins Male XLR Connector Gold Plated Ø8mm (Unit)

NEUTRIK NC3MX-SOM 3 Pins Male XLR Connector Gold Plated Ø8mm (Unit)
The Neutrik NC3MX is a 3-pole male XLR connector with zinc body and gold plated contacts. It is easy to assemble and consists of only 4 parts with a robust die-cast shell, a fiberglass-reinforced hard plastic insert and a chuck-type strain relief for secure clamping of all cables.

Average votes for this product
5.0 / 5

No loyalty points for this product.


Reference : 791
New product

4,75 €tax excl.

- +

Shipping date: 27-05-2022.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

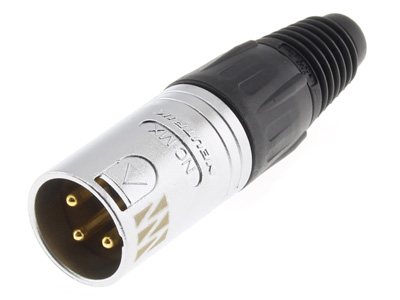

Neutrik NC3MX

3 Pins Male XLR Connector Gold Plated Ø8mm (Unit)

Neutrik NC3MX Connecteur XLR Mâle 3 Pôles Plaqué Or Ø8mm (Unité)

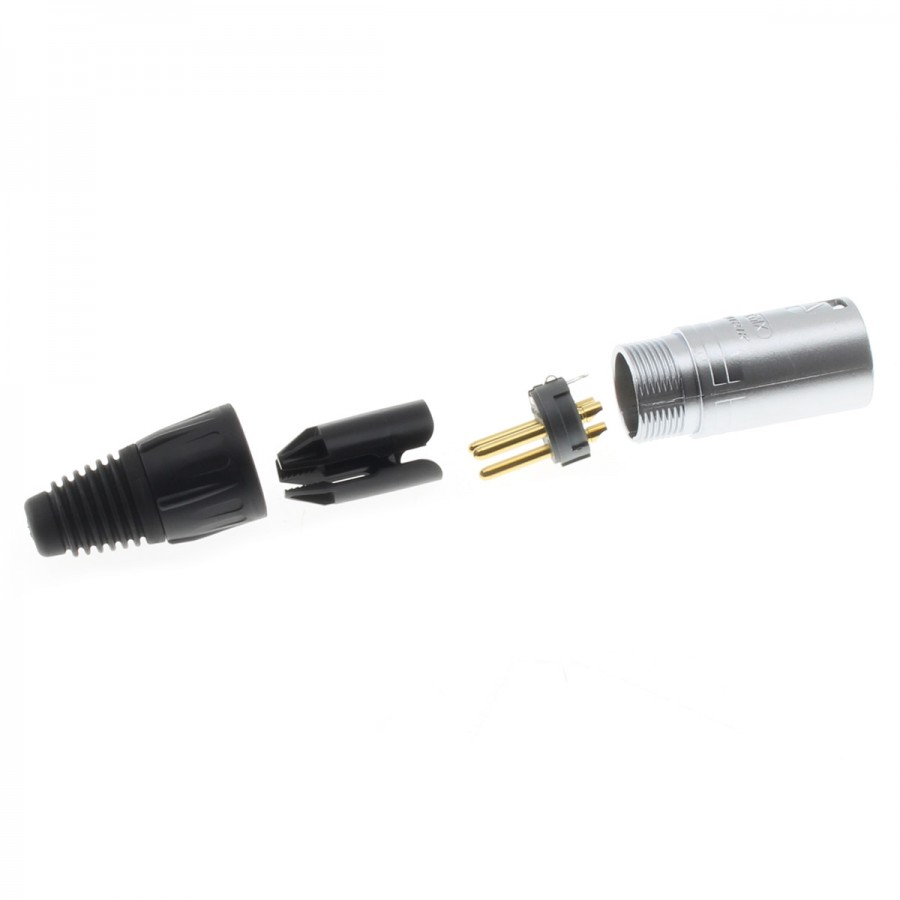

The Neutrik NC3MX is a 3-pole male XLR connector with zinc body and gold plated contacts. It is easy to assemble and consists of only 4 parts with a robust die-cast shell, a fiberglass-reinforced hard plastic insert and a chuck-type strain relief for secure clamping of all cables. The soft rubber end cap offers high protection against bending stress.

Technical characteristics

Specifications
Product typeMale XLR connector
Suitable cable diameterØ3.5 - 8mm
Max conductors section2.5mm² (14AWG)
Mounting typeTo solder
Lifetime> 1000 cycles
Tip materialPolyurethane
Contacts platingGold 2µm
Contacts materialCopper alloy
Insert materialPolyamide
Locking element / shell materialZinc
Shell platingNickel
Temperature range-30°C / +80°C
StandardsUL 94 V-0
IEC 61076-2-103
IP40
IEC 68-2-20
Capacitance between contacts≤4pF
Contacts resistance≤3mΩ
Dielectric strength1.5kVdc
Insulation resistance> 10GΩ
Rated current per contact16A
Rated voltage< 50V
Insertion / withdrawal strength≤ 20N
General
Total dimensionsØ19.4 x 67mm

Data sheet
PlatingGold
Insulation materialPE
Max cable diameter (mm)8.0
Mounting typeTo weld
ConnecticMale
Contacts number3
ConnectorXLR
Contacts Material (Connector)Copper Alloy
Contacts Plating (Connector)Gold
