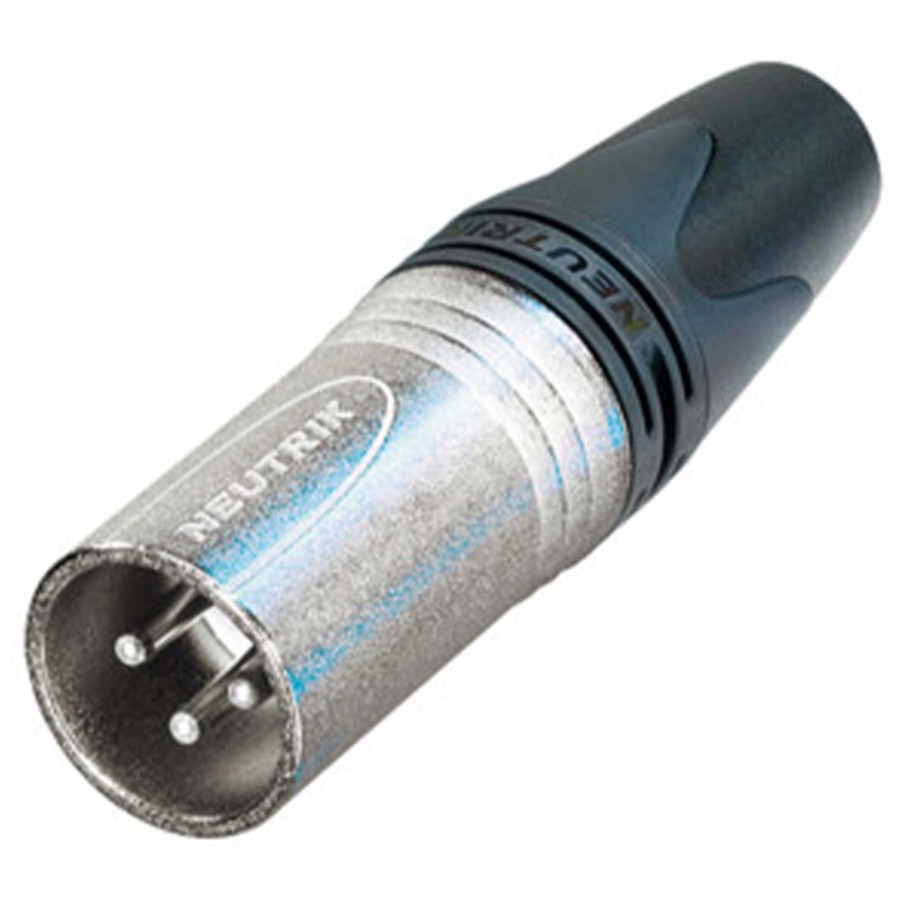

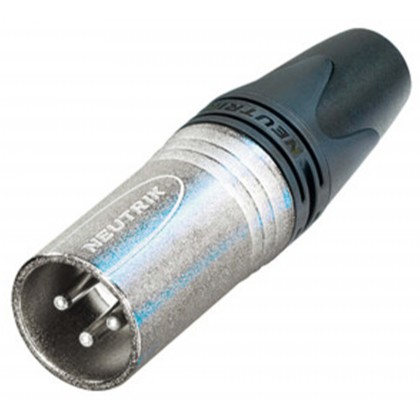

NEUTRIK NC3MXX-14 XLR Connector Male
The Neutrik NC3MXX-14 male XLR connector features a robust design with low contact resistance. This connector has silver-plated conductors to ensure maximum conductivity and a nickel-plated die-cast zinc body for guaranteed durability.
No customer reviews yet, login to write a review.
No loyalty points for this product.
Reference : 21564
New product

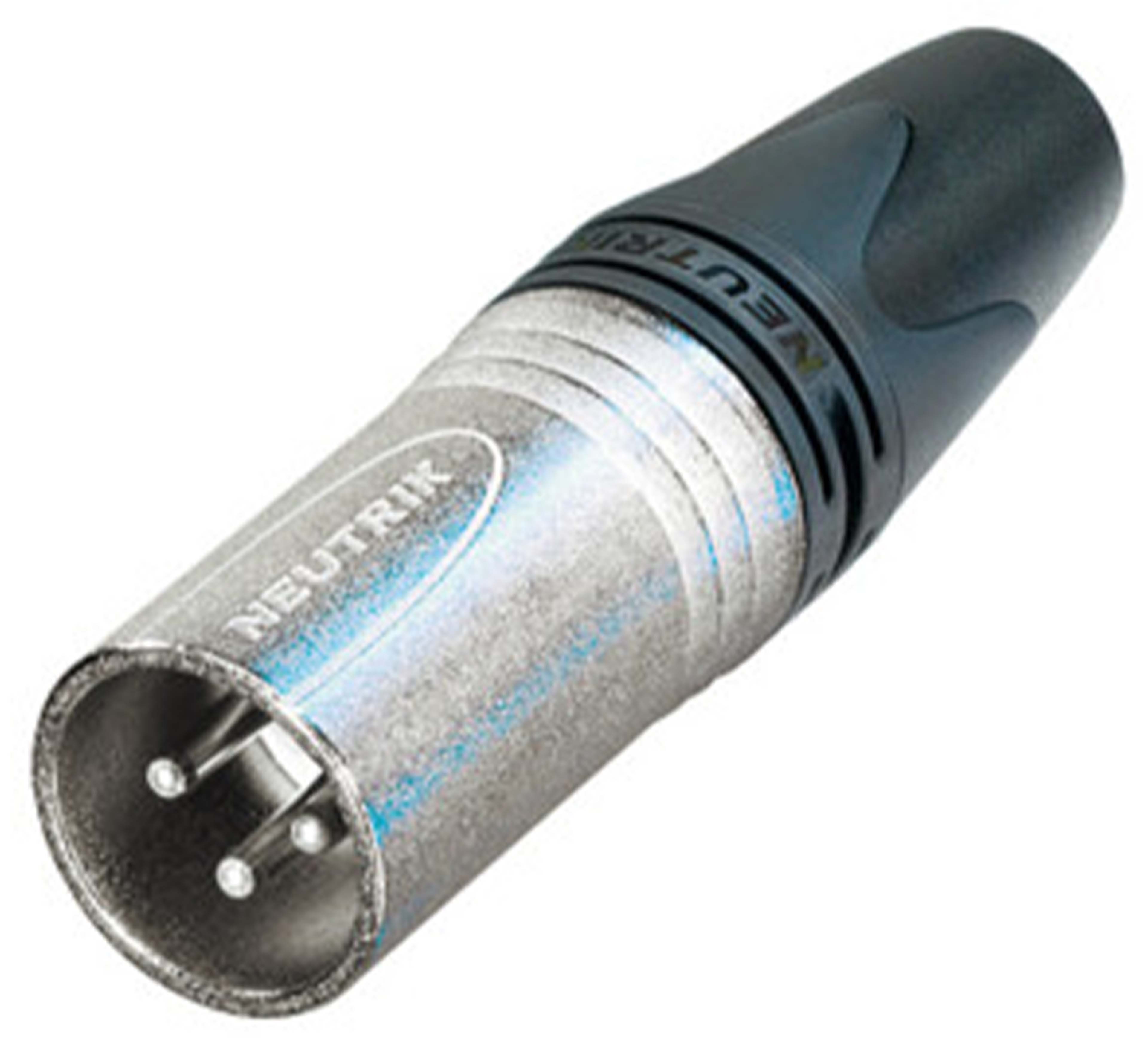

Neutrik NC3MXX-14 XLR Connector 3-Pin Male Silver Plated Ø10mm (Unit)
The Neutrik NC3MXX-14 male XLR connector features a robust design with low contact resistance. This connector has silver-plated conductors to ensure maximum conductivity and a nickel-plated die-cast zinc body for guaranteed durability. It should also be noted that assembly does not require soldering and is done by crimping.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Male XLR connector |
| Contact material | Copper alloy |
| Contact plating material | Silver |
| Body material | Nickel-plated zinc |
| Acceptable cable diameter | Ø8mm-Ø10mm |
| Max. cable cross-section | max. 2.5 mm² (AWG14) |
| General | |
|---|---|
| Package | 1x Neutrik NC3MXX-14 |
| Insulation material | Polyurethane (PUR) |
| Max cable diameter (mm) | 10.0 |
| Mounting type | To crimp |
| Connectic | Male |
| Contacts number | 3 |
| Connector | XLR |
| Contacts Material (Connector) | Copper Alloy |
| Contacts Plating (Connector) | Silver |
