NEUTRIK NC3FAAH1 XLR Connector

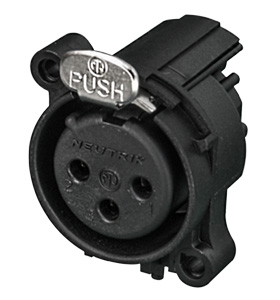

NEUTRIK NC3FAAH Female 3 Poles XLR Connector Gold Plated for PCB
This low cost 3-pin female XLR connector allows for horizontal PCB mounting. Its contacts are gold plated to ensure good conductivity and durability.
No customer reviews yet, login to write a review.

No loyalty points for this product.


Reference : 16901
New product

1,10 €tax incl.

0,92 € tax excl.

- +


Shipping date: 09-10-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Neutrik NC3FAAH1

Female 3 Poles XLR Connector Gold Plated for PCB

Neutrik NC3FAAH Connecteur XLR 3 Pôles Femelle Plaqué Or pour PCB

This low cost 3-pin female XLR connector allows for horizontal PCB mounting. Its contacts are gold plated to ensure good conductivity and durability.

Neutrik NC3FAAH Connecteur XLR 3 Pôles Femelle Plaqué Or pour PCB

Technical characteristics

Specifications
Product typeXLR Connector
ConnectorFemale 3 poles XLR
Contacts materialCopper alloy
Contacts platingGold
Body materialPolyamide
Capacitance between contacts≤ 4pF
Contacts resistance≤ 6mΩ
Dielectric strength1.5kVdc
Insulation resistance> 10GΩ
Rated current per contact6A
Rated voltage< 50V
Insertion/Withdrawal strength≤ 20N
Lifetime> 1000 cycles
CertificationsUL94HB
IEC 61076-2-103
IP40
Temperature range-30°C to +80°C

Data sheet
Max cable diameter (mm)N/A
Mounting typeTo weld
ConnecticFemale
Contacts number3
Max panel thickness (mm)N/A
ConnectorXLR
Contacts Material (Connector)Copper Alloy
Contacts Plating (Connector)Gold
