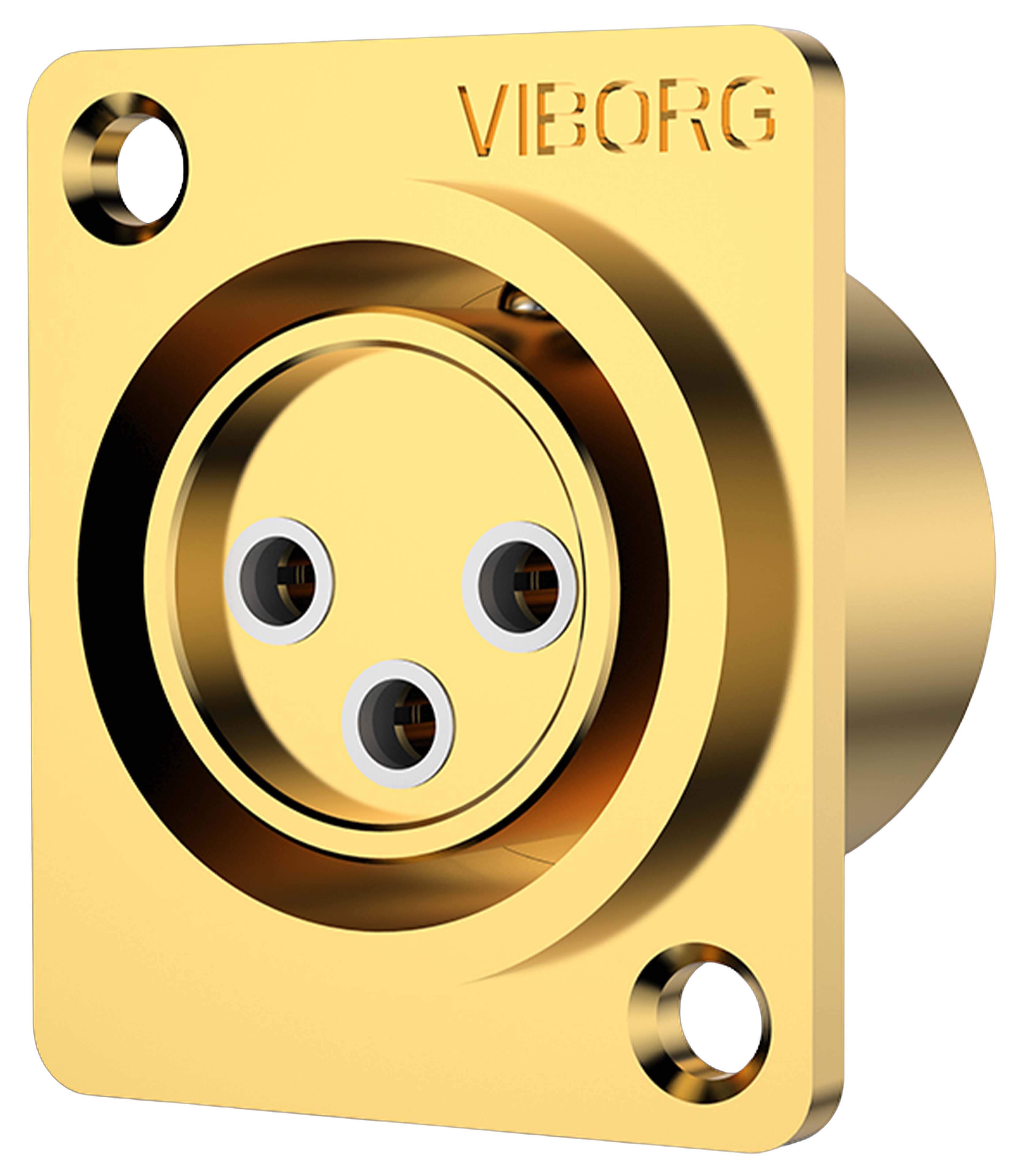

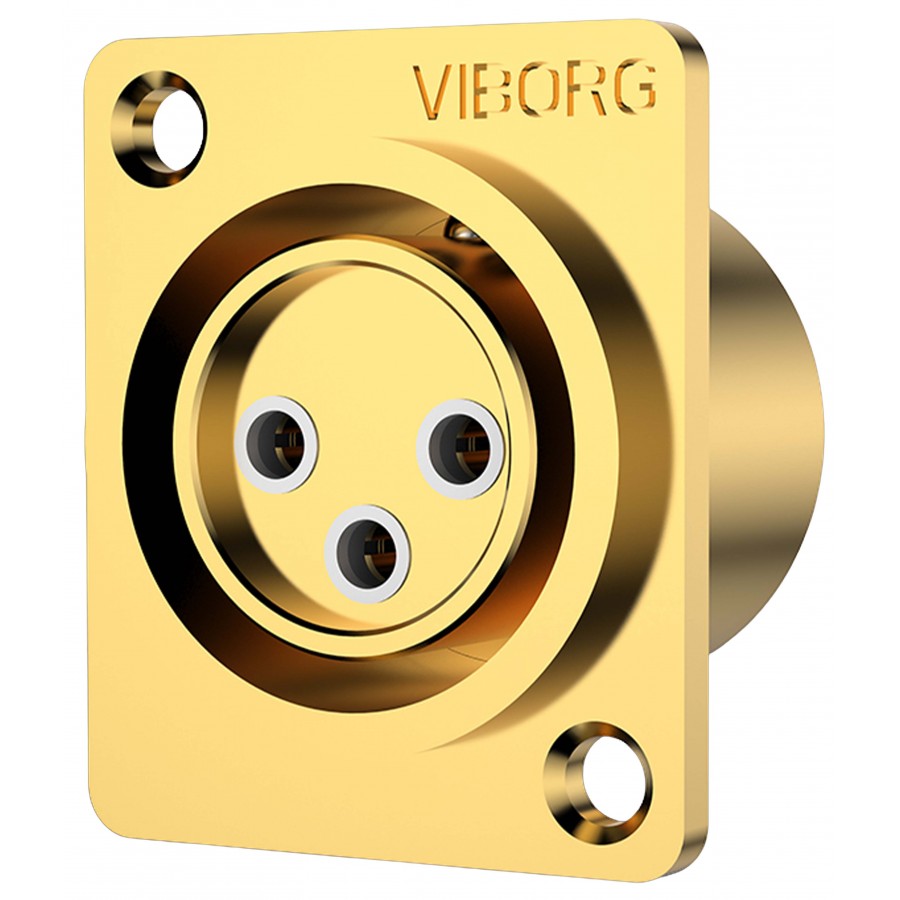

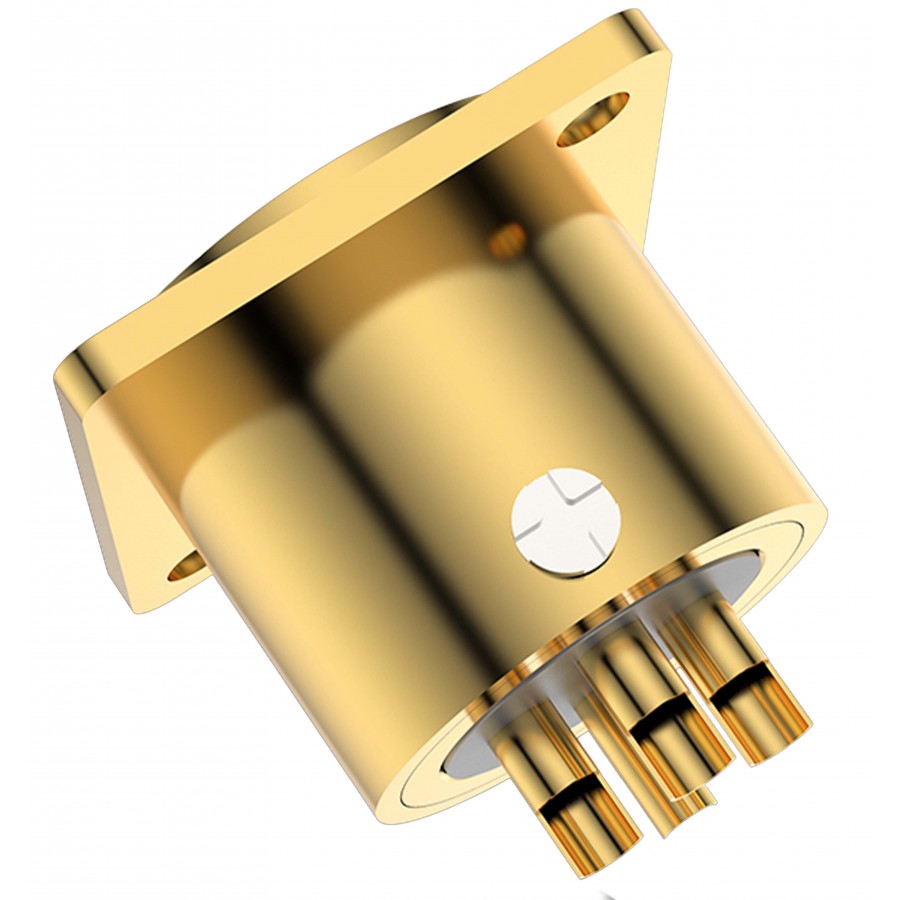

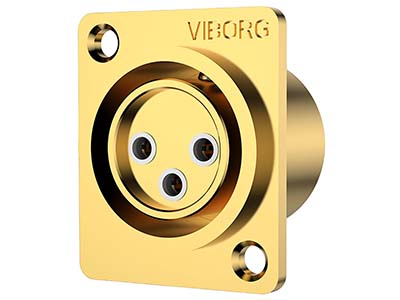

VIBORG CF203G Female XLR Connector Pure Copper OFC Copper / Silver / Gold 3μ Plated (Unit)
By buying this product you get 2 loyalty points
Viborg CF203G Female XLR Socket Pure Copper OFC Copper / Silver / 3μ Gold Plated (Unit)
This Viborg CF203G 3-pole female XLR socket features exemplary design thanks to the use of premium materials. The socket contacts are made of pure copper to ensure excellent audio signal conductivity. These contacts also benefit from a triple plating of OFC copper, silver, and rhodium. As silver is the best electrical conductor, it maximizes the transmission performance of the socket, while rhodium protects the contacts against corrosion, significantly extending their service life.
Technical Specifications
| Specifications | |
|---|---|
| Product type | XLR Socket |
| Gender | Female |
| Number of poles | 3 poles |
| Contact material | Pure Copper |
| Contact plating | OFC Copper Silver 3μ Gold |
| Body material | Brass + polished finish + gold plating |
| Insulation | PTFE |
| Acceptable conductor diameter | Ø2mm |

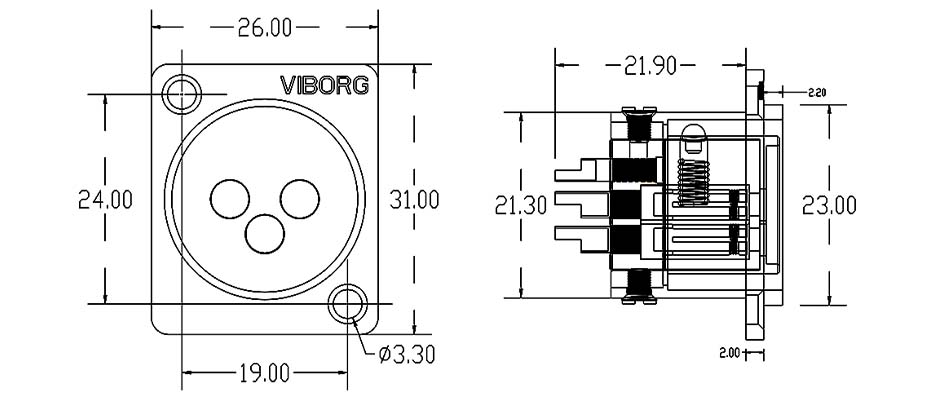

| Dimensions | 26 x 31 x 20mm |
| Outer diameter | 21.5mm |
| Depth | 22mm |
| General | |
|---|---|
| Packaging | 1x Viborg CF203G |
| Max cable diameter (mm) | 2.0 |
| Mounting type | To weld |
| Connectic | Female |
| Contacts number | 3 |
| Max panel thickness (mm) | N/A |
| Connector | XLR |
| Contacts Material (Connector) | Copper |
| Contacts Plating (Connector) | Silver |
| Contacts Plating (Connector) | Gold |
| Contacts Plating (Connector) | Copper |
