DIY Box for Amplifier 100% Aluminium 311x194x90mm

DIY Box 100% Aluminium 311x194x90mm

Average votes for this product
2.0 / 5

By buying this product you get 6 loyalty points


Reference : 9077
New product

69,00 €tax incl.

57,50 € tax excl.
Available

- +

Shipping date: 19-12-2018.

Orders placed before 1pm (GMT+1) will be shipped the same day (working day).

Produit garantie 2 ans

More info

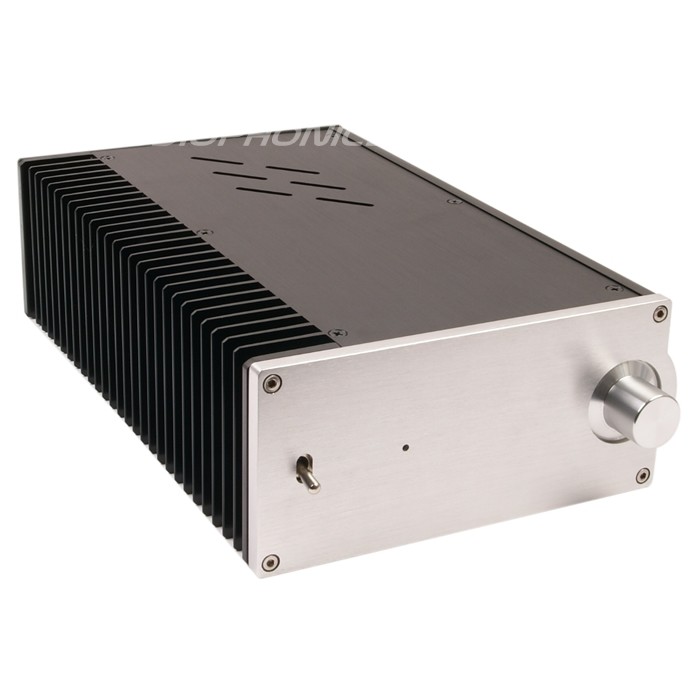

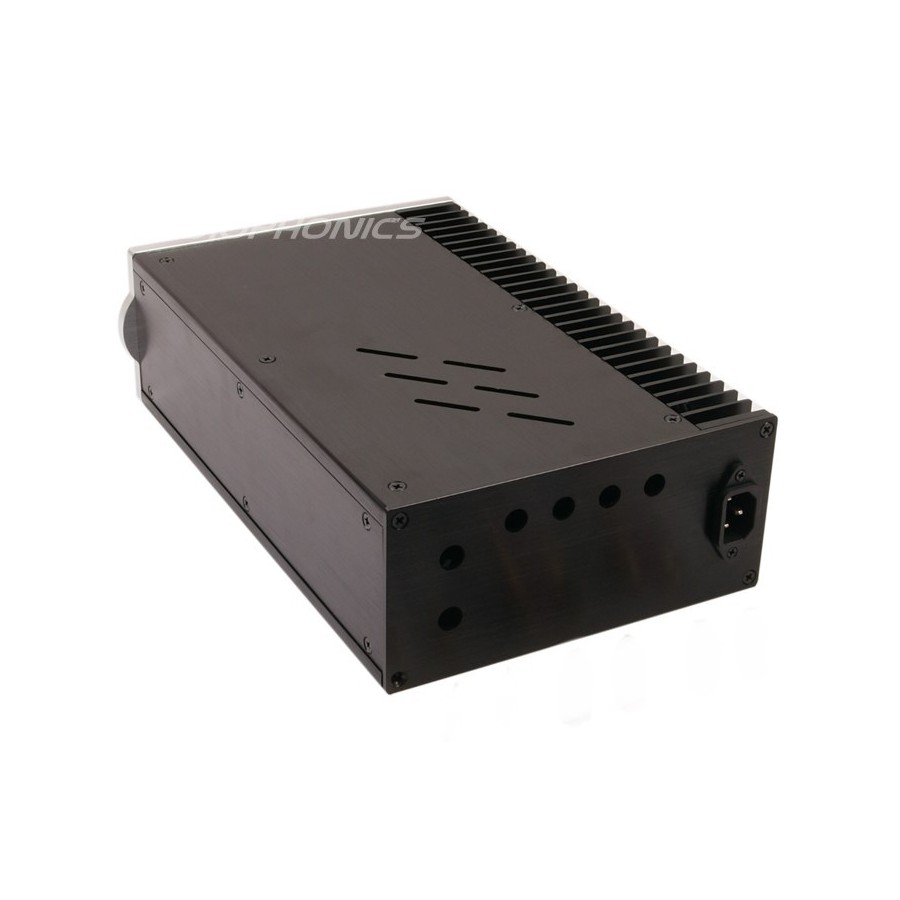

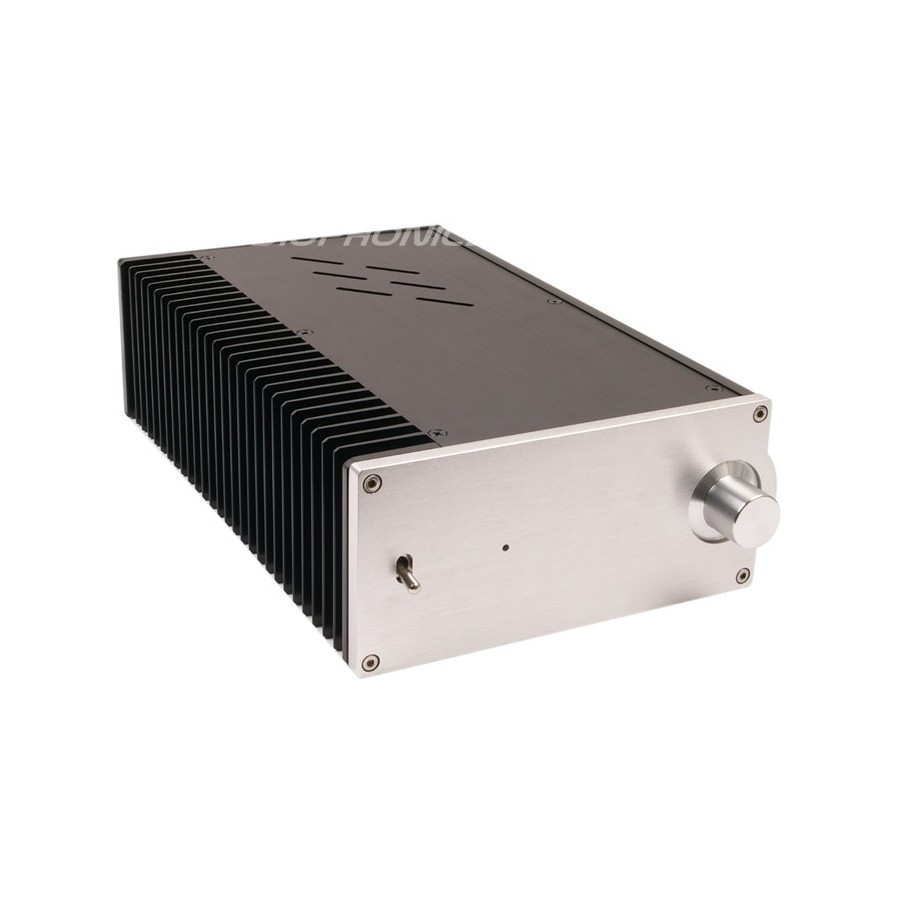

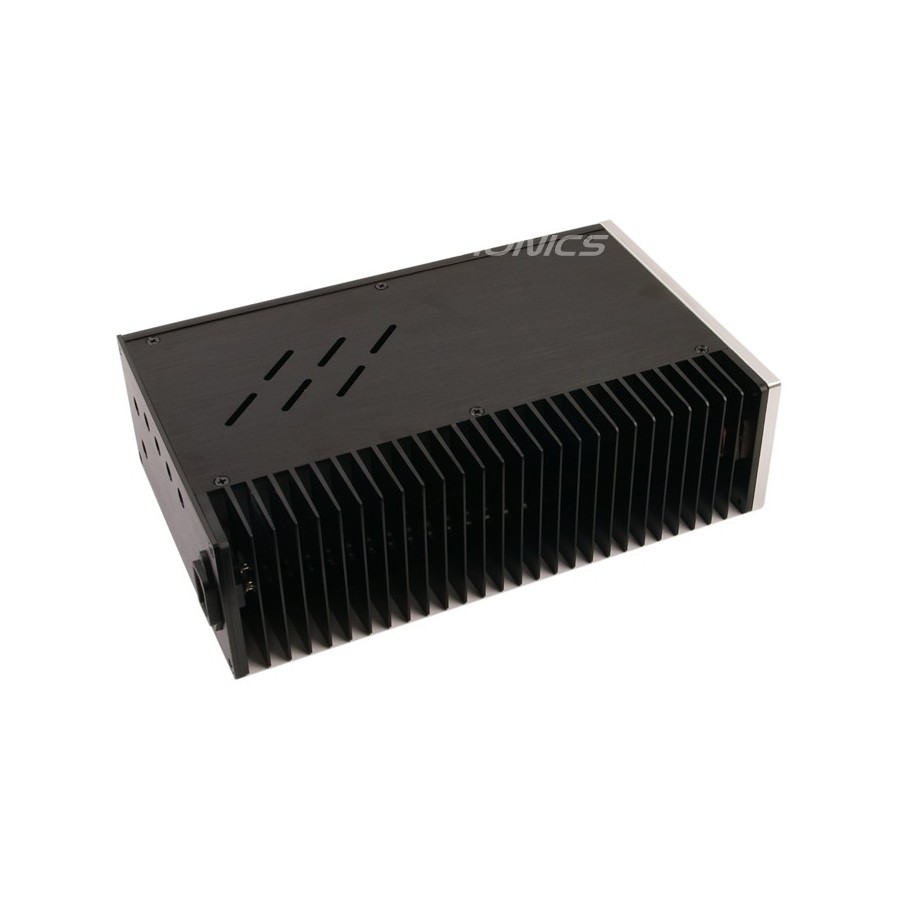

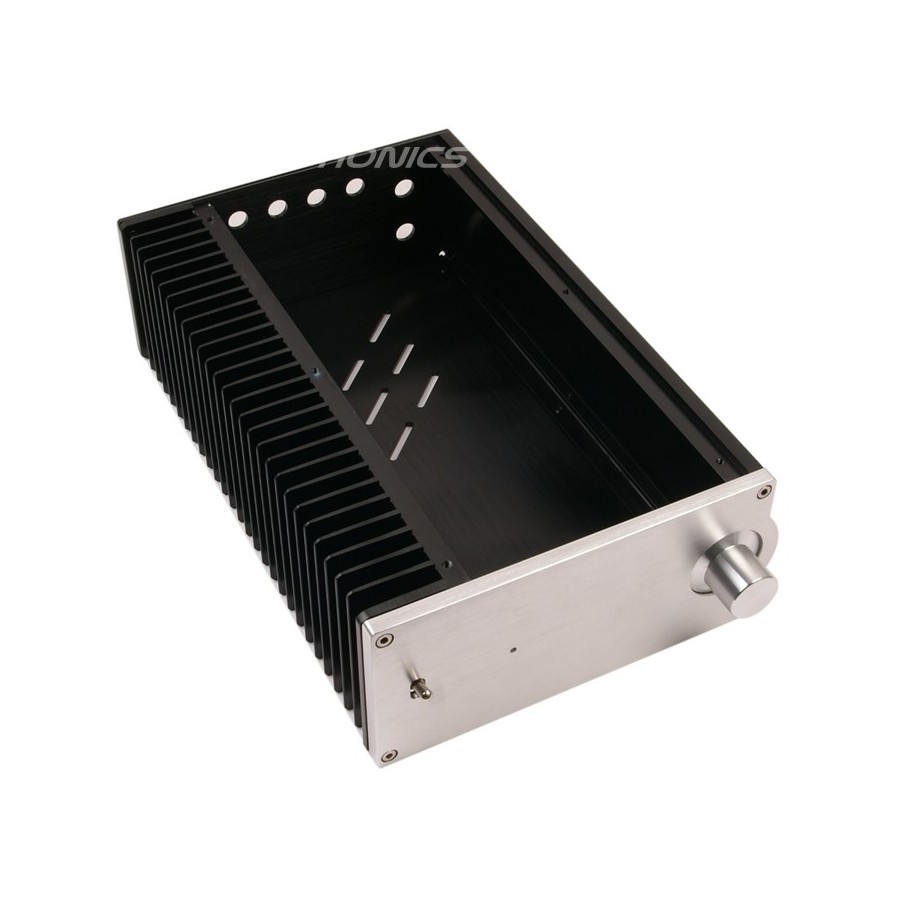

This DIY 100% Aluminum ventilated case with side heater is ideal for integrating an amplifier or other audio mount.

Its robust design ensures an efficient assembly and use with a professional finish./ P>

Box sold to assemble.

Dimensions Internal:

  • Working width: 140mm
  • Depth: 300mm
  • Working height: 83mm

External Dimensions:

  • Width: 194mm
  • Depth: 311mm
  • Height: 90mm
  • Width of radiator: 40mm
  • thickness of blades: 3mm
  • Spacing: 8mm

Specifications:

  • Solid Brushed Aluminum
  • Façade: 8 mm
  • Rear face: 3mm
  • Weight: 3kg
  • Supplied with screws, socket
  • Button for volume control in aluminum Ø 25mm, base Ø 37mm (recess Ø 39mm) and fixing potentiometer flat Ø 6mm.





Data sheet
MaterialMetal
ConnectionTo weld
ConnecticMale
StructureAluminium
Channel2 channels (Stereo)
External width (mm)194
External height (mm)90
External depth (mm)311
Internal height (mm)83
HeatsinkYes

Delivery
We deliver all of France, and internationally.
To discover the amount of the shipping costs, you just have to go in your shopping cart once the desired products added.
To discover our different services and delivery options, click on the following logos:
Colissimo - TNT - SoColissimo
Only registered users can post a review. Log in or create an account .
Average votes
2.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 2/5
Date :
Poor design
Whoever designed this didn't give actual wiring any thought. The on/off switch and power inlet are both *inside* the heatsink. While there are holes inside the heatsink fins to (presumably) run wires from the inlet to the switch, there is no way to actually yse that routing. You will need to drill a lot of holes to run the mains cables inside the chassis, out to the switch and back inside. Getting the inlet and switch back in the provided 'space' with actual cables attached to it is a royal pain in the a$$.
Too bad... with a little extra thought (and actually a simpler execution) this chassis could have been practical. Now it's a source of frustration.
