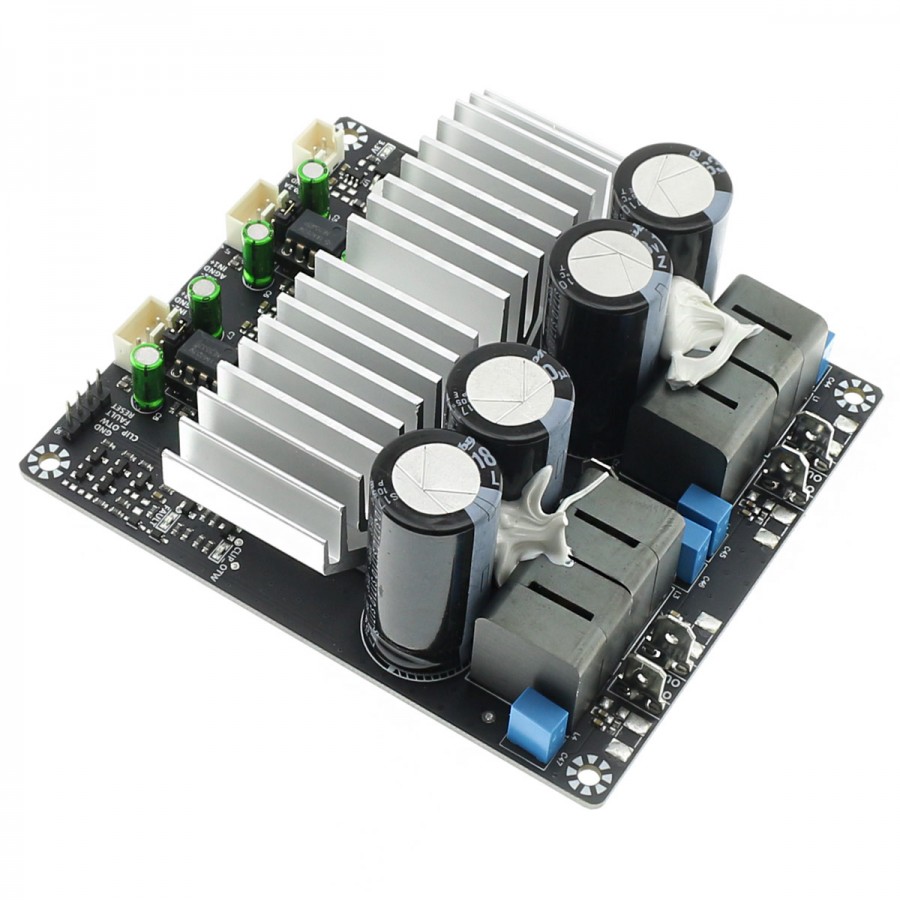

3E AUDIO Amplifier Board Stereo Class D Balanced TPA3255 2x 225W 4 Ohm

Amplifier Board Stereo Class D TPA3255 2x 260W 4 Ohm
This stereo amplifier module integrates a TPA3255 amplifier chip, allowing it to develop a consequent power of 2x 225W under 4Ω (1% THD+N) while taking advantage of the high efficiency inherent to its Class D architecture. The careful design of the module allows it to display very good measurements, such as a background noise of 85µVrms or a dynamic range of 111dBA.

Average votes for this product
5.0 / 5

By buying this product you get 8 loyalty points


Reference : 14690
New product

82,50 €tax excl.

Including 0,04 € for green tax
This product is temporarily unavailable.
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Module d'amplification 3e audio

Stereo Class D TPA3255 2x 225W 4 Ohm

Module d'amplification Stéréo Class D TPA3255 2x 260W 4 Ohm

This stereo amplifier module integrates a TPA3255 amplifier chip, allowing it to develop a consequent power of 2x 225W under 4Ω (1% THD+N) while taking advantage of the high efficiency inherent to its Class D architecture. The careful design of the module allows it to display very good measurements, such as a background noise of 85µVrms or a dynamic range of 111dBA.

The two inputs, on 3 pin 2.54mm connectors, can operate balanced or unbalanced, via a jumper adjustment. An auxiliary power supply output is also available, delivering 12V 0.2A, allowing to supply a preamplifier module.

The module may only be powered via a power supply input. Never connect both power inputs simultaneously.

Module d'amplification Stéréo Class D TPA3255 2x 260W 4 Ohm

Technical characteristics

Specifications
RevisionB
Product typeAmplification module
Amplification chip1x TPA3255
Amplification typeClass D
ChannelsStereo (2)
Power output2x 225W @ 4Ω, THD+N 1%
2x 280W @ 4Ω, THD+N 10%
Input2x 3 pins 2.54mm connectors (switch balanced/single-ended)
OutputsSpeaker terminals
Auxiliary power supply output12V 0.2A
Speakers impedance4Ω ~ 8Ω
Dynamic range111dBA
Possible configurationBTL / PBTL
Noise floor85µV
Supply voltage24V ~ 48V
DimensionsExternal : 105x90mm
Distance between centres: 97x82mm
Maximum height: 40mm

Noise floor

Module d'amplification Stéréo Class D TPA3255 2x 260W 4 Ohm

Distortion

Module d'amplification Stéréo Class D TPA3255 2x 260W 4 Ohm

Data sheet
InputPCN Connector
OutputScrew terminals
Channel2 (Stereo)
ClassClass D / T
Amplifier chipTPA3255
Power (W)225.0
