AMP8950-2X120 Amplifier Module Class D TDA8950 2 x 120W 4 Ohm

Jack DC 5.5/2.5mm Power Connector Gold Plated (Unit)
This amplifier module AMP8950-2X120 in Class D is based on an amplifier chip TDA8950. This allows it to develop no less than 2 x 120W while offering a high efficiency of 90%, while ensuring low consumption.

No customer reviews yet, login to write a review.

By buying this product you get 5 loyalty points


Reference : 12952
New product

54,90 €tax incl.

45,75 € tax excl.
Including 0,01 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

More info

AMP8950-2X120

Amplifier Module Class D TDA8950 2x120W 4Ω

Module Amplificateur Class D 2x120W 4Ohm

This amplifier module AMP8950-2X120 in Class D is based on an amplifier chip TDA8950. This allows it to develop no less than 2 x 120W while offering a high efficiency of 90%, while ensuring low consumption. The integration of MOS tubes allows this module to offer quality reproduction by developing deep bass and a beautiful dynamic. In addition, the metal resistors with an accuracy of ±1% ensure a good Signal/Noise Ratio while the two electrolytic capacitors of 10000µF of the main circuit ensure a stable and clean signal.

In addition, this amplifier module also embeds a UPC1237 circuit to effectively protect your speakers and the TDA8950 chip embeds protections against overvoltages, overloads and high temperatures.

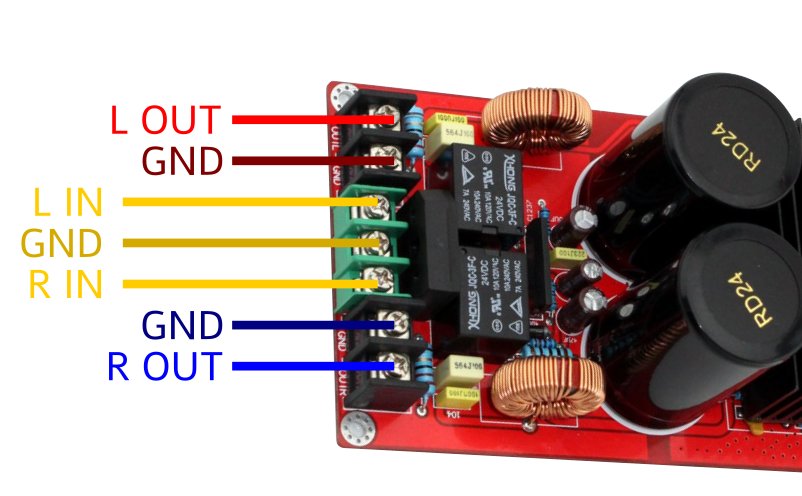

This AMP8950-2X120 module offers a 3 pin connector input that will allow you to associate the desired module. It also includes a 50K potentiometer to adjust the volume level.

Technical characteristics

Specifications
Amplifier chipTDA8950
Amplifier typeClass D
Power2x120W 4Ω
Rendement90%
Frequency response20Hz - 20kHz
Input3 pins connector
Electrolytic capacitor2x Nover Audio Grade 10000µF 50VDC
General
Power supply18V à 26V AC
Dimensions138 x 78 x 49mm
Weight230g
PCB ColorRed

Data sheet
InputScrew terminals
OutputScrew terminals
Channel2 (Stereo)
ClassClass D / T
Amplifier chipTDA8950
Power (W)120.0
