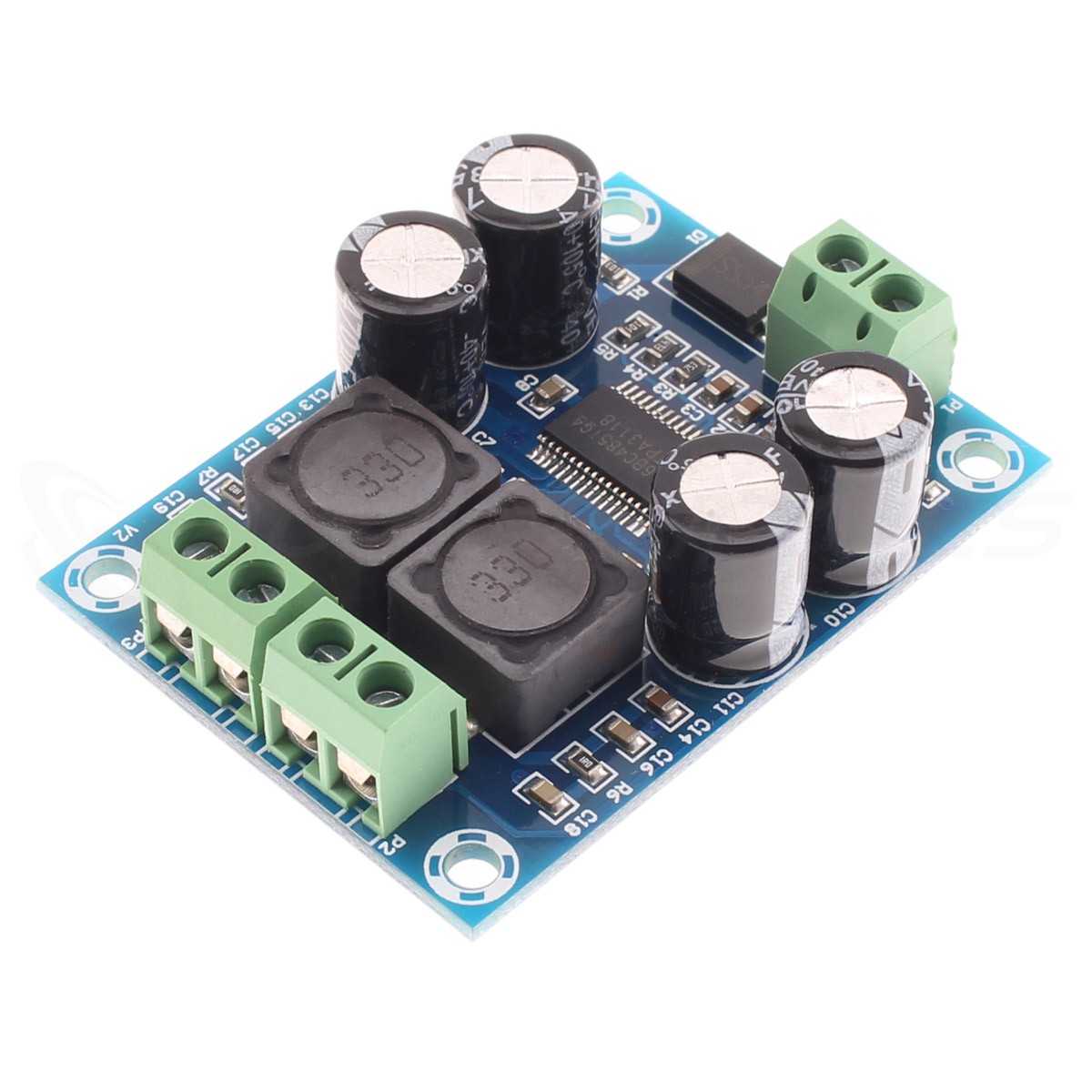

Amplifier Board Class D TPA3110 Mono 30W 4 Ohm
This small mono Class D amplifier module is based on a TPA3110 chip, allowing it to develop a maximum power of 30W. Simple and compact, it allows the development of small amplified audio systems.
No customer reviews yet, login to write a review.
No loyalty points for this product.
Reference : 15876
New product
Viewed products
![[GRADE B] AUDIOPHONICS LPA-M750ET Power Amplifier Mono Class D Purifi 1ET9040BA 1x750W 4 Ohm](https://www.audiophonics.fr/69998-thumb_default/audiophonics-lpa-m750et-1et9040ba.jpg)
![[GRADE A] IEAST AUDIOCAST PRO M20 Streamer WiFi AirPlay DLNA Bluetooth 5.0 24bit 192kHz](https://www.audiophonics.fr/70008-thumb_default/ieast-audiocast-pro-m20.jpg)
![[GRADE A] DAYTON AUDIO HTA20 Hybrid Tube Class AB Amplifier Bluetooth 2x15W 4 Ohm](https://www.audiophonics.fr/70004-thumb_default/dayton-audio-hta20-hybrid-tube-class-ab-amplifier-bluetooth-2x15w-4-ohm.jpg)
![[GRADE S] EVERSOLO DMP-A8 Streamer AK4191EQ AK4499EX XMOS XU316 WiFi DLNA AirPlay Bluetooth aptX HD LDAC](https://www.audiophonics.fr/69953-thumb_default/eversolo-dmp-a8.jpg)
![[GRADE A] MINIDSP FLEX EIGHT Digital Audio Processor DSP 2x8 Channels SHARC ADSP21489 XMOS Bluetooth 5.0 aptX HD LDAC](https://www.audiophonics.fr/69968-thumb_default/minidsp-flex-eight-digital-audio-processor-dsp-2x8-channels-sharc-adsp21489-xmos-bluetooth-50-aptx-hd-ldac.jpg)
Amplifier board
Class D Mono TPA3110 30W 4 Ohm
This small mono Class D amplifier module is based on a TPA3110 chip, allowing it to develop a maximum power of 30W. Simple and compact, it allows the development of small amplified audio systems.

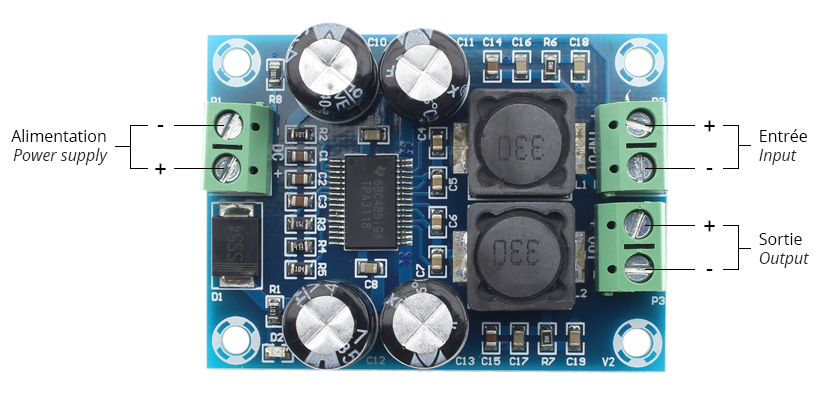

It is recommended to use a power supply voltage between 12V and 15V for a 4Ω speaker and between 12V and 20V for an 8Ω speaker.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Amplifier board |
| Amplifier type | Class D |
| Amplification chip | TPA3110 |
| Input | Screw terminal |
| Output | Screw terminal |
| Output power | 1x30W |
| Efficiency | 93% |
| Frequency response | 35Hz - 88kHz |
| General | |
|---|---|
| Supply voltage | 10-24VDC 3A |
| Dimensions | 55 x 40 x 15mm |
| Mounting holes spacing | 47.5 x 33mm |
| Input | Screw terminals |
| Output | Screw terminals |
| Channel | 1 (Mono) |
| Class | Class D / T |
| Amplifier chip | TPA3110 |
| Power (W) | 30.0 |
