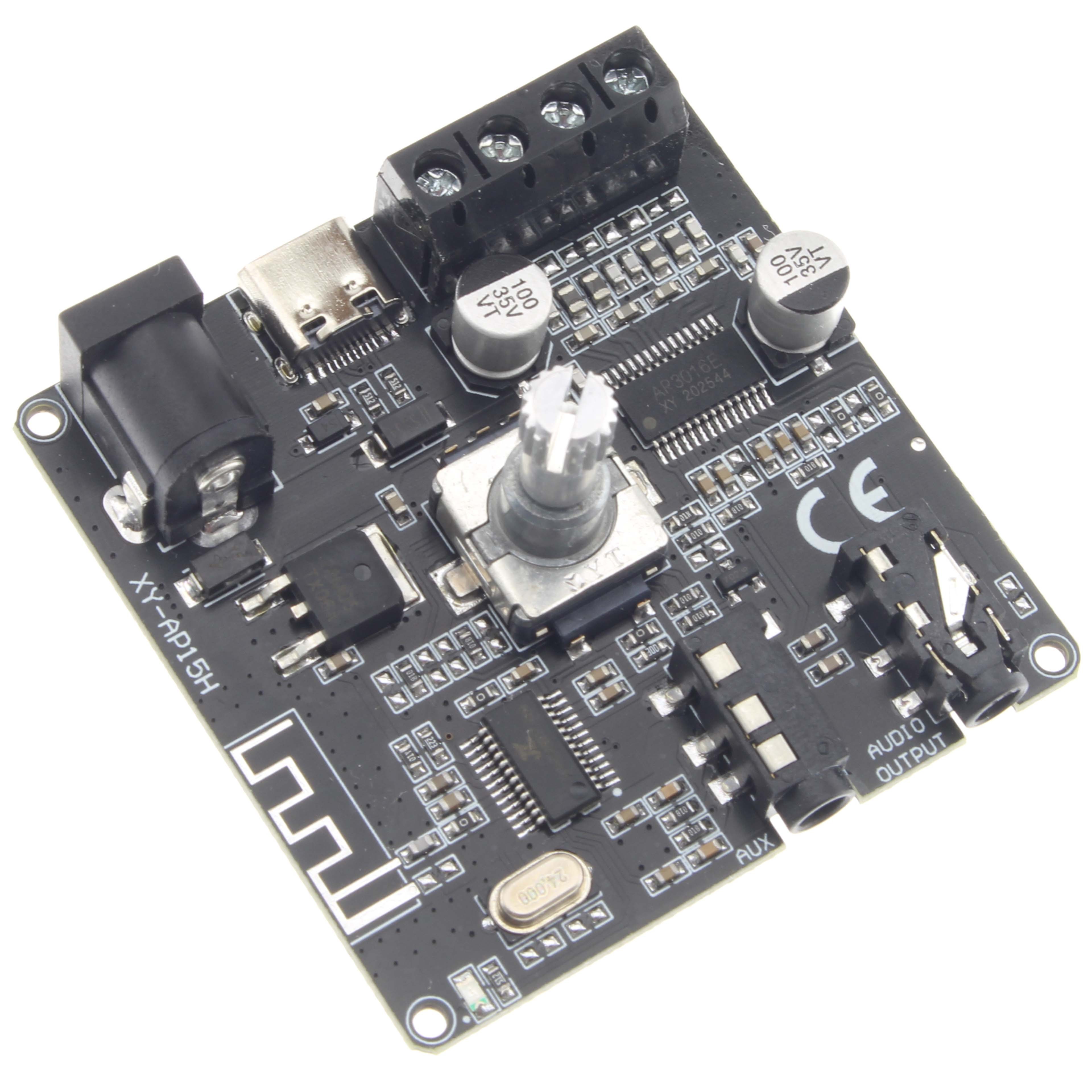

Amplifier Module Bluetooth 5.0 USB-C Volume Control 2x 20W 4 Ohms

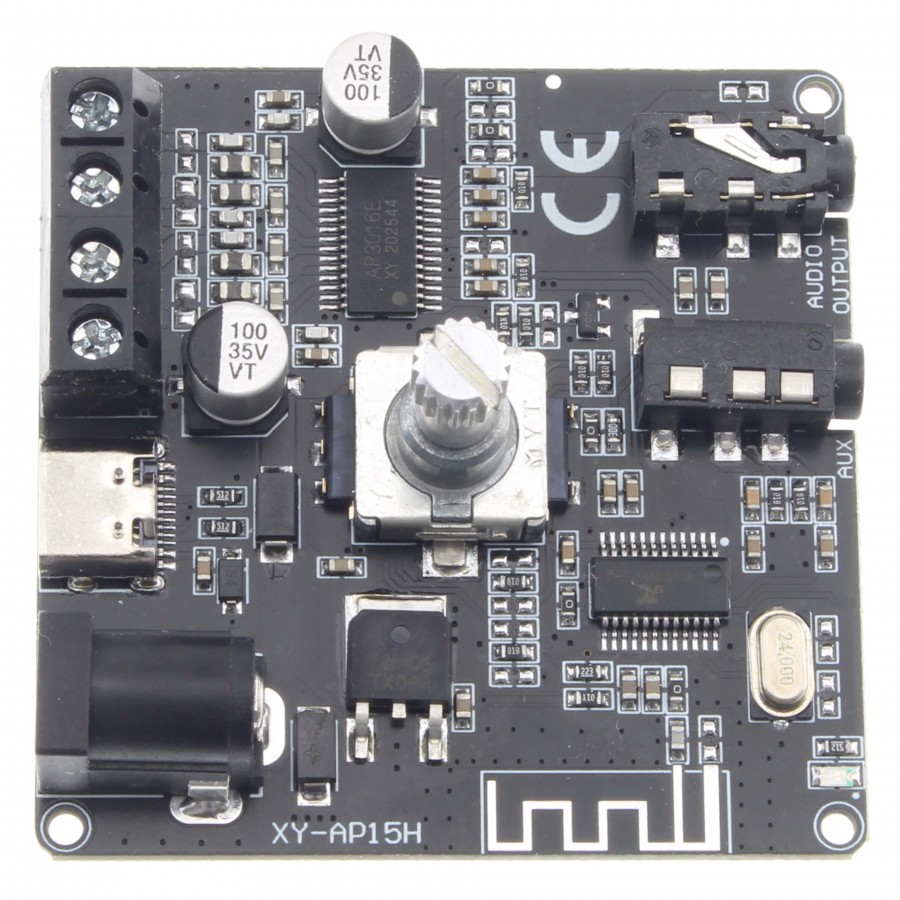

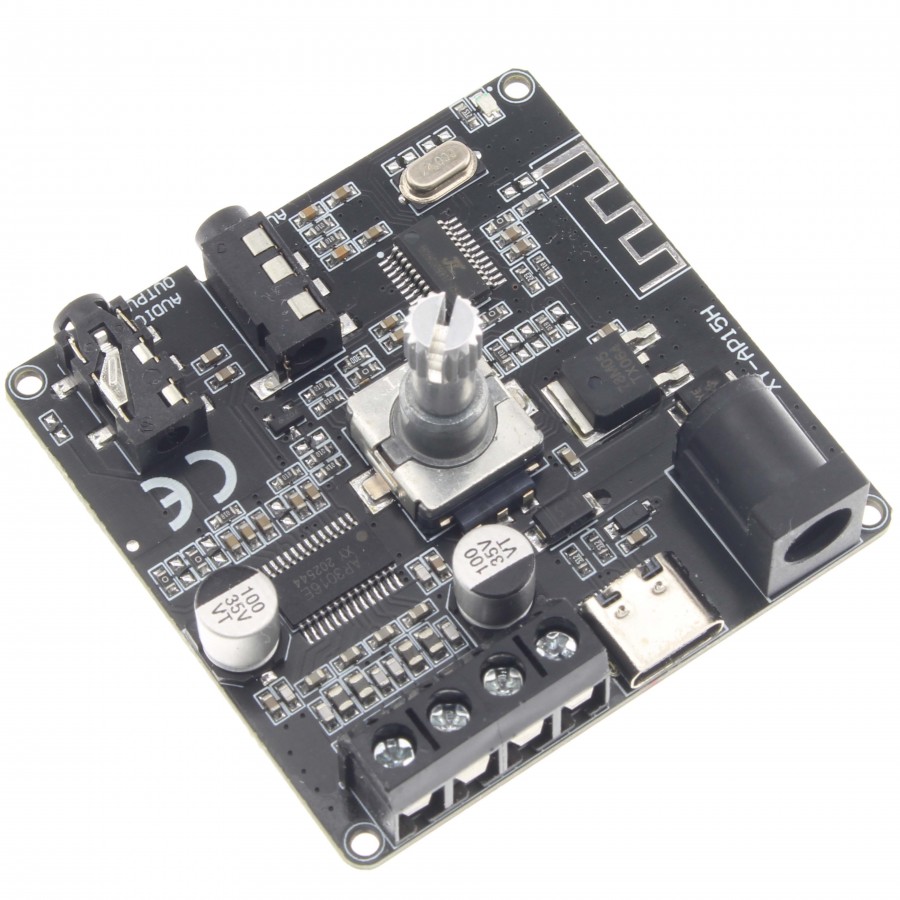

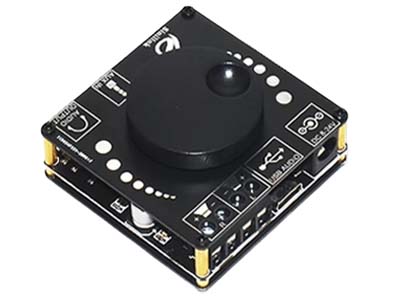

This amplifier module is a complete solution offering numerous operating possibilities. It features Bluetooth, USB-C Audio (16bit 44.1kHz), and 3.5mm AUX inputs. It also integrates a volume control with rotary knob, and audio output can be delivered either through a 3.5mm jack for headphone listening or via screw terminals with an amplification power of 2x 20W into a 4-ohm load. Versatile, this DIY module will fit perfectly into a desktop setup, especially since the included small PCB panels allow direct use without an aluminum enclosure.
Warning: output power depends on the power supply used.
The Bluetooth input has priority over USB and the 3.5mm jack. USB has priority over the 3.5mm jack.
The volume control does not manage the source device volume.

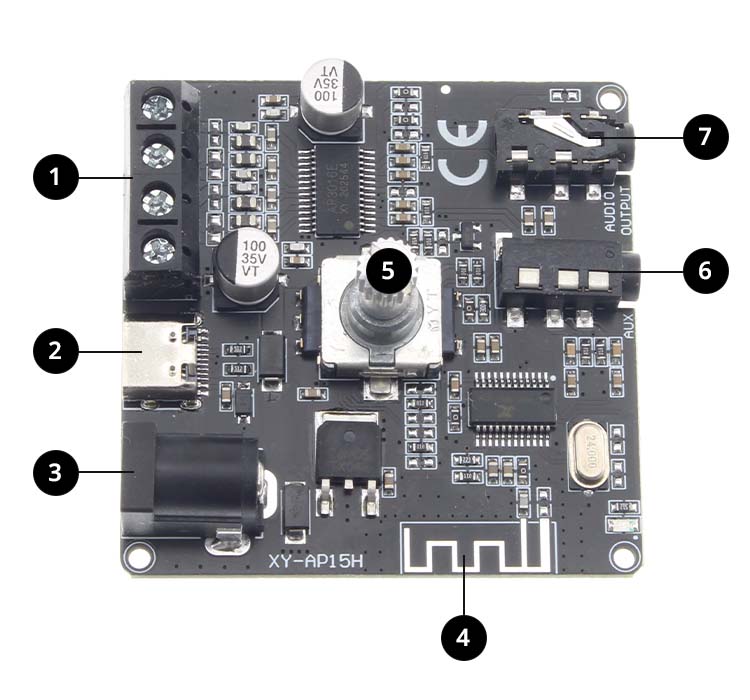

Amplifier Module Overview
| 1 | Amplified output via screw terminal |
| 2 | USB-C Audio input |
| 3 | 12-24V DC power supply |
| 4 | Bluetooth antenna |
| 5 | Volume control / Play / Pause |
| 6 | 3.5mm AUX jack input |
| 7 | 3.5mm audio output |
Technical Specifications
| Specifications | |
|---|---|
| Product type | Amplifier module |
| Inputs | Bluetooth 5.0 1x USB-C 1x 3.5mm Jack |
| Outputs | 1x Amplified output via screw terminal 1x 3.5mm jack output |
| Output power | 2x 20W @ 4 Ohms |
| Supported sampling rate | USB-C: 16bit 44.1kHz |
| General | |
|---|---|
| Power supply | 12-24V DC (Jack DC 5.5/2.1mm) |
| Dimensions | PCB: 52 x 52mm |
| Weight | 4g |

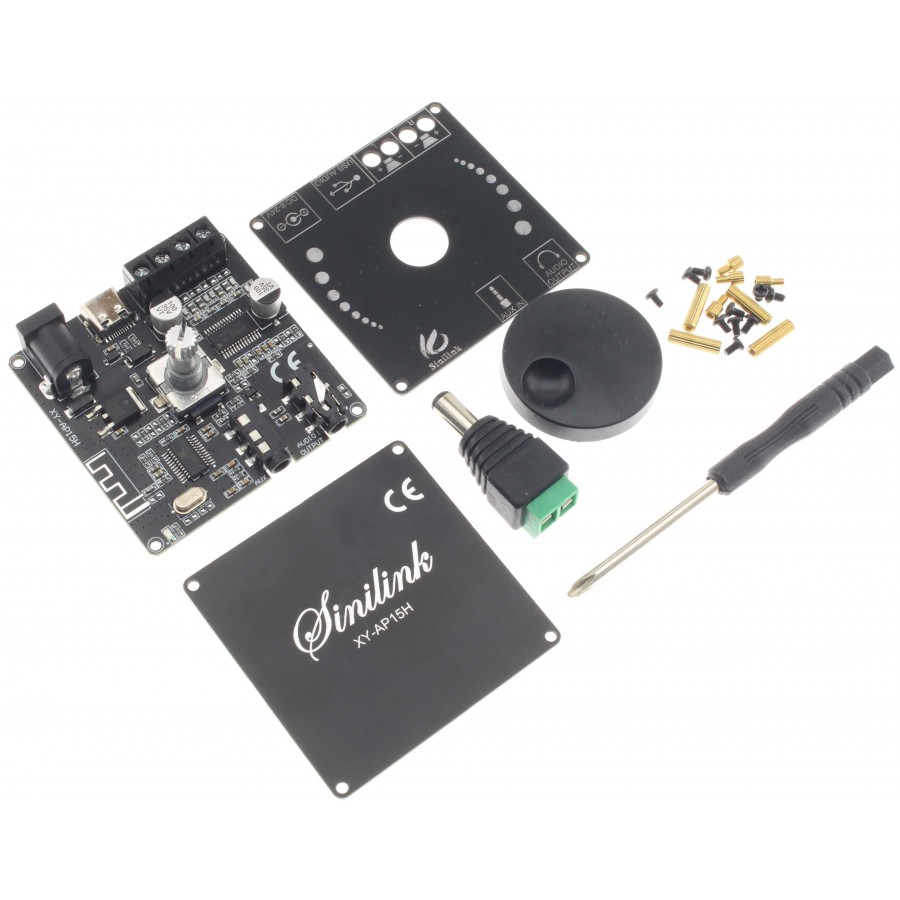

| Package contents | 1x Amplifier module 1x Plastic rotary volume knob 1x DC jack to bare wire adapter 2x PCB enclosure plates 4x Standoffs + Screws 1x Black screws 1x Screwdriver |
| Input | USB |
| Input | Bluetooth |
| Input | Jack 3.5mm |
| Output | Screw terminals |
| Output | Jack 3.5mm |
| Channel | 2 (Stereo) |
| Class | Class D / T |
| Amplifier chip | N/A |
| Power (W) | 20.0 |
