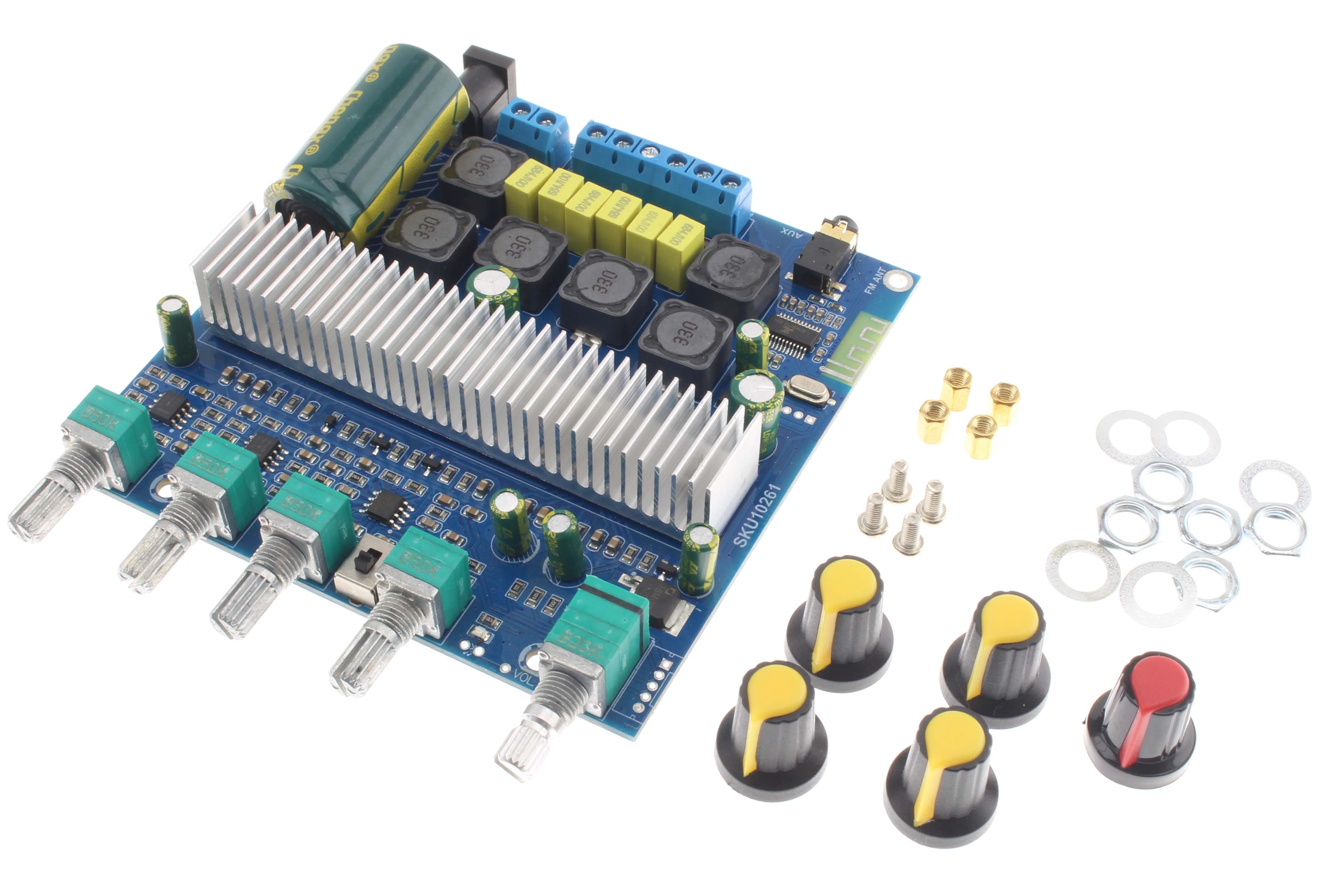

Amplifier Module 2.1 Class D TPA3116 2x 50W + 100W with Volume / Tone / Crossover Frequency Controls
By buying this product you get 3 loyalty points
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
Amplifier Module 2.1 Class D TPA3116 2x 50W + 100W Bluetooth 5.0 with Volume / Tone / Crossover Frequency Control
This 2.1-channel Class D amplifier module is based on the use of two TPA3116D2 amplifier chips. It is therefore capable of delivering up to 2x50W + 100W, enabling 2.1-channel audio amplification with a passive subwoofer. It offers numerous adjustment options via 5 potentiometers, including volume control, treble tone adjustment, treble level (high-pass), crossover frequency, and bass level (low-pass). It provides 2 input options (via a 3.5mm AUX jack or Bluetooth 5.0). Outputs are available through screw terminals for all 3 channels. As an added feature, solder pads allow remote mounting of the volume control, playback controls, operating mode selection, and more. The module can be powered via a DC jack or screw terminal block and accepts 12-24V DC 3A/4A.

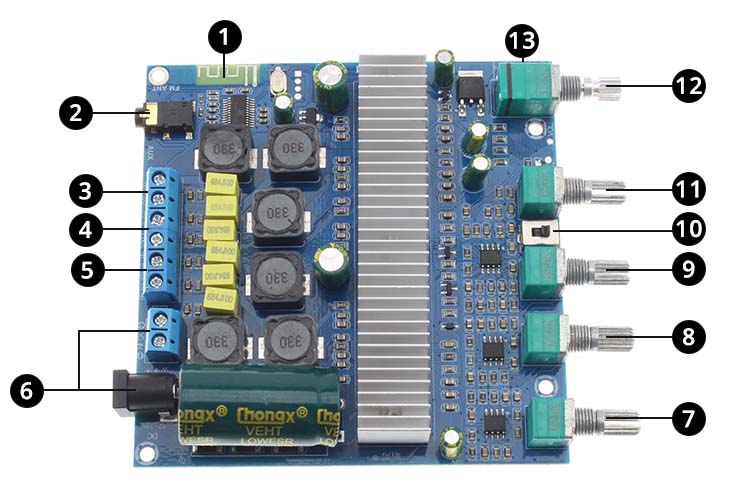

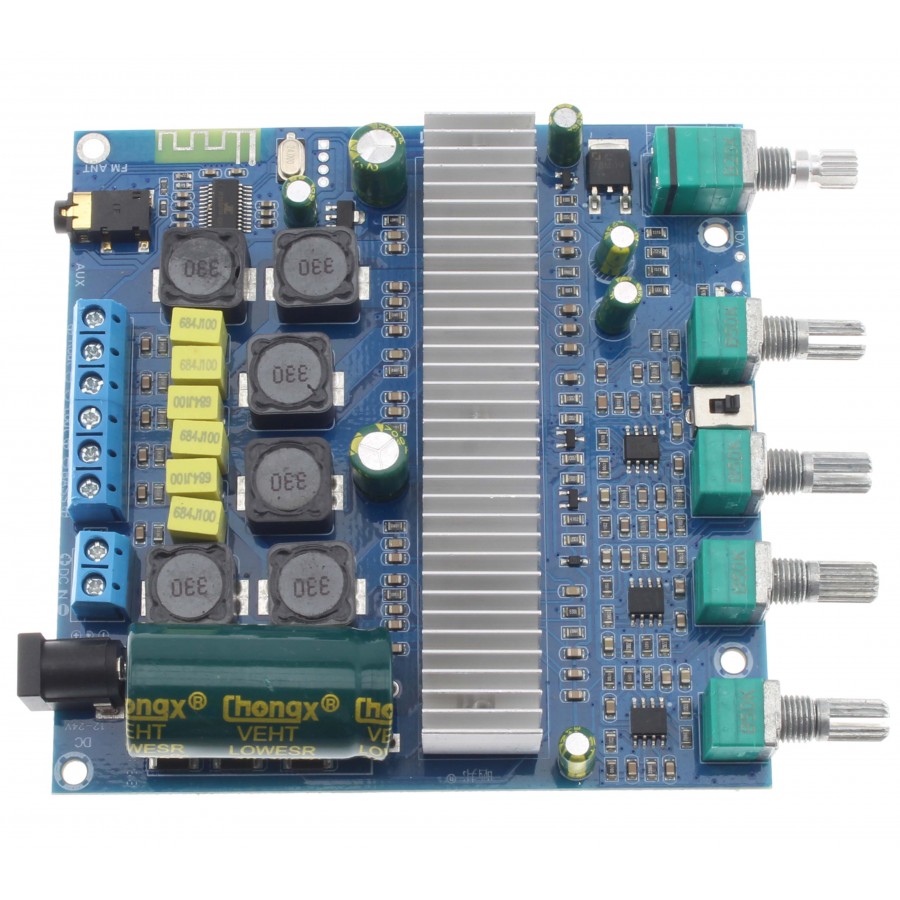

Overview of the TPA3116D2 Bluetooth Amplifier Module
| 1 | Bluetooth Antenna |
| 2 | 3.5mm AUX Jack Input |
| 3 | Right channel output via screw terminal |
| 4 | Left channel output via screw terminal |
| 5 | Subwoofer output via screw terminal |
| 6 | 12-24V DC 3A Power Supply |
| 7 | Bass level (Low-Pass) |
| 8 | Bass crossover frequency 0-200Hz |
| 9 | Treble level (High-Pass) |
| 10 | Crossover frequency On/Off Switch |
| 11 | Treble tone control |
| 12 | Volume control potentiometer / source selection button |
| 13 | Solder pads for external control interface |
Technical Specifications
| Specifications | |
|---|---|
| Product Type | Class D amplifier module |
| Channels | 2.1 |
| Amplifier Chip | 2x TPA3116 |
| Inputs | 1x 3.5mm AUX Jack Bluetooth 5.0 |
| Outputs | 1x Right Channel Output via Screw Terminal 1x Left Channel Output via Screw Terminal 1x Subwoofer Output via Screw Terminal |

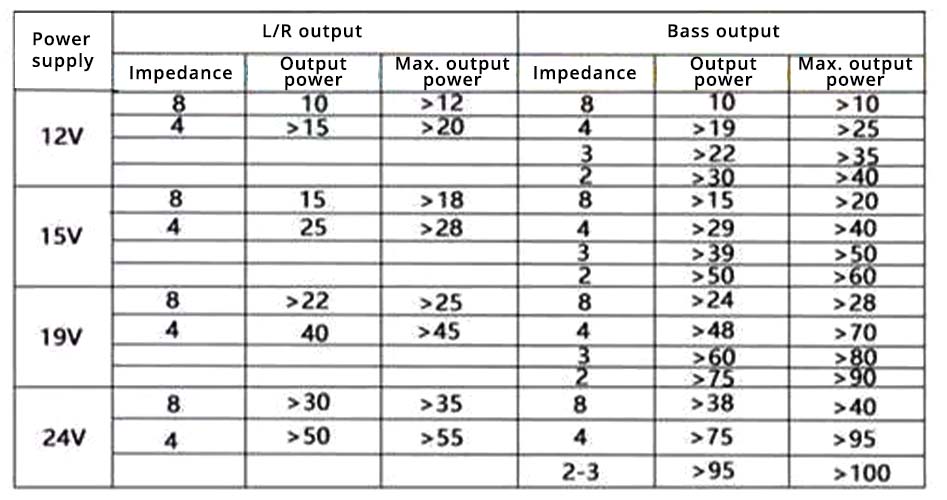

| Output Power | 2x 50W + 100W |
| Output Impedance | L/R: 4-8 Ohms Sub: 2-8 Ohms |
| Low-Pass Filter Crossover Frequency | 0-200Hz |
| Frequency Response | 20Hz-20kHz |
| Input Sensitivity | 600-800mV |
| General | |
|---|---|
| Power Supply | 12-24V DC 3A/4A (via 5.5/2.1mm DC jack or screw terminal block) |
| Dimensions | PCB: 100 x 100mm |
| Weight | 140g |

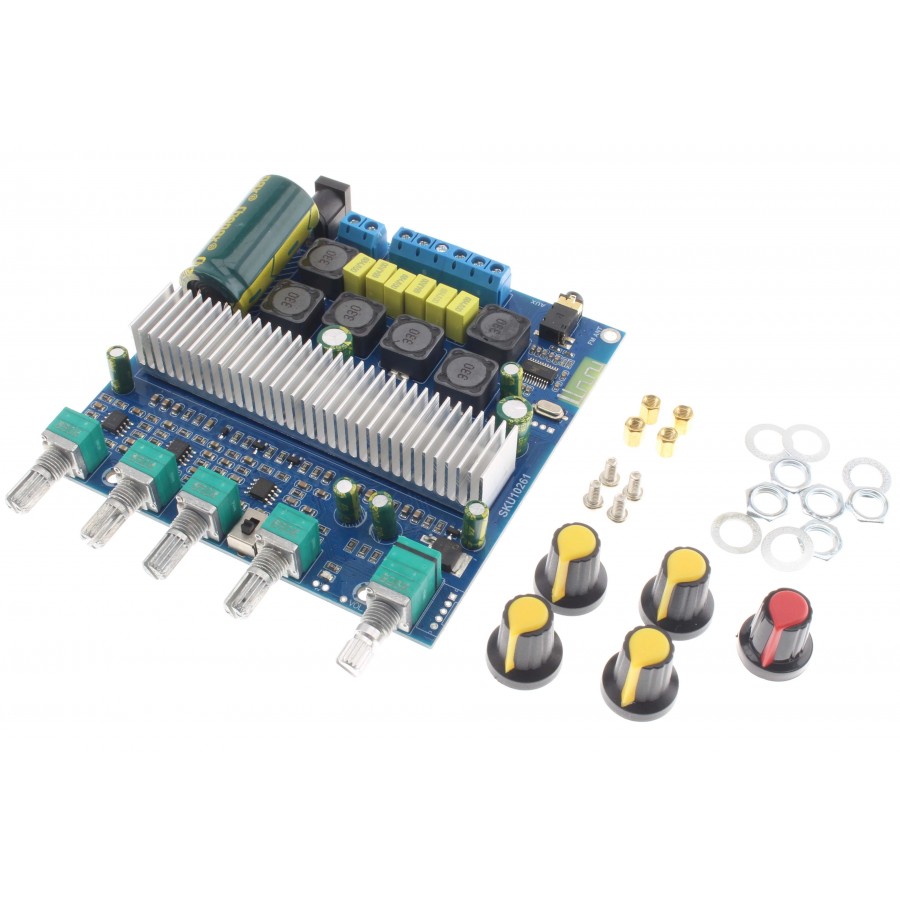

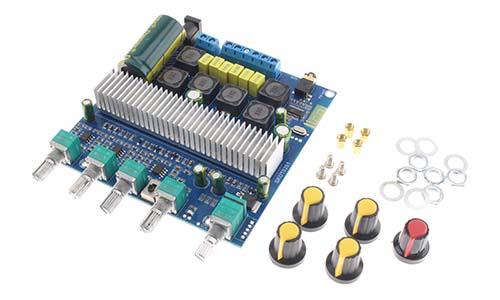

| Package Contents | 1x TPA3116D2 Bluetooth 2.1 Class D Amplifier Module 5x Potentiometer Caps 5x Nuts + Washers 4x Spacers 4x Screws |
| Input | Jack 3.5mm |
| Input | Bluetooth |
| Output | Screw terminals |
| Channel | 2.1 |
| Class | Class D / T |
| Amplifier chip | TPA3116D2 |
| Power (W) | 100.0 |
| Power (W) | 50.0 |
