Class D Amplifier Module Infineon MA12070 Bluetooth 5.0 2x35W 4 Ohm

Class D Amplifier Module Infineon MA12070 Bluetooth 5.0 2x80W 4 Ohm
This small Class D amplifier module uses an Infineon MERUS™ MA12070 amplifier chip allowing it to develop a power of 2*35W under 4Ω (1% THD+N) while offering a high efficiency and a precise and detailed sound reproduction.

No customer reviews yet, login to write a review.

By buying this product you get 2 loyalty points


Reference : 17099
New product

22,90 €tax incl.

19,08 € tax excl.

- +

Shipping date: 30-04-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Amplifier module

Infineon MA12070 Bluetooth 5.0 2*35W 4Ω

Module amplificateur Infineon MA12070 Bluetooth 5.0 2*35W 4Ω

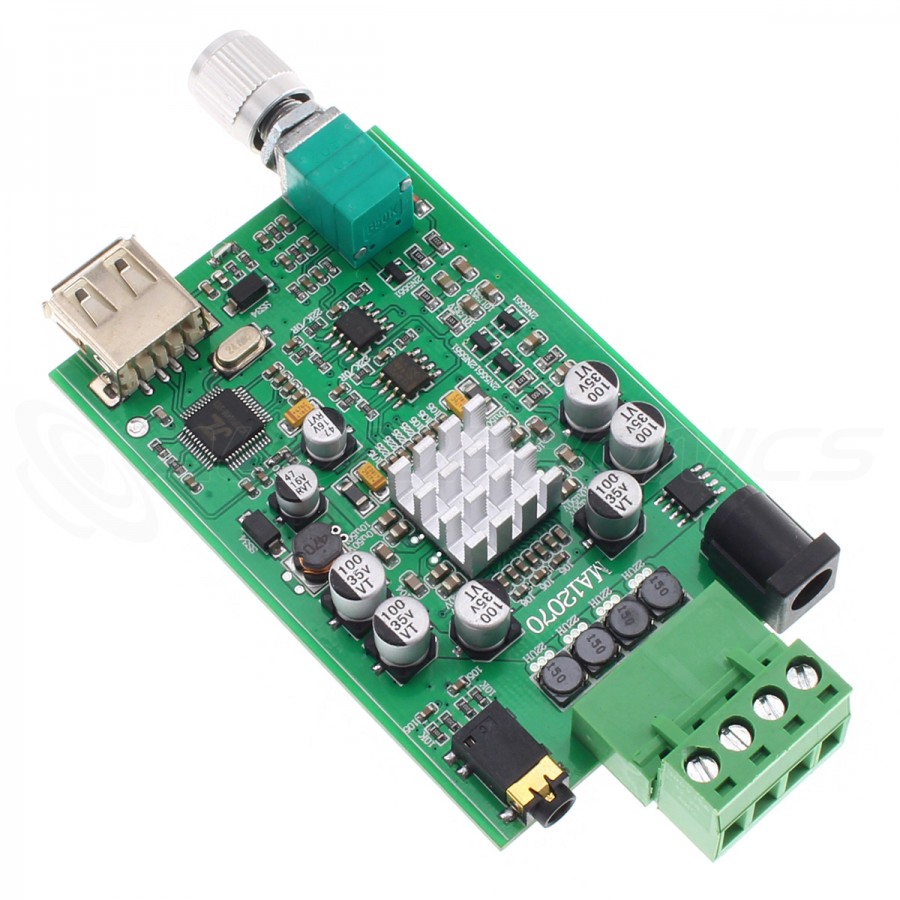

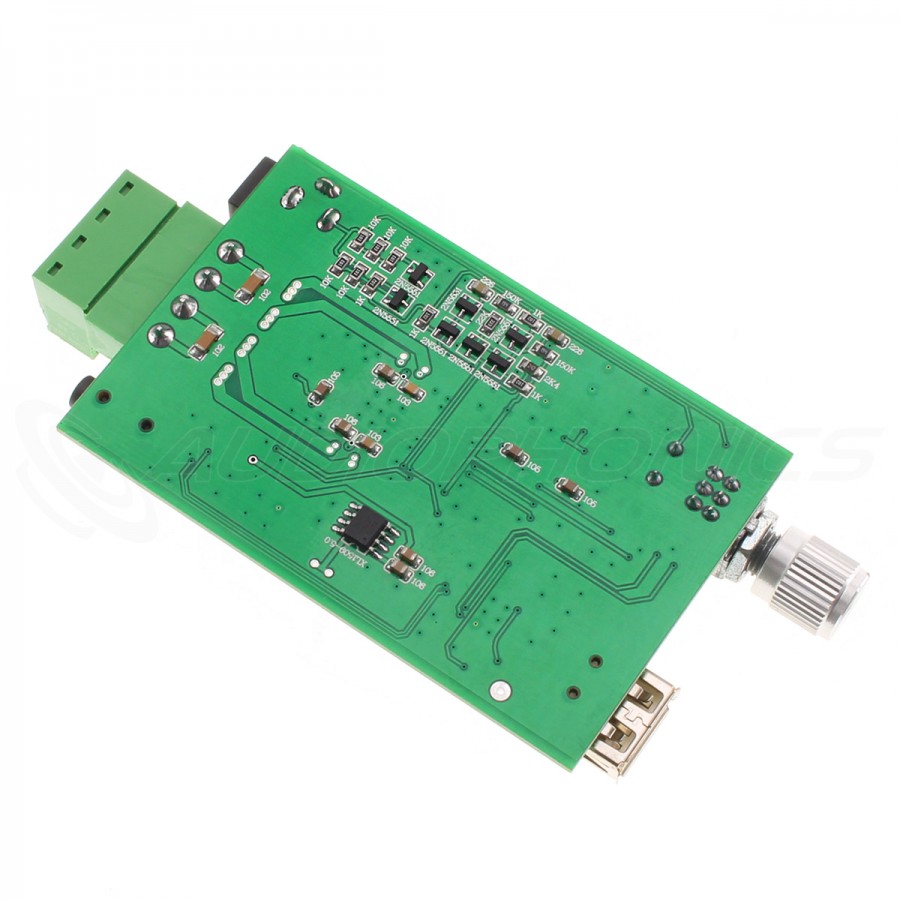

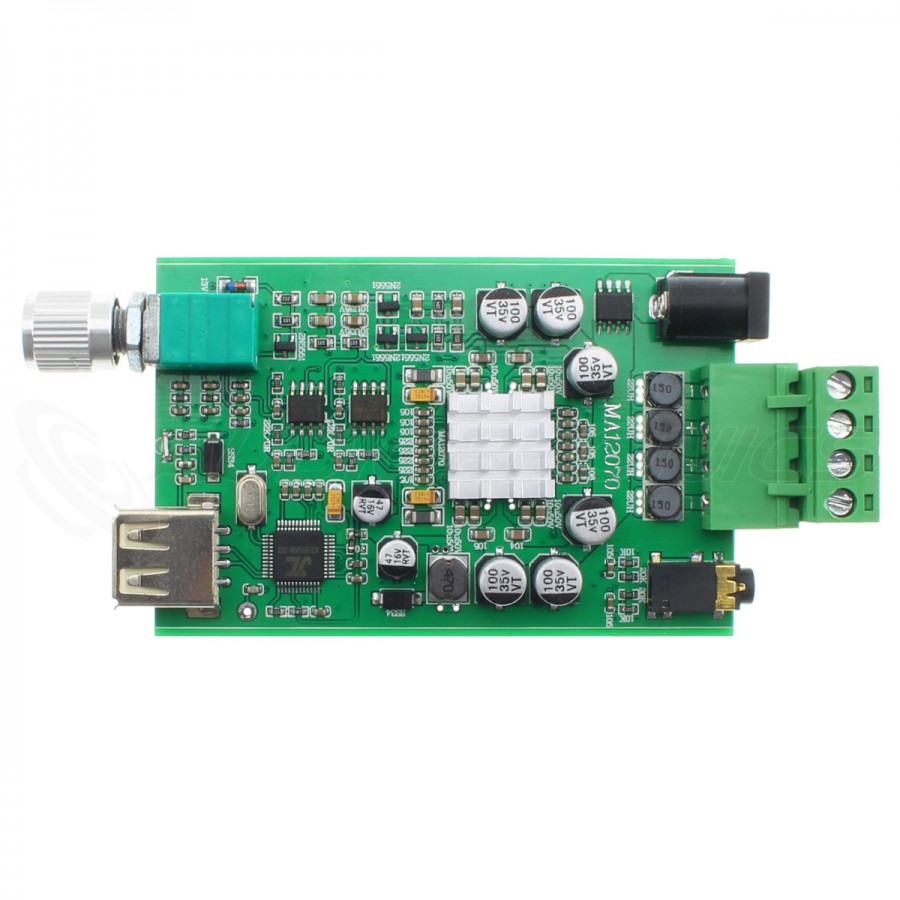

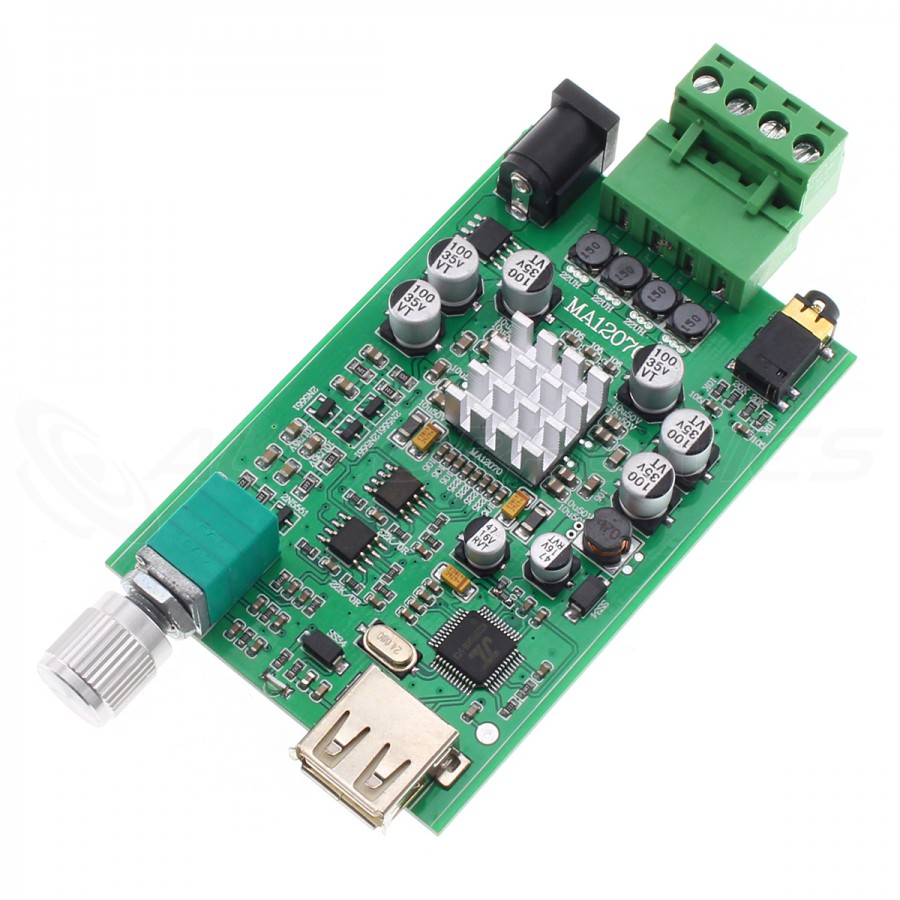

This small, high-performance Class D amplifier module uses an Infineon MERUS™ MA12070 amplifier chip allowing it to develop a power of 2*35W under 4Ω (1% THD+N) while offering high efficiency and precise and detailed sound reproduction. The module provides a USB-A input to connect a storage device such as a USB key or an external hard drive, but above all has a Bluetooth 5.0 receiver as well as a 3.5mm jack input. This allows you to stream and control your music remotely from a smartphone or tablet for example. On the output side, the card is equipped with screw terminals for the speakers. A volume knob is also present for easy and convenient sound level adjustment.

Technical characteristics

Specifications
Product typeAmplifier module
InputsBluetooth 5.0
1* USB-A (USB-Host)
1* Jack 3.5mm
OutputsSpeaker output on screw terminals
Amplification chipInfineon MERUS MA12070
Output power2*35W @ 4Ω, 19V, 1% THD+N
THD+N0.003%
SNR110dB
Frequency response18Hz-25kHz
General
Supply voltage15-19VDC via Jack DC 5.5/2.5mm
Dimensions80*52mm

Data sheet
InputJack 3.5mm
InputUSB
InputBluetooth
OutputSpeaker terminal
Channel2 (Stereo)
ClassClass D / T
Amplifier chipInfineon MA12070
Power (W)35.0
