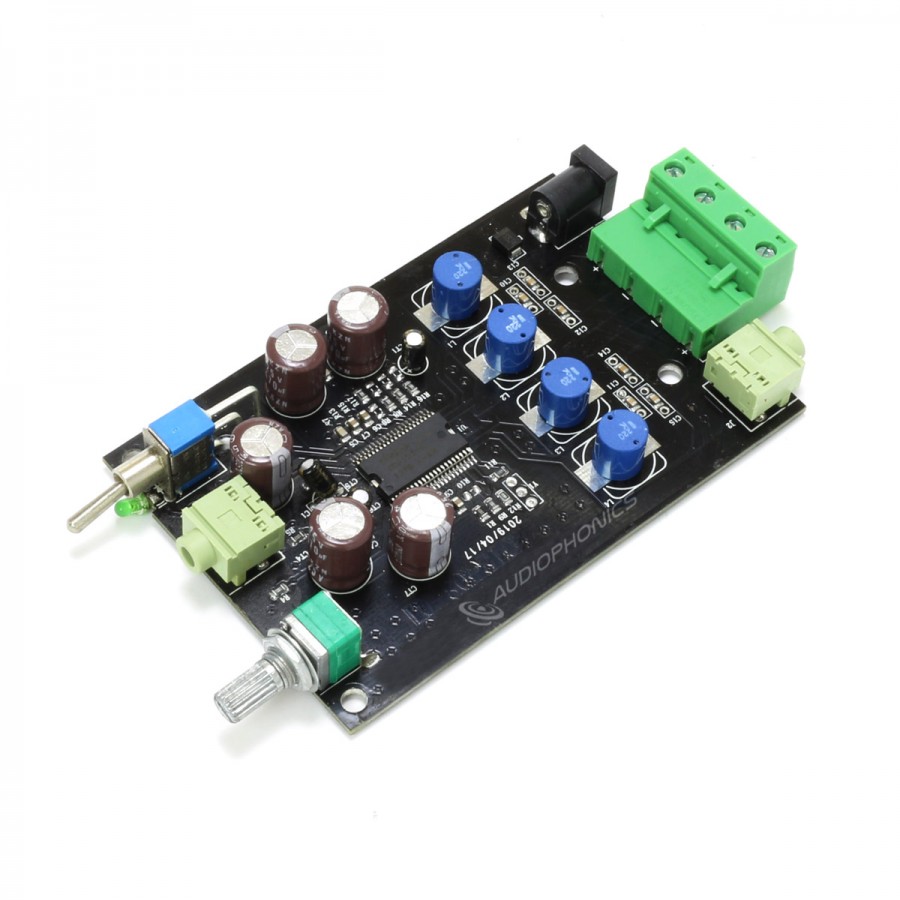

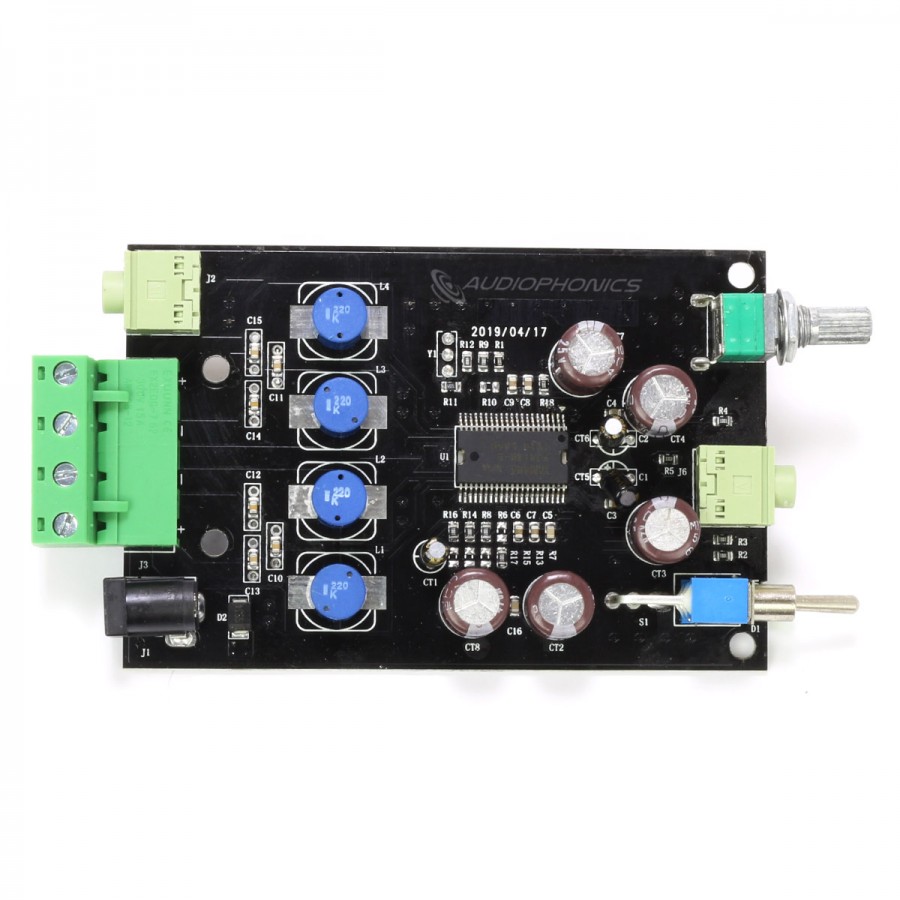

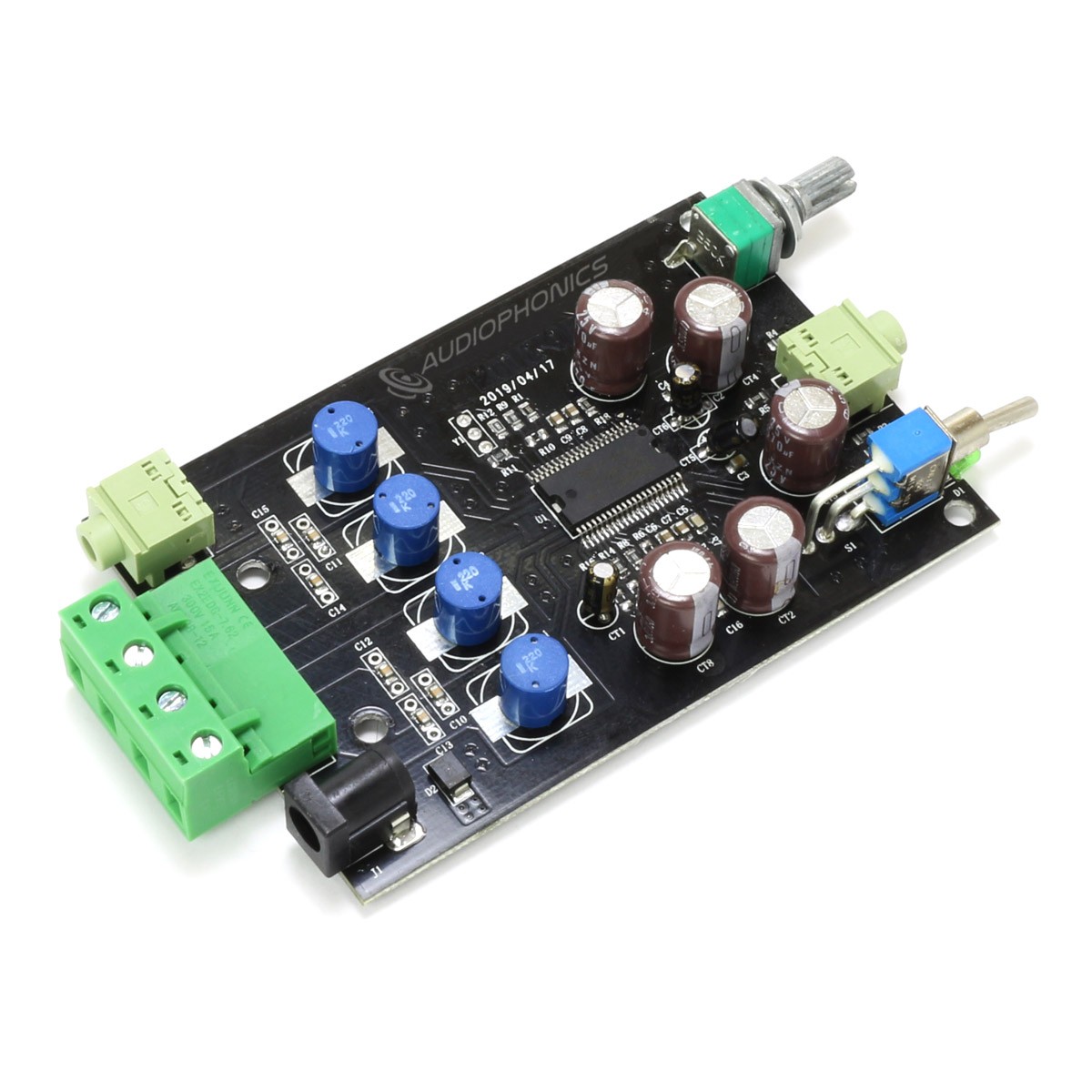

FX-AUDIO YDA138-E Class D Amplifier Module YDA138 2x10W 8 Ohm

FX-AUDIO YDA138-E Class D Amplifier Module YDA138 2x10W 8 Ohm
This small Class D FX-Audio YDA-138-E amplifier module is ideal for integration into a small DIY project that does not necessarily require a large power reserve. Its Yamaha YDA138-E chip allows it to deliver a power of 2x10W.

Average votes for this product
5.0 / 5
  Based on 1 customers reviews.

No loyalty points for this product.


Reference : 13875
New product

9,90 €tax incl.

8,25 € tax excl.
Including 0,01 € for green tax
This product is discontinued
Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

FX-AUDIO YDA138-E

Class D Amplifier Module YDA138 2x10W 8 Ohm

FX-AUDIO YDA138-EModule Amplificateur Class D YDA138 2x10W 8Ω

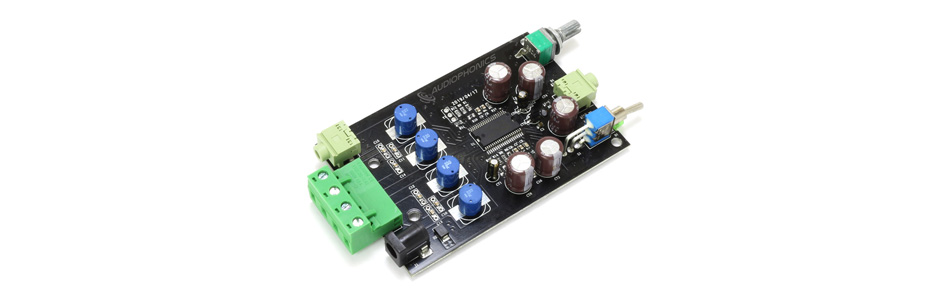

This small Class D FX-Audio YDA-138-E amplifier module is ideal for integration into a small DIY project that does not necessarily require a large power reserve. Its Yamaha YDA138-E chip allows it to deliver a power of 2x10W with a high efficiency of 88%, while ensuring a beautiful restitution. The module integrates a 3.5mm Jack connector at the input and a 3.5mm Jack headphone output at the output of the speaker terminals. The output is preceded by a series of 4 filter capacitors to limit noise.

Technical characteristics

Specifications
Product typeAmplifier module
Number of channelsStereo (2)
Power2x10W @ 8Ω
Headphone output power2x 50mW @ 32Ω
Amplification chipYamaha YDA138
Amplification typeClass D
Input1x Jack 3.5mm
OutputsSpeaker terminals (maximum Ø3.5mm)
Headphone output Jack 3.5mm
SNR100dB
Efficiency> 88%
General
Power supply9-13.5VDC 2A via Jack 5.5/2.1mm (sold separately)
PCB Dimensions100 x 66mm
Total dimensions128 x 66 x 18mm

Data sheet
InputJack 3.5mm
OutputJack 3.5mm
OutputSpeaker terminal
Channel2 (Stereo)
ClassClass D / T
Amplifier chipYDA138-E
Power (W)10.0

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Livraison par Colissimo Livraison par UPS Express Saver Livraison par DPD
Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
pour le prix RAS
produit simple de bonne facture et pour moins de 10€ (hors alim) qui delivre un son clair et de bonne tenue pour permettre une realisation portative compacte. Associe a un convertisseur DC-DC 5V-12V (comme celui vendu sur ce site (Convertisseur DC-DC 5.5V-35V 3A) il permet de brancher l'ampli sur une alim tye chargeur USB ou powerpack Lithium ion (faire attention a l'amperage de l'alim pour utiliser le module a pleine puissance).
