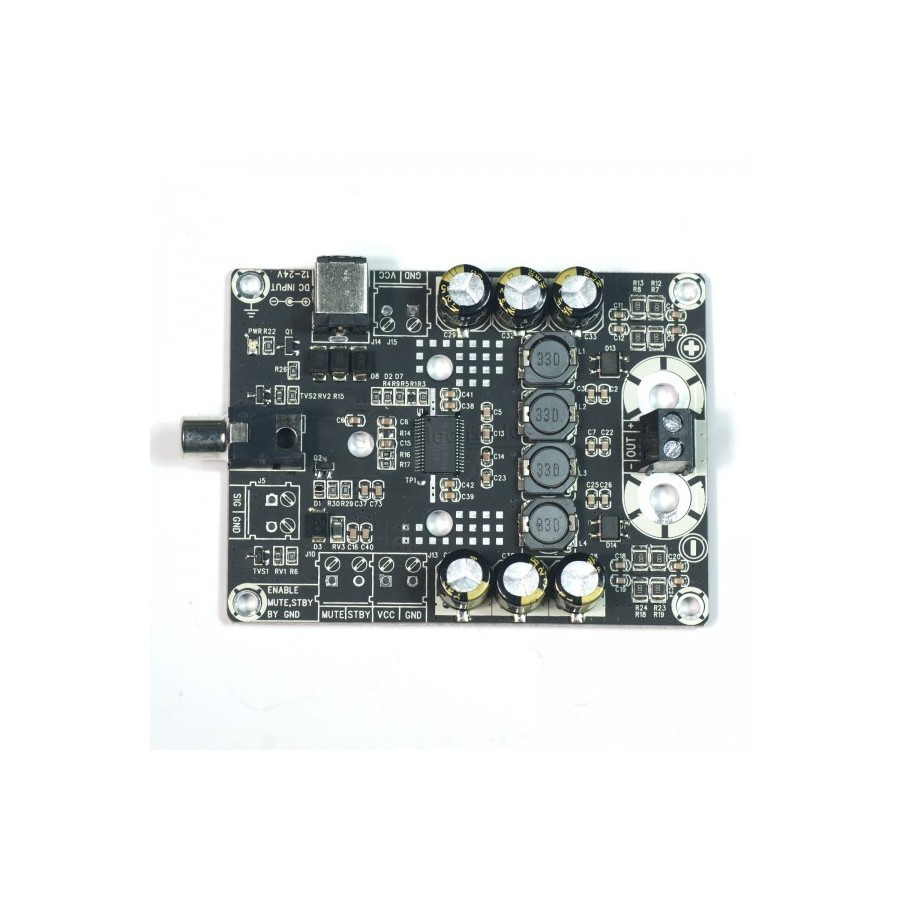

WONDOM AA-AB31211 Amplifier board TPA3118 Class D Mono 60 Watts 4 Ohms

Sure Amplifier Module TPA3118 Class D Mono 60 Watt 4 Ohm

Average votes for this product
4.0 / 5

By buying this product you get 1 loyalty point

Reference : 10331
New product

19,92 €tax excl.

- +

Shipping date: 20-01-2022.

Orders placed before 11AM (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans
More info

This compact Mono TPA3118 Class D amplifier module is a formidable efficiency: it delivers 60W at 4 Ohms and does not require the addition of a heat sink thanks to the design of its PCB.
Ideal for all types of DIY projects, it will integrate easily into your audio systems thanks to its simplified implementation.

Due to its range of power it is very convenient and can easily run on batteries. It has a DC jack input 5.5 / 2.5mm.

Characteristics :

  • TPA3118 amplifier
  • Class D architecture
  • PBTL Topology
  • Excellent audio quality
  • Line Level Input (2VRMS) Solder Pin or RCA
  • Overcurrent protection and overheating
  • Hp protection ("plocs")
  • Power: 45 @ 4 ohm (<0.1% THD + N), 60W @ 4 ohm (<10% THD + N)
  • Input impedance: 30K ohm
  • Input sensitivity: 1.18Vrms
  • Frequency response: 20Hz - 20kHz to +/- 3dB
  • Operating temperature: 0 to 50 ° C
  • Yield: 91% at 21V
  • Power supply: 9 to 24VDC (21V recommended) / DC jack 5.5 / 2.5mm
  • Dimensions: 100x68x15mm
  • Weight: 52g


Data sheet
InputSolder pad
OutputScrew terminals
Channel1 (Mono)
ClassClass D / T
Amplifier chipTPA3118
Power (W)60.0
We deliver all of France, and internationally.
To discover the amount of the shipping costs, you just have to go in your shopping cart once the desired products added.
To discover our different services and delivery options, click on the following logos:
Colissimo - TNT - SoColissimo
Only registered users can post a review. Log in or create an account .
Average votes
4.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
Date :
un bon petit module
Je cherchais à amplifier mes enceintes (cabasse mc40 java) pour me libérer de l'emprise des câbles. Ce module est correct mais l'amplification des basses fréquences nécessite un appel de courant que les alims toute prêtes ne peuvent lui donner. Néanmoins un module assez efficace.
