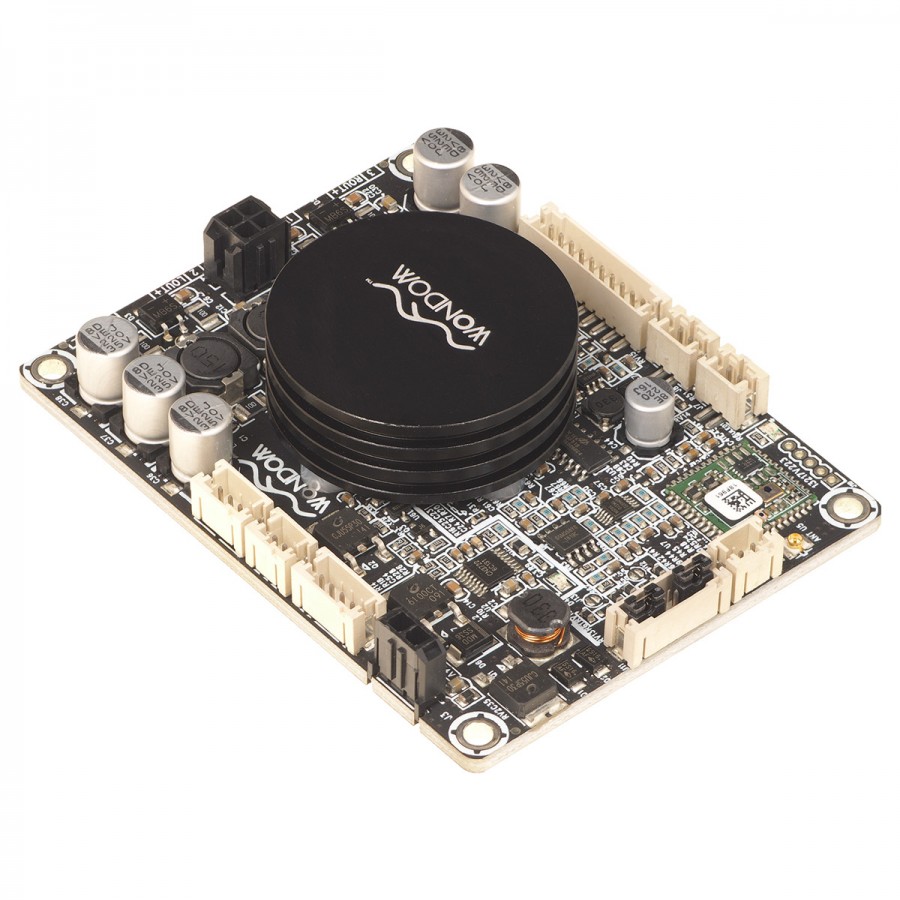

WONDOM AA-JA31182 JAB2-100 Amplifier Board Mono Class D TPA3116 Bluetooth 4.0 100W 2 Ohm

WONDOM AA-JA31182 JAB2-100 Amplifier Board Mono Class D 100W 2 Ohm Bluetooth 4.0
As part of the JAB range, the JAB2 offers a wireless amplification solution with an integrated Bluetooth receiver module that can be powered directly by Lithium batteries. This mono version is capable of delivering 100W of power at 2Ω thanks to a high performance TPA3116 amplifier chip. The module efficiently dissipates the heat from the amplifier thanks to an adapted heatsink. It also offers an overcurrent protection system and thermal protection.

Average votes for this product
5.0 / 5

By buying this product you get 3 loyalty points


Reference : 14673
New product

38,90 €tax incl.

32,42 € tax excl.
Including 0,05 € for green tax

- +

Shipping date: 20-03-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france
Livraison depuis la france Livraison depuis la france Livraison depuis la france

Shipping from France
Billing in France
Technical support in France

Produit garantie 2 ans

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

This is the Mono version of the WONDOM JAB2-100: please refer to the connection schematics below.

Wondom AA-JA31182 JAB2-100

Amplifier Board Mono Class D TPA3116 Bluetooth 4.0 100W 2 Ohm

Wondom AA-JA31182 JAB2-100 Module Amplificateur Mono Class D 100W 2 Ohm Bluetooth 4.0

As part of the JAB range, the JAB2 offers a wireless amplification solution with an integrated Bluetooth receiver module that can be powered directly by Lithium batteries. This mono version is capable of delivering 100W of power at 2Ω thanks to a high performance TPA3116 amplifier chip. The module efficiently dissipates the heat from the amplifier thanks to an adapted heatsink. It also offers an overcurrent protection system and thermal protection.

Technical characteristics

Specifications
Product typeAmplifier module
ChannelsMono (1)
Amplification typeClass D
Amplification chipTPA3116
Power100W
InputsBluetooth
Line input
OutputSpeaker output on Molex
Bluetooth version4.0
Supported Bluetooth protocolsaptX
EDR
A2DP
BTL Support
Measurements
ParameterConditionsMin.Typ.Max.
Supply range-12VDC19VDC24VDC
Battery under voltage protection--10.4V10.5V
Constant charging voltage--12.3V12.7V
Charge current--0.5A1A
Gain-18dB26dB36dB
Output power19V @ 2Ω1x100W--
THD@ 2Ω, 10W, 1kHz-0.02%-
Output noise levelA-Weighting, input connected to  GND-185µV-
SNR10W @ 2Ω, THD+N=1%-92dB-
General
Dimensions91.4 x 68.6mm
Package1x Wondom AA-JA31182 JAB2-100
1x Speaker Molex cable
1x Power Molex cable
Wondom AA-JA31182 JAB2-100 Module Amplificateur Mono Class D 100W 2 Ohm Bluetooth 4.0 Wondom AA-JA31182 JAB2-100 Module Amplificateur Mono Class D 100W 2 Ohm Bluetooth 4.0Wondom AA-JA31182 JAB2-100 Module Amplificateur Mono Class D 100W 2 Ohm Bluetooth 4.0Wondom AA-JA31182 JAB2-100 Module Amplificateur Mono Class D 100W 2 Ohm Bluetooth 4.0Wondom AA-JA31182 JAB2-100 Module Amplificateur Mono Class D 100W 2 Ohm Bluetooth 4.0

Data sheet
InputBluetooth
OutputSpeaker terminal
Channel1 (Mono)
ClassClass D / T
Amplifier chipTPA3116
Power (W)100.0
