WONDOM AA-JA32472 JAB2-30 V2 Class D Stereo Amplifier Module Bluetooth 5.0 DSP 2x30W 8 Ohm

Here is a versatile Bluetooth 5.0 Stereo amplifier module that delivers 2x30W with 8 ohms load. It belongs to the JAB series that offers amplifier modules for mobile use.

Average votes for this product
4.7 / 5
  Based on 3 customers reviews.

By buying this product you get 3 loyalty points


Reference : 13308
New product

34,90 €tax incl.

29,08 € tax excl.

- +


Shipping date: 04-11-2025.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Add to wishlist
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product


More info

SURE-AA JA32171 V2

Class D Stereo Amplifier Module 2x30W 8 Ohm DSP Bluetooth 5.0 and Antenna


JAB2


Here is a versatile Bluetooth 5.0 Stereo amplifier module that delivers 2x30W with 8 ohms load. It belongs to the JAB series that offers amplifier modules for mobile use. They are thus designed to operate on battery power as well as AC. For this purpose the power supply can be battery, AC adapter, solar panels (see PDF in the download tab).

There are many possibilities for designing amplifier / powered speakers: yachting, small sound system, jukebox, home automation, motorhome, In-Wall or ceiling speakers. And more generally, any project requiring flexibility in the integration of the amplifier.


Version V2 : external antenna for bluetooth


This is the V4 version of JAB2-30 which now includes a external Bluetooth antenna with adhesive. This enhancement facilitates a clean integration in housing, without sacrificing on the quality of the transfer. Thus, all Bluetooth applications are gaining flexibility and JAB2 can now be used to develop a high performance Bluetooth dock, active speakers apt-X compatible with wireless apt-X tablets or smartphones.

In addition, this new version adds a 2-pin connector, allowing you to block Bluetooth pairing mode once the connected person disconnects, or to enable or disable pairing mode as you wish. For this purpose, a button is delivered with the module. A short press on the latter allows you to automatically block the appearance when a user disconnects, a long press allows you to activate or deactivate pairing.

A DSP chip supporting Miumax PC UI

A DSP chip is integrated in JAB2v2 and can be controlled via the programming port. After connection to a WONDOM ICP5, you can obtain the control function of the PC interface. Sure Electronics has developed a PC user interface, with which you can try out gain, high/low pass filter, noise suppressor, bass, frequency changer and many other effects.

DSP du WONDOM AA-JA32472

Many accessories available


This module comes with a 50cm power cable, and a 50cm stereo speaker with cable Molex X4 / bare wire.

Many options and accessories can enhance the JAB2. There is a cable kit , a metal mounting bracket, accumulator cradle & power manager, extension kit with USB & Jack 2.5 ports.

Use a bipolar interruptor instead a push button if you need a hardware for on/off commands.

Parts supplied with JAB

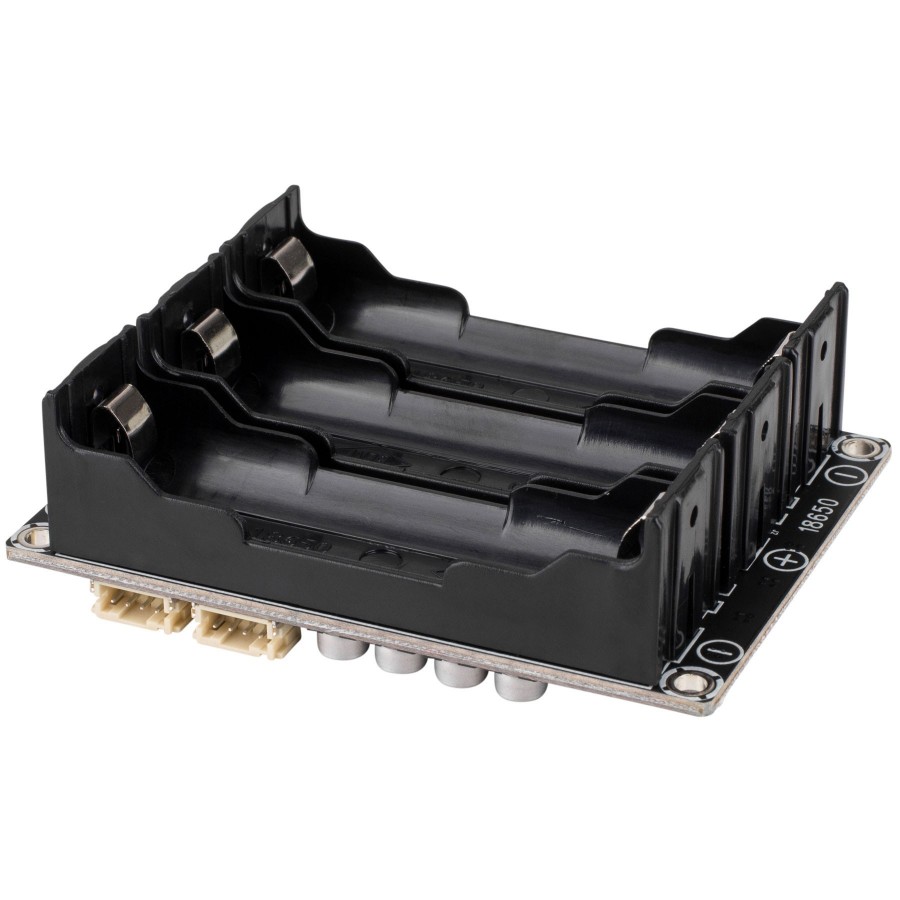

Module 18650 external accumulator battery jab

Optionnal battery module


This module can run on batteries thanks to the battery board from the same manufacturer. It is a module for 18650 battery (Li-Ion 4.2VN). When this accessory is installed, it automatically manages battery charging and powers the amplifier for a very comfortable result with a range of several hours at full power.

1.2.3 battery card connectors are 4-pin connectors to connect the battery with the amplifier card card. This also means that the battery card can load three amplifiers simultaneously.

sure-aa-ja32171-jab-2-50-module-amplific
Specifications
Amplifier ChipTPA3118
Power2x 30W 8 ohms (THD + N <1%)
Frequency response20Hz - 20kHz.
THD19V @ 8Ω,10W, 1KHz
SNR19V, 10W @ 8Ω, THD+N=1%
Bluetooth compatibilityAPTX V5.0 + EDR, A2DP
Status IndicatorsLED (not included)
Protection against overcurrent and overheatingYes
Power-Supply12-24 VDC
InputsStereo analog on connector Molex43025-400 / 43025-4000
Bluetooth 5.0
Dimensions91.5 x 68.5mm
Parts supplied
2x30W Amplifier JAB 2-30 V2x1
Power cablex1
Speaker cablex1

Data sheet
InputNC
InputBluetooth
OutputMolex
Channel2 (Stereo)
ClassClass D / T
Amplifier chipTPA3118
Power (W)30.0
