ATOHM KIT DIY RAFALE VR1-X Subwoofer 220W 32Hz - 150Hz (Unit)

ATOHM KIT DIY RAFALE VR1-X Subwoofer 220W 32Hz - 150Hz (Unit)

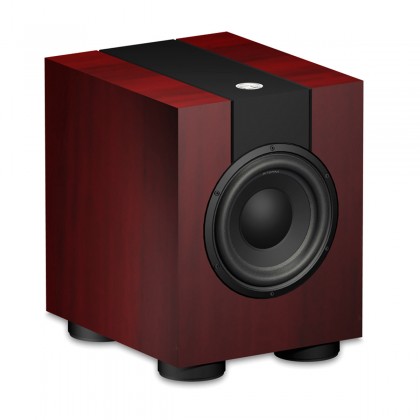

The Atohm Rafale VR1-X Rafale Kit is an active subwoofer capable of incredible performance. Its Bass Reflex load incorporates 220W RMS dedicated amplification coupled with an impressive 23cm diameter high-end speaker.

No customer reviews yet, login to write a review.

By buying this product you get 54 loyalty points


Yes, notify me when available !
Reference : 14007
New product

541,67 €tax excl.

Including 0,04 € for green tax
Available on order

- +

Produit garantie 2 ans

Accessories for this product


More info

Atohm Kit Rafale VR1-X

Subwoofer 220W 32Hz - 150Hz (Unit)

Atohm Kit Rafale VR1-X Kit DIY Subwoofer 220W 32Hz - 150Hz (Unité)

The Atohm Rafale VR1-X Rafale Kit is an active subwoofer capable of incredible performance. Its Bass Reflex load incorporates 220W RMS dedicated amplification coupled with an impressive 23cm diameter high-end speaker. The Rafale VR1-X’s various connection options allow it to be integrated into any type of HiFi or Home Cinema installation. It is also the ideal complement for compact loudspeakers such as libraries or small columns, offering the sitting, dynamics and breadth of a much larger system.

Atohm Kit Rafale VR1-X Kit DIY Subwoofer 220W 32Hz - 150Hz (Unité)

Atohm LD230CRA04 Speaker

The LD230CRA04 is a bass speaker with a diameter of no less than 23cm, designed to provide a bandwidth between 20Hz - 200Hz. Incorporating the latest refinements of the brand, it pushes the limits of a loudspeaker of this diameter. The LDS profile suspension of the driver has almost linearity over the maximum excursion range, while maintaining perfect geometry under the most severe stresses. This suspension is combined with a progressive geometry spider, guaranteeing a wide excursion of +/-12mm. The consequent rear motorization, with a diameter of 156mm, gives the loudspeaker an important force factor with an ideal QTS. In order to drastically reduce operating noise under high amplitudes but also to ensure better cooling, the bowl and cone have large ventilation openings. The membrane itself guarantees flawless rigidity over a very wide bandwidth, even under high stresses.

S250 Amplification Module

The Atohm S250 amplifier module delivers 220W RMS power while maintaining a small footprint thanks to a power stage IcePower™ operating in Class D. The module offers several active filters offering many adjustment possibilities. X-Guard™ technology avoids the disadvantages of a conventional subsonic filter by ensuring that the excursion of the loudspeaker never exceeds its absolute limit, in order to avoid any breakage but also an increase in the distortion rate, regardless of the amplitude of the input signal. This technology also preserves the signal and its phase, unlike what a subsonic filter could do. The extreme bass is more accurate, the connection to the main speakers is more homogeneous and the loudspeaker is completely protected. The low-pass filter is adjustable from 38Hz to 150Hz with a slope of 12dB/oct or 24dB/oct, in order to be ideally suited for closed speakers or Bass Reflex. The latter can also be disengaged in LFE mode, so that the processor or home cinema amplifier can manage the entire cabinet. The various possible connections on this module ensure an optimal adaptation to any stereo or multi-channel home cinema system.

Atohm Kit Rafale VR1-X Kit DIY Subwoofer 220W 32Hz - 150Hz (Unité)

Technical characteristics

Specifications
Product typeSpeaker Kit (Without cabinet making)
Subwoofer typeActive
Bass Reflex Load27L
Frequency response32Hz - 150Hz
Amplifier modelAtohm S250-XG30
Bass speaker modelAtohm LD230CRA04
PowerRMS : 220W
Max : 320W
Acoustic pressure level112dBspl @ 40Hz.Pl/2st 1m
PowerRMS : 220W
Max : 320W
Low level input2x RCA
High level input2x binding posts 4mm
Cutoff frequencyAdjustable from 38Hz to 150Hz
Phase control0-180°
Filter slopeAdjustable 12dB-24dB-LFE
Speaker mechanical protectionX-Guard™
Voltage limitation and Soft ClippingU-Guard™
Thermal and current amplifier protection
Tuning frequency36Hz
General
Supply voltage230V / 115V
50-60Hz
Consumption320W Max

Data sheet
InputSpeaker terminals
InputRCA
Speaker Power (W RMS)220W
Speaker TypeSubwoofer
Loudspeaker diameter (cm)230
Diaphragm typeComposite alloy
Xmax (mm)12
Channel1 channel (Mono)
